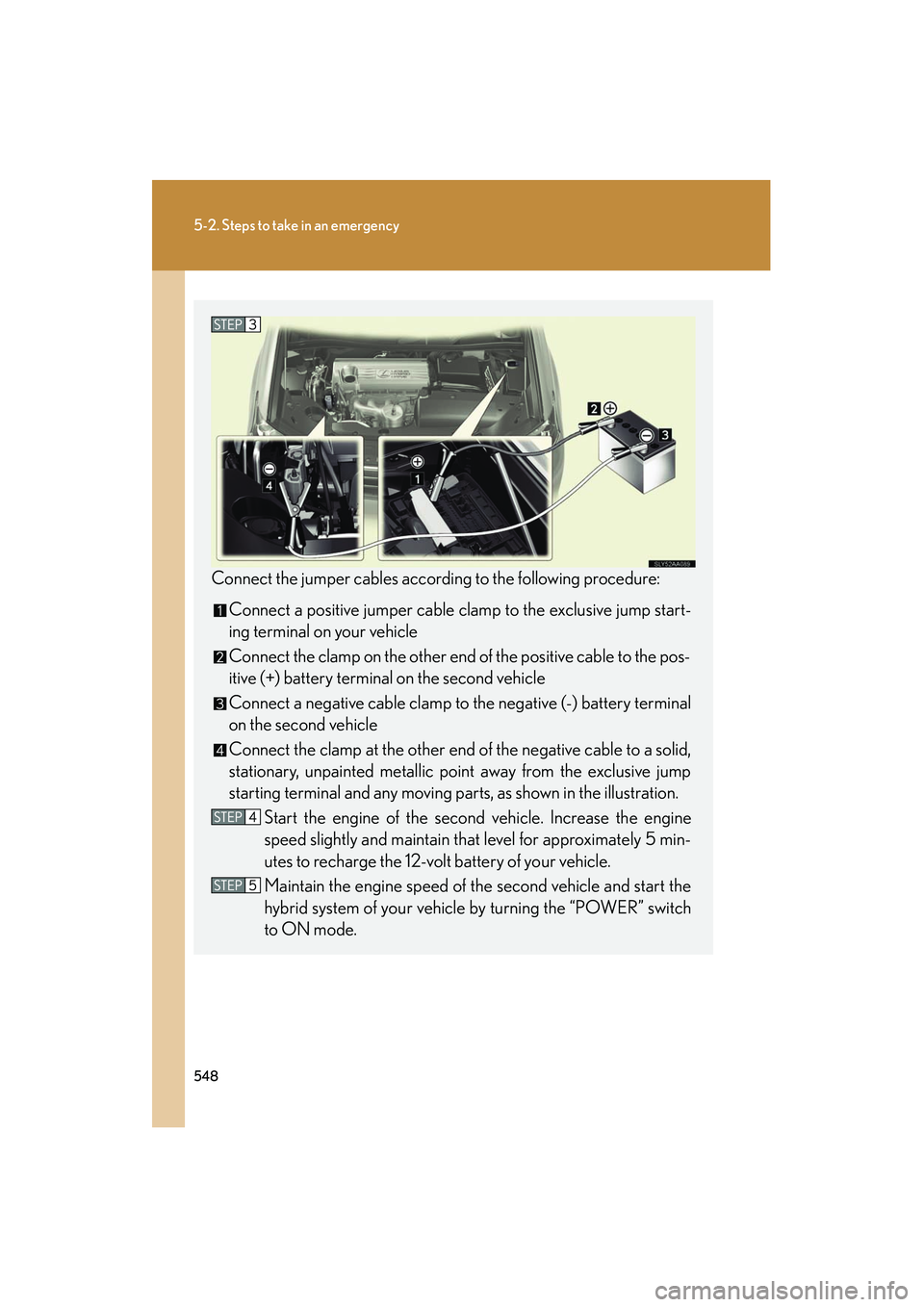

548
5-2. Steps to take in an emergency
HS250h_U_75050U
Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the exclusive jump start-
ing terminal on your vehicle
Connect the clamp on the other end of the positive cable to the pos-
itive (+) battery terminal on the second vehicle
Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle
Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the exclusive jump
starting terminal and any moving parts, as shown in the illustration. Start the engine of the second vehicle. Increase the engine
speed slightly and maintain that level for approximately 5 min-
utes to recharge the 12-volt battery of your vehicle.
Maintain the engine speed of th e second vehicle and start the
hybrid system of your vehicle by turning the “POWER” switch
to ON mode.

552
5-2. Steps to take in an emergency
HS250h_U_75050U
If your vehicle overheats
Correction procedures■ If the engine coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the steam
subsides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the high engine coolant temperature warning light goes
off and then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediat ely and call your Lexus dealer.
The following may indicate that your vehicle is overheating:
●The high engine coolant temperature warning light comes on or
flashes:
The engine may be overheating.
● “HYBRID SYSTEM OVERHEAT” is shown on the multi-information
display:
The power control unit may be overheating.
Follow the correction procedure as described below.

5
When trouble arises
553
5-2. Steps to take in an emergency
HS250h_U_75050UAfter the hybrid system has cooled
down sufficiently, check the engine
coolant level and inspect the cool-
ing system for leaks.
If the engine compartment cover
needs to be removed. (
→P. 4 3 8 )
Add engine coolant if necessary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. ( →P. 5 6 4 )
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■If “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa-
tion display
Stop the vehicle in a safe place.
Stop the hybrid system (press the “POWER” switch once), and
then carefully lift the hood.
Wait until the hybrid system has
fully cooled down. When the sys-
tem has fully cooled down, check if
coolant has leaked from the radia-
tor core.
If a large amount of coolant leak-
age is found, contact your Lexus
dealer immediately.

554
5-2. Steps to take in an emergency
HS250h_U_75050UCheck that the coolant level of the
power control unit is between the
“FULL” and “LOW” lines of the
reservoir tank.
“FULL” line
“LOW” line
If the coolant level of the power
control unit is insufficient, add
more coolant.
If power control unit coolant is
unavailable, water can be used as
an emergency substitute.
Restart the hybrid system (depress and hold the brake pedal, and
press the “POWER” switch once). Check that the “HYBRID
SYSTEM OVERHEAT” message has gone off.
If the warning message remains on, stop the hybrid system and
contact your Lexus dealer.
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■Overheating
The following symptoms may occur when your vehicle is overheating:
●The high engine coolant temperature warning light comes on or flashes, or the
hybrid system output decreases.
●Steam comes out from the engine area.
●“HYBRID SYSTEM OVERHEAT” is displayed on the multi-information display.

5
When trouble arises
555
5-2. Steps to take in an emergency
HS250h_U_75050U
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injuries such as burns.
●Check that the indicator on the “POWER” switch and the READY indicator are
off.
●For vehicles with a hybrid system, there are times when the gasoline engine auto-
matically starts to run or the cooling fans suddenly start to operate. Do not touch
or approach the rotating parts of the belt or fans. Doing so may lead to fingers,
clothes or tools getting caught, resulting in injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power control
unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.)
●Do not use commercially available coolant additives

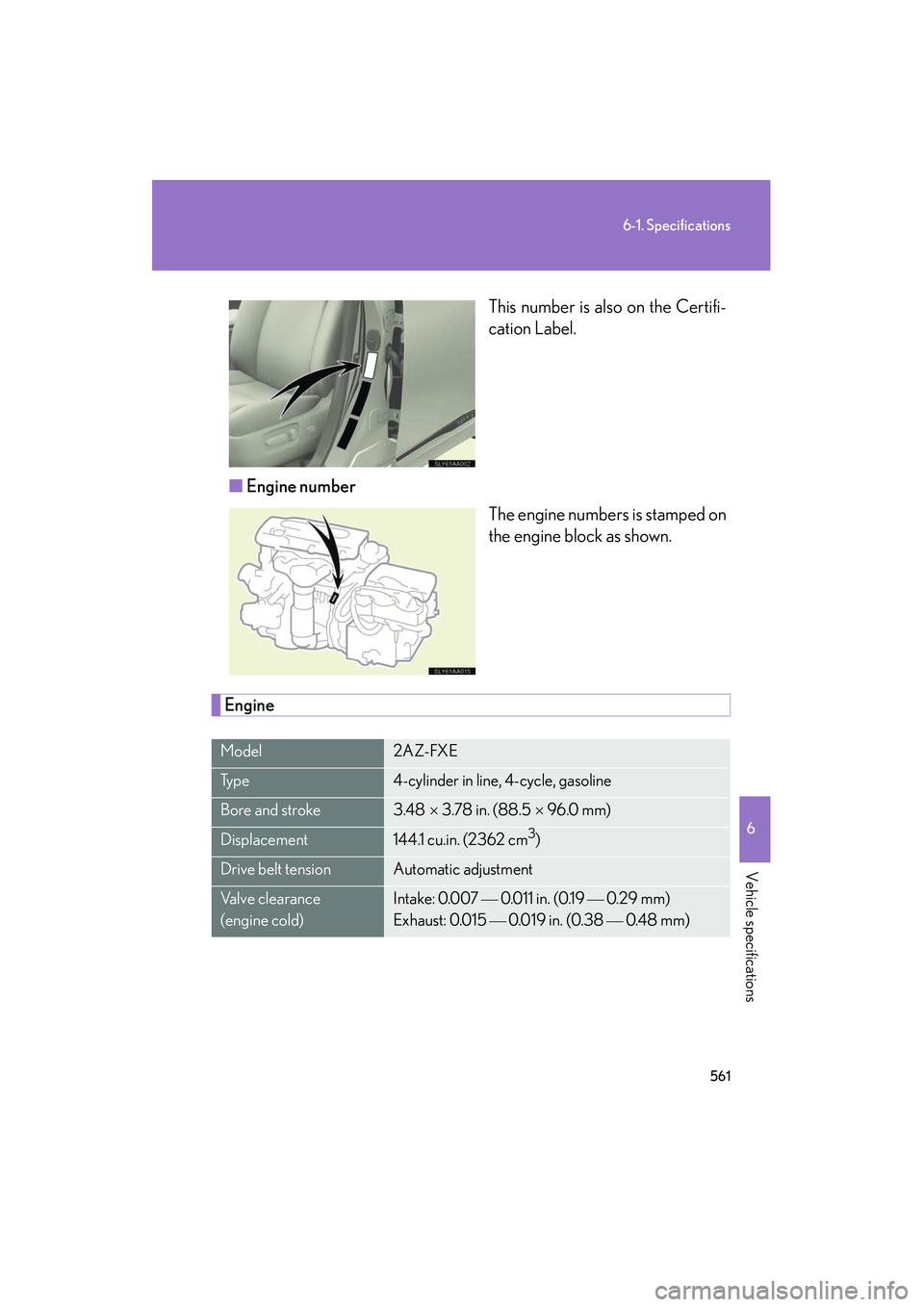

561
6-1. Specifications
6
Vehicle specifications
HS250h_U_75050UThis number is also on the Certifi-
cation Label.
■ Engine number
The engine numbers is stamped on
the engine block as shown.
Engine
Model2AZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.48 × 3.78 in. (88.5 × 96.0 mm)
Displacement144.1 cu.in. (2362 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Intake: 0.007  0.011 in. (0.19  0.29 mm)
Exhaust: 0.015
 0.019 in. (0.38  0.48 mm)

563
6-1. Specifications
6
Vehicle specifications
HS250h_U_75050U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up the engine and turn off the hybrid system, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill
-reference*)
With filter
Without filter
4.5 qt. (4.3 L, 3.8 lmp.qt.)
4.3 qt. (4.1 L, 3.6 lmp.qt.)
Outside temperature

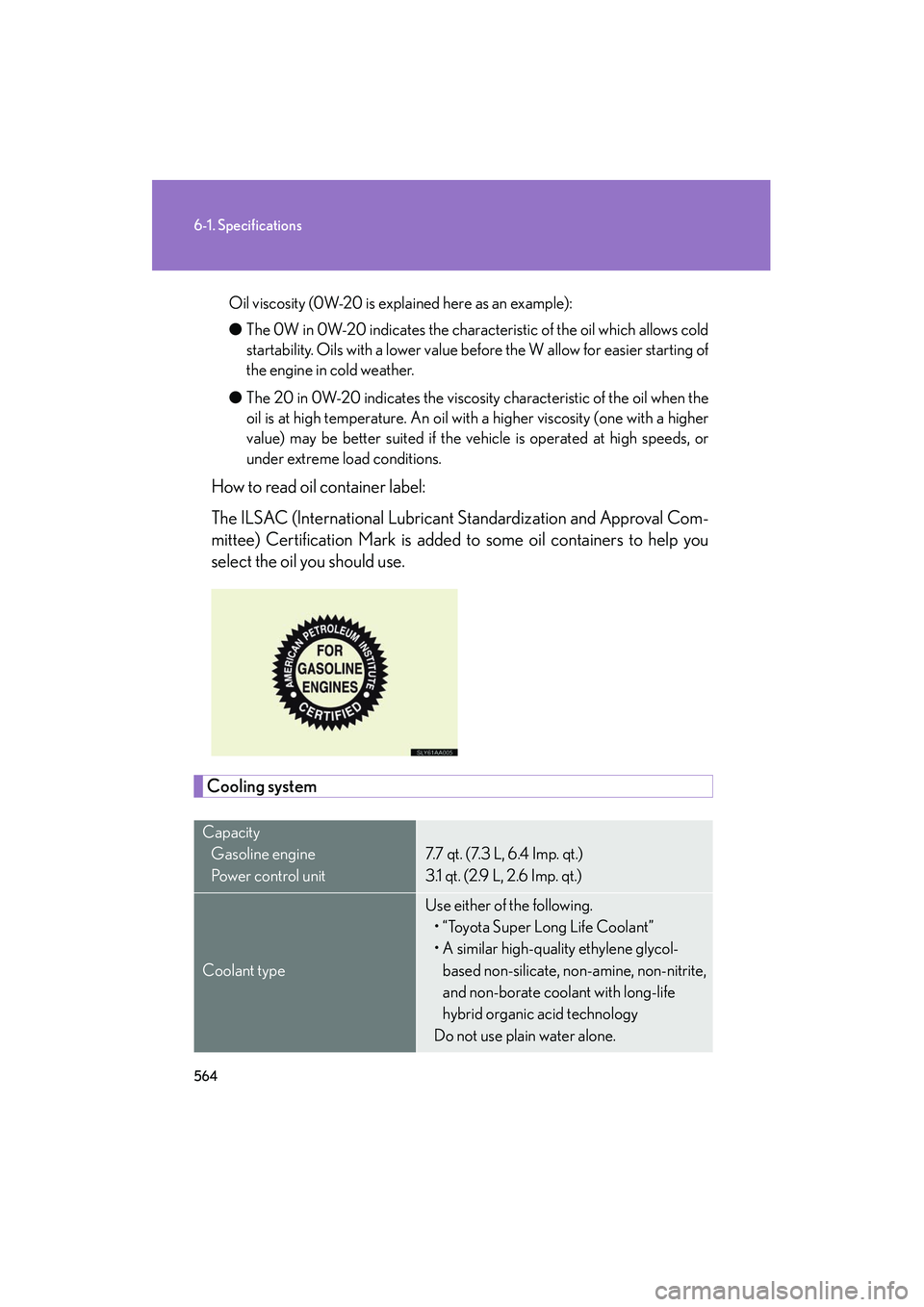

564
6-1. Specifications
HS250h_U_75050U
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Cooling system
Capacity
Gasoline engine
Po w e r c o n t ro l u n i t
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.1 qt. (2.9 L, 2.6 Imp. qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.

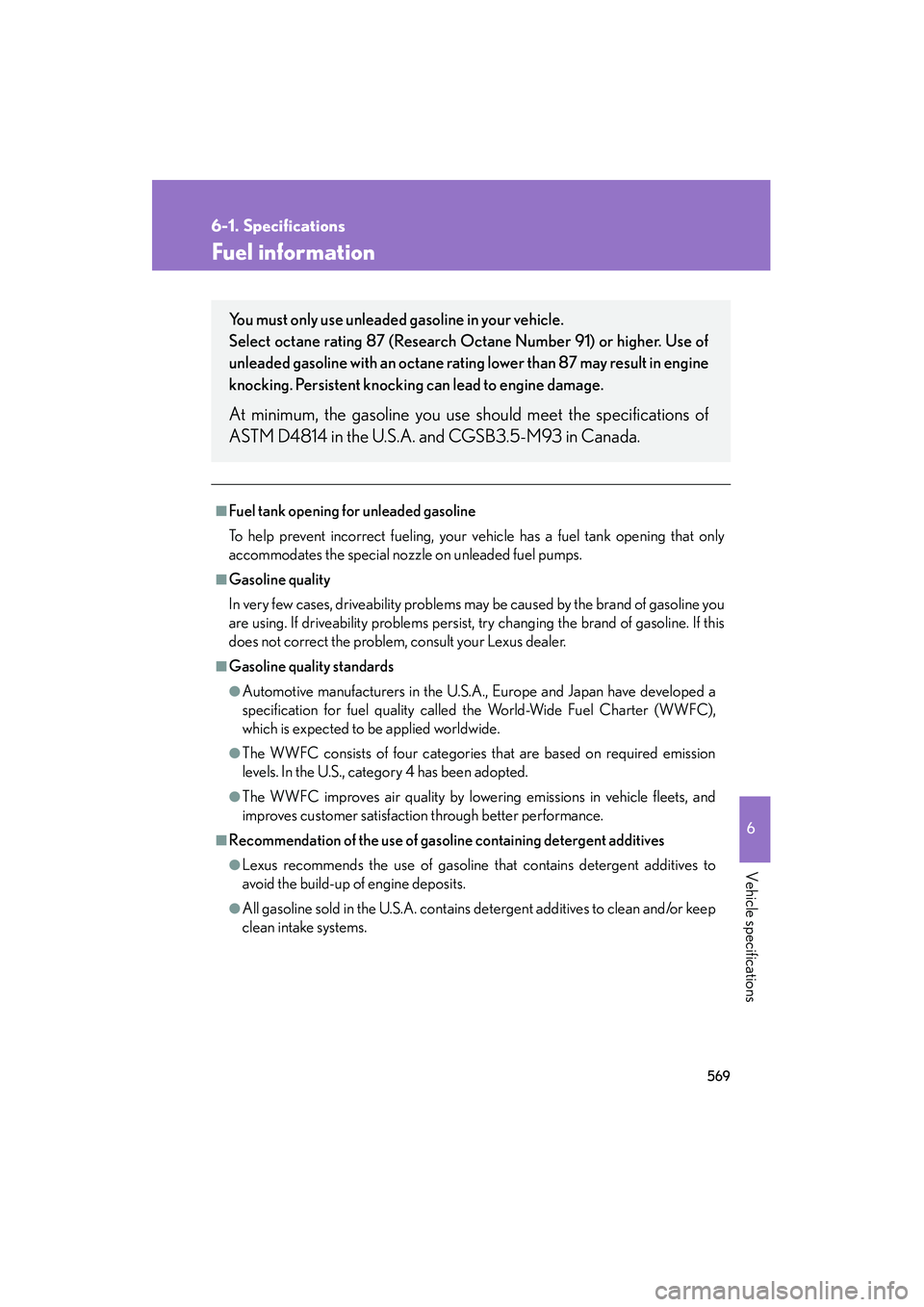

569
6-1. Specifications
6
Vehicle specifications
HS250h_U_75050U
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a
specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains detergent additives to clean and/or keep
clean intake systems.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use of
unleaded gasoline with an octane rating lower than 87 may result in engine
knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

570
6-1. Specifications
HS250h_U_75050U
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no lower
than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoli ne that contains MMT. If fuel contain-
ing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument panel may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
●Use only gasoline containing a maximum
of 10% ethanol.
DO NOT use any flex-fuel or gasoline that
could contain more than 10% ethanol,
including from any pump labeled E15, E30,
E50, E85 (which are only some examples
of fuel containing more than 10% ethanol).DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)
