3-5. Other interior features
08_IS F_U_(L/O_0808)■
Circling calibration
If CAL appears on the display,
drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direction
is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.

276
4-2. Maintenance
08_IS F_U_(L/O_0808)
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (→P. 2 9 6 )
Brake fluidAt the correct level? ( →P. 2 9 4 )
Engine coolantAt the correct level? ( →P. 2 9 2 )
Engine oilAt the correct level? ( →P. 288)
Exhaust systemNo fumes or strange sounds?
Radiator/condenser/hosesNot blocked with foreign matter?
(→ P. 2 9 4 )
Wa s h e r f l u i dAt the correct level? ( →P. 299)
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide” or “Owners
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

277
4-2. Maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be held securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers•Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? (→ P. 3 3 6 )
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

278
4-2. Maintenance
08_IS F_U_(L/O_0808)
Vehicle exterior
ItemsCheck points
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?
ItemsCheck points
Door/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)

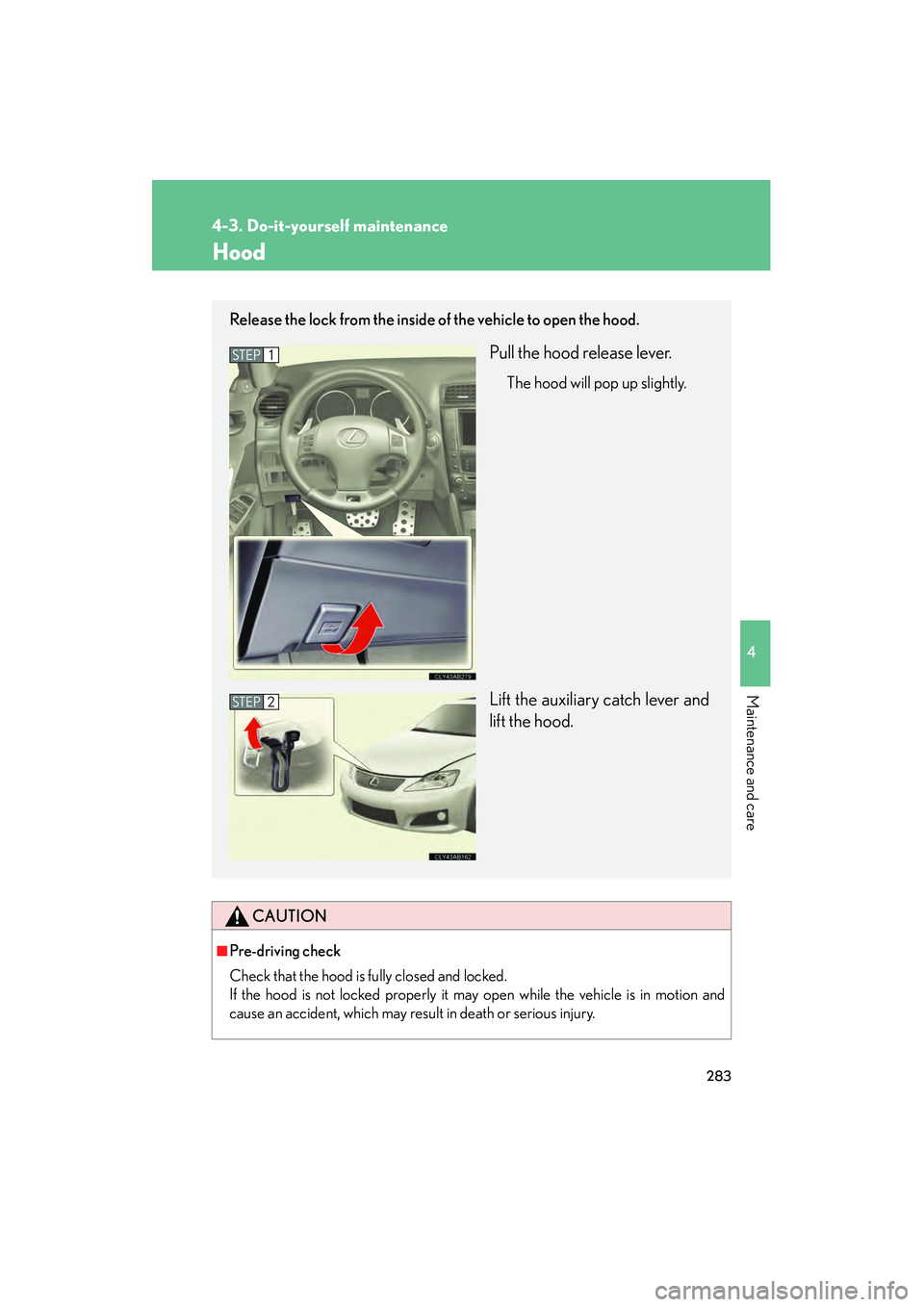

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the auxiliary catch lever and
lift the hood.
STEP1
STEP2

289
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp.qt.) to raise the oil level from low to full on the
dipstick.
■Recommended viscosity
SAE 5W-30 is the best choice for
good fuel economy, and good
starting in cold weather.
*: If SAE 5W-30 oil is not avail-able, SAE 10W-30 oil may be
used. However, it should be
replaced with SAE 5W-30 at
the next oil change.
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3
Outside temperature

326
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1ABS 325 AVDIM
2ALT-S7. 5 ACharging system
3TURN-HAZ15 AEmergency flashers, turn signals
4IG2 MAIN20 AIG2, IGN, GAUGE
5RAD NO. 230 AAudio system
6D/C CUT20 ADOME, MPX-B
7RAD NO. 130 AAudio system
8MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horns, power door lock sys-
tem, power windows, power seats,
electric tilt and telescopic steering
column, meters and gauges, smart
access system with push-button start,
outside rear view mirrors, air condi-
tioning system
9DOME10 AInterior lights, meters and gauges
10CDS10 AElectric cooling fans

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)
11E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2
12P/ I - B60 AEFI, F/PMP, INJ
13ABS 150 AVDIM
14RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
15VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
17STARTER30 ASmart access system with push-button
start
18LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
19EPS80 AElectric power steering
20ALT180 ALH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-AM
21LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
22RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
FuseAmpereCircuit

329
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)■
Engine compartment (type B)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHORN, headlight high beams
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7INJ225 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
8STR LOCK25 ASteering lock system
9H-LP CLN30 AHeadlight cleaner
10DEICER25 A
11FR CTRL-AM30 AFR FOG, WASHER, FR TAIL
12IG210 AIgnition system

331
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)■
Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, parking
lights, rear side marker lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, electric power steering, shift lock
system, moon roof, tire inflation pres-
sure warning system
13FR S/HTR LH15 ASeat heaters and ventilators
