lock Lexus IS F 2009 Repair Manual

182
2-5. Driving information
08_IS F_U_(L/O_0808)
CAUTION
■Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk.
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Do not place cargo or luggage in or on the following locations as the item may
get under the brake or accelerator pedal and prevent pedals from being
depressed properly, block the driver's vision, or hit the driver or passengers,
causing an accident.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• Package tray (behind the rear seatback)
• Instrument panel
•Dashboard
●Secure all items in the occupant compartment, as they may shift and injure some-
one during an accident or sudden braking.
■Luggage capacity and distribution
Observe the following precautions. Failure to do so will not only put load on the
tires, but also reduce steering and braking performance. This could lead to an acci-
dent resulting in serious injury or even death.
●Do not overload the vehicle.
●Do not apply load to the vehicle unevenly.

Interior features3
189
08_IS F_U_(L/O_0808)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ...................................... 190
Rear window and outside
rear view mirror
defoggers ............................... 198
3-2. Using the audio system Audio system types................. 199
Using the radio....................... 202
Using the CD player ............ 209
Playing back MP3 and WMA discs............................. 215
Optimal use of the audio
system ...................................... 221
Using the AUX adapter ....... 224
Using the steering wheel
audio switches ...................... 225
3-3. Using the interior lights Interior lights list ..................... 227
• Interior lights ........................ 229
• Personal lights ...................... 229 3-4. Using the storage features
List of storage features.......... 231
• Glove box ............................... 231
• Console box ......................... 232
• Overhead console.............. 233
• Cup holders .......................... 234
• Bottle holders/door pockets ........................ 236
3-5. Other interior features Sun visors ................................. 237
Vanity mirror ........................... 238
Clock ......................................... 239
Satellite switches ................... 240
Ashtrays.................................... 243
Cigarette lighter .................... 244
Power outlet ............................ 245
Seat heaters ............................ 246
Armrest .................................... 248
Trunk storage extension ...... 249
Coat hooks ............................... 251
Floor mat .................................. 252
Trunk features ......................... 253
Garage door opener ............ 256
Compass .................................. 262

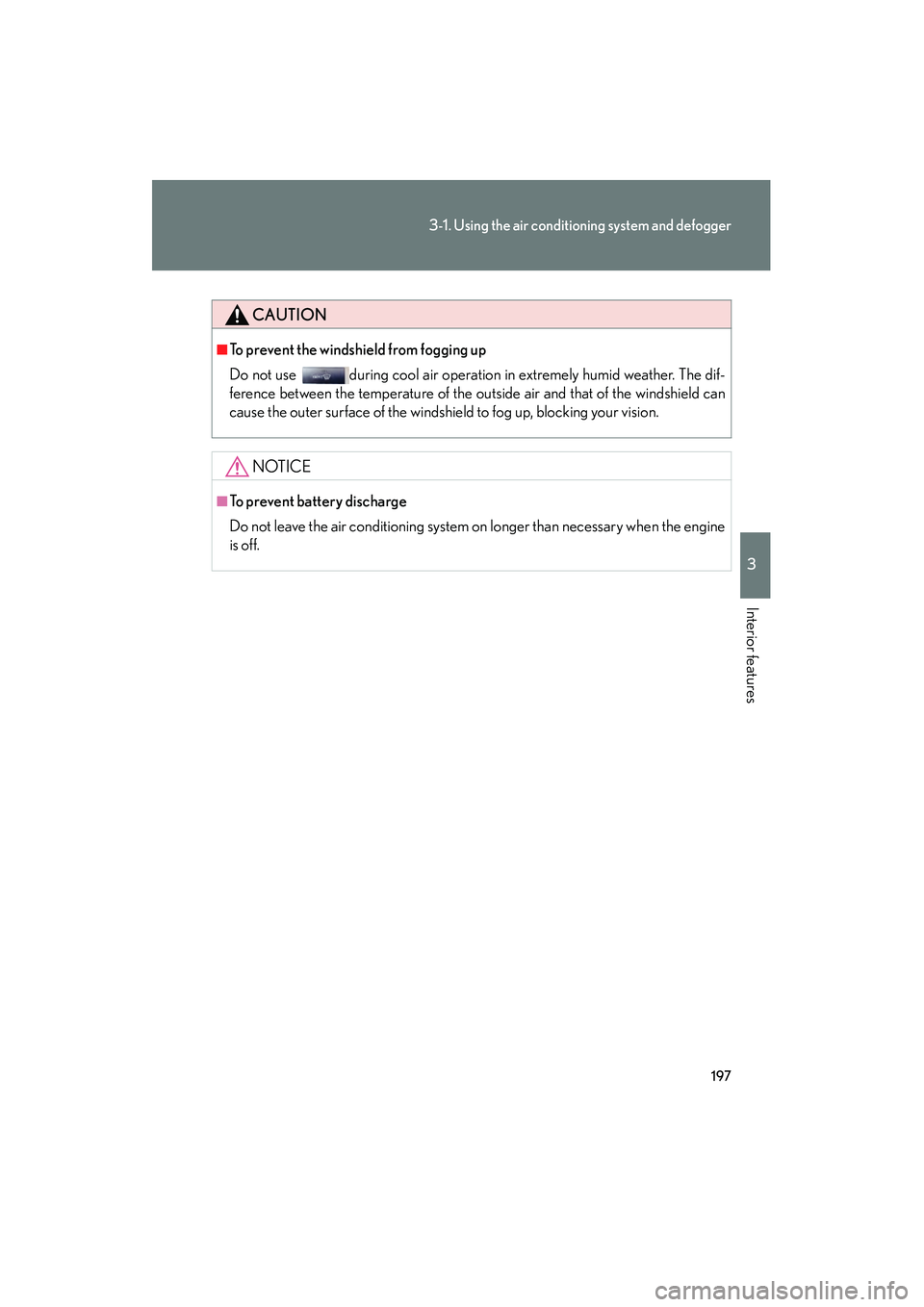

197
3-1. Using the air conditioning system and defogger
3
Interior features
08_IS F_U_(L/O_0808)
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditio ning system on longer than necessary when the engine
is off.

227
3
Interior features
08_IS F_U_(L/O_0808)
3-3. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the door s are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights (→P. 2 2 9 )
Shift lever light (when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
Front overhead courtesy light
Front interior light ( →P. 229)
Rear personal lights ( →P. 229)
Rear overhead courtesy light
Rear interior light
Front door courtesy lights

231
3
Interior features
08_IS F_U_(L/O_0808)
3-4. Using the storage features
List of storage features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Overhead console
Glove box
Bottle holders/door pockets
Cup holders
Console box/cup holder
Glove box

232
3-4. Using the storage features
08_IS F_U_(L/O_0808)
Console boxPull up the knob to release the
lock.
Slide the armrest.
Pull up the knob to release the
lock.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( → P. 4 1 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

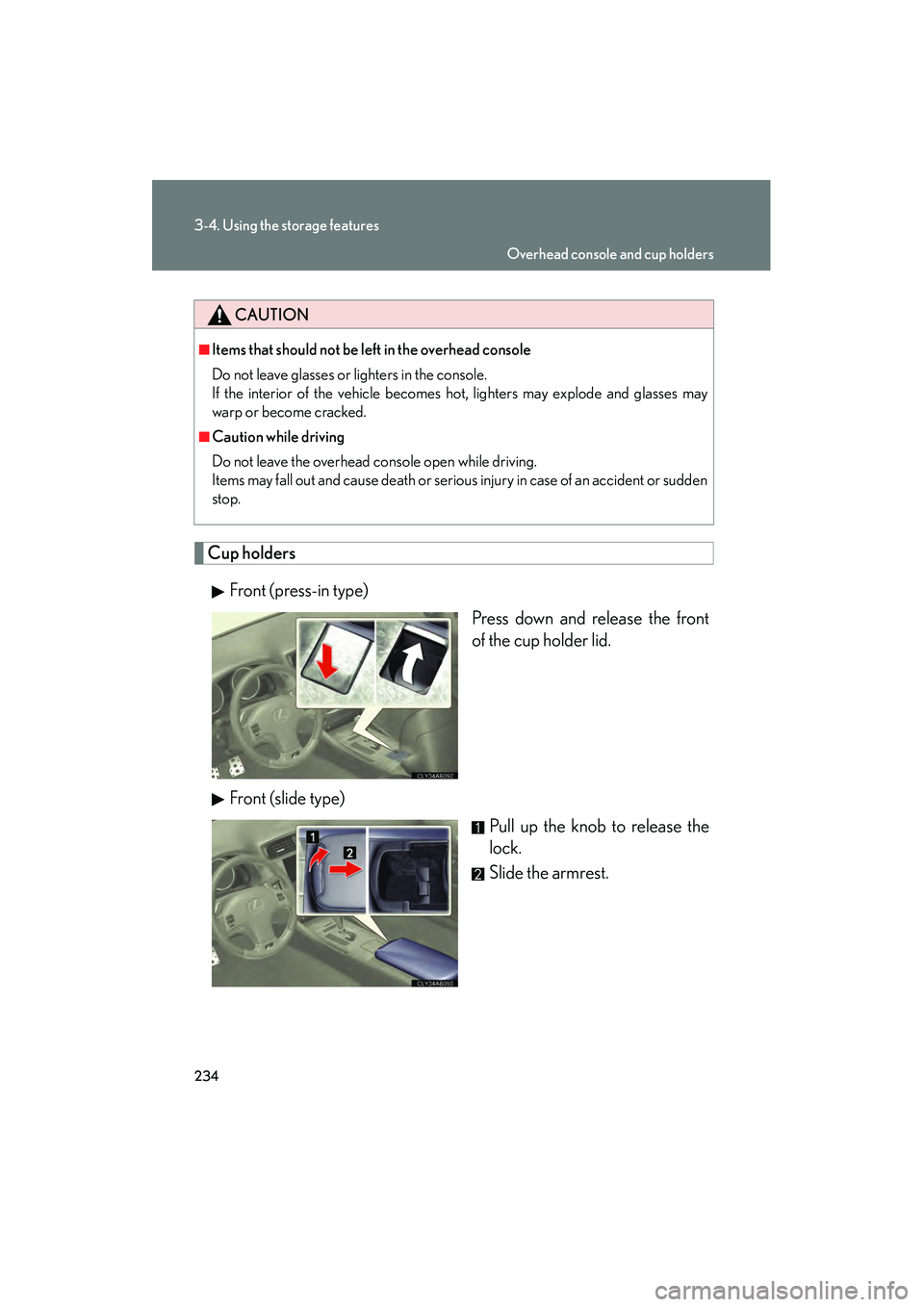

234
3-4. Using the storage features
08_IS F_U_(L/O_0808)
Cup holdersFront (press-in type) Press down and release the front
of the cup holder lid.
Front (slide type) Pull up the knob to release the
lock.
Slide the armrest.
CAUTION
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses may
warp or become cracked.
■Caution while driving
Do not leave the overhead console open while driving.
Items may fall out and cause death or serious injury in case of an accident or sudden
stop.
Overhead console and cup holders

239
3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0808)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

256
3-5. Other interior features
08_IS F_U_(L/O_0808)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink

Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink
 but-
tons.
Keep the HomeLink indicator
light in view while programming.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1

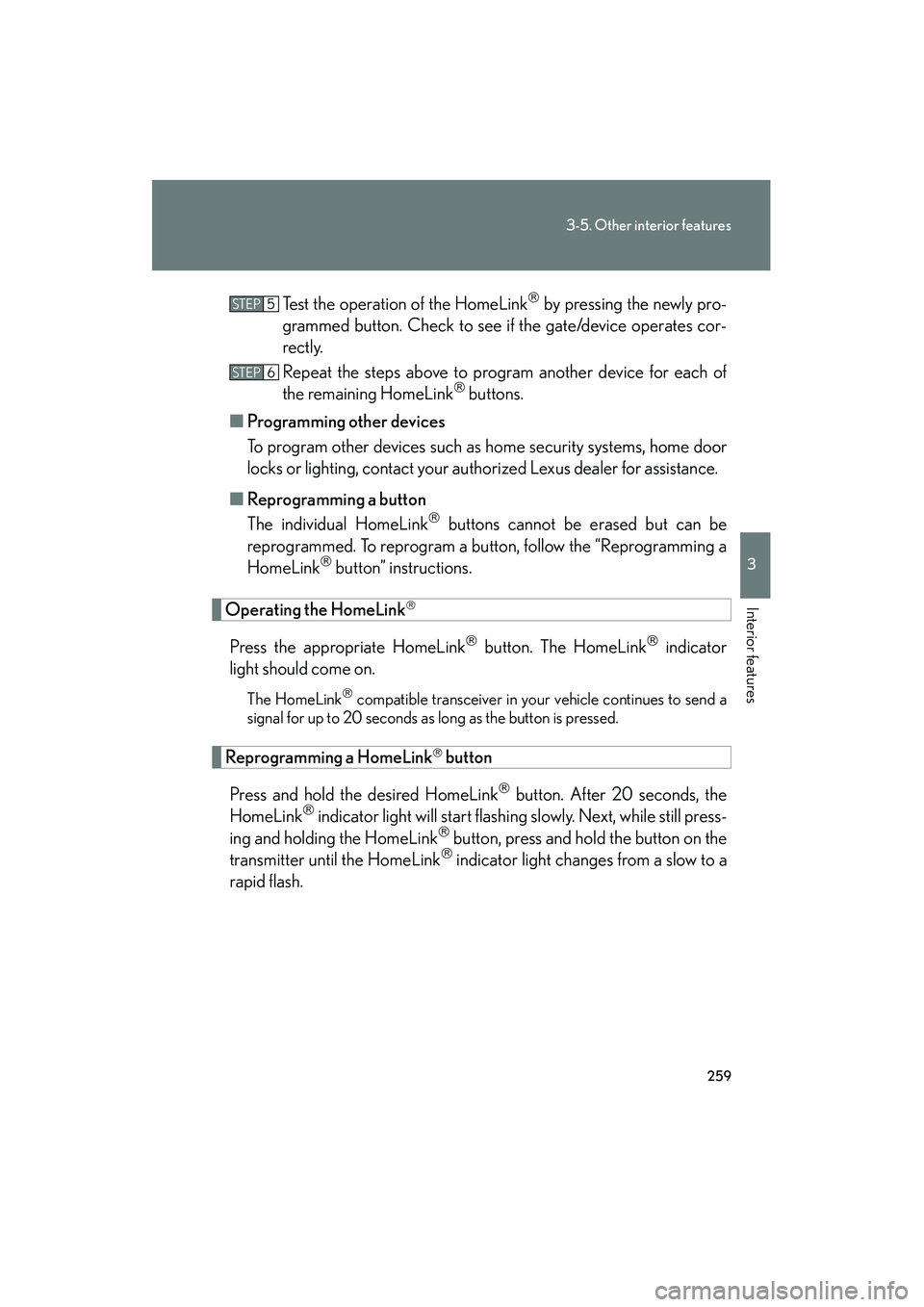

259
3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0808)Test the operation of the HomeLink
 by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your authorized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
 button” instructions.
Operating the HomeLink
Press the appropriate HomeLink button. The HomeLink indicator
light should come on.
The HomeLink compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink button
Press and hold the desired HomeLink
 button. After 20 seconds, the
HomeLink indicator light will start flashing slowly. Next, while still press-
ing and holding the HomeLink button, press and hold the button on the
transmitter until the HomeLink indicator light changes from a slow to a
rapid flash.
STEP5
STEP6
