TABLE OF CONTENTSIndex
08_IS F_U_(L/O_0808)
4
3-4. Using the storage featuresList of storage features................ 231
• Glove box...................................... 231
• Console box ................................ 232
• Overhead console.................... 233
• Cup holders................................. 234
• Bottle holders/door pockets ............................... 236
3-5. Other interior features Sun visors......................................... 237
Vanity mirror ................................. 238
Clock ................................................. 239
Satellite switches .......................... 240
Ashtrays ........................................... 243
Cigarette lighter ........................... 244
Power outlet ................................... 245
Seat heaters .................................... 246
Armrest ........................................... 248
Trunk storage extension............ 249
Coat hooks ...................................... 251
Floor mat.......................................... 252
Trunk features................................ 253
Garage door opener.................. 256
Compass.......................................... 262 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......................... 268
Cleaning and protecting the vehicle interior.............................. 271
4-2. Maintenance Maintenance requirements ..... 274
General maintenance ................ 276
Emission inspection and maintenance (I/M)
programs ...................................... 279
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 280
Hood................................................. 283
Positioning a floor jack............... 284
Engine compartment.................. 286
Tires .................................................. 300
Tire inflation pressure.................... 311
Wheels............................................... 315
Air conditioning filter................... 317
Electronic key battery ............... 320
Checking and replacing fuses ................................................ 322
Headlight aim................................. 336
Light bulbs ...................................... 338
4Maintenance and care
Page 191 of 458
190
08_IS F_U_(L/O_0808)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automatic mode.
The air conditioning system automati cally switches between outside air
and recirculated air modes.
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display Changes the air outlets used
Off Fan speed
Airflow display
Fan speed display
Passenger’s side temperature
setting display
Micro dust and pollen filter
Driver's side
temperature control
Air conditioning on/off button Outside air or recirculated air modeWindshield defoggerPa ss e n g e r ’s s i d e
temperature control
Dual operation button
STEP1
STEP2
Page 195 of 458
194
3-1. Using the air conditioning system and defogger
08_IS F_U_(L/O_0808)

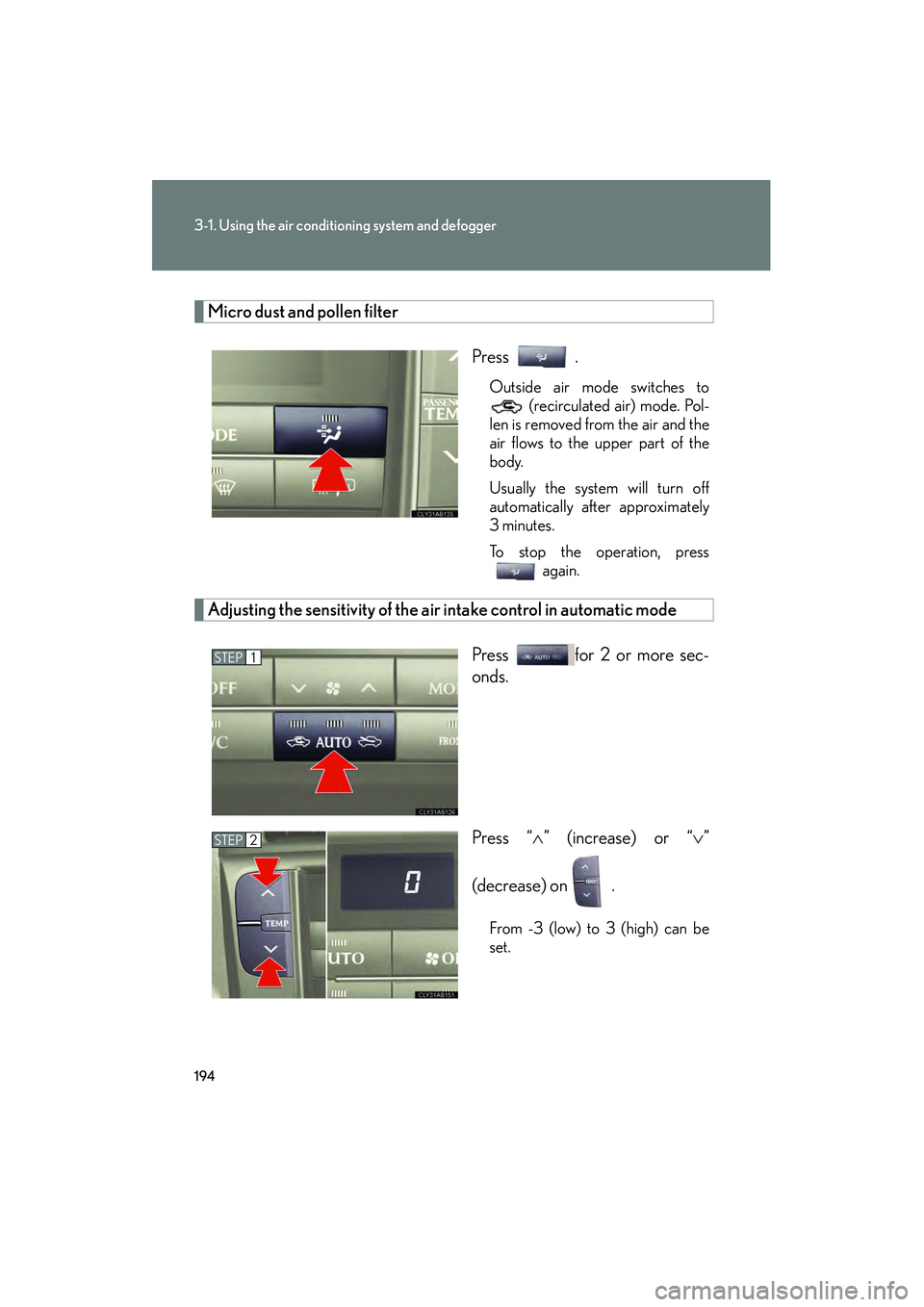

Micro dust and pollen filterPress .
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately
3 minutes.
To stop the operation, press again.
Adjusting the sensitivity of the air intake control in automatic mode
Press for 2 or more sec-
onds.
Press “∧” (increase) or “ ∨”
(decrease) on .
From -3 (low) to 3 (high) can be
set.
STEP1
STEP2
Page 197 of 458
196
3-1. Using the air conditioning system and defogger
08_IS F_U_(L/O_0808)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the coolest
temperature setting is selected in summer.
●Immediately after is pressed, the fan may stop for a while until warm or
cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■When outside air temperature approaches 32° F (0°C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
Page 268 of 458
Maintenance and care4
267
08_IS F_U_(L/O_0808)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 268
Cleaning and protecting the vehicle interior ............... 271
4-2. Maintenance Maintenance requirements ......................... 274
General maintenance ........... 276
Emission inspection and maintenance (I/M)
programs
................................. 279 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ........................... 280
Hood .......................................... 283
Positioning a floor jack ......... 284
Engine compartment ........... 286
Tires............................................ 300
Tire inflation pressure............. 311
Wheels ....................................... 315
Air conditioning filter ............ 317
Electronic key battery.......... 320
Checking and replacing fuses ........................................ 322
Headlight aim ......................... 336
Light bulbs................................ 338
Page 283 of 458
282
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 2 9 4 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.
Page 318 of 458
317
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch to OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5
Page 319 of 458
318
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Warranty
and Services Guide/Owner's Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have the
filter cleaned by your Lexus
dealer.
■ Replacement method
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “↑UP” marks shown on the
filter and the filter case should
be pointing up.
Page 320 of 458
319
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)

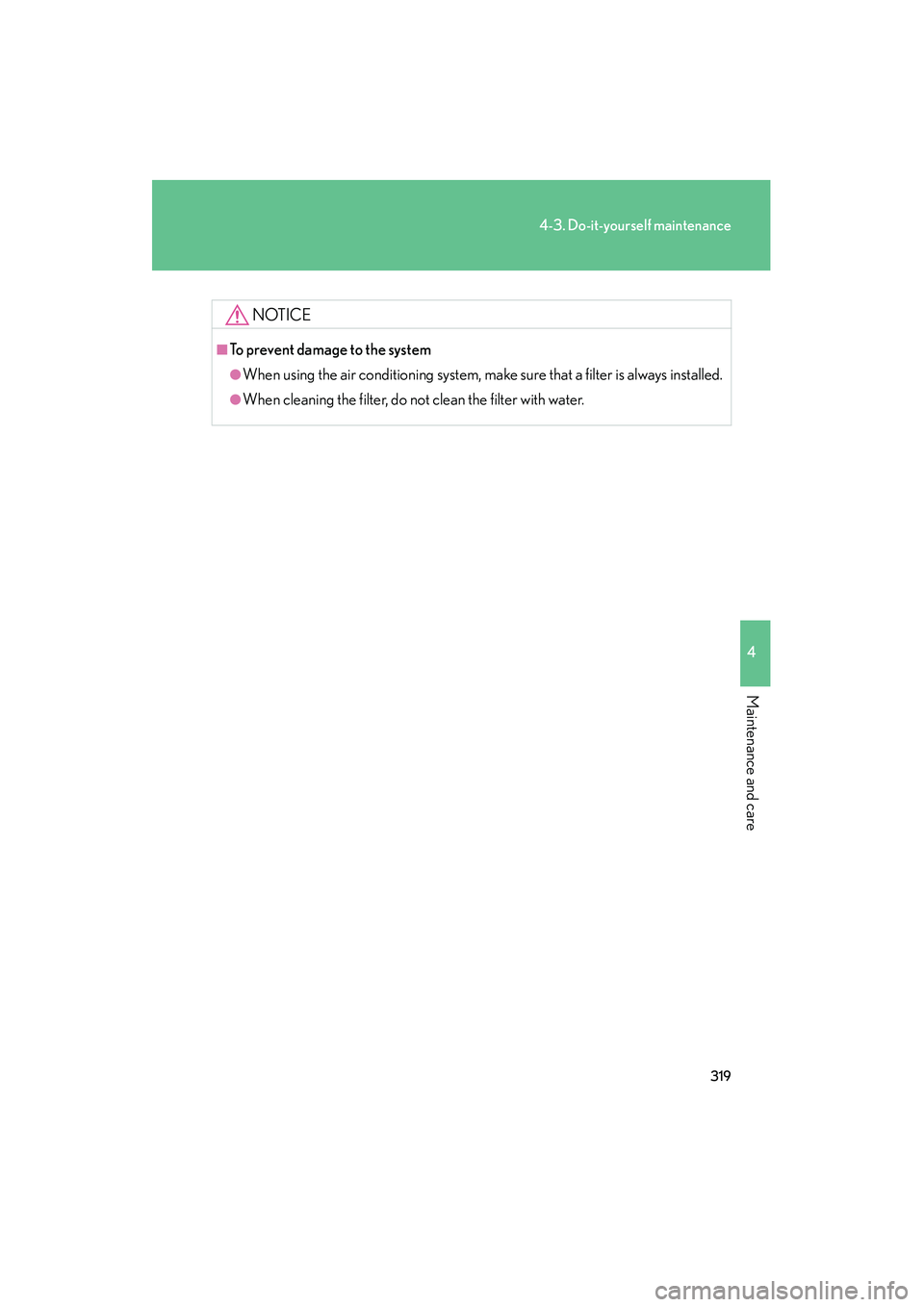

NOTICE
■To prevent damage to the system
●When using the air conditioning system, make sure that a filter is always installed.
●When cleaning the filter, do not clean the filter with water.
Page 443 of 458
442
08_IS F_U_(L/O_0808)
Alphabetical index
Alphabetical index
A/C ............................................................. 190
ABS.............................................................. 169
ACCESSORY mode ............................ 116
AFS .............................................................. 143
Adaptive front lighting system ......... 143
Air conditioning filter ........................... 317
Air conditioning systemAir conditioning filter ......................... 317
Automatic air conditioning system ................................................... 190
Airbags Airbag operating conditions...........80
Airbag precautions for your child.......................................................... 84
Airbag warning light ........................356
Curtain shield airbag operating conditions................................................ 81
Curtain shield airbag
precautions .......................................... 84
Front passenger occupant
classification system......................... 89
General airbag precautions ........... 84
Locations of airbags............................ 78
Modification and disposal of airbags ....................................................88
Proper driving posture ............. 76, 84
Side airbag operating conditions................................................ 81
Side airbag precautions .................... 84
SRS airbags ............................................. 78 Alarm............................................................ 73
Antenna .................................................... 206
Anti-lock brake system ........................169
Armrest .................................................... 248
Ashtrays.................................................... 243
Audio input.............................................. 224
Audio system
Antenna.................................................. 206
Audio input............................................ 224
Audio visual input............................... 224
AUX adapter ....................................... 224
CD player/changer ......................... 209
MP3/WMA disc................................. 215
Optimal use ............................................221
Portable music player ...................... 224
Radio ....................................................... 202
Steering wheel audio switch.........225
Audio visual input ................................. 224
Automatic air conditioning system ..................................................... 190
Automatic headlight leveling system ......................................................144
Automatic light control system.........142
Automatic transmission Automatic transmission ................... 120
If the shift lever cannot be shifted from P................................... 389
M mode ................................................... 124
AUX adapter ......................................... 224A
