key Lexus IS F 2009 Owner's Manual

TABLE OF CONTENTSIndex
08_IS F_U_(L/O_0808)
2
1-1. Key informationKeys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 24
Wireless remote control .............. 35
Doors.................................................... 37
Trunk...................................................... 41
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats .......................................... 44
Driving position memory (driver’s seat) ................................. 45
Seat position memory (front passenger’s seat) ............. 49
Head restraints.................................. 51
Seat belts ............................................ 52
Steering wheel................................. 58
Anti-glare inside rear view mirror ................................................ 60
Outside rear view mirrors ............ 61
1-4. Opening and closing the windows and moon roof
Power windows................................ 63
Moon roof .......................................... 65 1-5. Refueling
Opening the fuel tank cap........... 68
1-6. Theft deterrent system Engine immobilizer system ........... 71
Alarm.................................................... 73
Theft prevention labels (U.S.A.) ............................................. 75
1-7. Safety information Correct driving posture ............... 76
SRS airbags ....................................... 78
Front passenger occupant classification system .................... 89
Child restraint systems ................. 94
Installing child restraints ............... 98
2-1. Driving procedures Driving the vehicle ........................ 108
Engine (ignition) switch ................ 116
Automatic transmission.............. 120
Turn signal lever............................. 128
Parking brake ................................. 129
Horn.................................................... 130
1Before driving
2When driving

TABLE OF CONTENTSIndex
08_IS F_U_(L/O_0808)
4
3-4. Using the storage featuresList of storage features................ 231
• Glove box...................................... 231
• Console box ................................ 232
• Overhead console.................... 233
• Cup holders................................. 234
• Bottle holders/door pockets ............................... 236
3-5. Other interior features Sun visors......................................... 237
Vanity mirror ................................. 238
Clock ................................................. 239
Satellite switches .......................... 240
Ashtrays ........................................... 243
Cigarette lighter ........................... 244
Power outlet ................................... 245
Seat heaters .................................... 246
Armrest ........................................... 248
Trunk storage extension............ 249
Coat hooks ...................................... 251
Floor mat.......................................... 252
Trunk features................................ 253
Garage door opener.................. 256
Compass.......................................... 262 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......................... 268
Cleaning and protecting the vehicle interior.............................. 271
4-2. Maintenance Maintenance requirements ..... 274
General maintenance ................ 276
Emission inspection and maintenance (I/M)
programs ...................................... 279
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 280
Hood................................................. 283
Positioning a floor jack............... 284
Engine compartment.................. 286
Tires .................................................. 300
Tire inflation pressure.................... 311
Wheels............................................... 315
Air conditioning filter................... 317
Electronic key battery ............... 320
Checking and replacing fuses ................................................ 322
Headlight aim................................. 336
Light bulbs ...................................... 338
4Maintenance and care

1
2
3
4
5
6
7
08_IS F_U_(L/O_0808)
5
5-1. Essential informationEmergency flashers..................... 344
If your vehicle needs to be towed ....................................... 345
If you think something is wrong .......................................... 351
Fuel pump shut off system ........ 352
Event data recorder................... 353
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ..... 355
If a warning message is displayed....................................... 365
If you have a flat tire..................... 379
If the engine will not start ......... 388
If the shift lever cannot be shifted from P ............................. 389
If you lose your keys ................... 390
If the electronic key does not operate properly ........................ 391
If the vehicle battery is discharged ................................... 394
If your vehicle overheats ........... 397
If the vehicle becomes stuck............................................... 400 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 402
Fuel information............................. 413
Tire information ............................. 416
6-2. Customization Customizable features .............. 428
6-3. Initialization Items to initialize ........................... 433
Reporting safety defects for U.S. owners.................................. 436
Seat belt instructions for Canadian owners
(in French) .................................... 437
Abbreviation list ................................... 440
Alphabetical index............................... 442
What to do if... ....................................... 453
5When trouble arises6Vehicle specifications
7For owners
Index

08_IS F_U_(L/O_0808)
17
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Before driving1
19
08_IS F_U_(L/O_0808)
1-1. Key informationKeys .............................................. 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .................... 24
Wireless remote control ......... 35
Doors ............................................ 37
Trunk .............................................. 41
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 44
Driving position memory (driver’s seat) .......................... 45
Seat position memory (front passenger’s seat) ........ 49
Head restraints ........................... 51
Seat belts ..................................... 52
Steering wheel.......................... 58
Anti-glare inside rear view mirror ......................................... 60 Outside rear view mirrors........ 61
1-4. Opening and closing the windows and moon roof
Power windows .......................... 63
Moon roof ................................... 65
1-5. Refueling Opening the fuel tank cap ..... 68
1-6. Theft deterrent system Engine immobilizer system..... 71
Alarm............................................ 73
Theft prevention labels (U.S.A.)...................................... 75
1-7. Safety information Correct driving posture .......... 76
SRS airbags ................................ 78
Front passenger occupant classification system.............. 89
Child restraint systems ........... 94
Installing child restraints......... 98

20
08_IS F_U_(L/O_0808)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 2 4 )
• Operating the wireless remote control function
(→ P. 3 5 )
Mechanical keys
Key number plate
■ Card key (Canada only)
Electronic key
Operating the smart access sys-
tem with push-button start
(→ P. 2 4 )
Mechanical key
The card key comes with an information card that includes instructions
for use. Lexus recommends that you carry the information card with
the card key.

21
1-1. Key information
1
Before driving
08_IS F_U_(L/O_0808)

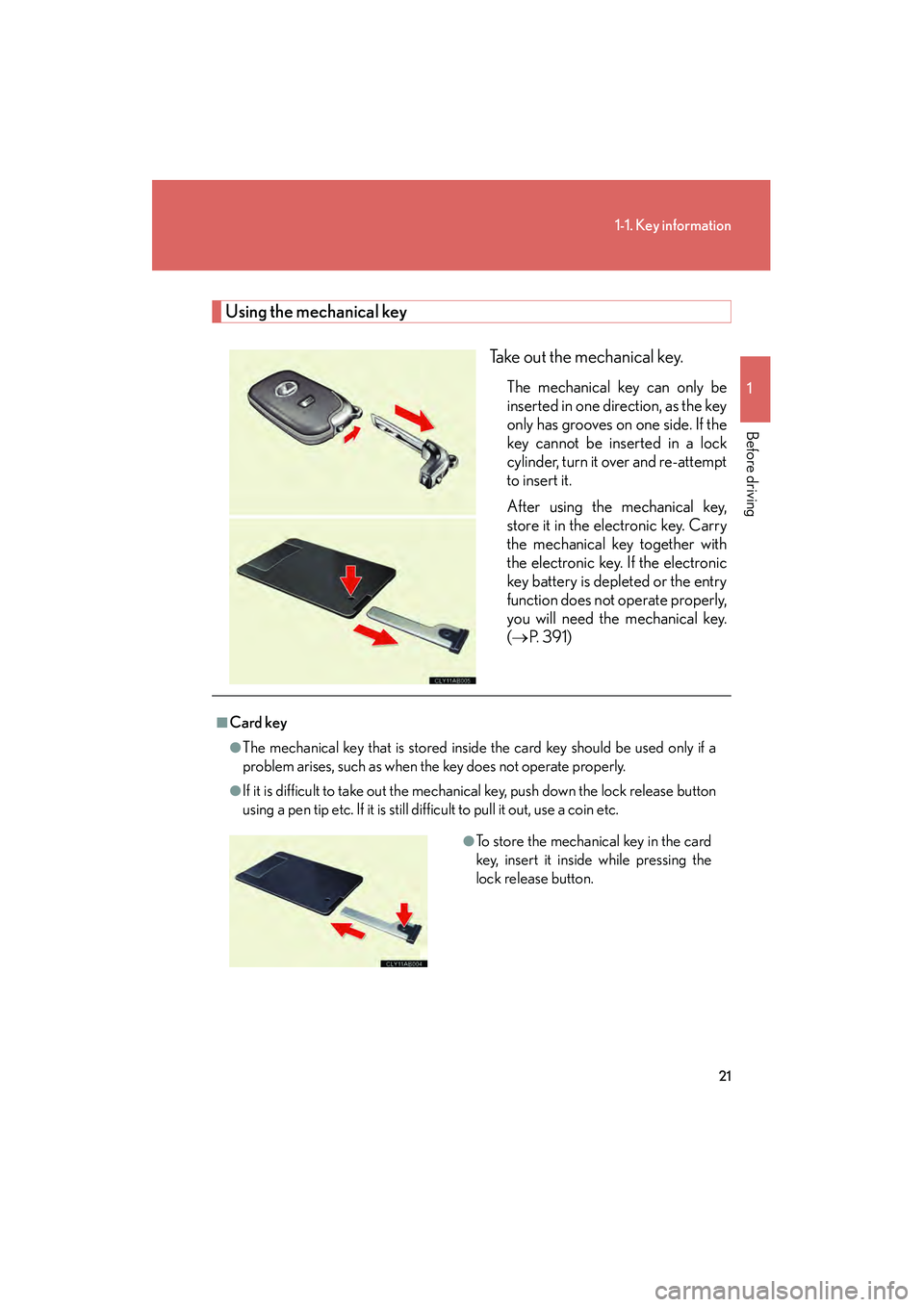

Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(→ P. 3 9 1 )
■Card key
●The mechanical key that is stored inside the card key should be used only if a
problem arises, such as when the key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is still difficult to pull it out, use a coin etc.
●To store the mechanical key in the card
key, insert it inside while pressing the
lock release button.

22
1-1. Key information
08_IS F_U_(L/O_0808)
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (→P. 4 1 , 2 3 1 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( →P. 3 9 0 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc, ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.

23
1-1. Key information
1
Before driving
08_IS F_U_(L/O_0808)
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems, glass top ranges, or medical electrical equipment, such as low-fre-
quency therapy equipment.
■Precautions for handling the card keys
●Do not apply excess force when inserting the mechanical key to the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
your Lexus dealer replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery cover may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins or keys.
• The card key is scraped with a sharp object, such as a tip of mechanical pencil.
• The surface of the card key is wiped with thinners or benzene.

24
08_IS F_U_(L/O_0808)
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key (including the card key∗) on your person, for example in your
pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( →P. 2 5 )
Unlocks the trunk ( →P. 2 5 )
Starts the engine ( →P. 1 1 6 )
∗
: Canada only
