maintenance schedule Lexus IS F 2009 Owner's Manual

274
08_IS F_U_(L/O_0808)
4-2. Maintenance
Maintenance requirements
■Repair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair
shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
To ensure safe and economical driving, day-to-day care and regular main-
tenance is essential. It is the owner’s responsibility to perform regular
checks. Lexus recommends the following maintenance.
■General maintenance
General maintenance should be performed on a daily basis. This
can be done by yourself or by a Lexus dealer.
■ Scheduled maintenance
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the
“Warranty and Services Guide/Owner’s Manual Supplement/
Scheduled Maintenance”.
■Do-it-yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.
The use of Lexus Repair Manuals is recommended.
For details about warranty coverage, see the separate “Owner’s Guide”,
“Warranty and Services Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet”.

300

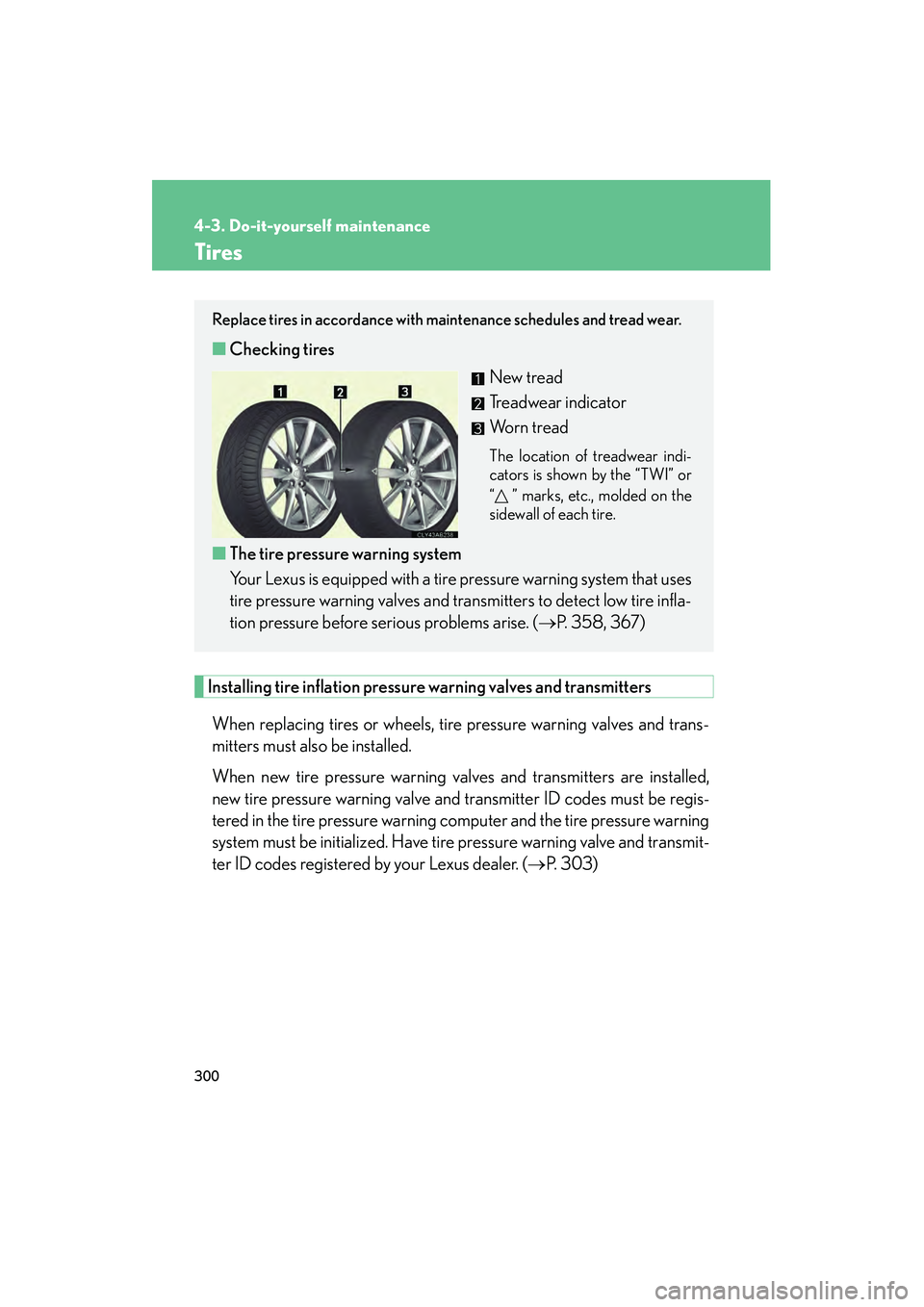

4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
Tires
Installing tire inflation pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new tire pressure warning valve and transmitter ID codes must be regis-
tered in the tire pressure warning computer and the tire pressure warning
system must be initialized. Have tire pressure warning valve and transmit-
ter ID codes registered by your Lexus dealer. ( →P. 303)
Replace tires in accordance with ma intenance schedules and tread wear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“ ” marks, etc., molded on the
sidewall of each tire.
■The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. ( →P. 358, 367)

318
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Warranty
and Services Guide/Owner's Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have the
filter cleaned by your Lexus
dealer.
■ Replacement method
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “↑UP” marks shown on the
filter and the filter case should
be pointing up.

372
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that engine oil
level is low.
Check the level of engine
oil, and add if necessary.This message may
appear if the vehicle is
stopped on a slope.
Move the vehicle to a
level surface and check
to see if the message dis-
appears.
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil should be changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
