3-2. Using the audio system
3
Interior features
Loading CDs
■Loading a CD
Push .
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDs
Press and hold until you hear a beep.
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press or .
STEP1
STEP2
STEP1
STEP2
STEP3

220
3-2. Using the audio system
Ejecting CDs
■Ejecting a CD
To select the CD to be ejected,
press “” or “” on or
.
The number of the CD selected is
shown on the display.
Press and remove the CD.
■Ejecting all the CDs
Press and hold until you hear a beep, and then remove the CDs.
Selecting, fast-forwarding, reversing and scanning tracks
■Selecting a track
Press “” to move up and “” to move down using until the
desired track number is displayed.
To fast forward or reverse, press and hold “” or “” on until you hear
a beep.
■Scanning a CD (type A)
Press .
The first ten seconds of each track will be played.
Press again when the desired track is reached.
STEP1
STEP2
STEP1
STEP2

221
3-2. Using the audio system
3
Interior features
Selecting a CD
■To select a CD to play
To select the desired CD, press “” or “” on or .
■To scan loaded CDs (type A)
Press and hold until you hear a beep.
The first ten seconds of the first track on each CD will be played.
Press again when the desired CD is reached.
Random playback
■Current CD
Press (RAND).
■All CDs
Press and hold (RAND) until you hear a beep.
Repeat play
■To repeat a track
Press (RPT).
■To repeat all of the tracks on a CD
Press and hold (RPT) until you hear a beep.
Playing and pausing tracks
To play or pause a track, press ( ).
Switching the display
Press .
Each time is pressed, the display changes in the order of Track no./
Elapsed time  CD title  Track title.
STEP1
STEP2

222
3-2. Using the audio system
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), again.
■When “LOAD”, “ERROR” or “WAIT” is shown on the display
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: This indicates a trouble either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”: Operation is stopped due to a high temperature inside the player. Wait
for a while and then press or . Contact your Lexus dealer if
the CD still cannot be played back.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.

225
3-2. Using the audio system
3
Interior features
Playing back MP3 and WMA discs
Type A
Type B
Po w e r Vo l u m e
CD ejectPlayback
Search playbackCD loadCD selectionFile selection Random playbackRepeat play
Displays text message Folder selection
File
selection
Playback/Pause
Silencing a sound
Po w e r Vo l u m e
CD ejectPlayback
CD loadCD selectionFile selection Random playbackRepeat play
Displays text message Folder selection
File
selection
Silencing a
sound Playback/Pause

228
3-2. Using the audio system
Switching the display
Press .
Each time is pressed, the display changes in the order of Folder no./
File no./Elapsed time  Folder name  File name  Album title (MP3
only)  Track title  Artist name.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), again.
■When “LOAD”, “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: This indicates a trouble either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”: Operation is stopped due to a high temperature inside the player. Wait
for a while and then press or . Contact your Lexus dealer if
the CD still cannot be played back.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.

234
3-2. Using the audio system
■Control panel
Type A
Repeat play
PlaybackPlayback/Pause
Go back
Song selection Shuffle playback
iPod
® menu/
Song selection
Po w e r Vo l u m eDisplays text message
Silencing a sound
Song selection

235
3-2. Using the audio system
3
Interior features
Selecting a play mode
Press to select iPod
® menu mode.
Pressing or changes the play mode in the following
order:
“PLAYLISTS”“ARTISTS”“ALBUMS”“SONGS”
“PODCASTS”“GENRES”“COMPOSERS”
“AUDIOBOOKS”
Press to select the desired play mode.
Type B
Repeat play
Playback Playback/Pause
Go back
Song selection Shuffle playback
iPod
® menu/
Song selection
Po w e r Vo l u m eDisplays text message
Silencing a sound
Song selection
STEP1
STEP2
STEP3

236
3-2. Using the audio system

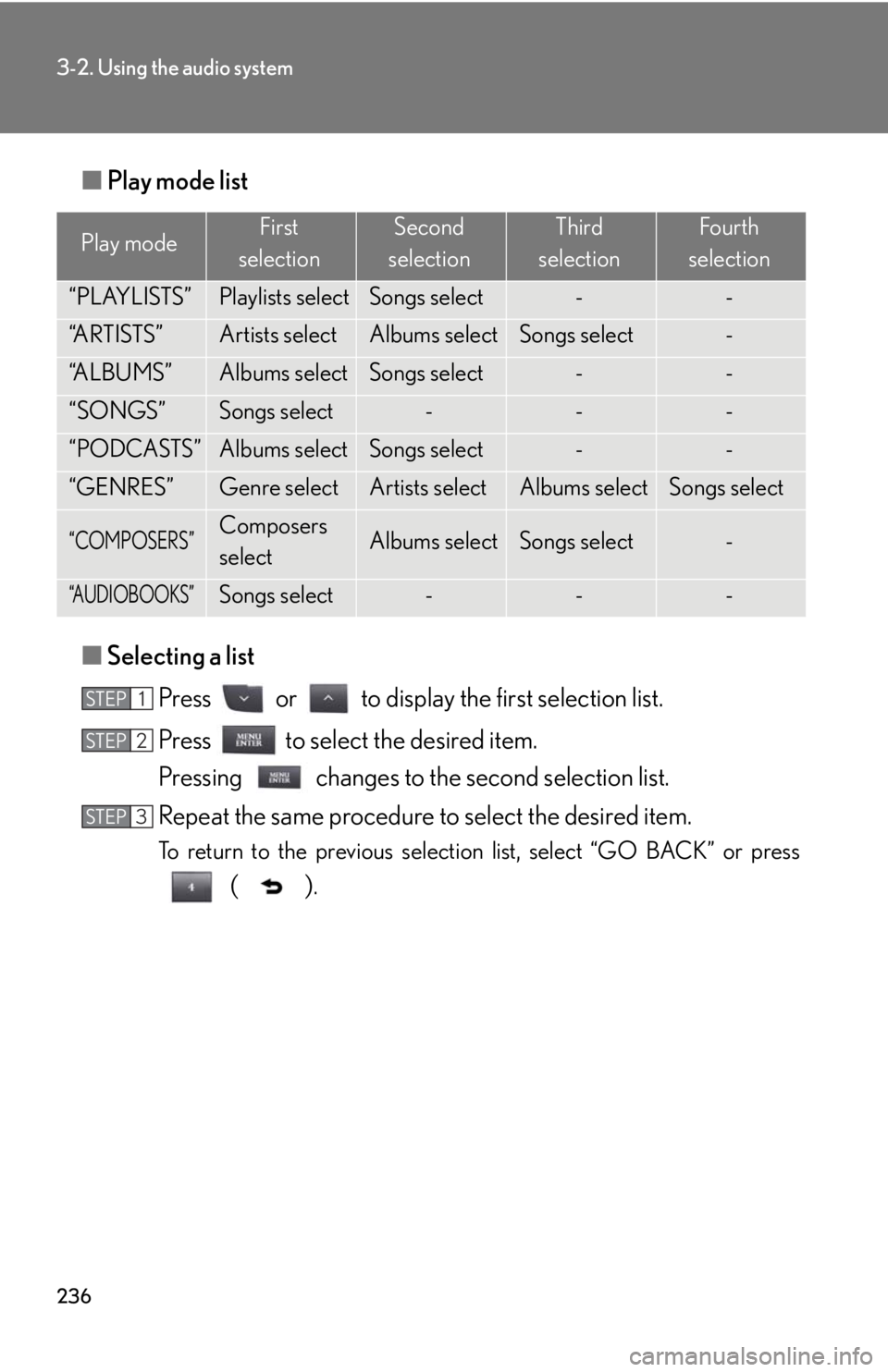

■Play mode list
■Selecting a list
Press or to display the first selection list.
Press to select the desired item.
Pressing changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, select “GO BACK” or press
().
Play modeFirst
selectionSecond
selectionThird
selectionFour th
selection
“PLAYLISTS”Playlists selectSongs select--
“A R T I S T S ”Artists selectAlbums selectSongs select-
“A L B U M S ”Albums selectSongs select--
“SONGS”Songs select---
“PODCASTS”Albums selectSongs select--
“GENRES”Genre selectArtists selectAlbums selectSongs select
“COMPOSERS”Composers
selectAlbums selectSongs select-
“AUDIOBOOKS”Songs select---
STEP1
STEP2
STEP3

237
3-2. Using the audio system
3
Interior features
Selecting songs
Turn or press “” or “” on to select the desired song.
Playing and pausing songs
To play or pause a song, press ( ).
Fast-forwarding and rewinding songs
To fast-forward or rewind, press and hold “” or “” on until you
hear a beep.
Shuffle playback
■Playing songs from one playlist or album in random order
Press (RAND).
■Playing songs from all the playlists or albums in random order
Press and hold (RAND) until you hear a beep.
Repeat play
Press (RPT).
Switching the display
Press .
Each time is pressed, the display changes in the order of Elapsed time
 Album title  Track title  Artist name.
