420
4-3. Do-it-yourself maintenance

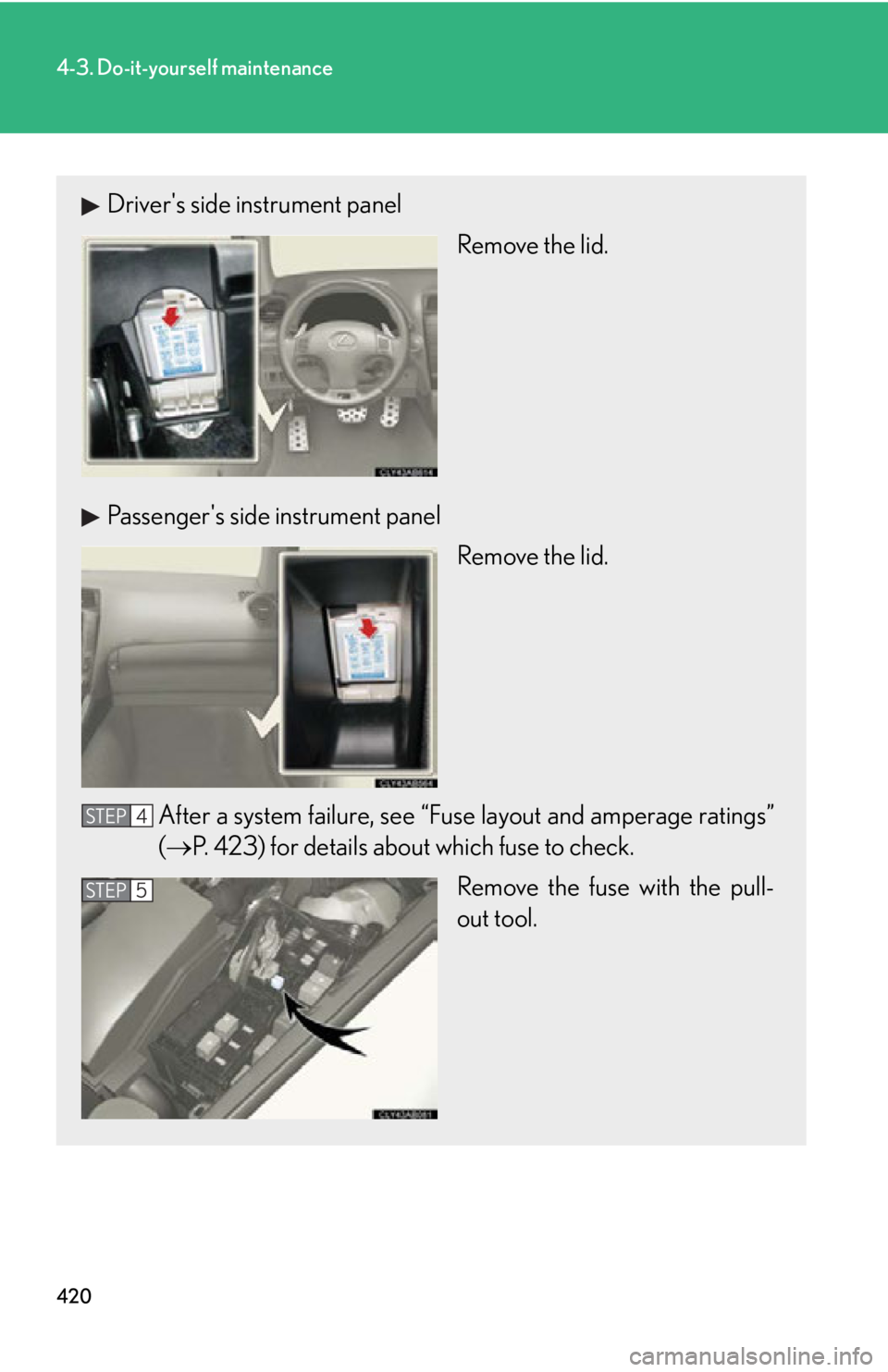

Driver's side instrument panelRemove the lid.
Passenger's side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
( P. 423) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

422
4-3. Do-it-yourself maintenance

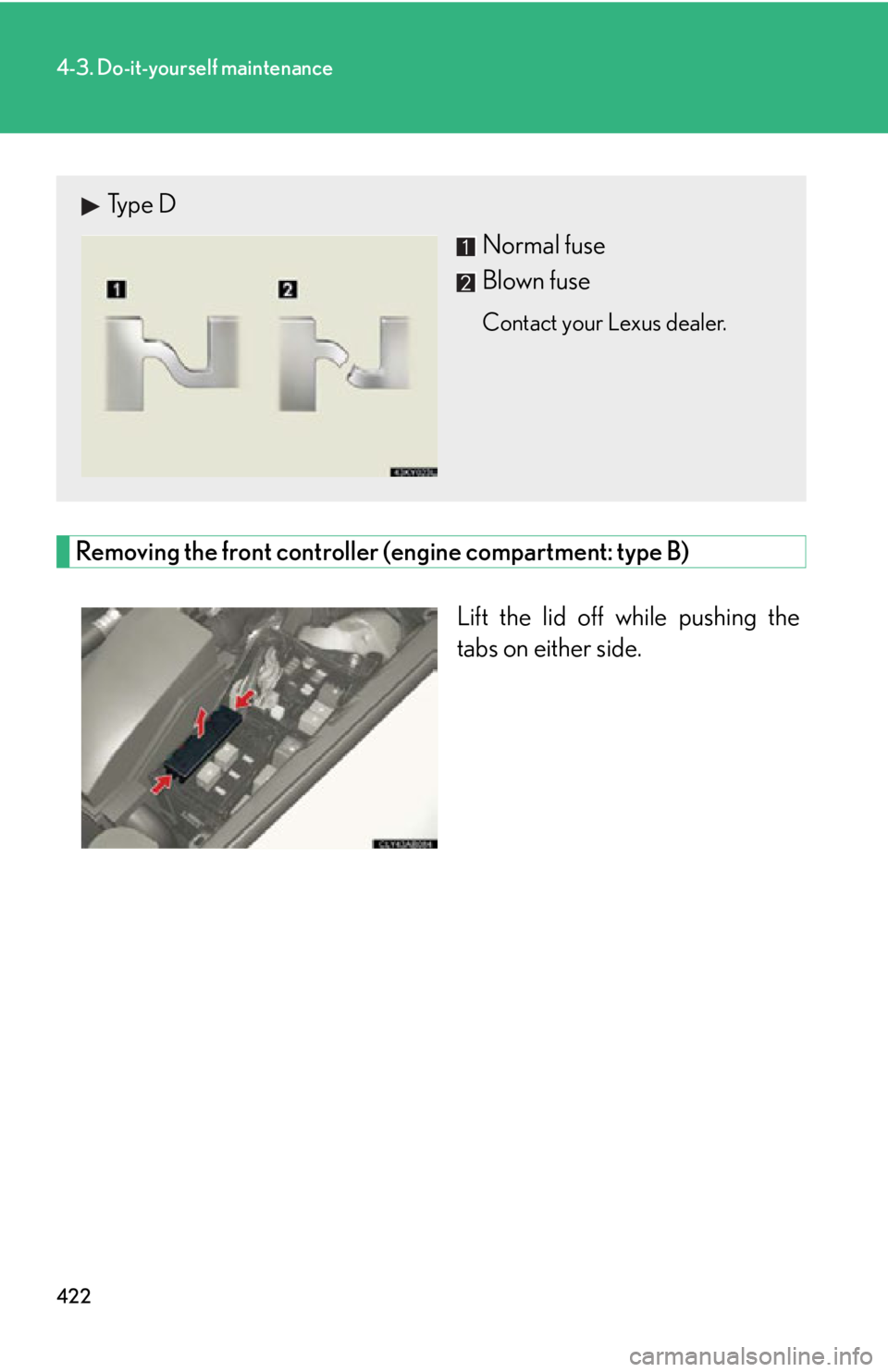

Removing the front controller (engine compartment: type B)Lift the lid off while pushing the
tabs on either side.
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1ALT-S7. 5 ACharging system
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO. 230 AAudio system
5D/C CUT20 ADOME, MPX-B
6RAD NO. 130 AAudio system
7MPX-B10 A
Headlights, front fog lights, parking
lights, windshield washer, horns,
power door lock system, power win-
dows, power seats, electric tilt and
telescopic steering column, meters
and gauges, smart access system with
push-button start, outside rear view
mirrors, air conditioning system
8DOME10 AInterior lights, meters and gauges,
front footwell lights
9CDS10 AElectric cooling fans

424
4-3. Do-it-yourself maintenance
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2, TEL
11P/I-B60 AEFI, F/PMP, INJ
12ABS 150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
15MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
16STARTER30 ASmart access system with push-button
start
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FA N 1 , FA N 2 , D E F O G, R H J / B - A M ,
ABS 2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, F/OPN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
FuseAmpereCircuit

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
24FA N 240 AElectric cooling fans
25FA N 140 AElectric cooling fans
26HEATER50 ACDS, air conditioning system
27E/G-AM60 AH-LP CLN, FR CTRL AM, DEICER
FuseAmpereCircuit

426
4-3. Do-it-yourself maintenance
■Engine compartment (type B)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHORN, H-LP HI
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7TEL10 ASafety connect
8INJ225 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
9STR LOCK25 ASteering lock system
10H-LP CLN30 AHeadlight cleaner
11DEICER25 AWindshield wiper de-icer
12FR CTRL-AM30 AFR FOG, WASHER, FR TAIL

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
13IG210 AIgnition system
14EFI NO. 210 A
Fuel system, exhaust system, multiport
fuel injection system/sequential multi-
port fuel injection system
15H-LP R LWR15 AHeadlight low beam (right)
16H-LP L LWR15 AHeadlight low beam (left)
17F/ P M P25 AFuel system
18EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, EFI NO. 2
19INJ25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
20H-LP UPR20 AHeadlight high beams
21HORN10 AHorns
22WA S H E R20 AWindshield washer
23FR TAIL10 AParking lights, side marker lights
24FR FOG15 AFront fog lights
FuseAmpereCircuit

428
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, rear side
marker lights
10PA N E L7. 5 A
Switch illumination, air conditioning
system, display, safety connect, ciga-
rette lighter illumination, shift lever
light, instrument panel lights
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, electric power steering, shift lock
system, moon roof, tire inflation pres-
sure warning system

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
13FR S/HTR LH15 ASeat heaters
14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAutomatic headlight leveling system
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
outside rear view mirror defoggers,
seat belts, intuitive parking assist, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit
