4-1. Maintenance and careCleaning and protecting the vehicle exterior................... 366
Cleaning and protecting the vehicle interior .................... 369
4-2. Maintenance Maintenance requ irements ..... 372
General maintenance ................ 374
Emission inspection and maintenance (I/M)
programs ...................................... 377
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 378
Hood................................................... 381
Positioning a floor jack.............. 382
Engine compartment................. 384
Tires ................................................... 397
Tire inflation pressure................ 408
Wheels............................................... 412
Air conditioning filter................... 414
Electronic key battery ................. 417
Checking and replacing fuses ................................................. 419
Headlight aim ................................ 433
Light bulbs ....................................... 435 5-1. Essential information
Emergency flashers .................... 442
If your vehicle needs to be towed ............................................. 443
If you think something is wrong ............................................. 449
Fuel pump shut off system ....... 450
Event data recorder..................... 451
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 453
If a warning message is displayed....................................... 463
If you have a flat tire..................... 477
If the engine will not start .......... 486
If the shift lever cannot be shifted from P .............................. 487
If you lose your keys ................... 488
If the electronic key does not operate prop erly .............. 489
If the vehicle battery is discharged ................................... 492
If your vehicle ov erheats ........... 495
If the vehicle becomes stuck............................................... 498
If your vehicle has to be stopped in an
emergency ................................... 499
4Maintenance and care5When trouble arises

126
2-1. Driving procedures
CAUTION
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly
and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the en gine is running, and apply the parking
brake as necessary.
●If the vehicle is stopped on an incline, in order to prevent accidents caused by the
vehicle rolling forward or backward, always depress the brake pedal and securely
apply the parking brake as needed.
●Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause the
exhaust system to overheat, which could result in a fire if combustible material is
nearby.
■When the vehicle is parked
●Do not leave glasses, cigarett e lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic
material of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of
the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the shift lever to P, stop the engine and lock
the vehicle.
Do not leave the vehicle unattend ed while the engine is running.
●Do not touch the exhaust pipes or rear bumper exhaust diffusers while the engine
is running or immediately af ter turning the engine off.
Doing so may cause burns.

293
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features

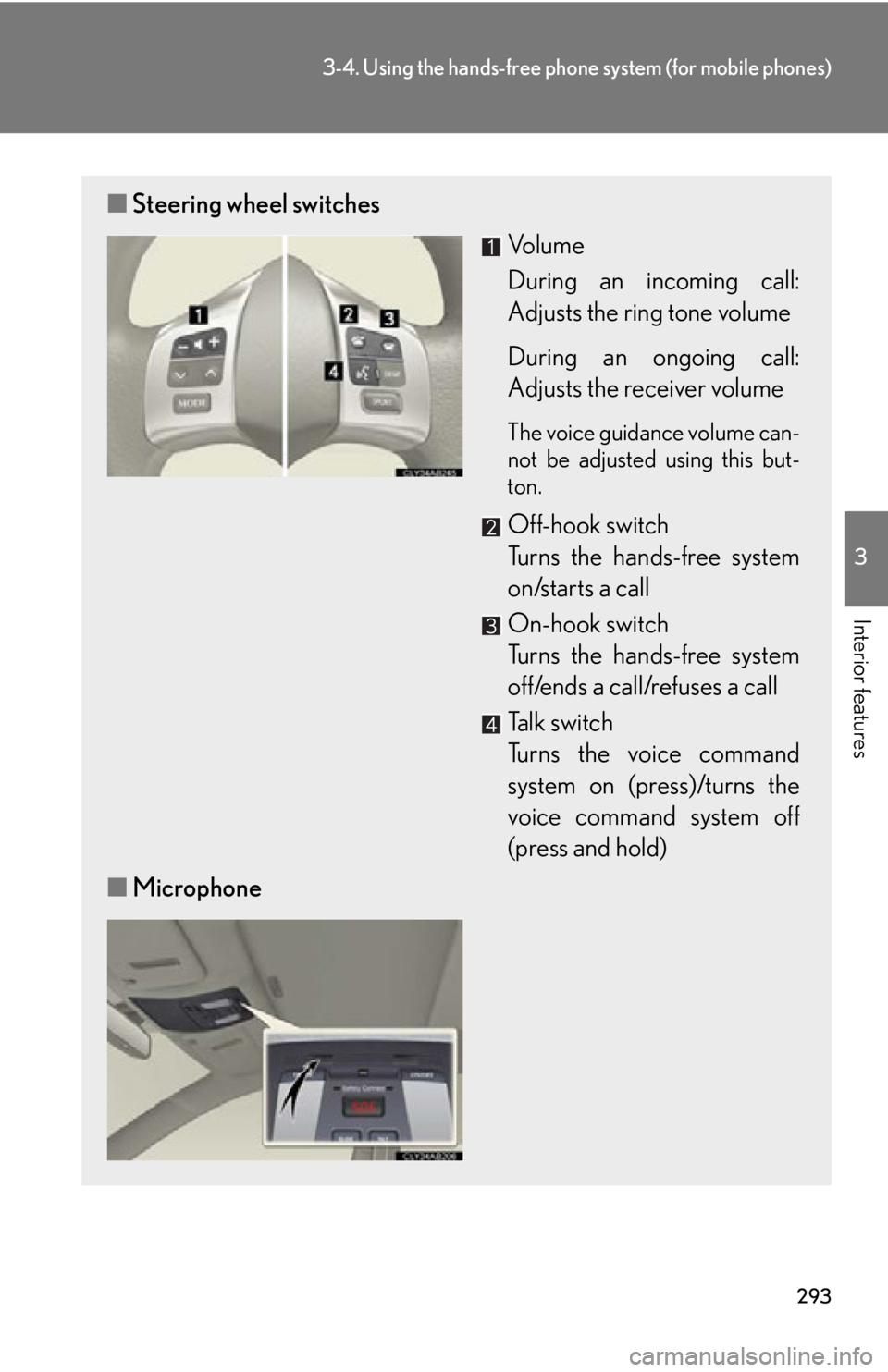

■Steering wheel switches
Vo l u m e
During an incoming call:
Adjusts the ring tone volume
During an ongoing call:
Adjusts the receiver volume
The voice guidance volume can-
not be adjusted using this but-
ton.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system
off/ends a call/refuses a call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
■ Microphone

302
3-4. Using the hands-free phone system (for mobile phones)
When receiving a phone call■ Answering a phone call
Press the off-hook switch.
■ Refusing a phone call
Press the on-hook switch.
Transferring a phone call
A call can be transferred between the mobile phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods:
a. Operate the mobile phone.
Refer to the manual that comes with the mobile phone for the operation
of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call
from the mobile phone to the system during a call.
*2: While the vehicle is in motion, calls cannot be transferred from
the system to the mobile phone.
Call waiting
When a call is interrupted by an incoming call from a third party, the fol-
lowing options will become available:
● Answer the incoming call: Press the off-hook switch. (Press the off-
hook switch again as necessary to switch back and forth between
calls.)
● Refuse the incoming call: Press the on-hook switch.

337
3-7. Other interior features
3
Interior features
Power outlet
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

Maintenance and care4
365
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 366
Cleaning and protecting the vehicle interior .............. 369
4-2. Maintenance Maintenance requirements ........................ 372
General maintenance .......... 374
Emission inspection and maintenance (I/M)
programs................................ 377 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ........................... 378
Hood ........................................... 381
Positioning a floor jack ......... 382
Engine compartment ........... 384
Tires............................................ 397
Tire inflation pressure........... 408
Wheels ....................................... 412
Air conditioning filter ............ 414
Electronic key battery............ 417
Checking and replacing fuses ......................................... 419
Headlight aim ......................... 433
Light bulbs ................................ 435

367
4-1. Maintenance and care
4
Maintenance and care
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving
for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
CAUTION
■Exhaust pipes and rear bumper exhaust diffusers
Exhaust gasses cause the exhaust pipes and rear bumper exhaust diffusers to
become quite hot. Therefore, do not touch them while the engine is running or
immediately after turning the engine off.
When washing the vehicle, be careful not to touch the exhaust pipes and rear
bumper exhaust diffusers until they have cooled sufficiently, as touching hot exhaust
pipes and diffusers can cause burns.

379
4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsPa r t s a n d t o o l s
Engine oil level (P. 3 8 6 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( P. 4 1 9 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 3 3 )• Phillips-head screwdriver
Radiator and condenser (P. 3 9 1 )
Tire inflation pressure ( P. 4 0 8 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 396)
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

384
4-3. Do-it-yourself maintenance
Engine compartment
Battery (P. 393)
Engine oil level dipstick (P. 386)
Engine oil filler cap (P. 386)
Brake fluid reservoir (P. 391)
Fuse boxes ( P. 4 1 9 )Washer fluid tank
(P. 396)
Electric cooling fans
Condenser ( P. 391)
Radiator ( P. 391)
Engine coolant reservoir (P. 389)

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Engine compartment (type B): Remove the engine compart-
ment cover. ( P. 385)
Open the fuse box cover.
Engine compartment (type A)
Push the tabs in and lift the lid
off.
Engine compartment (type B) Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
