steering Lexus IS F 2011 Owner's Guide

75
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
CAUTION
Seat belt damage and wear
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and
loose parts. Do not use a damaged seat belt until it is replaced. Damaged
seat belts cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.

76
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned OFF,
the steering wheel returns to its
stowed position by moving up
and away to enable easier
driver entry and exit.
Switching to ACCESSORY or
IGNITION ON mode will
return the steering wheel to the
original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver

77
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automat-
ically by the driving position memory. (P. 6 2 )
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the auto tilt-away function.
(Customizable features P. 484)

78
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

79
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Anti-glare inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear
view mirror by moving it up
and down.
In automatic mode, sensors are used to detect the headlights of vehi-
cles behind and automatically reduce the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically
set to automatic whenever the
“ENGINE START STOP”
switch is turned IGNITION
ON d

80
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
To prevent sensor error
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting
in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

81
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Outside rear view mirrors
Folding back the mirrors
Press the button to fold back the
mirrors
Push once more to return to the
original position.
Mirror angle can be adjusted using the switch when the “ENGINE
START STOP” switch is in ACCESSORY or IGNITION ON mode.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up,
down, in, or out using the
switch

82
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
The mirrors can be operated when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 236)
One-touch adjustment of the mirror angle
A desired mirror face angle can be entered to memory and adjusted with the
touch of a button. (P. 6 2 )
Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the
vehicle is reversing in order to give a better view of the ground. However,
this function will not operate when the mirror select switch is in the neutral
position (between “L” and “R”).
Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the
outside rear view mirrors will activate in conjunction with the anti-glare
inside rear view mirror to reduce reflected light. (P. 7 9 )

83
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded back.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

103
1
Before driving
IS F_EE
1-7. Safety information

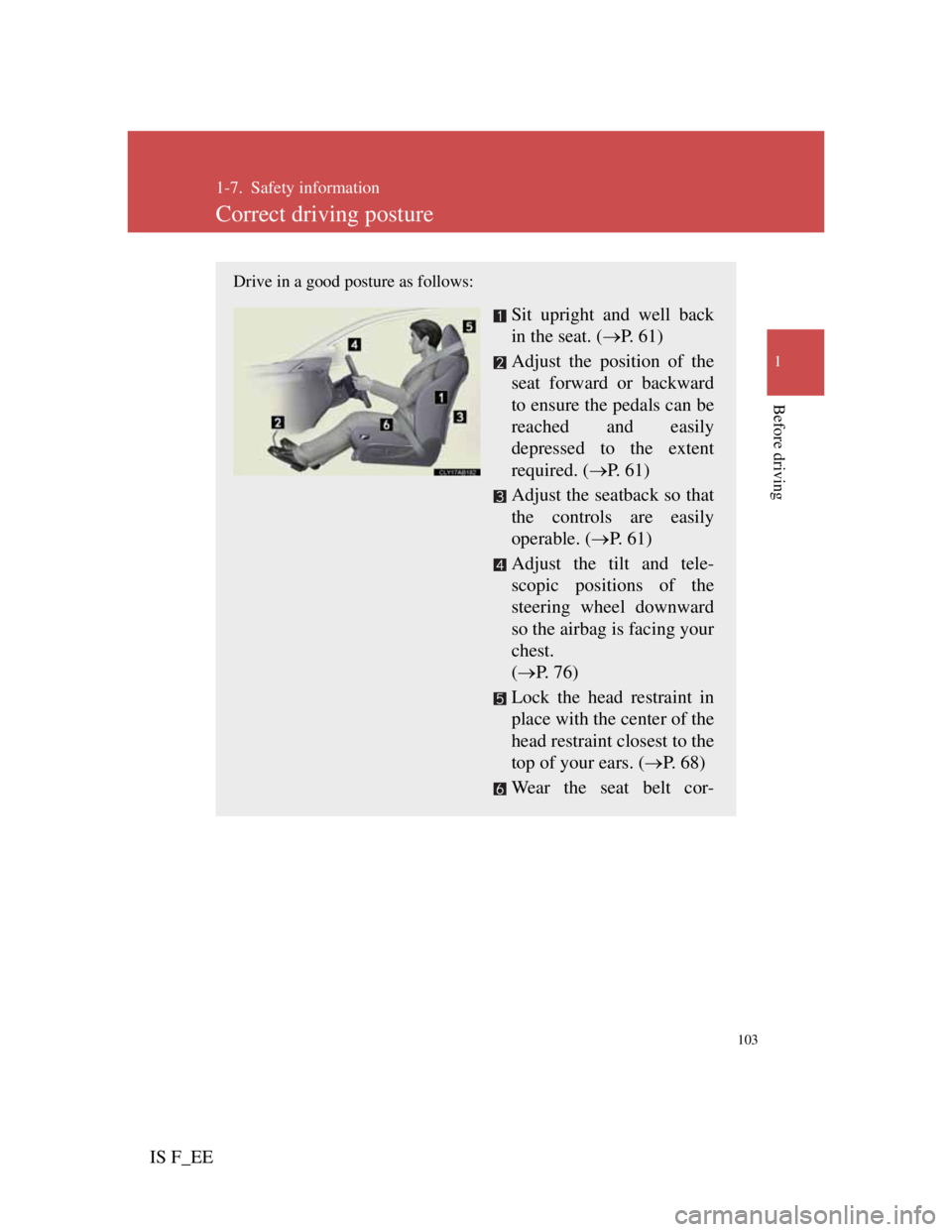

Correct driving posture
Drive in a good posture as follows:
Sit upright and well back
in the seat. (P. 6 1 )
Adjust the position of the
seat forward or backward
to ensure the pedals can be
reached and easily
depressed to the extent
required. (P. 61)
Adjust the seatback so that
the controls are easily
operable. (P. 61)
Adjust the tilt and tele-
scopic positions of the
steering wheel downward
so the airbag is facing your
chest.
(P. 76)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (P. 68)
Wear the seat belt cor-
