350
IS F_EE
4-1. Maintenance and care

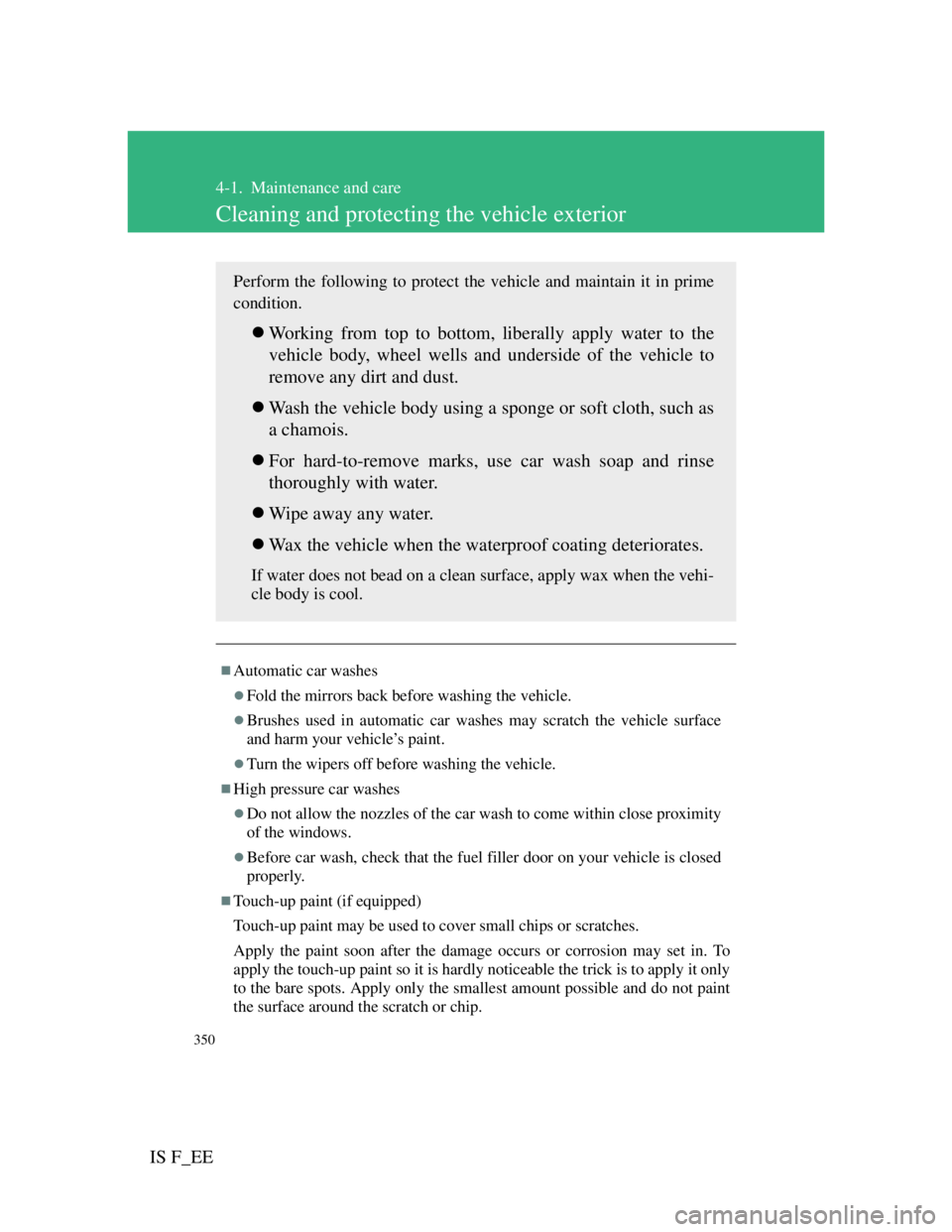

Cleaning and protecting the vehicle exterior
Automatic car washes
Fold the mirrors back before washing the vehicle.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Turn the wipers off before washing the vehicle.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Touch-up paint (if equipped)
Touch-up paint may be used to cover small chips or scratches.
Apply the paint soon after the damage occurs or corrosion may set in. To
apply the touch-up paint so it is hardly noticeable the trick is to apply it only
to the bare spots. Apply only the smallest amount possible and do not paint
the surface around the scratch or chip.
Perform the following to protect the vehicle and maintain it in prime
condition.
Working from top to bottom, liberally apply water to the
vehicle body, wheel wells and underside of the vehicle to
remove any dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as
a chamois.
For hard-to-remove marks, use car wash soap and rinse
thoroughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehi-
cle body is cool.

355
4-1. Maintenance and care
4
Maintenance and care
IS F_EE
NOTICE
Cleaning detergents
Do not use organic substances such as benzene or gasoline, acidic or alka-
line solutions, dye, bleach or other detergent. Doing so may discolor the
vehicle interior or cause streaks or damage to painted surfaces.
Do not use polish wax or polish cleaner. The instrument panel's or other
interior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
Remove any dust or dirt on leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or that contain wax on the
upholstery, as they may stick to the leather surface if the vehicle interior
heats up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause dam-
age to the rear window defogger heater wires or antenna. Use a cloth
dampened with lukewarm water to gently wipe the window clean. Wipe
the window in strokes running parallel to the heater wires or antenna.
Be careful not to scratch or damage the heater wires or antenna.

358
4-2. Maintenance
IS F_EE
Where to go for service?
In order to maintain your vehicle in the highest possible condition, Lexus
recommends that all repairs and service operations be carried out by autho-
rized Lexus dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an
authorized Lexus dealer or repairer, who will use genuine Lexus parts in
repairing any difficulties you may encounter. There can also be advantages
in utilizing authorized Lexus dealers or repairers for non-warranty repairs
and services, as members of the Lexus network will be able to expertly
assist you with any difficulties you may encounter.
Any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional service department will perform all of the scheduled
maintenance on your vehicle - reliably and economically due to their experi-
ence with Lexus vehicles.
Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air
conditioning after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon monox-
ide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire
wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.

398
4-3. Do-it-yourself maintenance
IS F_EE
7MPX-B10 A
Headlights, front fog lights, front
position lights, windshield washer,
horns, power door lock system,
power windows, power seats, elec-
tric tilt and telescopic steering col-
umn, meters and gauges, smart
entry & start system, outside rear
view mirrors, air conditioning sys-
tem, multiplex communication
system
8DOME10 AInterior lights, meters and gauges,
outer foot lights
9CDS10 AElectric cooling fans
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR
LOCK, INJ2
11P/I-B60 AEFI, F/PMP, INJ
12ABS150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH,
AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection
system
15MAIN30 AH-LP L LWR, H-LP R LWR,
headlight low beams
16STARTER30 ASmart entry & start system
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
FuseAmpereCircuit

399
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-
AM, ABS2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.
1,
A/C, F/OPN, PSB, RR FOG,
FR WIP, H-LP LVL, LH-IG,
ECU-IG LH, PANEL, TAIL,
TV NO. 2, FR S/HTR LH, MIR
HTR
21RH J/B-AM80 A
OBD, STOP SW, TI & TE, FR P/
SEAT RH, DOOR DL, RAD NO.
3,
ECU-IG RH, RH-IG, FR S/HTR
RH, ACC, CIG, PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
25FA N 140 AElectric cooling fans
26HEATER50 ACDS, air conditioning system
27E/G-AM60 AH-LP CLN, FR CTRL AM,
DEICER
FuseAmpereCircuit

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
14RR DOOR LH20 APower windows
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7.5 ASmart entry & start system
17H-LP LVL7.5 AAutomatic headlight leveling sys-
tem
18LH-IG10 A
Charging system, headlight
cleaner, rear window defogger,
electric cooling fans, emergency
flashers, turn signal lights, back-up
lights, stop lights, outside rear
view mirror defoggers, seat belts,
Lexus parking assist-sensor, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

404
4-3. Do-it-yourself maintenance
IS F_EERight side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APower seat
2DOOR DL15 APower door lock system
3OBD7.5 AOn-board diagnosis system
4STOP SW7.5 A
Stop lights, VDIM, shift lock sys-
tem,
multiport fuel injection system/
sequential multiport fuel injection
system,
smart entry & start system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO. 310 AAudio system
7GAUGE7.5 AMeters and gauges
8IGN10 ASRS airbag system, stop lights,
steering lock system, fuel system
9ACC7.5 A
Clock, air conditioning system,
audio system, navigation system,
display, outside rear view mirrors,
smart entry & start system, Lexus
parking assist monitor, glove box
light, console box light
10CIG15 ACigarette lighter
11PWR OUTLET15 APower outlet
12RR DOOR RH20 APower windows

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27.5 ASmart entry & start system
15RH-IG7.5 A
Seat belts, Lexus parking assist-
sensor, automatic transmission,
seat heaters, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart entry & start
system, VDIM, air conditioning
system, pre-crash seat belt, electric
tilt and telescopic steering column,
power windows, navigation sys-
tem, headlights, front fog lights,
front position lights, license plate
lights, windshield washer, outside
rear view mirrors
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 407)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

458
5-2. Steps to take in an emergency
IS F_EE
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked func-
tions
Use the mechanical key built in to the electronic keys to operate
the doors. (P. 33)
An alarm will sound if the alarm is set. ( P. 9 7 )
Doors
Remove the cover on the
driver’s door handle.
Locks all doors
Closes the windows/moon
roof (turn and hold)
Unlocks all doors
Opens the windows/moon
roof (turn and hold)
If communication between the electronic key and vehicle is inter-
rupted (P. 41) or the electronic key cannot be used because the bat-
tery is depleted, the smart entry & start system and wireless remote
control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
STEP1
STEP2

487
6-2. Customization
6
Vehicle specifica-
IS F_EE
*: This function cannot be customized unless power window operation
using the wireless remote control is enabled.
Windshield
wipers and
washer
(
P. 176)
Switching operation
when the vehicle is sta-
tionary
OnOff
Drip prevention func-
tionOnOff
Time elapsed before the
drip prevention func-
tion operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Lexus park-
ing assist-
sensor
(
P. 199)
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects150 cm (4.9 ft.)60 cm (2.0 ft.)
Illumination
(
P. 320)
Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START
STOP” switch is turned
OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightsOnOff
ItemFunctionDefault settingCustomized
setting
