86
1-4. Opening and closing the windows and moon roof
IS F_EE
The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
Door lock linked moon roof operation
The moon roof can be opened and closed using the mechanical key.
( P. 458)
The moon roof can be closed using the entry function. (P. 3 7 )
Operating the moon roof after turning the “ENGINE START STOP” switch
OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or
turned OFF. It cannot, however, be operated once either front door is
opened.
Jam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
To reduce moon roof wind noise
Drive with the moon roof opened to slightly before the fully open position
as driving with the moon roof opened fully will cause wind noise.
Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.

87
1-4. Opening and closing the windows and moon roof
1
Before driving
IS F_EE
When the moon roof does not close normally
Perform the following procedure:
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.*
1
The moon roof will close, reopen and pause for approximately 10
seconds.*2 Then it will close again, tilt up and pause for approxi-
mately 1 second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and
then release the switch.
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “TILT” switch*
1 until the moon roof moves into
the tilt up position and stops.
Release the “TILT” switch once and then press and hold the
“TILT” switch again.*
1
The moon roof will pause for approximately 10 seconds in the tilt
up position.*2 Then it will adjust slightly and pause for approxi-
mately 1 second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and
then release the switch.
*
1: If the switch is released at the incorrect time, the procedure will
have to be performed again from the beginning.
*
2: If the switch is released after the above mentioned 10 second
pause, automatic operation will be disabled. In that case, press
and hold the “CLOSE” or “TILT” switch, and the moon roof
will tilt up and pause for approximately 1 second. Then it will
tilt down, open and close. Check to make sure that the moon
roof is completely closed and then release the switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP4

88
1-4. Opening and closing the windows and moon roof
IS F_EE
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 484)
CAUTION
Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
Do not sit on top of the moon roof.
Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their bodies
in a position where they could be caught when the moon roof is being
operated.
Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the moon roof fully closes.

89
1
Before driving
IS F_EE

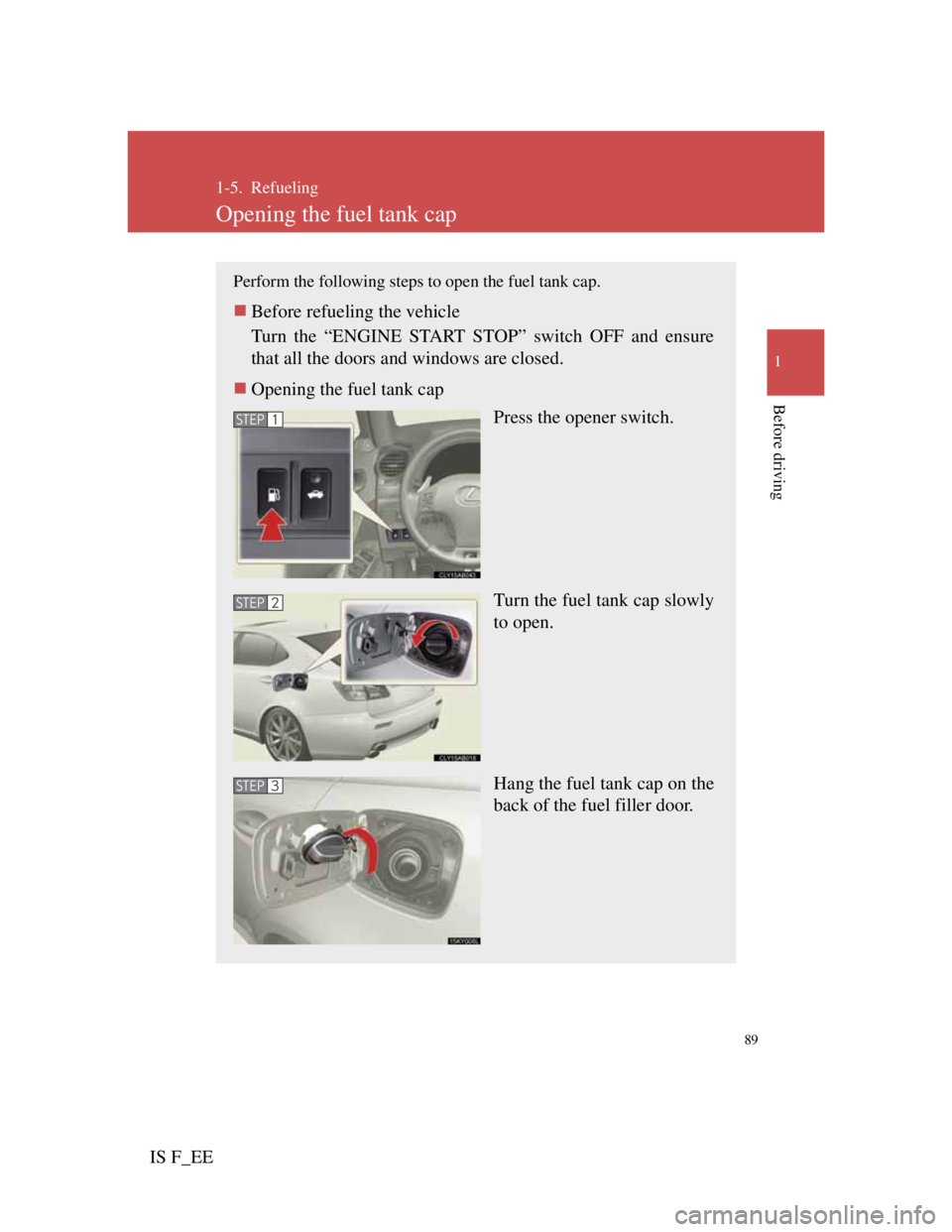

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
Turn the “ENGINE START STOP” switch OFF and ensure
that all the doors and windows are closed.
Opening the fuel tank cap
Press the opener switch.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

98
1-6. Theft deterrent system
IS F_EE
Intrusion sensor
The intrusion sensor detects an intruder or movement in the vehi-
cle. When an intruder or movement is detected, the alarm will be
triggered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Canceling the intrusion sensor
The operation of intrusion sensor can be canceled using the satel-
lite switches.
(P. 333)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows and moon roof are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.

100
1-6. Theft deterrent system
IS F_EE
Canceling the intrusion sensor
The alarm will be set even when the intrusion sensor is canceled.
To re-enable the intrusion sensor, press the “ENGINE START STOP”
switch or unlock the doors using the wireless remote door lock function
while the intrusion sensor is canceled.
Automatic re-enabling of the intrusion sensor
When the alarm system is set again, the intrusion sensor will also be set.
Intrusion sensor
The sensor may trigger the alarm in the following situations.
Persons or pets are in the vehicle.
Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
The windows or moon roof are open.
The vehicle is parked in a place where extreme vibration or noises occur,
such as in a parking garage.
The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
Ice or snow is removed from the vehicle, causing the vehicle to receive
repeated impacts or vibrations.
The wind or something similar causes an externally mounted reflectively
coated windshield cover to move.
When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the
alarm may be triggered.
When using the mechanical key to unlock the doors or trunk
Deactivate the alarm.
If the doors or trunk are unlocked using the mechanical key with the alarm
operational, the alarm will be triggered.

114
1-7. Safety information
IS F_EE
CAUTION
SRS airbag precautions
If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
Do not use seat accessories which cover the parts where the SRS side air-
bags inflate as they may interfere with inflation of the airbags.
Do not strike or apply significant levels of force to the area of the SRS air-
bag components shown on P. 106.
Doing so can cause the SRS airbags to malfunction.
Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
If breathing becomes difficult after the SRS airbag has deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
If the areas where the SRS airbags are stored, such as the steering wheel
pad and front pillar garnish, are damaged or cracked, have them replaced
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.

137
2-1. Driving procedures
2
When driving
IS F_EE
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
Engine speed while driving
In the following conditions, the engine speed may become high while driv-
ing. This is due to automatic up-shifting control or down-shifting implemen-
tation to meet driving conditions. It does not indicate sudden acceleration.
The vehicle is judged to be driving uphill or downhill
When the accelerator pedal is released
Breaking in your new Lexus
To extend the life of the vehicle, the following precautions are recom-
mended to observe:
For the first 300 km (186 miles):
Avoid sudden stops.
For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of
brake system needs bedding-down of the brake shoes periodically or when-
ever the parking brake shoes and/or drum are replaced. Have any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional, perform the bedding down.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the avail-
ability of the correct fuel. (P. 4 7 4 )

140
2-1. Driving procedures
IS F_EE
When starting off
To prevent the vehicle from creeping forward, keep the brake pedal firmly
depressed when shifting the shift lever.
When driving the vehicle
Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident
that could result in death or serious injury.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly, allowing you to depress the brake and accelerator
pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
Do not drive the vehicle over or stop the vehicle near flammable materi-
als.
Do not let the vehicle roll backwards while the shift lever is in a driving
position, or roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the trunk is closed. Large amounts of exhaust in the vehicle can
cause driver drowsiness and an accident, resulting in death or a serious
health hazard. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional, immedi-
ately.
Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.

222
2-5. Driving information
IS F_EE
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Pre-winter preparations
Use fluids that are appropriate to the prevailing outside
temperatures.
• Engine oil
• Engine coolant
• Washer fluid
Have a service technician inspect the level and specific
gravity of battery electrolyte.
Have the vehicle fitted with four snow tires.
Ensure that all tires are the specified size and the same brand.
Tire chains cannot be installed on 19-inch tires. Use the
specified type of tire chains and install them on the rear
tires only. Before installing the tire chains, change all four
tires and wheels to those of the specified size (tires: 225/
40R18, wheels: 18x8JJ +45 offset). For details, contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Before driving the vehicle
Perform the following according to the driving conditions.
Do not try to forcibly open a window or move a wiper that
is frozen. Pour warm water over the frozen area to melt the
ice. Wipe away the water immediately to prevent it from
freezing.
To ensure proper operation of the climate control system
fan, remove any snow that has accumulated on the air inlet
vents in front of the windshield.
Remove any ice that has accumulated on the vehicle chas-
sis
