engine Lexus IS F 2011 Owner's Manual

TABLE OF CONTENTSIndex
IS F_EE
2
1-1. Key information
Keys ..................................... 32
1-2. Opening, closing and locking
the doors and trunk
Smart entry & start system ... 36
Wireless remote control ....... 50
Doors .................................... 52
Trunk .................................... 57
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ............................ 61
Driving position memory ..... 62
Seat position memory........... 66
Head restraints...................... 68
Seat belts .............................. 70Steering wheel ...................... 76
Anti-glare inside rear view
mirror ................................. 78
Outside rear view mirrors .... 80
1-4. Opening and closing the
windows and moon roof
Power windows .................... 82
Moon roof ............................ 85
1-5. Refueling
Opening the fuel tank cap .... 89
1-6. Theft deterrent system
Engine immobilizer system.. 92
Double locking system ......... 96
Alarm ................................... 97
1-7. Safety information
Correct driving posture ...... 103
SRS airbags ........................ 105
Child restraint systems ....... 116
Installing child restraints .... 124
Airbag manual on/off
system .............................. 133
1Before driving
For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Lexus parking assist-sensor• Audio/video system
• Rear window and outside rear
view mirror defogging

1
2
3
4
5
6
IS F_EE
3
2-1. Driving procedures
Driving the vehicle ............. 136
Engine (ignition) switch ..... 145
Automatic transmission...... 149
Turn signal lever ................ 158
Parking brake ..................... 159
Horn ................................... 160
2-2. Instrument cluster
Gauges and meters ............. 161
Indicators and warning
lights................................. 164
Multi-information display .. 167
2-3. Operating the lights and
windshield wipers
Headlight switch ................ 172
Fog light switch.................. 175
Windshield wipers and
washer .............................. 176
Headlight cleaner switch .... 1792-4. Using other driving systems
Cruise control ..................... 180
Dynamic radar cruise
control .............................. 184
Lexus parking assist-sensor 199
Driving assist systems ........ 205
PCS (Pre-Crash Safety
system) ............................. 211
2-5. Driving information
Cargo and luggage ............. 220
Winter driving tips ............. 222
Trailer towing..................... 225
3-1. Using the air conditioning
system and defogger
Automatic air conditioning
system .............................. 228
Rear window and outside rear
view mirror defoggers ...... 236
Windshield wiper de-icer ... 237
2When driving
3Interior features

1
2
3
4
5
6
IS F_EE
5
3-7. Other interior features
Sun visors ........................... 330
Vanity mirrors .................... 331
Clock .................................. 332
Satellite switches ................ 333
Ashtrays ............................. 336
Cigarette lighter.................. 337
Power outlet ....................... 338
Seat heaters ........................ 339
Armrest............................... 341
Trunk storage extension ..... 342
Coat hooks.......................... 344
Floor mat ............................ 345
Trunk features .................... 3464-1. Maintenance and care
Cleaning and protecting the
vehicle exterior................. 350
Cleaning and protecting the
vehicle interior ................. 353
4-2. Maintenance
Maintenance requirements . 356
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ....................... 359
Hood ................................... 362
Positioning a floor jack ...... 363
Engine compartment .......... 365
Tires ................................... 378
Tire inflation pressure ........ 381
Wheels................................ 383
Air conditioning filter ........ 385
Electronic key battery ........ 388
Checking and replacing
fuses ................................. 390
Light bulbs ......................... 404
4Maintenance and care

TABLE OF CONTENTSIndex
IS F_EE
6
5-1. Essential information
Emergency flashers ............ 416
If your vehicle needs to be
towed ................................ 417
If you think something is
wrong ............................... 423
Fuel pump shut off system . 424
5-2. Steps to take in an emergency
If a warning light turns on
or a warning buzzer
sounds... .......................... 425
If a warning message is
displayed .......................... 431
If you have a flat tire .......... 444
If the engine will not start .. 454
If the shift lever cannot be
shifted from P................... 456
If you lose your keys .......... 457
If the electronic key does
not operate properly ......... 458
If the vehicle battery is
discharged ........................ 462
If your vehicle overheats .... 465
If the vehicle becomes
stuck ................................. 468
If your vehicle has to be
stopped in an emergency.. 4696-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 472
Fuel information................. 482
6-2. Customization
Customizable features ........ 484
Abbreviation list ......................... 490
Alphabetical index ...................... 491
What to do if... ........................... 502
5When trouble arises6Vehicle specifications
Index

IS F_EE
14
Multi-information display
P. 167
Pictorial indexInstrument panel
(Left-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch P. 172
P. 158
P. 175
Paddle shift switches
P. 152, 154
Gauges and meters
P. 161Windshield wiper and washer switch
P. 176
Trunk opener main switch P. 57
Glove box P. 325
Tilt and telescopic steering control switch P. 76
Parking brake pedal P. 159
Engine (ignition) switch P. 145
Hood release lever P. 362
Horn P. 160

IS F_EE
22
Pictorial indexInstrument panel
(Right-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch P. 172
P. 158
P. 175
Paddle shift switches P. 152, 154
Gauges and meters
P. 161
Multi-information display
P. 167
Windshield wiper
and washer switch
P. 176
Engine (ignition)
switch
P. 145
Trunk opener
main switch
P. 57
Glove box P. 325
Tilt and telescopic
steering control switch
P. 76
Parking brake pedal P. 159
Hood release lever
P. 362
Horn P. 160

1Before driving
31
IS F_EE
1-1. Key information
Keys ................................... 32
1-2. Opening, closing and locking
the doors and trunk
Smart entry & start system. 36
Wireless remote control ..... 50
Doors .................................. 52
Trunk .................................. 57
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats .......................... 61
Driving position memory ... 62
Seat position memory ........ 66
Head restraints ................... 68
Seat belts ............................ 70
Steering wheel.................... 76
Anti-glare inside rear view
mirror ............................... 78
Outside rear view mirrors .. 801-4. Opening and closing the
windows and moon roof
Power windows.................. 82
Moon roof .......................... 85
1-5. Refueling
Opening the fuel tank cap .. 89
1-6. Theft deterrent system
Engine immobilizer
system .............................. 92
Double locking system ...... 96
Alarm ................................. 97
1-7. Safety information
Correct driving posture .... 103
SRS airbags...................... 105
Child restraint systems...... 116
Installing child restraints . 124
Airbag manual on/off
system ............................ 133

36
IS F_EE
1-2. Opening, closing and locking the doors and trunk

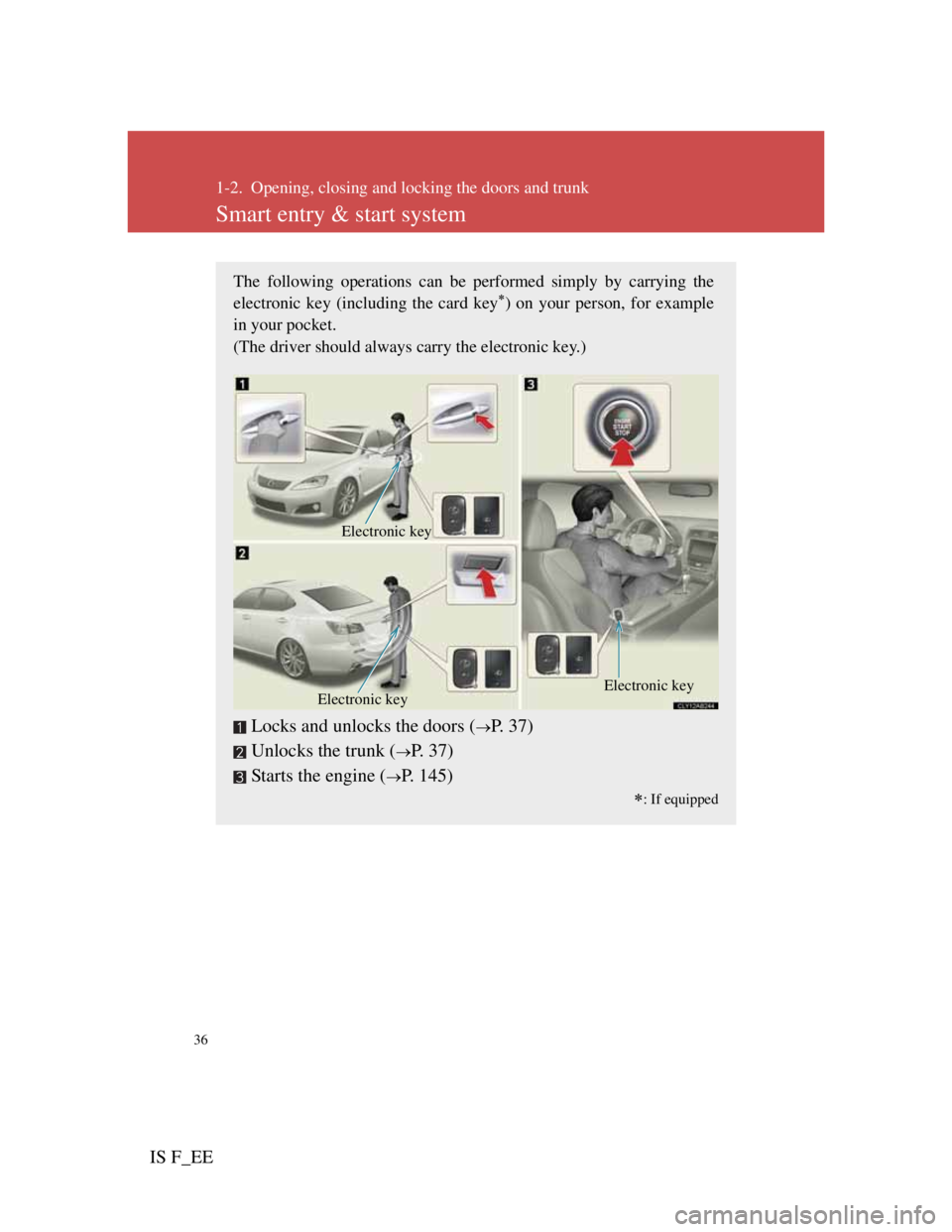

Smart entry & start system
The following operations can be performed simply by carrying the
electronic key (including the card key) on your person, for example
in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (P. 37)
Unlocks the trunk (
P. 37)
Starts the engine (
P. 1 4 5 )

: If equipped
Electronic key
Electronic keyElectronic key

39
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EEEffective range (areas within which the electronic key is
detected)
When locking or unlock-
ing the doors
The system can be operated
when the electronic key is
within about 70 cm (2.3 ft.)
of either of the outside
front door handles. (Only
the doors detecting the key
can be operated.)
When unlocking the
trunk
The system can be operated
when the electronic key is
within about 70 cm (2.3 ft.)
of the trunk release button.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

42
1-2. Opening, closing and locking the doors and trunk
IS F_EE
Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
Cancel the intrusion sensor of the alarm system to prevent unin-
tended triggering of the alarm during the setting change. (P. 97)
When the indicator on the key surface is turned off, push and
hold or for approximately 5 seconds while pushing
on the key.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 3.)
To prevent unintended triggering of the alarm, unlock the doors using the
wireless remote control and open and close a door once after the settings
have been changed. (If a door is not opened within 30 seconds after is
pressed, the doors will be locked again and the alarm will automatically be
set.)
In case that the alarm is triggered, immediately stop the alarm. (P. 9 7 )
STEP1
STEP2
STEP3
Multi-informa-
tion displayUnlocking doorsBeep
Hold either front door han-
dle to unlock all doors.Exterior: Beeps twice
Interior: Pings once
Hold the driver's door han-
dle to unlock only the
driver's door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
