2914-5. Using the driving support systems
4
Driving
IS200t_EE(OM53D19E)
◆Pre-crash warning
When a high possibility of a frontal
collision is detected, the pre-crash
safety system warning light flashes, a
buzzer sounds and a message is
shown on the multi-information dis-
play to urge the driver to take eva-
sive action.
◆Pre-crash brake assist
When there is a high possibility of a frontal collision, the system applies
greater braking force in relation to how strongly the brake pedal is depressed.
The system may not warn the driver using a warning light, warning display and
buzzer when the system detects and judges braking operations.
◆Pre-crash braking
When there is a high possibility of a frontal collision, the system warns the
driver using a warning light, warning display and buzzer. If the system deter-
mines that a collision is unavoidable, the brakes are automatically applied to
reduce the collision speed.
PCS (Pre-Crash Safety system)∗
∗
: If equipped
When the radar sensor detects the possibili ty of a frontal collision, brakes are
automatically engaged to lessen im pact as well as vehicle damage.
The pre-crash safety system can be turned on and off as necessary by operat-
ing the switch. ( →P. 2 9 2 )

3004-5. Using the driving support systems
IS200t_EE(OM53D19E)

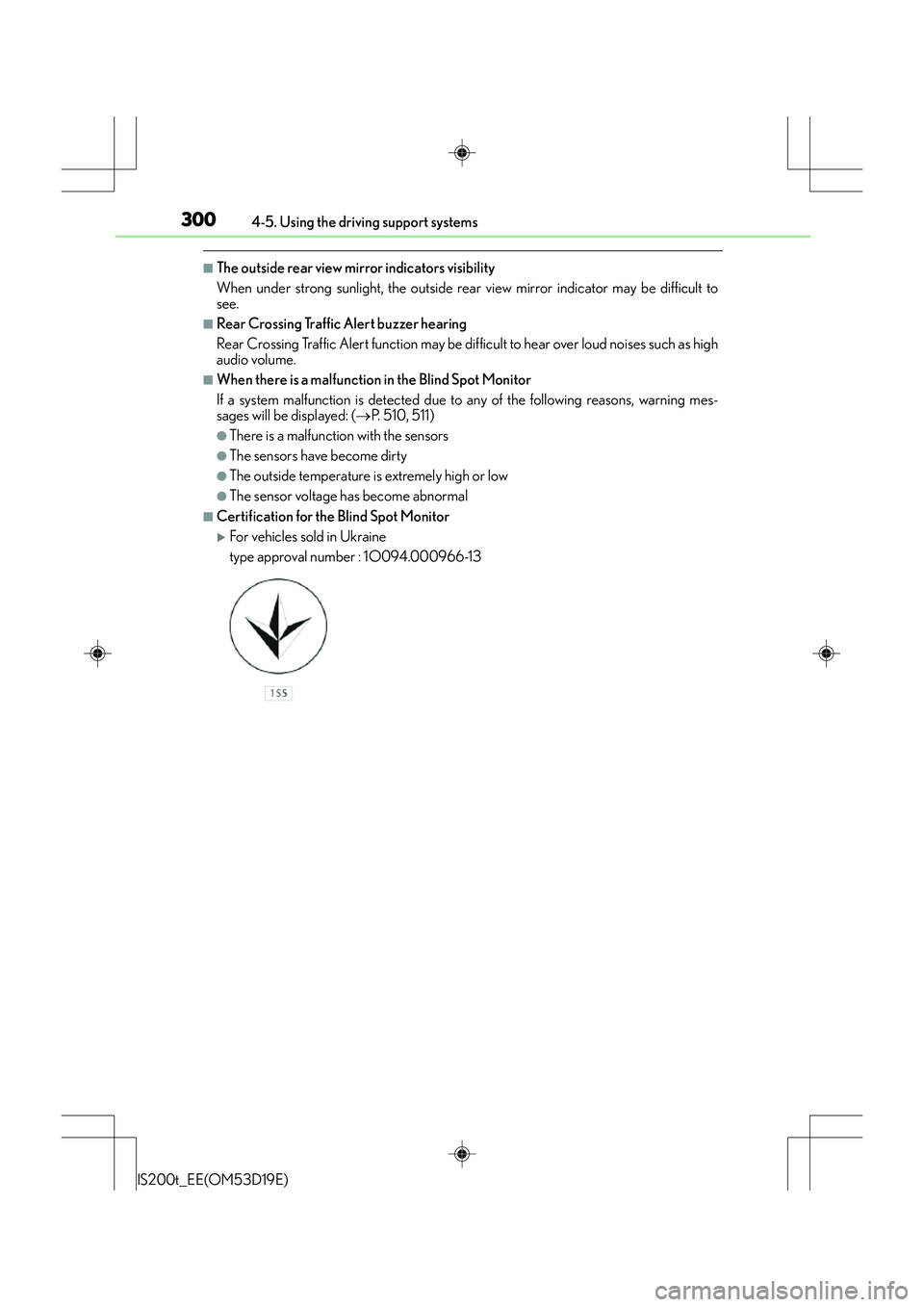

■The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be difficult to
see.
■Rear Crossing Traffic Alert buzzer hearing
Rear Crossing Traffic Alert function may be difficult to hear over loud noises such as high
audio volume.
■When there is a malfunction in the Blind Spot Monitor
If a system malfunction is detected due to any of the following reasons, warning mes-
sages will be displayed: ( →P. 510, 511)
●There is a malfunction with the sensors
●The sensors have become dirty
●The outside temperature is extremely high or low
●The sensor voltage has become abnormal
■Certification for the Blind Spot Monitor
XFor vehicles sold in Ukraine
type approval number : 1O094.000966-13

312
IS200t_EE(OM53D19E)
5-1. Basic OperationsLexus Display Audio System .......................................... 314
Steering wheel audio switches.......................................320
USB/AUX ports ...........................321
5-2. Setup Setup menu .................................. 323
General settings......................... 324
Voice settings .............................. 327
Display settings ........................... 328
5-3. Using the audio system Selecting the audio source .... 329
Optimal use of the audio system ..........................................330
Audio settings .............................. 331
Audio menu screen operation .................................... 335
5-4. Using the radio Radio operation ..........................338
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................340

313
5
Lexus DisplayAudio system
IS200t_EE(OM53D19E)
5-6. Using an external device
Listening to an iPod ................... 347
Using USB memory device .......................................... 350
Using the AUX port..................355
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices.........................................356
Registering a Bluetooth
®
device .......................................... 358
Selecting a Bluetooth
®
device ...........................................359
Connecting a Bluetooth
®
audio player .............................. 360
Connecting a Bluetooth
®
phone ............................................ 361
Displaying a Bluetooth
®
device details ............................ 362
Detailed Bluetooth
®
settings.........................................363
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio............................................364 5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone........................................... 366
Making a call................................368
Receiving a call ............................. 371
Speaking on the phone ............372
Using a Bluetooth
®
phone messages....................... 374
Using the steering wheel switches........................................377
Bluetooth
® phone
settings ........................................ 378
5-10. Phonebook Contact settings ........................ 380
Messaging setting......................383
5-11. Bluetooth
®
Bluetooth®...................................384
5-12. Other function “Information” screen .................389
MirrorLink ................................390
USB photo .................................... 392
Speech command system ...... 394

314

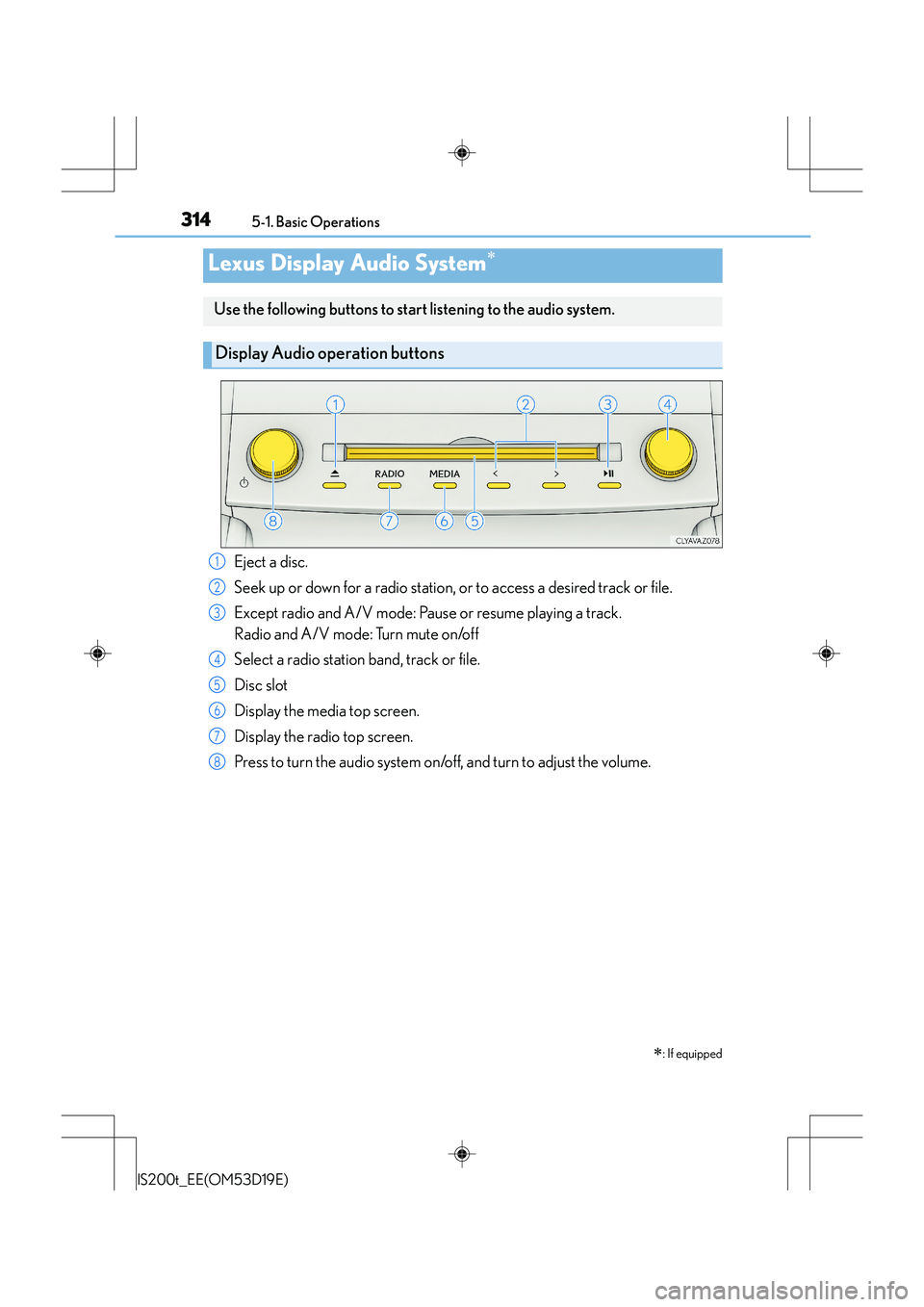

IS200t_EE(OM53D19E)5-1. Basic Operations
Lexus Display Audio System∗
∗
: If equipped
Use the following buttons to start listening to the audio system.
Display Audio operation buttons
Eject a disc.
Seek up or down for a radio station, or to access a desired track or file.
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
Select a radio station band, track or file.
Disc slot
Display the media top screen.
Display the radio top screen.
Press to turn the audio system on/off, and turn to adjust the volume.1
2
3
4
5
6
7
8

3155-1. Basic Operations
5
Lexus Display Audio system
IS200t_EE(OM53D19E)

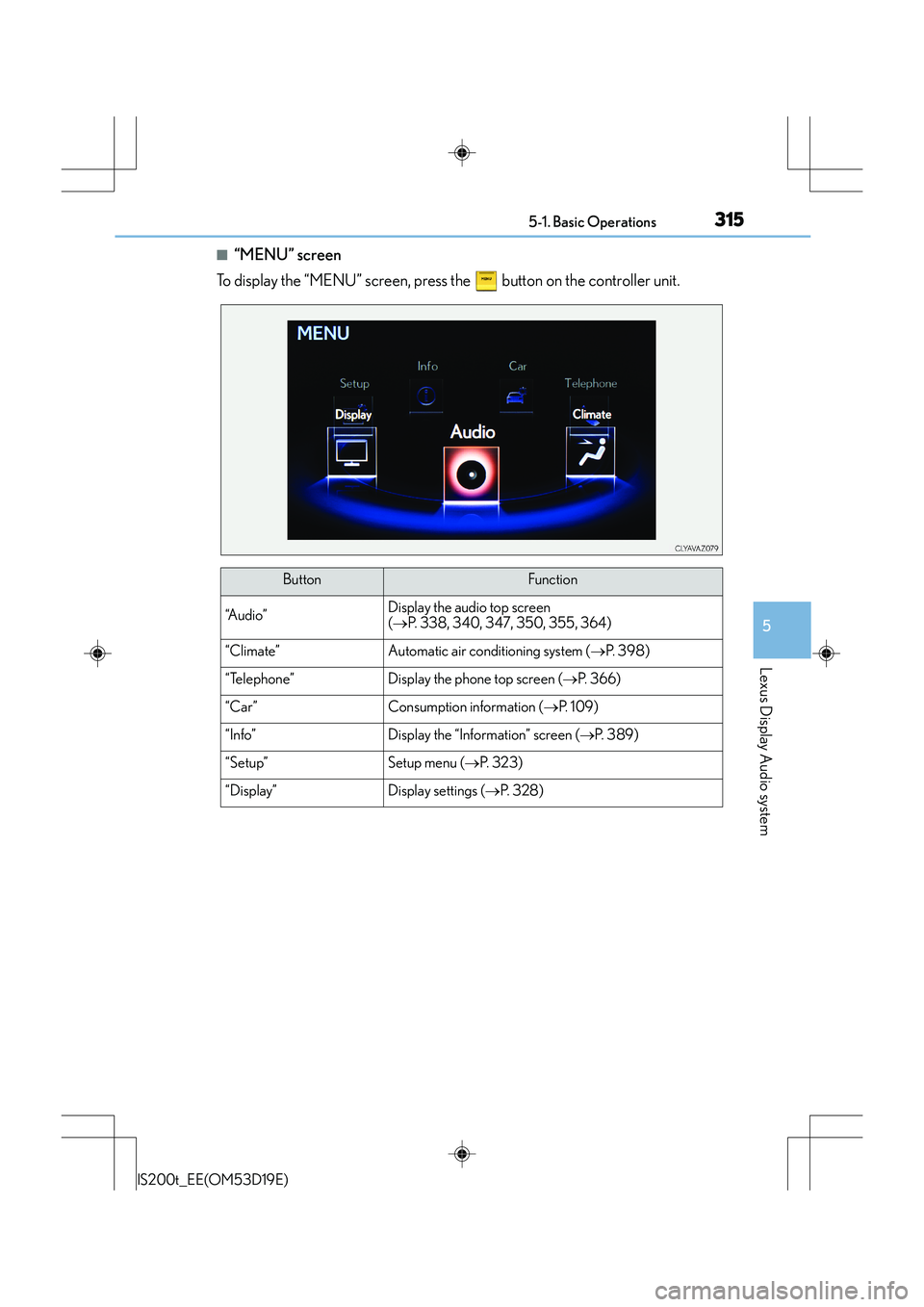

■“MENU” screen
To display the “MENU” screen, press the button on the controller unit.
ButtonFunction
“A u d i o ”Display the audio top screen
( → P. 338, 340, 347, 350, 355, 364)
“Climate”Automatic air conditioning system ( →P. 3 9 8 )
“Telephone”Display the phone top screen ( →P. 3 6 6 )
“Car” Consumption information ( →P. 1 0 9 )
“Info”Display the “Information” screen ( →P. 3 8 9 )
“Setup”Setup menu ( →P. 323)
“Display”Display settings ( →P. 3 2 8 )

3165-1. Basic Operations
IS200t_EE(OM53D19E)

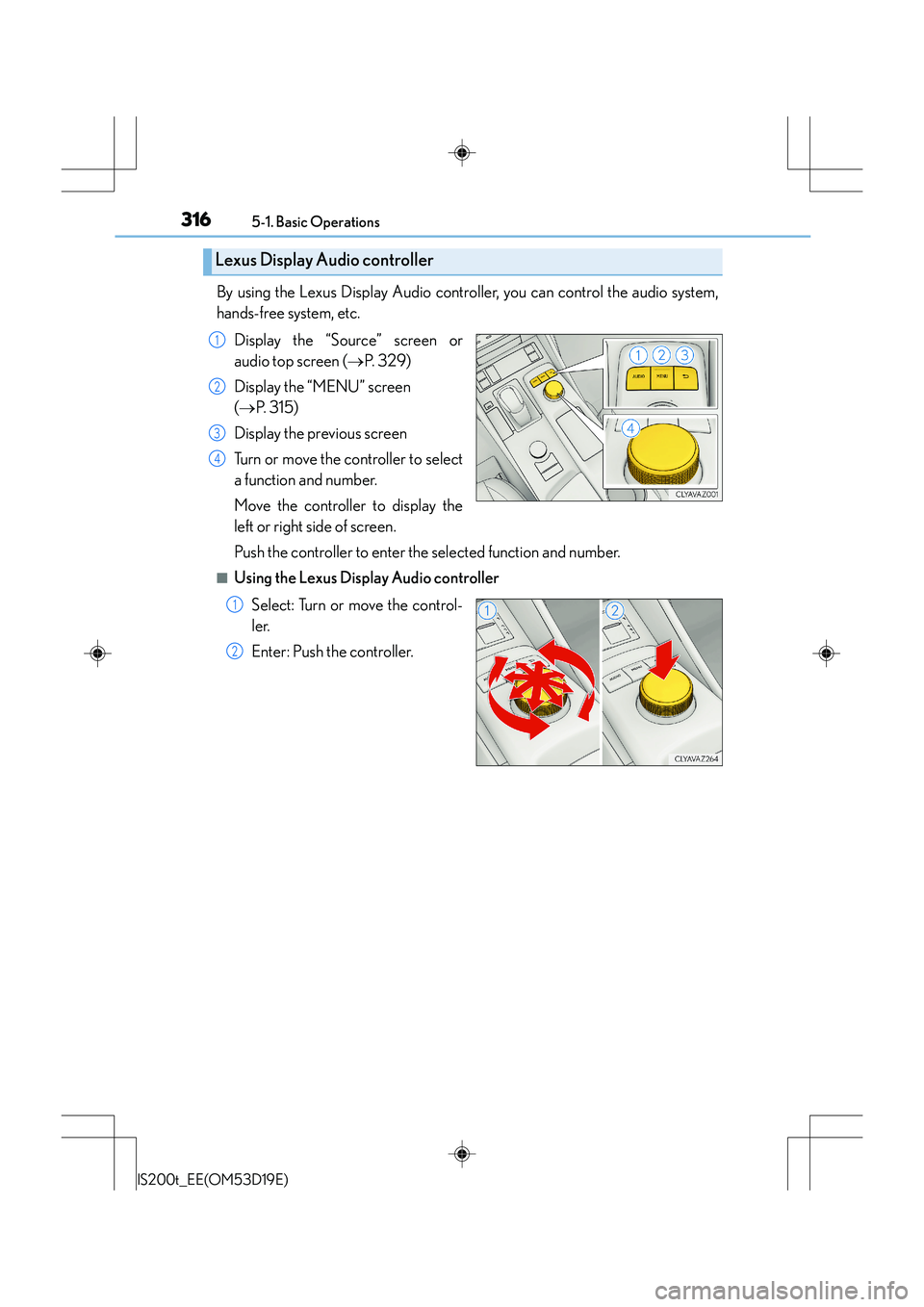

By using the Lexus Display Audio controller, you can control the audio system,
hands-free system, etc.Display the “Source” screen or
audio top screen ( →P. 3 2 9 )
Display the “MENU” screen
( → P. 3 1 5 )
Display the previous screen
Turn or move the controller to select
a function and number.
Move the controller to display the
left or right side of screen.
Push the controller to enter the selected function and number.
■Using the Lexus Display Audio controller
Select: Turn or move the control-
ler.
Enter: Push the controller.
Lexus Display Audio controller
1
2
3
4
1
2

3175-1. Basic Operations
5
Lexus Display Audio system
IS200t_EE(OM53D19E)

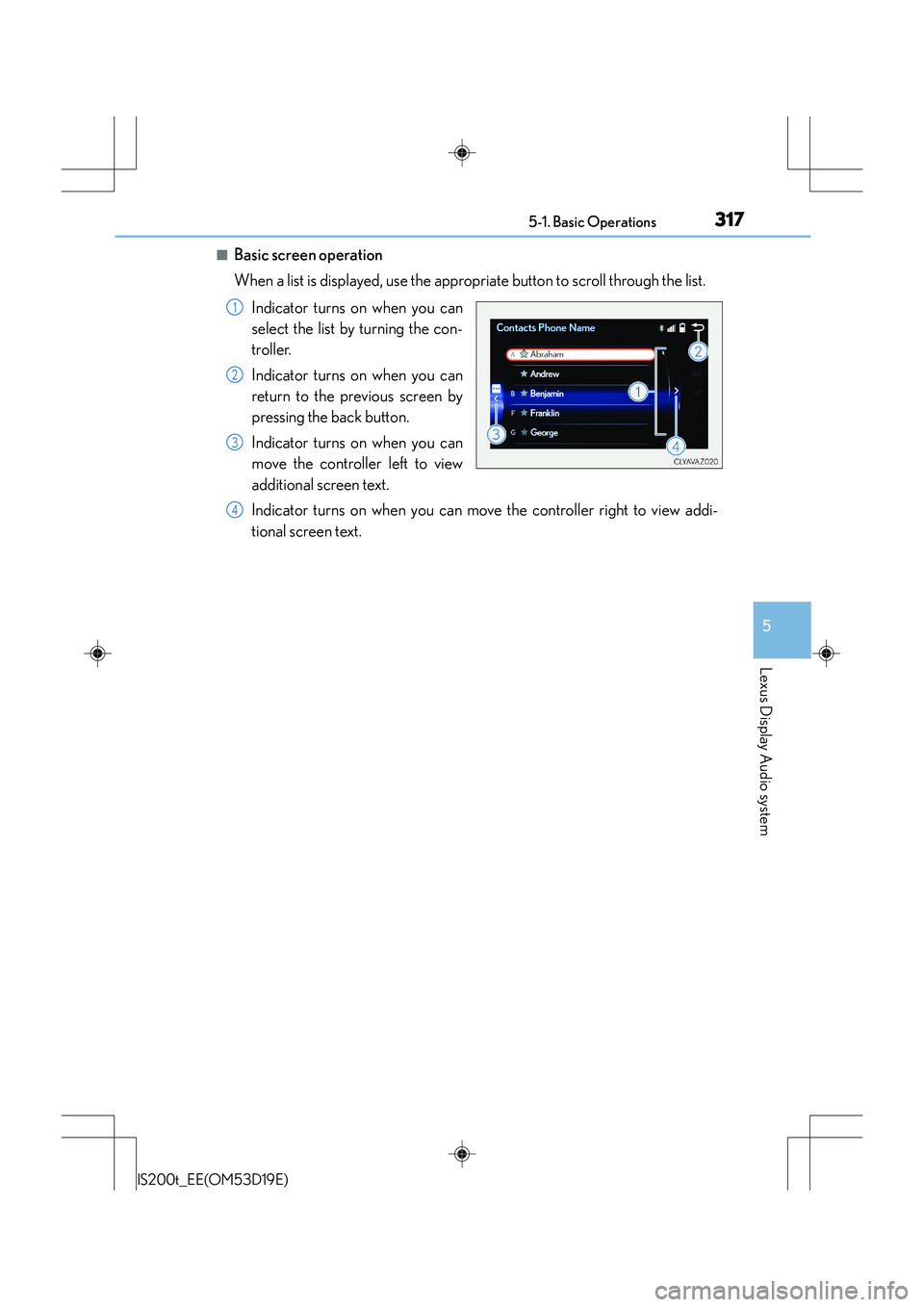

■Basic screen operation
When a list is displayed, use the appropriate button to scroll through the list.Indicator turns on when you can
select the list by turning the con-
troller.
Indicator turns on when you can
return to the previous screen by
pressing the back button.
Indicator turns on when you can
move the controller left to view
additional screen text.
Indicator turns on when you can move the controller right to view addi-
tional screen text.
1
2
3
4

3195-1. Basic Operations
5
Lexus Display Audio system
IS200t_EE(OM53D19E)
■When using the screen
●Under extremely cold conditions, the Lexus Display Audio controller may react slowly.
●If the screen is cold, the display may be dark, or the system may seem to be operating
slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses. Change
your angle of viewing, adjust the display on the “Display” screen (→P. 328) or remove
your sunglasses.
■Using cellular phones
Interference may be heard through the audio system's speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■Using the Lexus Display Audio controller
Be careful when touching the Lexus Display Audio controller in extreme temperatures
as it may become very hot or cold due to the temperature inside the vehicle.
■Laser product
This product is a class 1 laser product.
Do not open the cover of the player or attempt to repair the unit yourself. Refer servic-
ing to qualified personnel.
NOTICE
■To prevent Lexus Display Audio controller malfunction
●Do not allow the Lexus Display Audio contro ller to come into contact with food, liq-
uid, stickers or lit cigarettes as doing so may cause it to change color, emit a strange
odor or stop functioning.
●Do not subject the Lexus Display Audio controller to excessive pressure or strong
impact as the controller may bend or break off.
■To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

3215-1. Basic Operations
5
Lexus Display Audio system
IS200t_EE(OM53D19E)
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if it is
not turned on.
■USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
USB/AUX ports
Connect an iPod, USB memory device or portable audio player to the USB/
AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “A/V” on the
audio source selection screen and the device can be operated via Display
Audio system.
Connecting using the USB/AUX port
