USB Lexus IS200t 2015 Owner's Manual

TABLE OF CONTENTS4
IS200t_EE(OM53D19E)
5-1. Basic OperationsLexus Display Audio System........................................... 314
Steering wheel audio switches.......................................320
USB/AUX ports .......................... 321
5-2. Setup Setup menu...................................323
General settings ......................... 324
Voice settings............................... 327
Display settings ...........................328
5-3. Using the audio system Selecting the audio source.....329
Optimal use of the audio system ......................................... 330
Audio settings............................... 331
Audio menu screen operation ....................................335
5-4. Using the radio Radio operation ......................... 338 5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ............... 340
5-6. Using an external device Listening to an iPod ................... 347
Using USB memory device.......................................... 350
Using the AUX port..................355
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices.........................................356
Registering a Bluetooth
®
device.......................................... 358
Selecting a Bluetooth
®
device...........................................359
Connecting a Bluetooth
®
audio player .............................. 360
Connecting a Bluetooth
®
phone ............................................ 361
Displaying a Bluetooth
®
device details ............................ 362
Detailed Bluetooth
®
settings.........................................363
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio............................................ 364
5Lexus Display Audio system

5
1
9 8
7
6 4 3
2
IS200t_EE(OM53D19E)
5
5-9. Bluetooth® Phone
Using a Bluetooth
®
Phone ...........................................366
Making a call ............................... 368
Receiving a call .............................371
Speaking on the phone............ 372
Using a Bluetooth
®
phone messages.......................374
Using the steering wheel switches....................................... 377
Bluetooth
® phone
settings......................................... 378
5-10. Phonebook Contact settings ........................ 380
Messaging setting..................... 383
5-11. Bluetooth
®
Bluetooth®.................................. 384
5-12. Other function “Information” screen ................ 389
MirrorLink ................................ 390
USB photo ....................................392
Speech command system ......394 6-1. Using the air conditioning
system
Automatic air conditioning system ......................................... 398
Heated steering wheel/ seat heaters/
seat ventilators .........................409
6-2. Using the interior lights Interior lights list............................. 411• Interior lights ........................... 412
• Personal lights......................... 412
6-3. Using the storage features
List of storage features.............. 414
• Glove box................................. 415
• Console box............................ 415
•Cup holders/Bottle holders ......................... 416
Trunk features ............................... 418
6-4. Using the other interior features
Other interior features ............. 421 • Sun visors ................................. 421
• Vanity mirrors ......................... 421
• Clock.......................................... 421
• Power outlet ........................... 422
• Armrest .................................... 423
• Rear sunshade....................... 423
• Assist grips.............................. 425
• Coat hooks ............................. 425
6Interior features

312
IS200t_EE(OM53D19E)
5-1. Basic OperationsLexus Display Audio System .......................................... 314
Steering wheel audio switches.......................................320
USB/AUX ports ...........................321
5-2. Setup Setup menu .................................. 323
General settings......................... 324
Voice settings .............................. 327
Display settings ........................... 328
5-3. Using the audio system Selecting the audio source .... 329
Optimal use of the audio system ..........................................330
Audio settings .............................. 331
Audio menu screen operation .................................... 335
5-4. Using the radio Radio operation ..........................338
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................340

313
5
Lexus DisplayAudio system
IS200t_EE(OM53D19E)
5-6. Using an external device
Listening to an iPod ................... 347
Using USB memory device .......................................... 350
Using the AUX port..................355
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices.........................................356
Registering a Bluetooth
®
device .......................................... 358
Selecting a Bluetooth
®
device ...........................................359
Connecting a Bluetooth
®
audio player .............................. 360
Connecting a Bluetooth
®
phone ............................................ 361
Displaying a Bluetooth
®
device details ............................ 362
Detailed Bluetooth
®
settings.........................................363
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio............................................364 5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone........................................... 366
Making a call................................368
Receiving a call ............................. 371
Speaking on the phone ............372
Using a Bluetooth
®
phone messages....................... 374
Using the steering wheel switches........................................377
Bluetooth
® phone
settings ........................................ 378
5-10. Phonebook Contact settings ........................ 380
Messaging setting......................383
5-11. Bluetooth
®
Bluetooth®...................................384
5-12. Other function “Information” screen .................389
MirrorLink ................................390
USB photo .................................... 392
Speech command system ...... 394

3205-1. Basic Operations
IS200t_EE(OM53D19E)
Volume switch• Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Radio mode: • Press (except manual mode): Select a radio station
• Press (manual mode): Seek up/ down
• Press and hold (manual mode): Continuously seek up/down
CD, MP3/WMA/AAC disc, Bluetooth
®, iPod or USB mode:
• Press: Select a track/file/song/video
• Press and hold: Select a folder/album (MP3/WMA/AAC disc or USB)
“MODE” switch • Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To can- cel the mute or pause, press and hold.
Steering wheel audio switches
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on the type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
Operating the audio system us ing the steering wheel switches
1
2
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

3215-1. Basic Operations
5
Lexus Display Audio system
IS200t_EE(OM53D19E)
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if it is
not turned on.
■USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
USB/AUX ports
Connect an iPod, USB memory device or portable audio player to the USB/
AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “A/V” on the
audio source selection screen and the device can be operated via Display
Audio system.
Connecting using the USB/AUX port

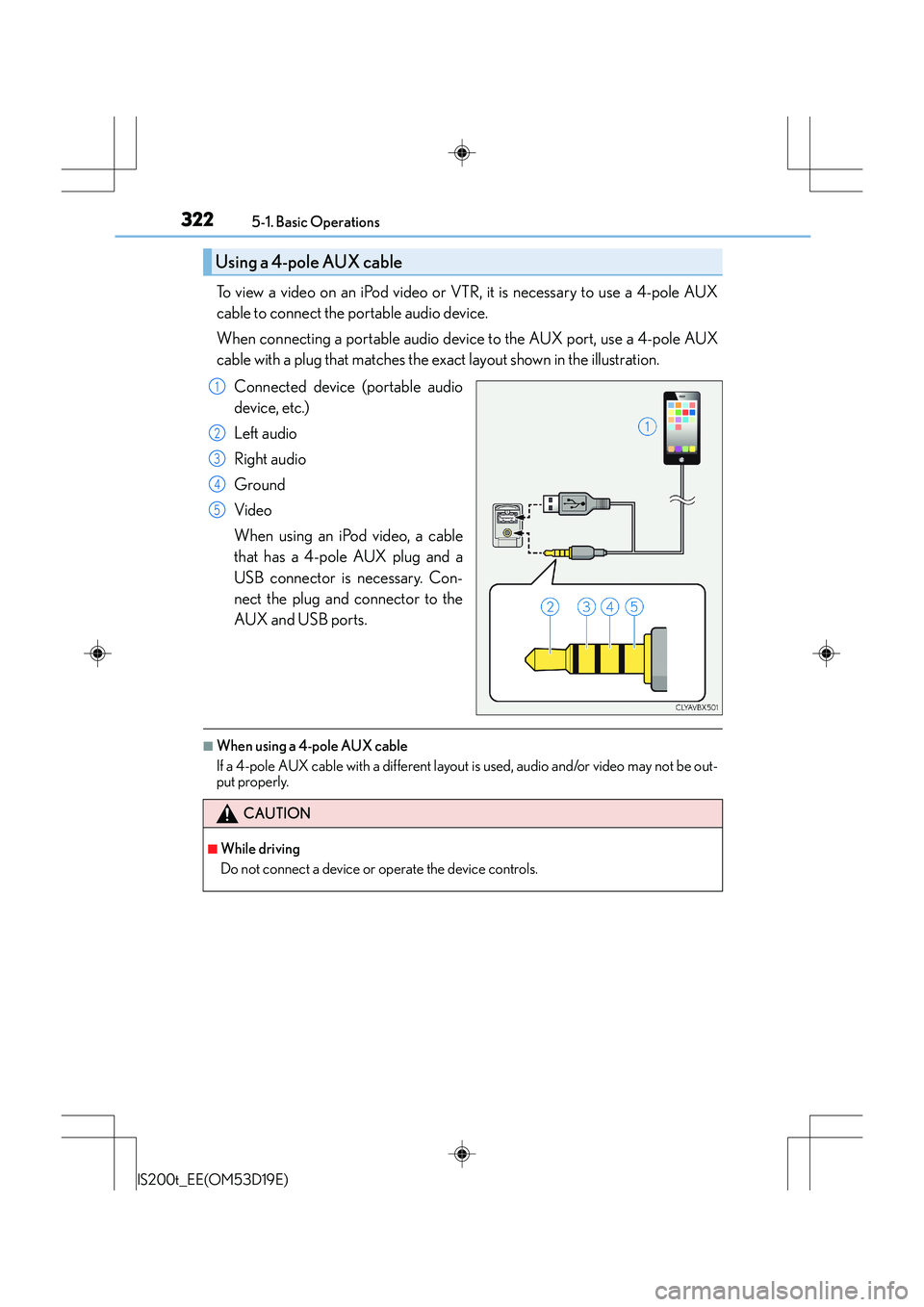

3225-1. Basic Operations
IS200t_EE(OM53D19E)
To view a video on an iPod video or VTR, it is necessary to use a 4-pole AUX
cable to connect the portable audio device.
When connecting a portable audio device to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact layout shown in the illustration.
Connected device (portable audio
device, etc.)
Left audio
Right audio
Ground
Video
When using an iPod video, a cable
that has a 4-pole AUX plug and a
USB connector is necessary. Con-
nect the plug and connector to the
AUX and USB ports.
■When using a 4-pole AUX cable
If a 4-pole AUX cable with a different layout is used, audio and/or video may not be out-
put properly.
Using a 4-pole AUX cable
1
2
3
4
5
CAUTION
■While driving
Do not connect a device or operate the device controls.

3255-2. Setup
5
Lexus Display Audio system
IS200t_EE(OM53D19E)
Go to “Customize images”: → “Setup” → “General” → “Customize
images”
Select “Set images” and then select the desired image.
Set as startup image.
Set as screen off image.
■Adding an imageConnect a USB memory device. ( →P. 3 2 1 )
Select “Copy from USB” on the “C ustomize images” screen and then
select the desired image.
Move the controller to the left and then select “Copy”.
Up to 10 images can be downloaded.
■Deleting images
Select “Delete images” on the “Customize images” screen and then select the
desired images.
■USB memory
When saving the images to a USB memory device, name the folder that the images are
saved to “Image”.
●Compatible device formats
The following device format can be used: • The image’s file format must be JPEG
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
●JPEG file compatibility
Compatible image size: Maximum 10MB
Customizing images
1
2
1
2
1
2
3

3265-2. Setup
IS200t_EE(OM53D19E)
→ “Setup” → “General” → “Delete personal data”
Select “Delete”.
Check carefully beforehand, as data cannot be retrieved once deleted.
The following personal data will be deleted or changed to its default settings.
•Phonebook data
•Voice tag
• Call history data
•Favorite data
• Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
• Audio/video setting
• Preset switch data
• Last used radio station
• Customized image data
•FM info setting
• iPod tagging information
• Software update history
• Software update detail information
• Phone display setting
• Contact/call history setting
• Messaging setting
NOTICE
■If the console box lid cannot be fully closed
→ P. 3 5 4
■To prevent damage to the USB memory device or its terminals
→P. 3 5 4
Deleting personal data
1
2

3315-3. Using the audio system
5
Lexus Display Audio system
IS200t_EE(OM53D19E)

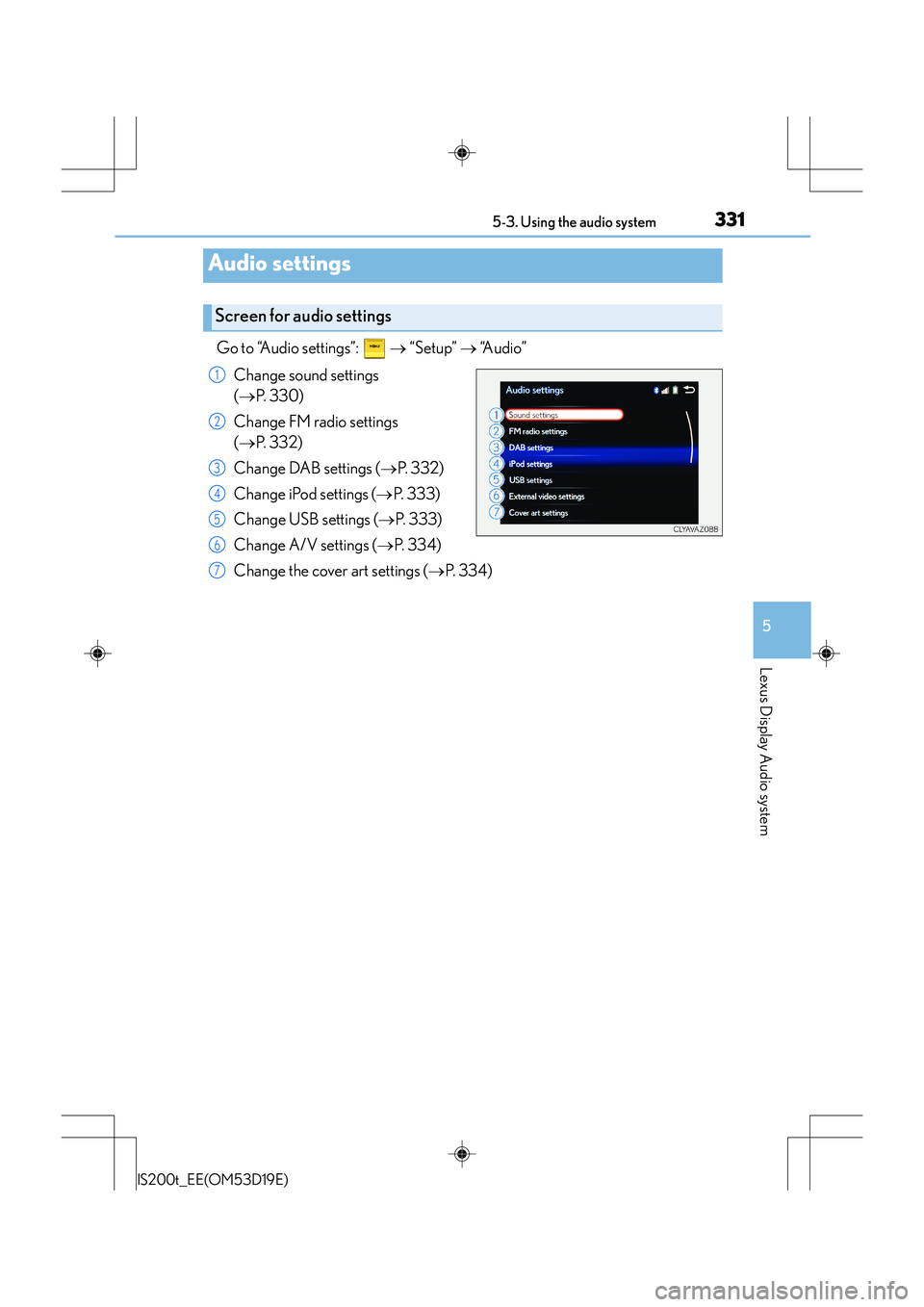

Go to “Audio settings”: → “Setup” → “Audio”
Change sound settings
( → P. 3 3 0 )
Change FM radio settings
( → P. 3 3 2 )
Change DAB settings ( →P. 3 3 2 )
Change iPod settings ( →P. 333)
Change USB settings ( →P. 333)
Change A/V settings ( →P. 3 3 4 )
Change the cover art settings ( →P. 3 3 4 )
Audio settings
Screen for audio settings
1
2
3
4
5
6
7
