dimensions Lexus IS200t 2015 Owner's Manual

564
IS200t_EE(OM53D19E)9-1. Specifications
*1:Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: Vehicles with a towing package

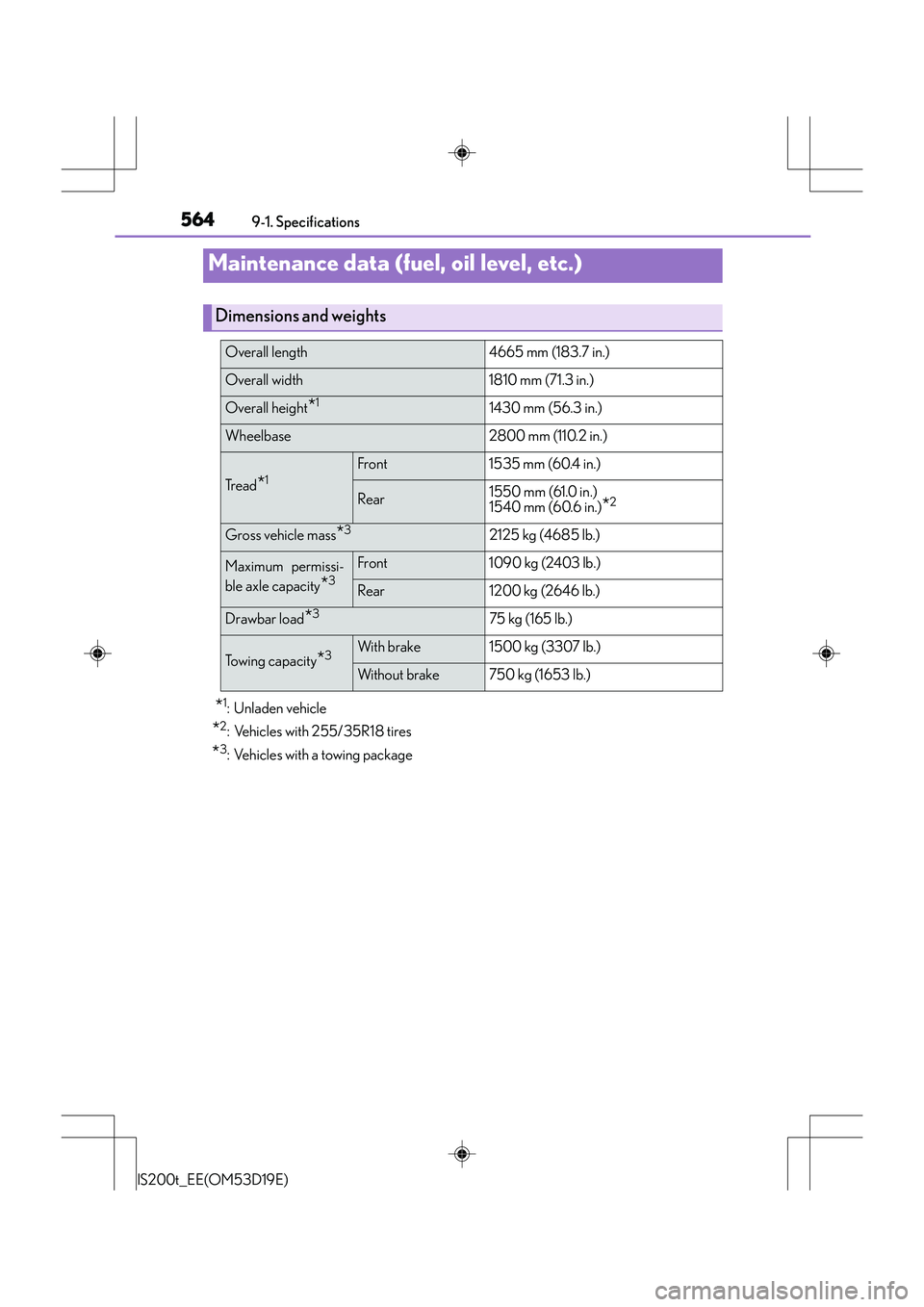

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4665 mm (183.7 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tr e a d*1Front 1535 mm (60.4 in.)
Rear
1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*32125 kg (4685 lb.)
Maximum permissi-
ble axle capacity
*3
Front 1090 kg (2403 lb.)
Rear 1200 kg (2646 lb.)
Drawbar load*375 kg (165 lb.)
Towing capacity*3With brake 1500 kg (3307 lb.)
Witho ut brake 750 kg (1653 lb.)

595Alphabetical index
IS200t_EE(OM53D19E)
DAB (Digital Audio Broadcast) .... 338
Daytime running light system ............ 211
DefoggerOutside rear view mirrors.............404
Rear window ........................................404
Windshield ............................................404
Differential ................................................ 571
Digital Audio Broadcast (DAB) .... 338
Dimensions.............................................. 564
Display Drive information ................................ 102
Dynamic radar cruise control ..... 244
LDA (Lane Departure Alert).........261
Multi-information display ................ 100
Warning message............................ 506
Distance ..................................................... 102
Do-it-yourself maintenance ............. 437
Door courtesy lights Location..................................................... 411
Wattage.................................................. 573
Door lock
Doors ......................................................... 122
Smart entry & start system ..............134
Wireless remote control ................... 116 Doors........................................................... 122
Automatic door locking and
unlocking system ............................. 126
Door lock ................................................ 122
Open door warning buzzer .......... 123
Open door warning light .............. 502
Outside rear view mirrors ..............165
Rear door child-protector ............. 126
Side windows ........................................169
Drive information ...................................102
Drive info 1/Drive info 2 ..................... 104
Driver’s and front passenger’s
seat belt reminder light .................. 502
Driver’s seat position memory ..........153
Driving ........................................................178 Break-in tips........................................... 179
Correct driving posture.....................34
Driving mode select switch.......... 283
Procedures............................................. 178
Winter drive tips ................................ 309
Dynamic radar cruise control ......... 244
D
