6208-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized Lexus
retailer or Lexus authorized repairer, or an y reliable repairer as soon as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is stopped. (Vehicles with
a Stop & Start system: except when the engine is stopped by the Stop & Start system.)
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to unlock the doors using the smart entry & start
system when the battery is discharged. Us e the wireless remote control or the mechan-
ical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.
●Vehicles with Stop & Start system:
For a while after the battery terminals have been disconnected or reconnected, for a
while after the battery has been replaced, the Stop & Start system may not automati-
cally stop the engine for approximately 5 to 60 minutes.
■When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to a genuine
battery. If an unsupported battery is used, Stop & Start system functions may be
restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to restart.
Contact any authorized Lexus retailers or Le xus authorized repairers, or any reliable
repairers.
7

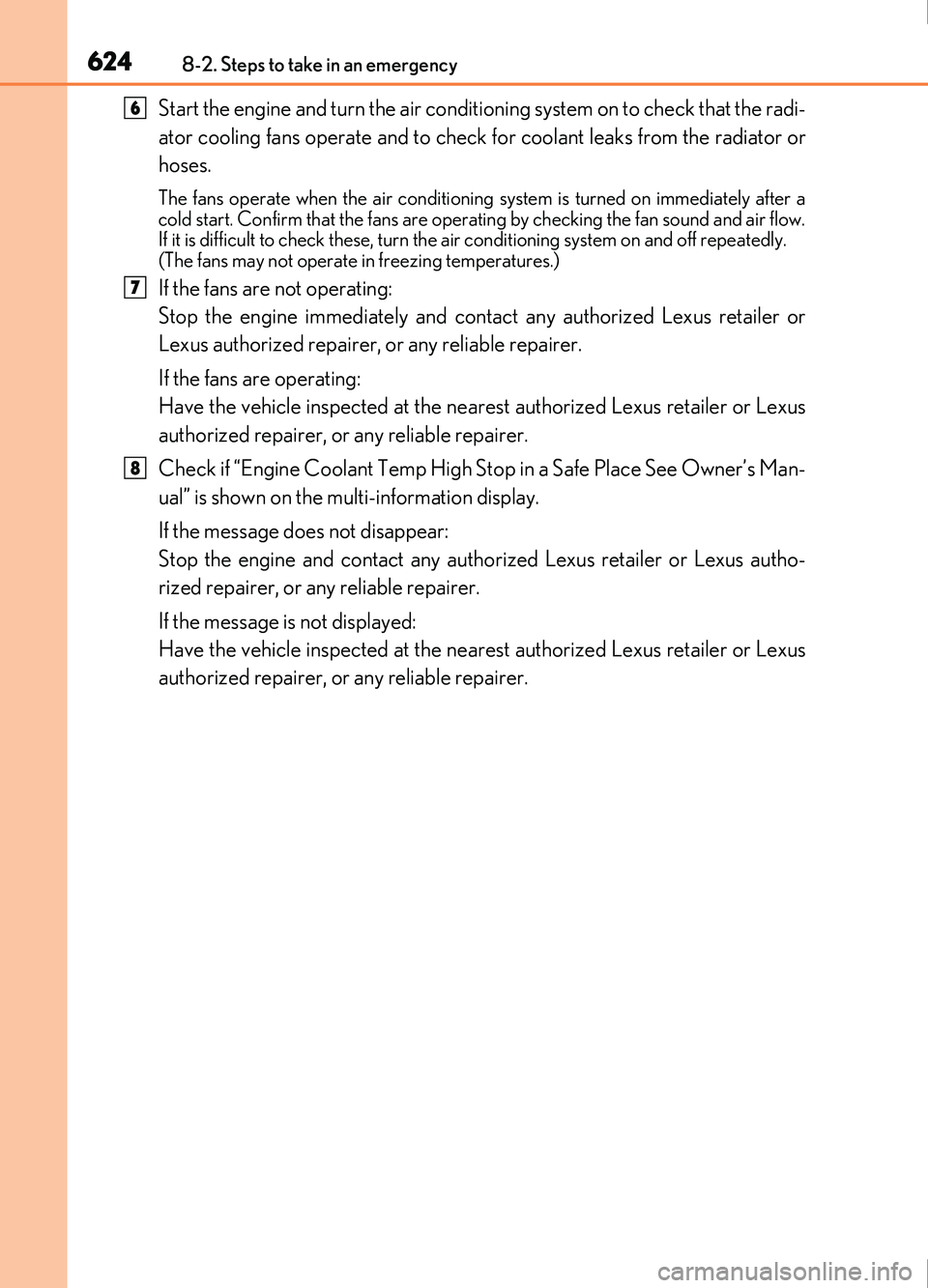

6248-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
If the fans are operating:
Have the vehicle inspected at the nearest authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact any author ized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
6
7
8

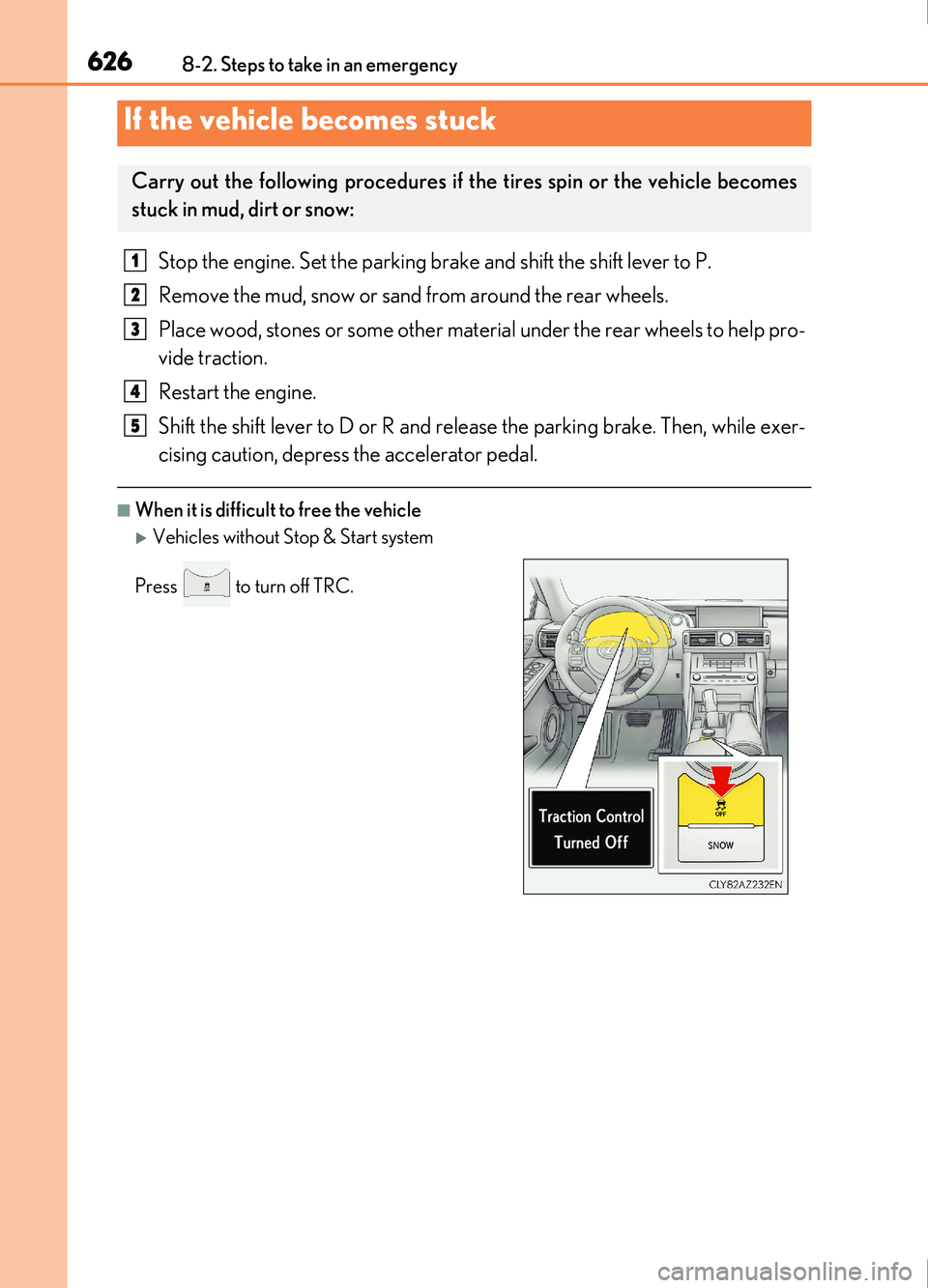

6268-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Vehicles without Stop & Start system
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

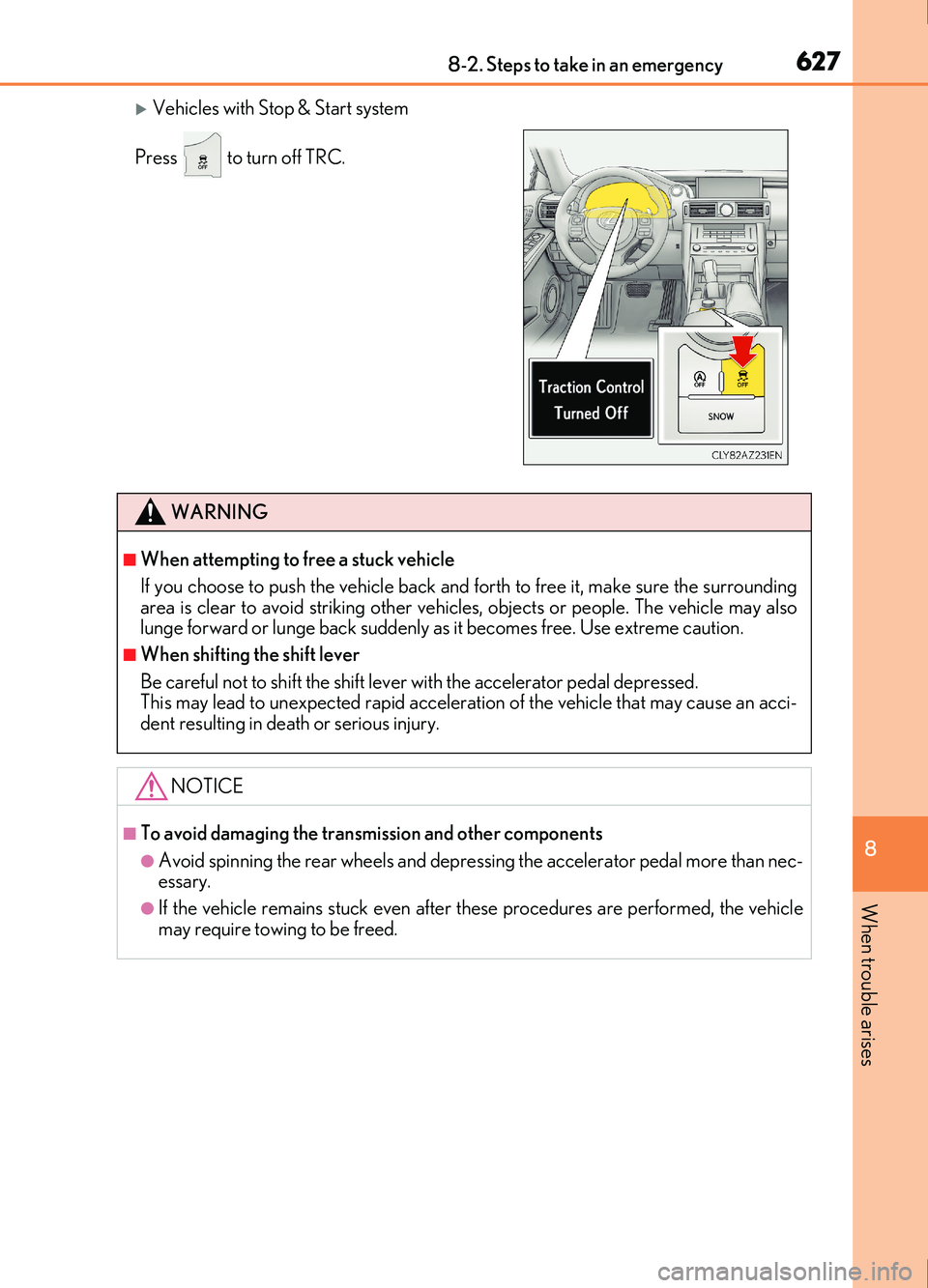

6278-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Vehicles with Stop & Start system
Press to turn off TRC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

635
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)
*1: Vehicles without a Stop & Start system
*2: Vehicles with a Stop & Start system
Cooling system
Capacity
Engine
7.8 L (8.2 qt., 6.9 Imp. qt.)
*1
7.9 L (8.3 qt., 7.0 Imp. qt.)*2
Intercooler
3.0 L (3.2 qt., 2.6 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non- amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (Spark plug)
Make NGK DILFR7K9G
Gap0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

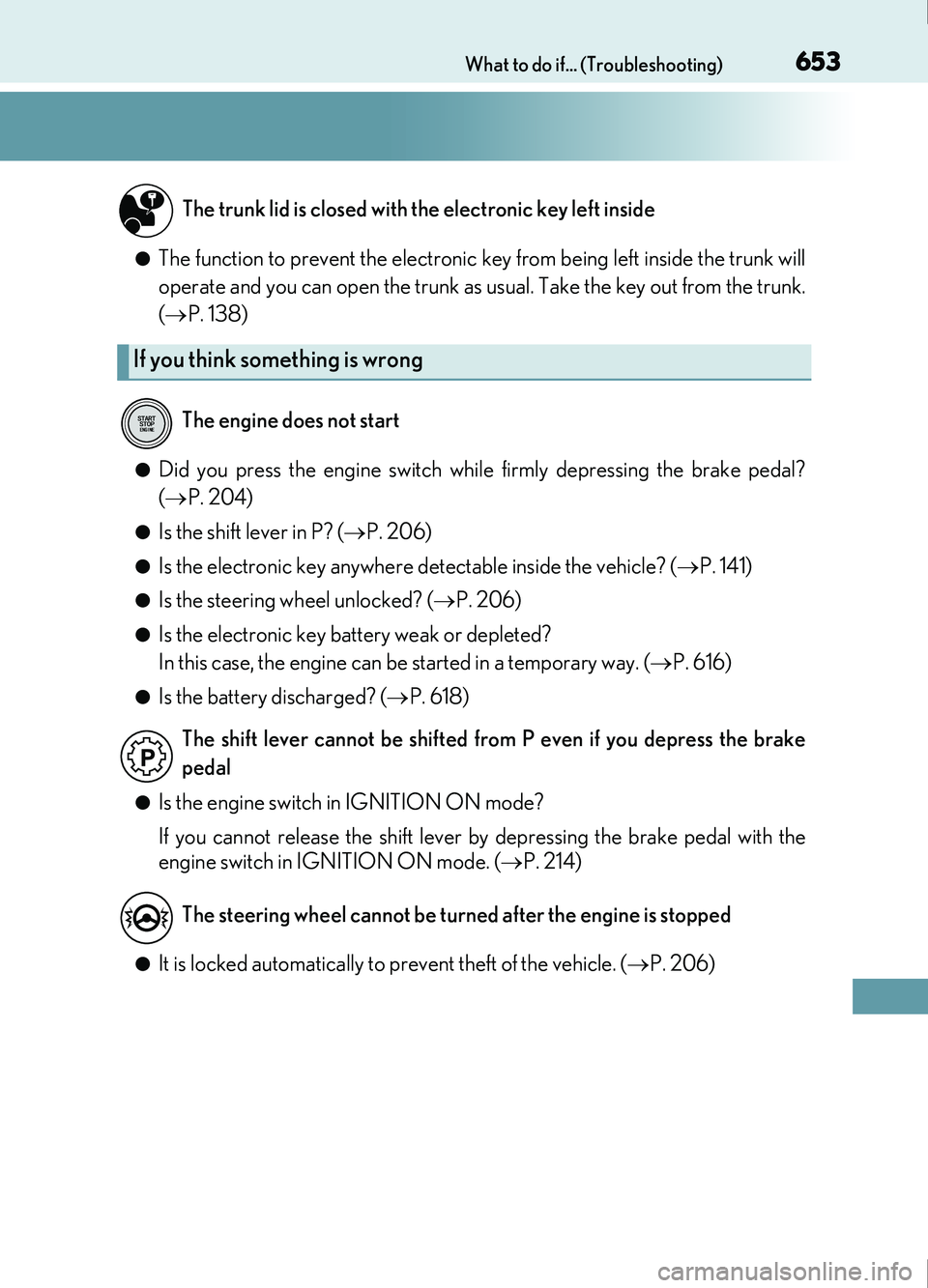

653What to do if... (Troubleshooting)
IS200t_EE(OM53D77E)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
(  P. 138)
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 204)
●Is the shift lever in P? ( P. 206)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 141)
●Is the steering wheel unlocked? ( P. 206)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 616)
●Is the battery discharged? ( P. 618)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( P. 214)
●It is locked automatically to prevent theft of the vehicle. ( P. 206)
The trunk lid is closed with the electronic key left inside
If you think some
thing is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped

654What to do if... (Troubleshooting)
IS200t_EE(OM53D77E)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. (P. 177)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 206)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 557)
●The parking brake indicator is on
Is the parking brake released? ( P. 217)
Depending on the situation, other types of warning buzzer may also sound.
(  P. 554, 560)

●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 81)
Do one of the following to deactivate or stop the alarm:
• Unlock the doors or open the trunk using the entry function or wireless remote con- trol.
• Start the engine.
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th e horn sounds (if equipped)

660Alphabetical index
IS200t_EE(OM53D77E)
E-mail .......................................................... 413
Eco drive mode .................................... 338
Eco Driving Indicator .............................113
Elapsed time .............................................. 116
Electric Power Steering (EPS)........340Warning light ...................................... 555
Electronic key...........................................122
Battery-saving function..................... 142
If the electronic key does not operate properly ............................. 615
Replacing the battery....................... 527
Emergency, in case of If a warning message is
displayed ........................................... 560
If the electronic key does not
operate properly ............................. 615
If the engine will not start .................613
If the vehicle battery is discharged.......................................... 618
If the warning buzzer sounds ......554
If the warning light turns on ..........554
If you have a flat tire .............. 586, 601
If you think something is wrong...............................................552
If your vehicle becomes stuck..... 626
If your vehicle has to be stopped in an emergency..........545
If your vehicle needs to be towed.............................................546
If your vehicle overheats ................ 622 Emergency brake signal......................341
Emergency flashers ............................. 544
Emergency tire puncture
repair kit ................................................ 586
Engine ....................................................... 632 ACCESSORY mode ..................... 205
Compartment ..................................... 499
Engine switch ...................................... 204
Hood ....................................................... 497
How to start the engine ................. 204
Identification number......................... 631
If the engine will not start ................. 613
Ignition switch (engine switch) ... 204
Overheating .........................................622
Engine coolant....................................... 503 Capacity................................................. 635
Checking ............................................... 503
Preparing and checking
before winter.................................... 346
Engine coolant temperature
gauge ........................................................ 93
Engine immobilizer system ..................75
Engine oil .................................................500 Capacity................................................. 633
Checking .............................................. 500
Preparing and checking
before winter.................................... 346
Engine oil maintenance data ........... 502
Engine switch ......................................... 204
EPS (Electric Power Steering) ....... 340
Warning light.......................................555
ERA-GLONASS .................................480
