61
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS250/220d/200d_EESetting and canceling the function
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “ENGINE START
STOP” switch to IGNITION ON mode. (Perform the step 2
within 10 seconds.)
Shift the shift lever to P or N,
press and hold the driver’s door
lock switch (
or ) for
about 5 seconds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
*: Vehicles with an automatic transmission only
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever posi-
tionDriver’s door
lock switch posi-
tion
Shift position linked door lock-
ing function*
PShift position linked door
unlocking function*
Speed linked door locking func-
tion
NDriver's door linked door unlock-
ing function

62
1-2. Opening, closing and locking the doors and trunk
IS250/220d/200d_EE
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident,
however, the system may not operate.
Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (P.
516)
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 556)
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers may be thrown out of the
vehicle, resulting in death or serious injury.
Be especially careful for the front doors, as the door may be opened even
if the inside lock buttons are in locked position.
Set the rear door child protector locks when children are seated in the rear
seat.

63
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS250/220d/200d_EE
Trunk
The trunk can be opened using the trunk opener, entry function or
wireless remote control.
Opening the trunk from inside the vehicle
Type A
Press the opener switch.
Type B
Press the opener switch.
Opening the trunk from outside the vehicle
Entry function
P. 38
Wireless remote control
P. 55

64
1-2. Opening, closing and locking the doors and trunk
IS250/220d/200d_EE
Locking the trunk opener feature
Turn the trunk opener main
switch in the glove box off to
disable the trunk opener.
On
Off
The trunk lid cannot be opened
even with the wireless remote
control or the entry function.
Trunk light
When the trunk light switch is set to on, the trunk light turns on when the
trunk is opened.
Trunk handle
Using the mechanical key
The trunk can be also opened using the mechanical key. (P. 516)
On
Off
Use the trunk handle when closing the
trunk.

65
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS250/220d/200d_EE
Which key to the vehicle is to leave with a parking attendant after disabling
the trunk opener main switch
P. 3 4
CAUTION
Caution while driving
Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or lug-
gage in the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the trunk lid before driving.
Before driving the vehicle, make sure that the trunk lid is fully closed. If
the trunk lid is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffo-
cate.
Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.

66
1-2. Opening, closing and locking the doors and trunk
IS250/220d/200d_EE
CAUTION
Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to fall closed again
after it is opened.
When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.
Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.
Do not attach any accessories other than genuine Lexus parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to fall closed
again after it is opened.
The trunk lid may fall if it is not
opened fully. It is more difficult to
open or close the trunk lid on an
incline than on a level surface, so
beware of the trunk lid unexpectedly
opening or closing by itself. Make
sure that the trunk lid is fully open
and secure before using the trunk.
When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
When closing the trunk lid, make
sure to press it lightly on its outer
surface. If the trunk handle is used to
fully close the trunk lid, it may result
in hands or arms being caught.

63
1
Before driving
IS250/220d/200d_EE
1-3. Adjustable components (seats, mirrors, steering wheel)

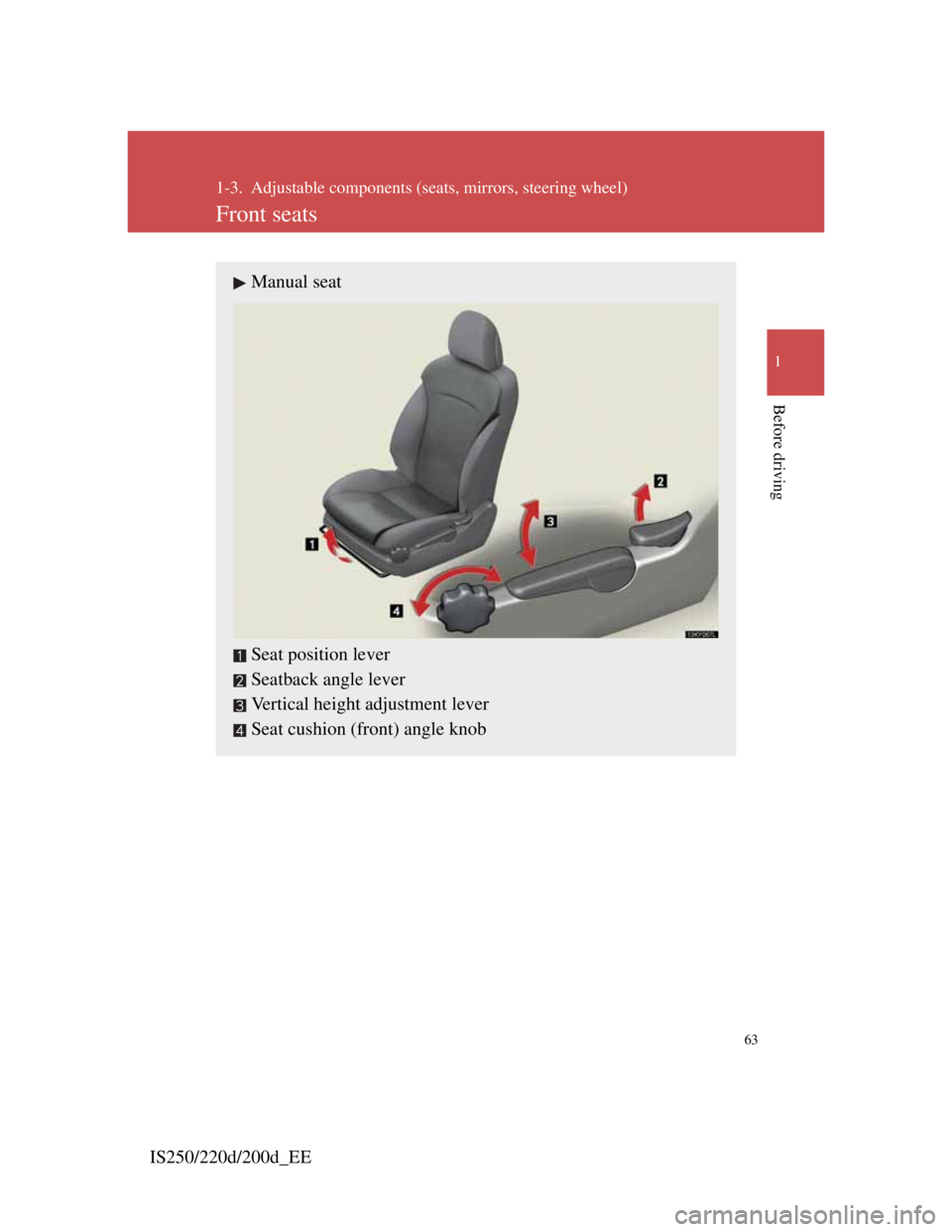

Front seats
Manual seat
Seat position lever
Seatback angle lever
Vertical height adjustment lever
Seat cushion (front) angle knob

64
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
Power seat
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
IS250/220d/200d_EE
CAUTION
Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.

66
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
Driving position memory (driver’s seat)
