5
523
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
Stopping the engine
For vehicles with an automatic transmission: Shift the shift lever to P and
press the “ENGINE START STOP” switch as you normally do when stop-
ping the engine.
For vehicles with a manual transmission: Shift the shift lever to N position
and press the “ENGINE START STOP” switch as you normally do when
stopping the engine.
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 435)
Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.

5
525
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
Right-hand vehicles
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown
in the illustration.
Start the engine of the second vehicle. Increase the
engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your
vehicle.
Open and close any of the doors with the “ENGINE
START STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON
mode, then start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at any autho-
rized Lexus dealer or repairer, or another duly qualified and
STEP3
STEP4
STEP5
STEP6

528
5-2. Steps to take in an emergency
IS250/220d/200d_EE
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic
air conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam
subsides and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fans are not operating:
Stop the engine and call any authorized Lexus dealer
or repairer, or another duly qualified and equipped pro-
fessional.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core
(radiator) for any leaks.
If the engine compartment
cover needs to be removed:
STEP1
STEP2
STEP3
STEP4

5
531
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
If you run out of fuel and the engine stalls (IS220d and IS200d)
NOTICE
When restarting the engine
Do not crank the engine before refueling and priming the fuel system. This
may damage the engine and fuel system.
If you run out of fuel and the engine dies:
Refuel your vehicle.
Prime the fuel system by
using the satellite switches.
Push “” or “” to select prim-
ing operation mode. ( )
Press the “ON/OFF” button to
select “ON”. ( )
The priming operation will
start.
Wait for 1 minute and start the engine. (P. 156)
The priming operation will automatically stop when the engine
starts.
If the engine does not start after the above steps performed,
wait for 10 seconds and try step 2 and step 3 again. If the
engine still does not start, contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional.
fihidhl dllihl
STEP1
STEP2
STEP3

532
5-2. Steps to take in an emergency
IS250/220d/200d_EE
If the vehicle becomes stuck
CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
With automatic transmission vehicles, be careful not to shift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift
lever to P (vehicles with an automatic transmission) or N
(vehicles with a manual transmission).
Remove the mud, snow, or sand from around the stuck
tire.
Place wood, stones or some other material to help pro-
vide traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position (vehicles with
an automatic transmission) or 1 or R position (vehicles
with a manual transmission), release the parking brake
and carefully apply the accelerator to free the vehicle.
Turn off TRC and VSC if these functions are hampering
fhhil()STEP1
STEP2
STEP3
STEP4
STEP5

534
5-2. Steps to take in an emergency
IS250/220d/200d_EE
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following proce-
dure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase
the effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by
the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by pressing
and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 3 seconds or
STEP4

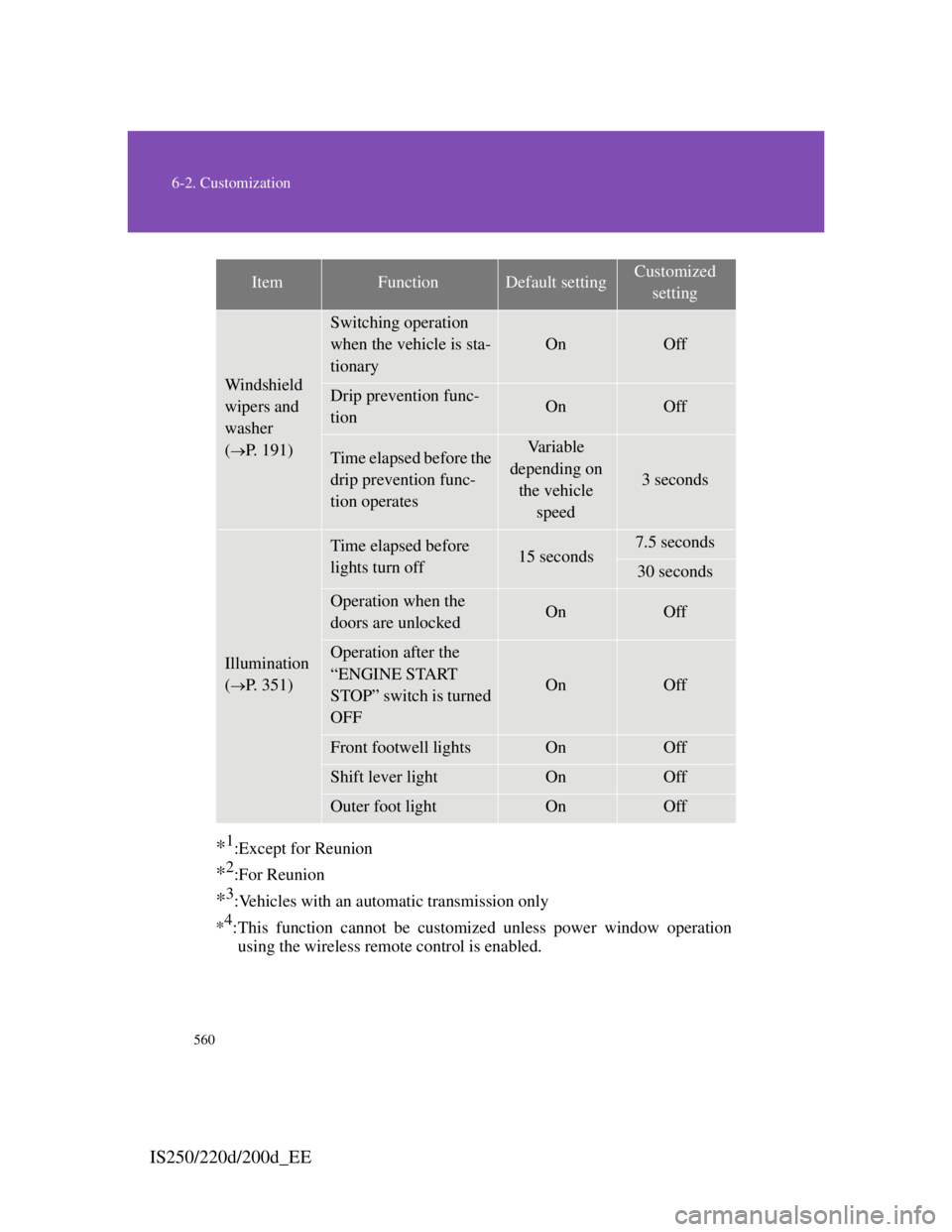

560
6-2. Customization
IS250/220d/200d_EE
*1:Except for Reunion
*2:For Reunion
*3:Vehicles with an automatic transmission only
*
4:This function cannot be customized unless power window operation
using the wireless remote control is enabled.
Windshield
wipers and
washer
(
P. 191)
Switching operation
when the vehicle is sta-
tionary
OnOff
Drip prevention func-
tionOnOff
Time elapsed before the
drip prevention func-
tion operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
P. 351)
Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START
STOP” switch is turned
OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
ItemFunctionDefault settingCustomized
setting

565
Alphabetical index
IS250/220d/200d_EE
Cruise control
Cruise control .......................198
Dynamic radar cruise control .....
202
Cup holder .................................359
Curtain shield airbags ................110
Customizable features ...............556
Daytime running light system ...188
Defogger*
Rear window.........................265
Side mirror ............................265
Dimension .................................534
Display
Dynamic radar cruise control .....
202
Satellite switch mode............365
Trip information ...................182
Warning message..................474
Do-it-yourself maintenance .......398
Door courtesy lights
Door courtesy lights .............351
Wattage .................................552
Door pockets .............................360
Doors
Door lock ....................37, 55, 58
Door windows ........................85
Double locking system .........101
Side mirrors ............................84
Driver's seat belt reminder light 470
Driving
Correct posture .....................108
Procedures ............................142
Driving position memory ............66Electric power steering ............. 224
Electronic key
If your electronic key battery is
discharged ......................... 519
Emergency, in case of
If a warning message is
displayed ........................... 474
If the engine will not start .... 515
If the shift lever cannot be
shifted from P .................... 517
If the vehicle has a discharged
battery................................ 524
If the warning buzzer sounds467
If the warning light turns on 467
If you have a flat tire ... 487, 499
If you lose your keys ........... 518
If you run out of fuel and
the engine stalls ................. 531
If you think something is
wrong................................. 465
If your electronic key does not
operate properly ................ 519
If your vehicle becomes stuck ...
532
If your vehicle has to be
stopped in an emergency ... 534
If your vehicle needs to be
towed ................................. 459
If your vehicle overheats ..... 528
Emergency flashers
Switch .................................. 458
Emergency tire puncture
repair kit ................................. 499
D
E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
