3-7. Other interior features
IS250/220d/200d_EE
Rear sunshade
Reverse operation feature
This function will become operational after the vehicle has been driven at
15 km/h (9 mph) or more with the rear sunshade in the raised position.
To ensure adequate rear visibility, the sunshade automatically lowers when
the shift lever is shifted to R and the function is in an operational condition.
However, the rear sunshade is raised again if either of the following occurs:
The switch is pressed again.
The shift lever is shifted out of R, and the vehicle reaches a speed of 15
km/h (9 mph).
If the engine is turned off when the rear sunshade has been lowered due to
the reverse operation feature, it will not be raised even when the engine is
turned on again and the vehicle reaches a speed of 15 km/h (9 mph). To raise
the sunshade again, press the switch.
The rear sunshade can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
The rear sunshade can be raised and lowered by operating the switch
shown below.
Raise/lower
: If equipped

400
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience discomfort, see a doctor.
When working near the electric cooling fan or radiator grille
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the
electric cooling fan may automatically start to run if the air conditioning is
on and/or the coolant temperature is high. (P. 415)
CAUTION
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in the eyes.

404
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
CAUTION
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
When using a floor jack, follow the instructions of the manual provided
with the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in P (automatic transmission) or R (manual transmission).
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any objects on top of or underneath
the floor jack.

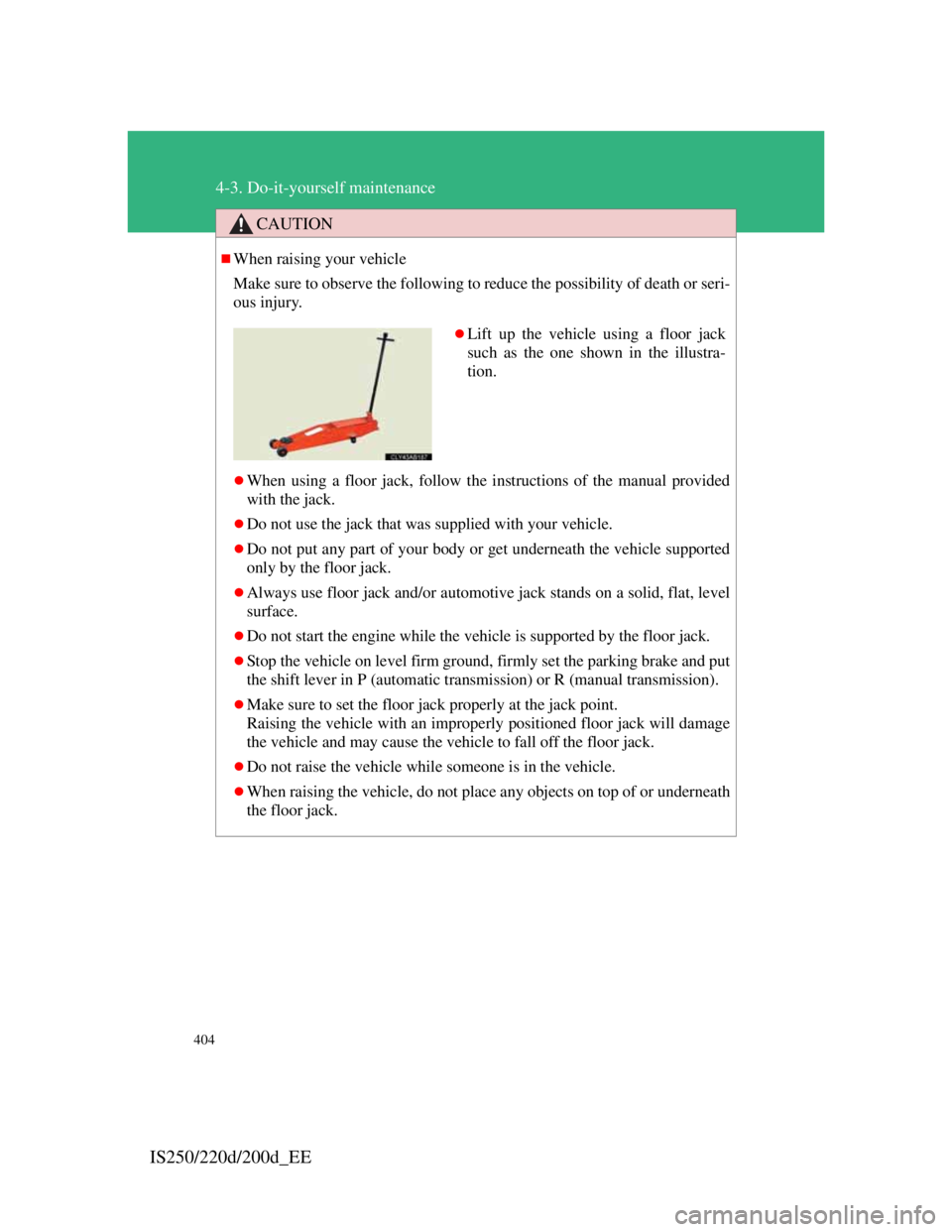

Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level
accurately.
Oil consumption: Max. 1.0 L per 1,000 km (1.1 qt./600 miles, 0.9 Imp.
qt./600 miles)
If your vehicle consumes more than 1.0 L (1.1 qt., 0.9 Imp. qt.) every
1000 km (600 miles), contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
After changing the engine oil (IS220d and IS200d)
The oil change system should be reset. Perform the following procedures:
Switch the display to the odometer (P. 171) when the engine is
running.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE
START STOP” switch to IGNITION ON mode (but do not start the
engine because otherwise the reset mode will be cancelled). Con-
tinue to press and hold the button until the trip meter displays
“000000”.
STEP1
STEP2
STEP3

418
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
If recharging with the battery installed on the vehicle, be sure to discon-
nect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
After recharging/reconnecting the battery
In some cases, the engine may not start. Follow the procedure below to ini-
tialize the system.
Shift the shift lever to P (automatic transmission) or depress the
brake pedal with the shift lever in N (manual transmission), and
turn the “ENGINE START STOP” switch OFF.
Open and close any of the doors.
Start the engine. (If the engine does not start first time, repeat the
procedure.)
If the engine will not start even after multiple attempts at the above method,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
STEP1
STEP2
STEP3

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
Removal method
Set the air conditioning system to recirculated mode.
(P. 254)
The air conditioning filter case cannot be removed with the
system in the outside air mode.
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

438
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Engine compartment (type B fuse box): Remove the
engine compartment cover. (P. 407)
Open the fuse box cover.
Engine compartment (type A fuse box: Left-hand drive vehi-
cles)
Push the tabs in and lift the
lid off.
Engine compartment (type A fuse box: Right-hand drive vehi-
cles)
Push the tabs in and lift the
lid off.STEP1
STEP2
STEP3

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
15FR DOOR LH20 APower windows, outside rear view
mirror
16SECURITY7.5 ASmart entry & start system
17H-LP LVL7.5 AAutomatic headlight leveling sys-
tem
18LH-IG10 A
Charging system, headlight
cleaner, rear window defogger,
electric cooling fans, emergency
flashers, turn signal lights, back-up
lights, stop lights, outside rear
view mirror defoggers, seat belts,
Lexus parking assist-sensor, cruise
control, PTC heater, rear sunshade,
exhaust system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

5When trouble arises
457
5-1. Essential information
Emergency flashers .......... 458
If your vehicle needs to
be towed ......................... 459
If you think something is
wrong ............................. 465
Fuel pump shut off
system ............................ 466
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ......................... 467
If a warning message is
displayed ........................ 473
If you have a flat tire
(vehicles with a spare
tire)................................. 485
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit) ........ 497
If the engine will not start 512
If the shift lever cannot
be shifted from P............ 514
If you lose your keys ........ 515If the electronic key
does not operate
properly.......................... 516
If the vehicle battery is
discharged ...................... 521
If your vehicle overheats . 525
If you run out of fuel
and the engine stalls....... 528
If the vehicle becomes
stuck............................... 529
If your vehicle has to
be stopped in an
emergency...................... 531

460
5-1. Essential information
IS250/220d/200d_EETowing eyelets
Emergency towing procedure
Release the parking brake.
Shift the shift lever to N.
Put the “ENGINE START STOP” switch in ACCESSORY mode
or IGNITION ON mode.
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
To prevent causing serious damage to the transmission
(vehicles with an automatic transmission)
Never tow this vehicle from the front with the rear wheels on the ground.
This may cause serious damage to the transmission.
When towing a vehicle without using a towing dolly
(vehicles with a manual transmission)
The “ENGINE START STOP” switch must not be OFF.
STEP1
STEP2
STEP3
