fuse Lexus IS220d 2012 User Guide

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Removing the front controller (engine compartment: type B fuse
box)
Lift the lid off while pushing
the tabs on either side.
Type C
Normal fuse
Blown fuse
Contact any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.
Type D
Normal fuse
Blown fuse
Contact any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.

442
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Fuse layout and amperage ratings
Engine compartment (type A fuse box)
Left-hand drive vehicles
Right-hand drive vehicles
FuseAmpereCircuit
1PWR HTR25 APower heater
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO.230 AAudio
5D/C CUT20 ADOME, MPX-B
6RAD NO.130 A

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE

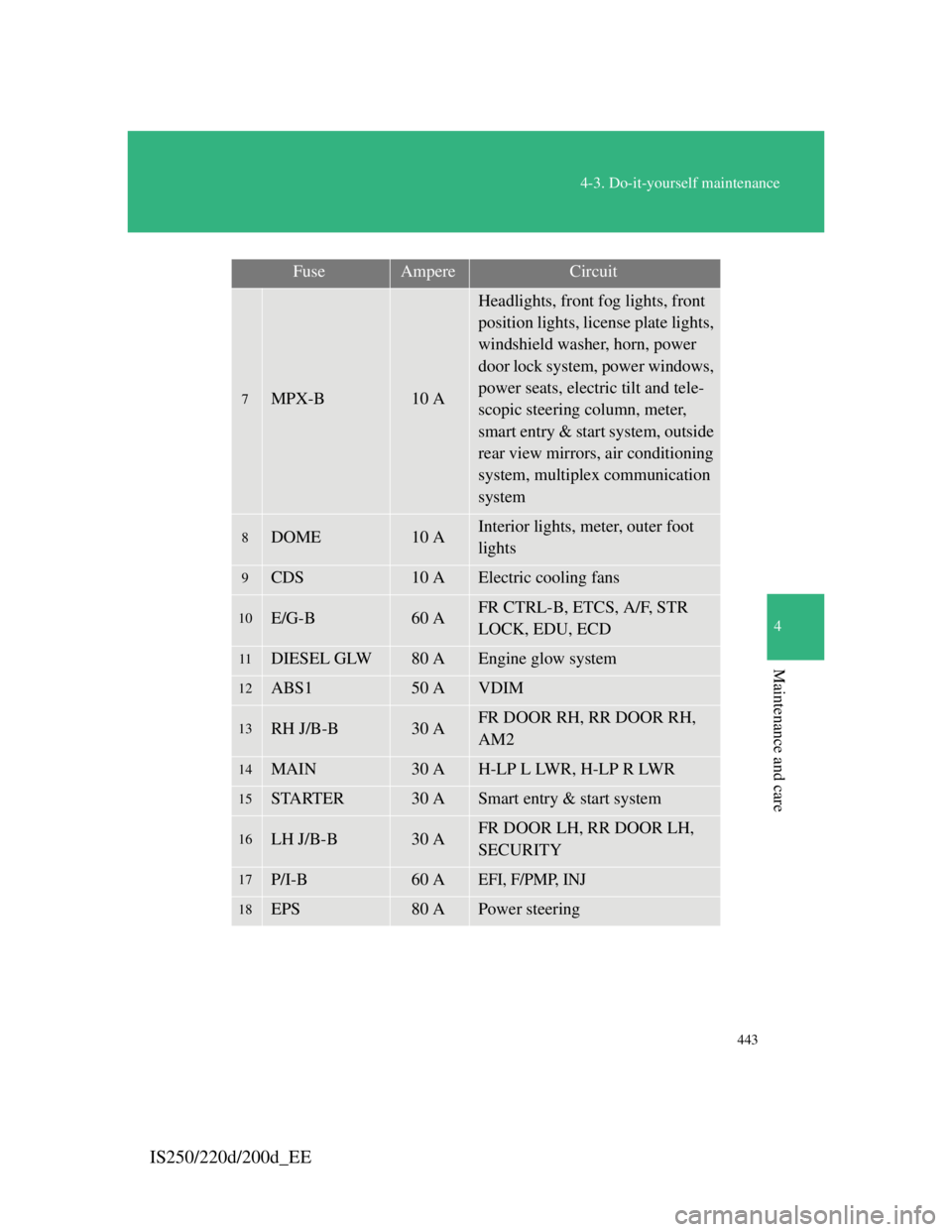

7MPX-B10 A
Headlights, front fog lights, front
position lights, license plate lights,
windshield washer, horn, power
door lock system, power windows,
power seats, electric tilt and tele-
scopic steering column, meter,
smart entry & start system, outside
rear view mirrors, air conditioning
system, multiplex communication
system
8DOME10 AInterior lights, meter, outer foot
lights
9CDS10 AElectric cooling fans
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR
LOCK, EDU, ECD
11DIESEL GLW80 AEngine glow system
12ABS150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH,
AM2
14MAIN30 AH-LP L LWR, H-LP R LWR
15STARTER30 ASmart entry & start system
16LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
17P/I-B60 AEFI, F/PMP, INJ
18EPS80 APower steering
FuseAmpereCircuit

444
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
19ALT150 A
LH J/B-AM, E/G-AM, GLW
PLG2, HEATER, FAN1, FAN2,
DEFOG, ABS2, RH J/B-AM,
GLW PLG1,
LH JB-B, RH J/B-B
20GLW PLG150 APTC heater
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/
SEAT RH, RAD NO.3, ECU-IG
RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET, DOOR DL
22ABS230 AVDIM
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
25FA N 140 AAir conditioning system
26HEATER50 AAir conditioning system
27GLW PLG250 APTC heater
28E/G-AM60 AH-LP CLN, FR CTRL-AM,
DEICER, A/C COMP
29LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV
NO.1,
A/C, FUEL OPEN, PSB, RR FOG,
FR WIP, H-LP LVL, LH-IG,
ECU-IG LH, PANEL, TAIL, TV
NO.2, MIR HTR, FR S/HTR LH
FuseAmpereCircuit

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EEEngine compartment (type B fuse box)
IS250
IS220d and IS200d
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AH-LP UPR, HORN

446
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
5A/F15 A
Multiport fuel injection system/
sequential multiport fuel injection
system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection
system
7TEL10 A
8STR LOCK25 ASteering lock system
9H-LP CLN30 AHeadlight cleaner
10A/C COMP7.5 AAir conditioning system
11DEICER25 AWindshield wiper de-icer
12FR CTRL-AM30 AFR TAIL, FR FOG, WASHER
13IG210 AIgnition system
14EFI NO.210 A
Multiport fuel injection system/
sequential multiport fuel injection
system
15H-LP R LWR15 AHeadlight low beam (right)
16H-LP L LWR15 AHeadlight low beam (left)
17F/PMP25 AFuel system
18EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
19INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20H-LP UPR20 AHeadlight high beams
21HORN10 AHorns
FuseAmpereCircuit

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
22WASHER20 AWindshield washer
23FR TAIL10 AFront position lights
24FR FOG15 AFront fog lights
25EDU20 AStarter system
26ECD25 A
Starter system, fuel system, multi-
plex communication system, ECD
NO.2
27ECD NO.210 A
Starter system, fuel system,
exhaust system,
multiport fuel
injection system/ sequential multi-
port fuel injection system
FuseAmpereCircuit

448
4-3. Do-it-yourself maintenance
IS250/220d/200d_EELeft side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APower seat
2A/C7.5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO.27.5 ALexus parking assist monitor
7PSB30 APre-crash seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights,
manual headlight leveling system
10PANEL7.5 A
Switch illumination, air condition-
ing system, display, audio, power
heater
11RR FOG7.5 ARear fog lights
12ECU-IG LH10 A
Air conditioning system, cruise
control, power steering, rain sen-
sor, anti-glare inside rear view mir-
ror, shift lock system, moon roof,
VSC, windshield wiper, Lexus
parking assist-sensor
13FR S/HTR LH15 ASeat heaters and ventilators
14RR DOOR LH20 APower windows

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
15FR DOOR LH20 APower windows, outside rear view
mirror
16SECURITY7.5 ASmart entry & start system
17H-LP LVL7.5 AAutomatic headlight leveling sys-
tem
18LH-IG10 A
Charging system, headlight
cleaner, rear window defogger,
electric cooling fans, emergency
flashers, turn signal lights, back-up
lights, stop lights, outside rear
view mirror defoggers, seat belts,
Lexus parking assist-sensor, cruise
control, PTC heater, rear sunshade,
exhaust system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

450
4-3. Do-it-yourself maintenance
IS250/220d/200d_EERight side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APower seat
2DOOR DL15 APower door lock system
3OBD7.5 AOn-board diagnosis system
4STOP SW7.5 A
Stop lights, multiport fuel injection
system/sequential multiport fuel
injection system, VDIM, shift lock
system, high mounted stop light
5TI & TE20 A
Electric tilt and telescopic steering
column, multiplex communication
system
6RAD NO.310 AAudio
7GAUGE7.5 AMeter
8IGN10 A
SRS airbag system, steering lock
system, multiport fuel injection
system/sequential multiport fuel
injection system, stop lights
