Lexus IS250 2006 Audio/video System / LEXUS 2006 IS350/250 QUICK REFERENCE GUIDE

Topic 2
Before Driving
11
Seats (Manual)
■Adjusting seat position
With the lever raised, slide the seat forward or
backward.
■Adjusting seatback angle
With the lever raised, tilt the seatback forward or
backward.
■ Adjusting seat height
Raises the seat
Lowers the seat
■Adjusting the front of the seat cushion
Raises the front of the seat cushion
Lowers the front of the seat cushion
1
2
1
2

Topic 2
Before Driving
12
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Seats (Power)
■ Adjusting seat position
Moves the seat forward
Moves the seat backward
■Adjusting seatback angle
Tilts the seatback forward
Reclines the seatback
■Adjusting the seat cushion
Raises and lowers the front of the cushion
Raises and lowers the entire seat
■Adjusting the lumbar support
Firmer
Softer
1
2
1
2
1
2
1
2

Topic 2
Before Driving
13
Driving and Seat Position Memory System (If Equipped)
■Setting memory positions
While holding down the SET button, press and
hold one of the memory buttons (1, 2, or 3) until
you hear a beep.
The current position of the seat, as well as the
position of the steering wheel and the outside
rear view mirrors (for the driver's seat only) is
recorded.
■Recalling memory positions
Press one of the memory buttons (1, 2, or 3).
■Linking driving position memory with door unlock operation (driver's seat only)
While holding down the desired memory button,
press and hold either the or button on
the wireless remote control until you hear a beep.
The seats can be returned to a previously set position by simply pressing a button.
The position of the steering wheel and the outside rear view mirrors is adjusted along with the
driver's seat.
Positions can be conveniently recorded for the vehicle's primary drivers and passengers.
Linking driving position memory to the door unlock operation allows the memory position
to be recalled automatically when the driver's door is opened. (The linked function does not
operate if the driver's door is unlocked us ing the mechanical key or manually from inside
the vehicle.)

Topic 2
Before Driving
14
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Head Restraints
■ Height adjustment
To r a i s e : pull the head restraint upward.
To l o w e r : push the head restraint down while
pressing the lock release button.
Seatbelts
■ Adjusting shoulder belt height (front seats only)
To r a i s e : pull the anchor upward.
To l o w e r : depress the button and push the anchor
down.
■ Seatbelt comfort guides (outside rear seats only)
If the shoulder belt sits close to the neck, slide the
comfort guide forward.
Outside Rear View Mirrors
To select the mirror you wish to adjust (L or R),
use the master switch.
To adjust mirror angle, use the control switch.
On some models, the mirrors will automatically
angle downwards when the vehicle is reversing.
To disable this function, se t the select switch in the
neutral position (between L and R).
Lock
release
button

Topic 2
Before Driving
15
Anti-glare Inside Rear View Mirror
To turn AUTO mode ON/OFF, press the AUTO
button.
The indicator comes on when AUTO mode is
turned ON.
Steering Wheel
■Manually adjustable type
To adjust the steering wheel, press the lever down
and move the steering wheel to the desired posi-
tion. Lock the steering wheel in place by pulling
the lever up.
■Power-adjustable type
Up
Down
Away from the driver
Toward the driver
The anti-glare mirror uses a sensor to detect light from vehicles behind and automatically
reduces glare.
1
2
3
4
The power-adjustable type steering wheel retracts automatically when the engine switch is
turned OFF to allow for easy exit and entry. The steering wheel returns automatically to its
previously set position when the engine switch is switched to ACC or IG-ON mode.

When DrivingTopic 3
Starting ..................................................................... 17
Automatic Transmission ...................................... 18
Manual Transmission............................................ 19
Parking Brake ......................................................... 19
Multi-information Display.................................. 20
Satellite Switches .................................................. 21
Turn Signal Lever .................................................. 22
Emergency Flasher Switch ................................ 22
ECT Switch ............................................................. 22
ETCS Switch .......................................................... 23
Lexus Parking Assist-sensor ............................. 23
Cruise Control ...................................................... 24
Dynamic Radar Cruise Control....................... 25

Topic 3
When Driving
17

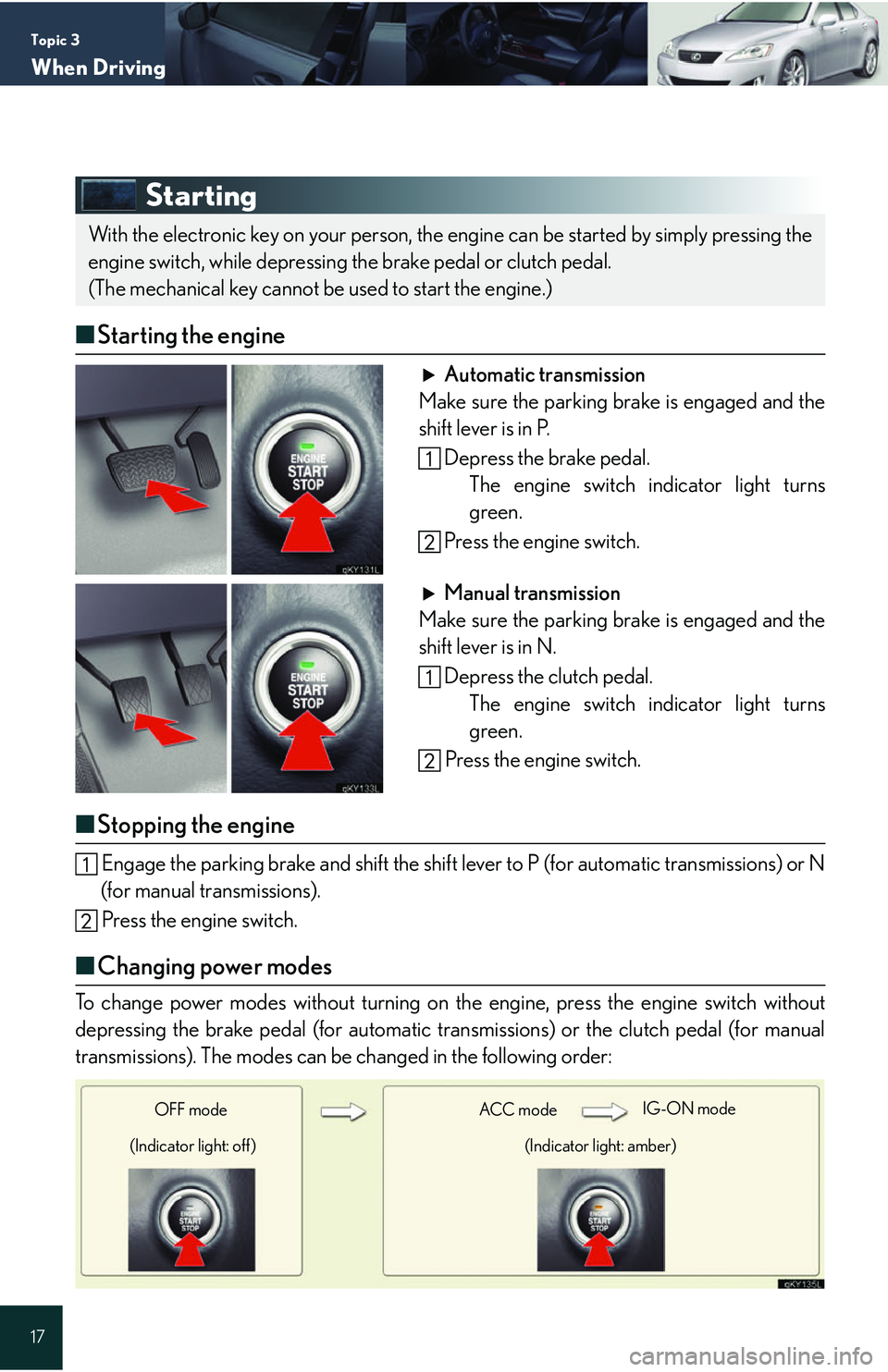

Starting
■Starting the engine
Automatic transmission
Make sure the parking brake is engaged and the
shift lever is in P.
Depress the brake pedal.The engine switch indicator light turns
green.
Press the engine switch.
Manual transmission
Make sure the parking brake is engaged and the
shift lever is in N.
Depress the clutch pedal.The engine switch indicator light turns
green.
Press the engine switch.
■ Stopping the engine
Engage the parking brake and shift the shift lever to P (for automatic transmissions) or N
(for manual transmissions).
Press the engine switch.
■ Changing power modes
To change power modes without turning on the engine, press the engine switch without
depressing the brake pedal (for automatic tran smissions) or the clutch pedal (for manual
transmissions). The modes can be changed in the following order:
With the electronic key on your person, the engine can be started by simply pressing the
engine switch, while depressing the brake pedal or clutch pedal.
(The mechanical key cannot be used to start the engine.)
ACC mode IG-ON mode
(Indicator light: amber)
OFF mode
(Indicator light: off)

Topic 3
When Driving
18
Entering and Exiting
Before DrivingBefore Driving
When DrivingWhen Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Automatic Transmission
■ Shift positions
P Pa r k *
R Reverse
N Neutral (drive not engaged)
D Drive
S S mode
* : The engine can only be started in P.
The vehicle can only be shifted out of P whenthe engine switch is in IG-ON mode and the
brake pedal is depressed.
■ S mode
S mode allows the driver to select the shift range manually based on driving conditions.
Shift the shift lever to S.
To u p s h i f t : shift the shift lever toward "+", or
press the "+" shift paddle switch on the steering
wheel.
To d o w n s h i f t : shift the shift lever toward "-", or
press the "-" shift paddle switch on the steering
wheel.
The selected shift range is displayed on the
instrument cluster.

Topic 3
When Driving
19
Manual Transmission
To operate the shift lever, the clutch pedal must be
fully depressed.
To shift into R, the ring on the shift lever must be
pulled up.
Parking Brake
■Automatic transmission
To set the parking brake : firmly depress the park-
ing brake pedal.
To release the parking brake : depress the park-
ing brake pedal again.
■ Manual transmission
To set the parking brake : pull the parking
brake lever firmly upward.
To release the parking brake : press and hold
the lock release button and lift the lever slightly
before lowering it as far as it will go.1
2

Topic 3
When Driving
20
Entering and Exiting
Before DrivingBefore Driving
When DrivingWhen Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Multi-information Display
■ Display information
● Trip information
Outside temperature
 Driving range
 Average fuel consumption
 Average fuel consumption after refueling
 Current fuel consumption
 Average vehicle speed
 Gear position (automatic transmissions only)
● Satellite switch mode
● Dynamic radar cruise control settings
(if equipped)
● Lexus parking assist-sensor infomation
(if equipped)
● Wa r n i n g m e s s a g e s
■Changing the display of trip information
Trip information items can be switched by press-
ing the DISP switch.
The multi-information display shows information about your vehicle, including the items
shown below.
Ty p e ATy p e B
■ When using the parking assist system or dy namic radar cruise control, the appropriate
display is shown on the screen.
■ In the event that a problem is detected in any of the vehicle's systems, a warning message is
shown on the multi-information display.
