227
3-5. Other interior features
3
Interior features

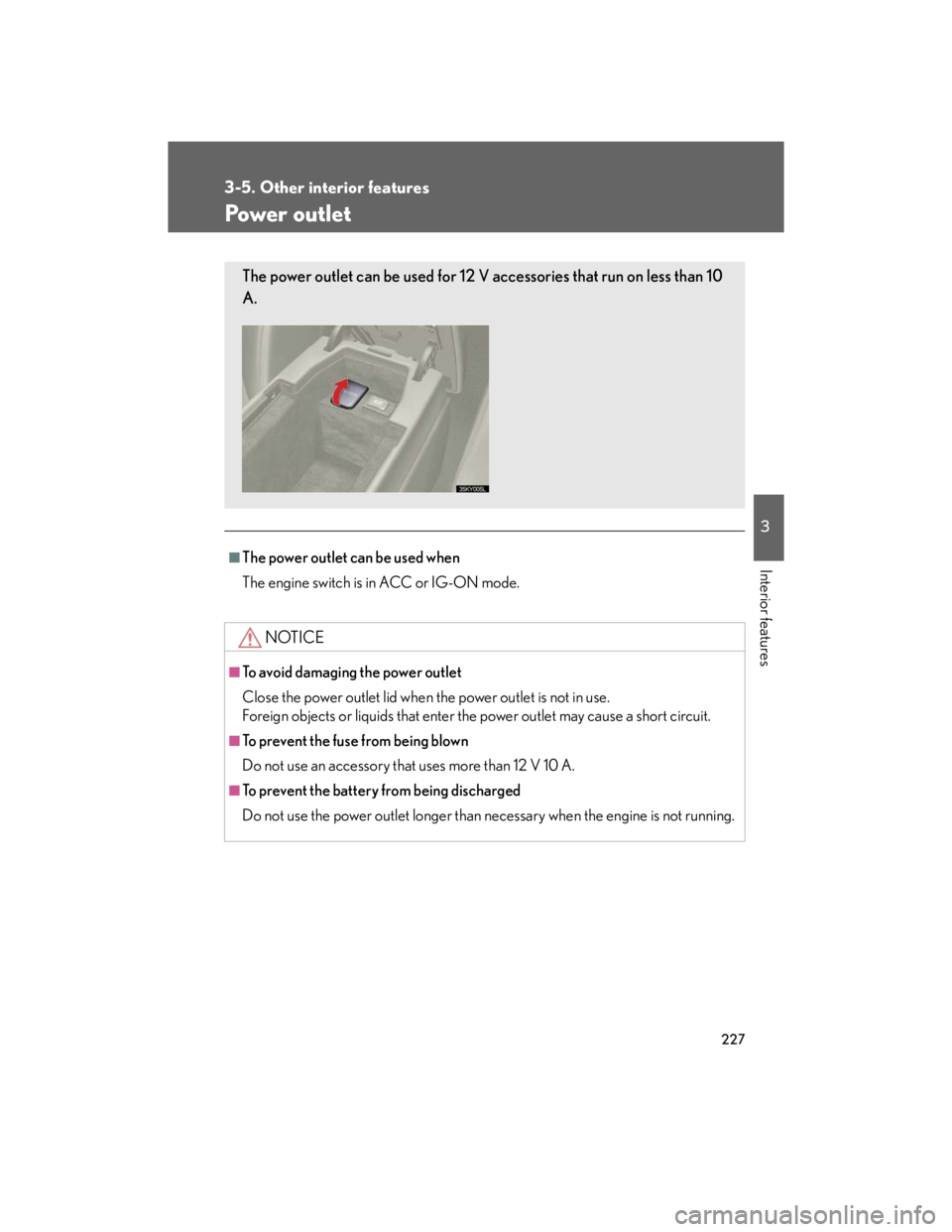

Power outlet
■The power outlet can be used when
The engine switch is in ACC or IG-ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

Maintenance and care4
251
4-1. Maintenance and care ......... 252
Cleaning and protecting
the vehicle exterior ................ 252
Cleaning and protecting
the vehicle interior ................. 254
4-2. Maintenance ........................... 257
Maintenance
requirements............................ 257
General maintenance ............. 259
Emission inspection and
maintenance (I/M)
programs ................................... 262
4-3. Do-it-yourself
maintenance ......................... 263
Do-it-yourself service
precautions ............................... 263
Hood............................................... 266
Positioning the jack................... 267
Engine compartment............... 269
Tires ................................................. 283
Tire inflation pressure............... 293
Wheels........................................... 297Air conditioning filter .............. 299
Electronic key battery ............. 302
Checking and replacing
fuses............................................. 304
Headlight aim .............................. 318
Light bulbs..................................... 319

264
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsParts and tools
Engine oil level (P. 2 7 2 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (P. 3 0 4 )• Fuse with same amperage rating as
original
Tire inflation pressure (P. 2 9 3 )• Tire pressure gauge
• Compressed air source
Headlight aim (P. 3 1 8 )• Phillips-head screwdriver
Radiator and condenser (P. 2 7 8 )
Wa s h e r f l u i d (P. 2 8 2 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

269
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
IS350
Battery (P. 2 7 9 )
Engine oil level dipstick
(P. 2 7 2 )
Engine oil filler cap
(P. 2 7 2 )
Brake fluid reservoir
(P. 2 7 8 )
Fuse boxes (P. 304)Washer fluid tank
(P. 2 8 2 )
Electric cooling fans
Condenser (P. 2 7 8 )
Radiator (P. 2 7 8 )
Engine coolant reservoir
(P. 2 76 )

270
4-3. Do-it-yourself maintenance
IS250
Battery (P. 2 7 9 )
Engine oil level dipstick
(P. 2 7 2 )
Engine oil filler cap
(P. 2 7 2 )
Brake fluid reservoir
(P. 2 7 8)
Fuse boxes (P. 304)
Washer fluid tank
(P. 2 8 2 )
Electric cooling fans
Condenser (P. 2 7 8 )
Radiator (P. 2 7 8 )
Engine coolant reservoir
(P. 2 76 )

304
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Remove the engine compartment cover.
P. 2 7 1
Open the fuse box cover.
Engine compartment
(type A)
Push the tabs in and lift the lid
off.
Engine compartment
(type B)
Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

305
4-3. Do-it-yourself maintenance
4
Maintenance and care

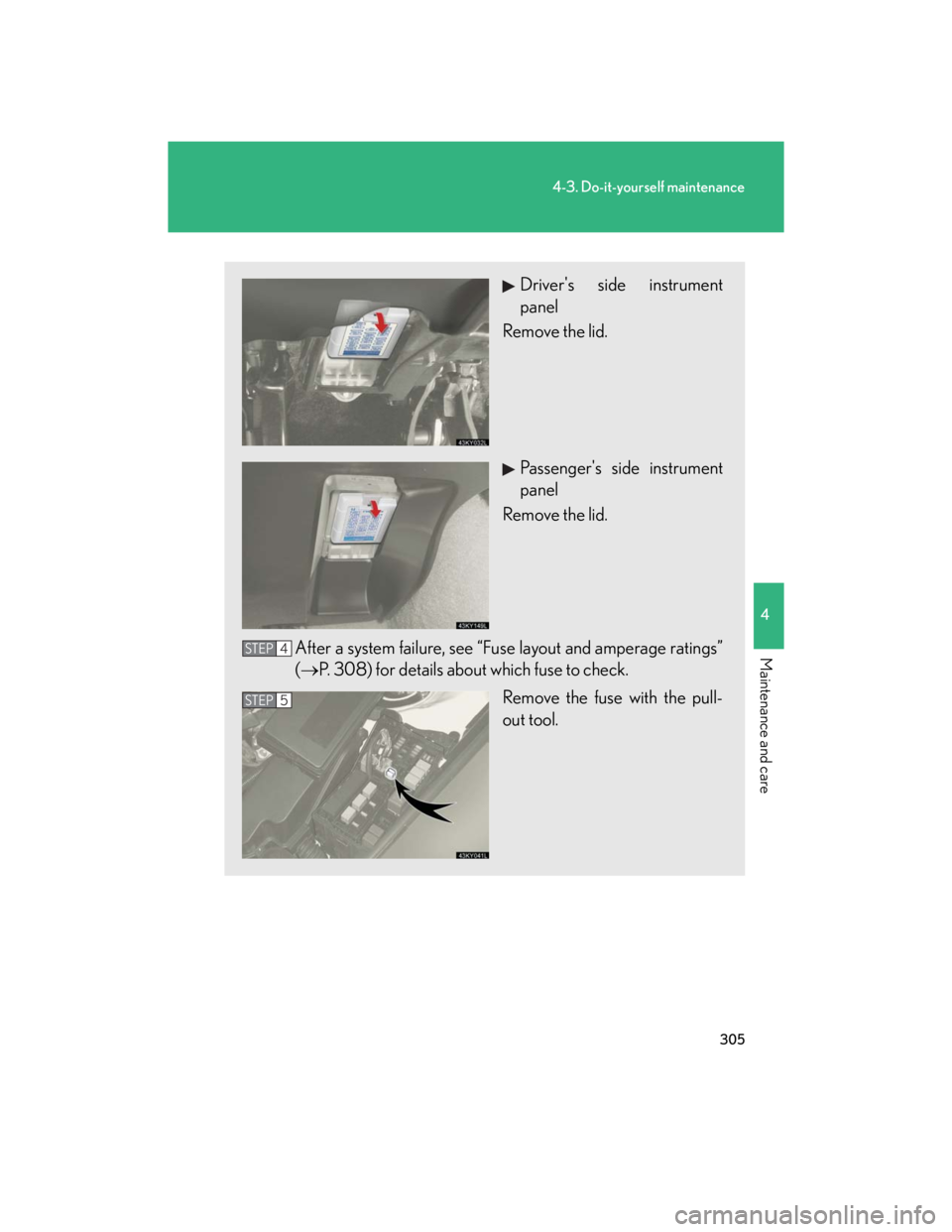

Driver's side instrument
panel
Remove the lid.
Passenger's side instrument
panel
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(P. 308) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

306
4-3. Do-it-yourself maintenance
Check if the fuse has blown.
Type A and B :
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e A
Ty p e B
Type C and D :
Normal fuse
Blown fuse
Contact your Lexus dealer.
Ty p e C
STEP6

308
4-3. Do-it-yourself maintenance

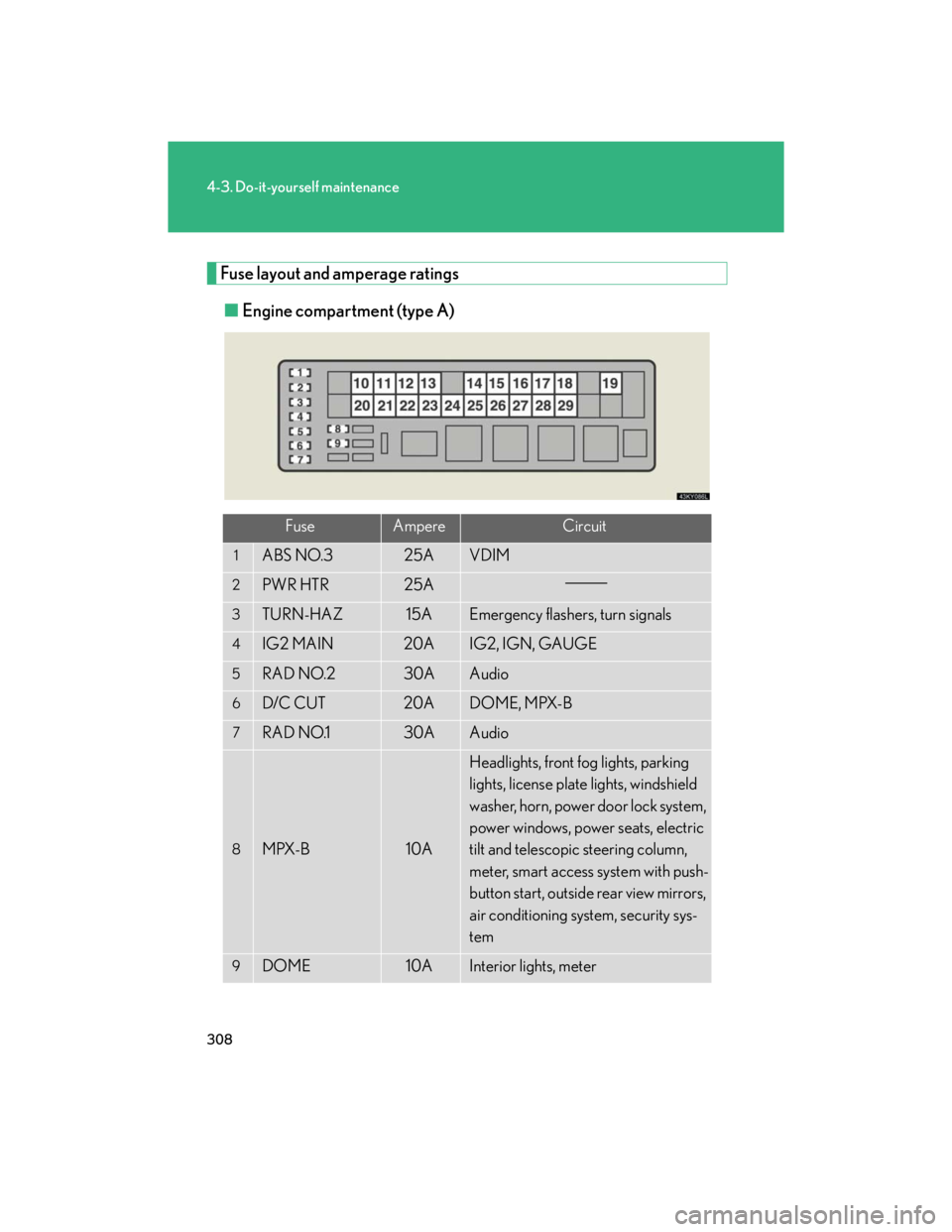

Fuse layout and amperage ratings
■Engine compartment (type A)
FuseAmpereCircuit
1ABS NO.325AVDIM
2PWR HTR25A
3TURN-HAZ15AEmergency flashers, turn signals
4IG2 MAIN20AIG2, IGN, GAUGE
5RAD NO.230AAudio
6D/C CUT20ADOME, MPX-B
7RAD NO.130AAudio
8MPX-B10A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, security sys-
tem
9DOME10AInterior lights, meter
