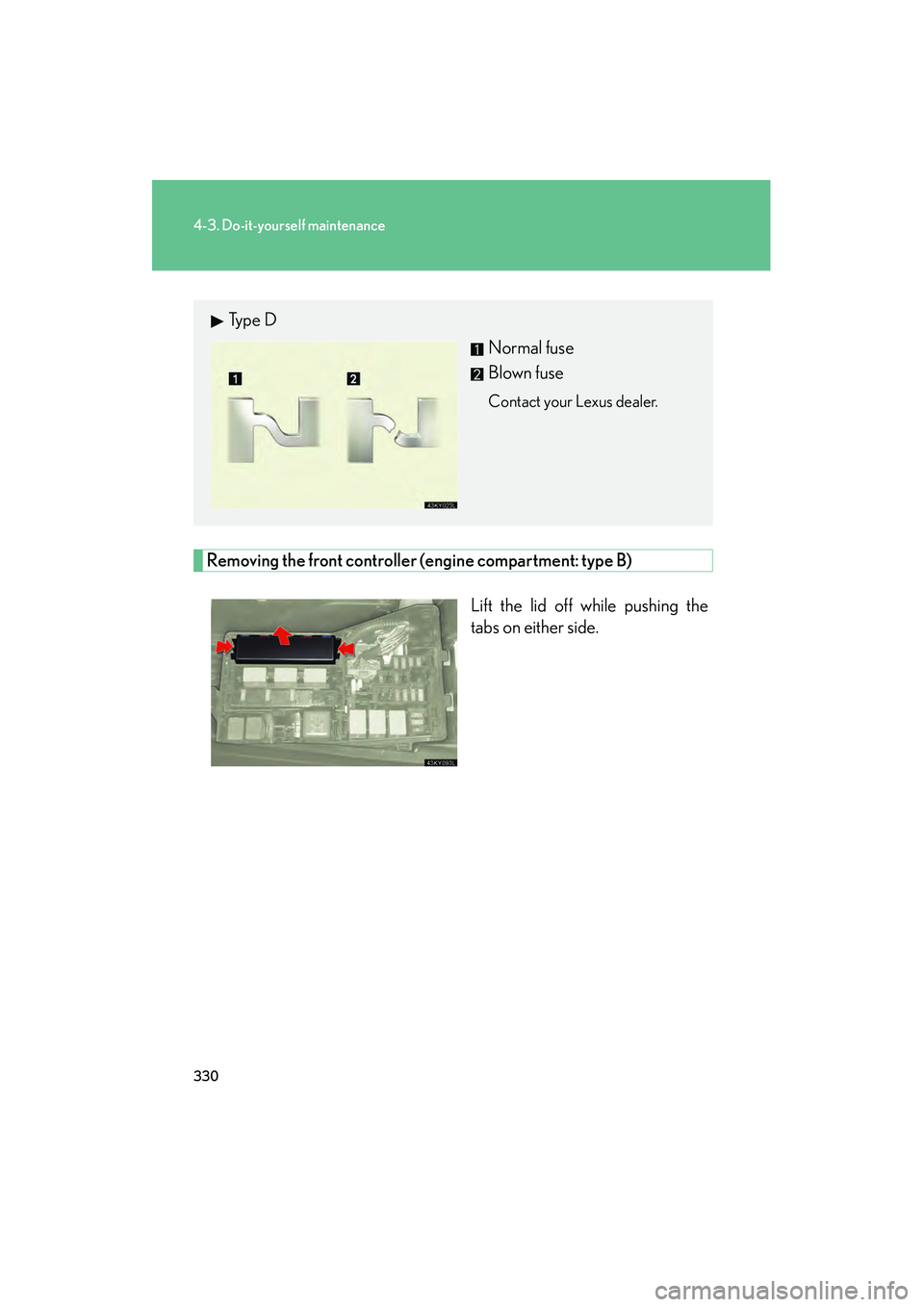

Removing the front controller (engine compartment: type B)
Lift the lid off while pushing the
tabs on either side.
Ty p e D Normal fuse
Blown fuse
Contact your Lexus dealer.

331
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)

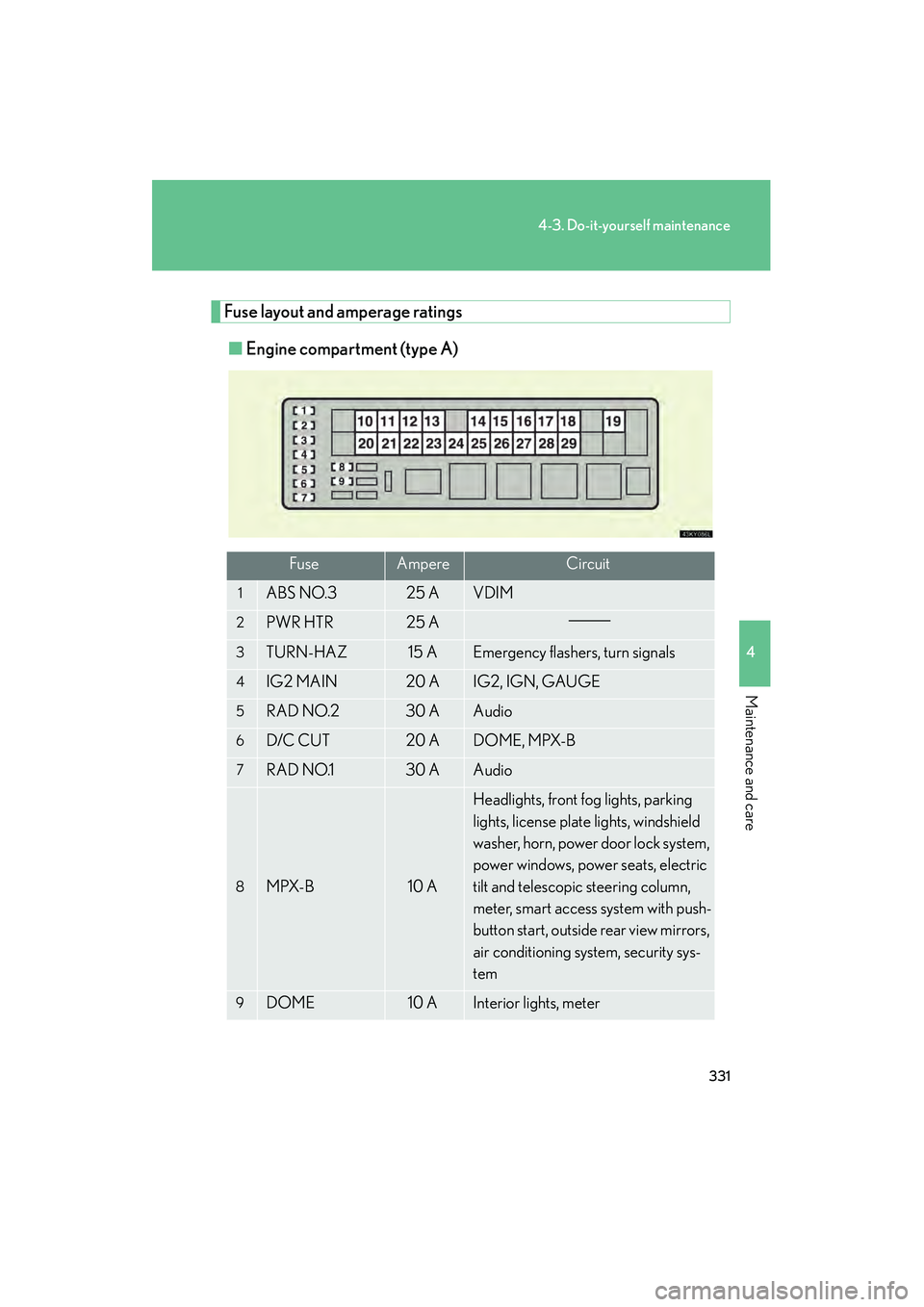

Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1ABS NO.325 AVDIM
2PWR HTR25 A
3TURN-HAZ15 AEmergency flashers, turn signals
4IG2 MAIN20 AIG2, IGN, GAUGE
5RAD NO.230 AAudio
6D/C CUT20 ADOME, MPX-B
7RAD NO.130 AAudio
8MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, security sys-
tem
9DOME10 AInterior lights, meter

332
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)
FuseAmpereCircuit
10E/G-B60 AFR CTRL-B, ETCS, ALT-S, steering
lock system, exhaust system
11DIESEL GLW80 A
12ABS150 AVSC, VDIM
13RH J/B-B30 APower door lock system, smart access
system with push-button start
14MAIN30 AHeadlight low beams
15STARTER30 ASmart access system with push-button
start
16LH J/B-B30 APower door lock system, SECURITY
17P/ I - B60 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
18EPS80 APo w e r s t e e r i n g
19ALT150 A
LH J/B-AM, E/G-AM, GLW PLG2,
HEATER, FAN1, FAN2, DEFOG,
ABS2, RH J/B-AM, GLW PLG1,
LH J/B-B, RH J/B-B
20GLW PLG150 APTC heater
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO.3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVSC
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
25FA N 140 AElectric cooling fans
26HEATER50 AAir conditioning system

333
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
FuseAmpereCircuit

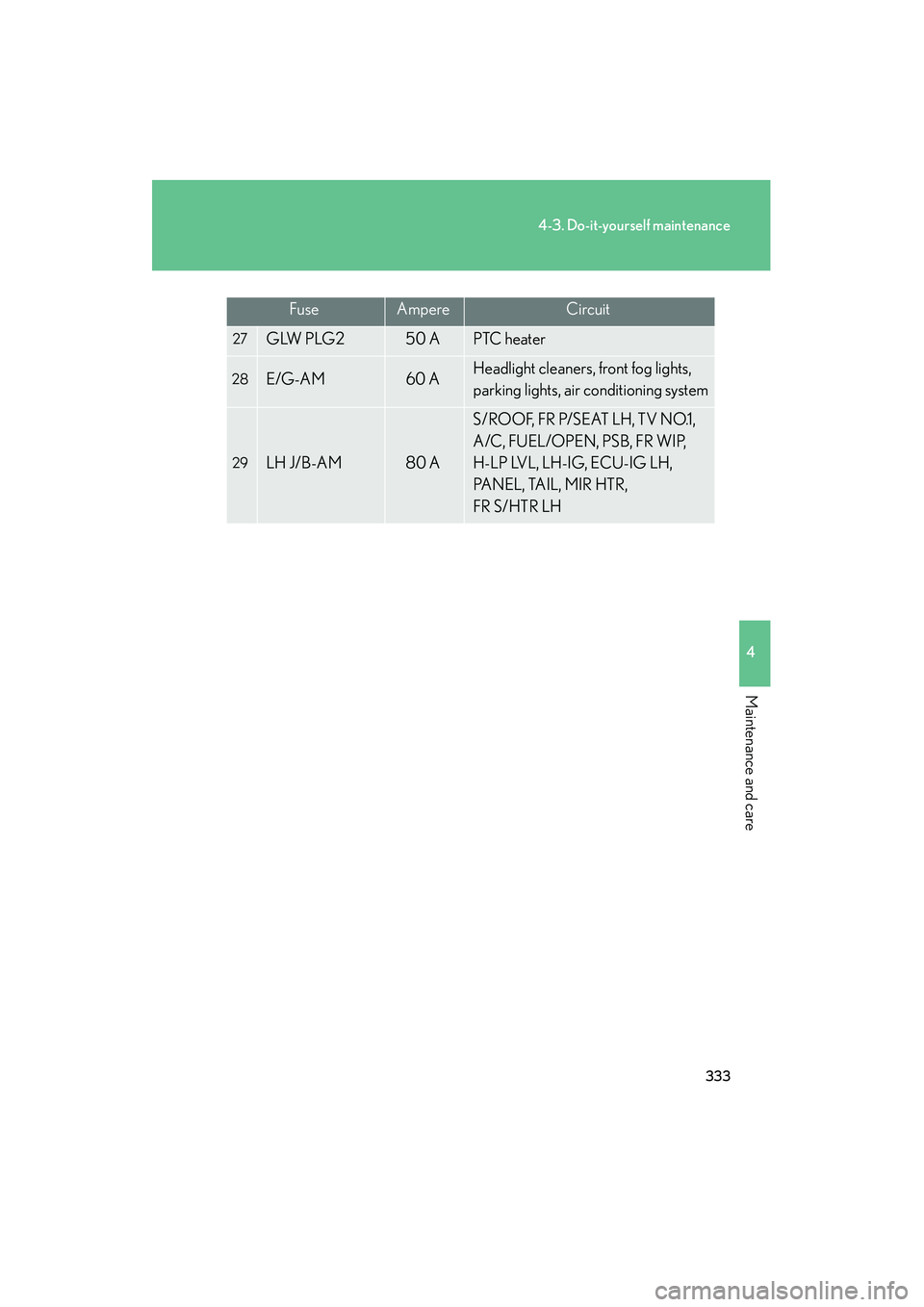

27GLW PLG250 APTC heater
28E/G-AM60 AHeadlight cleaners, front fog lights,
parking lights, air conditioning system
29LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL/OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PA N E L , TA I L , M I R H T R ,
FR S/HTR LH

334
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)■

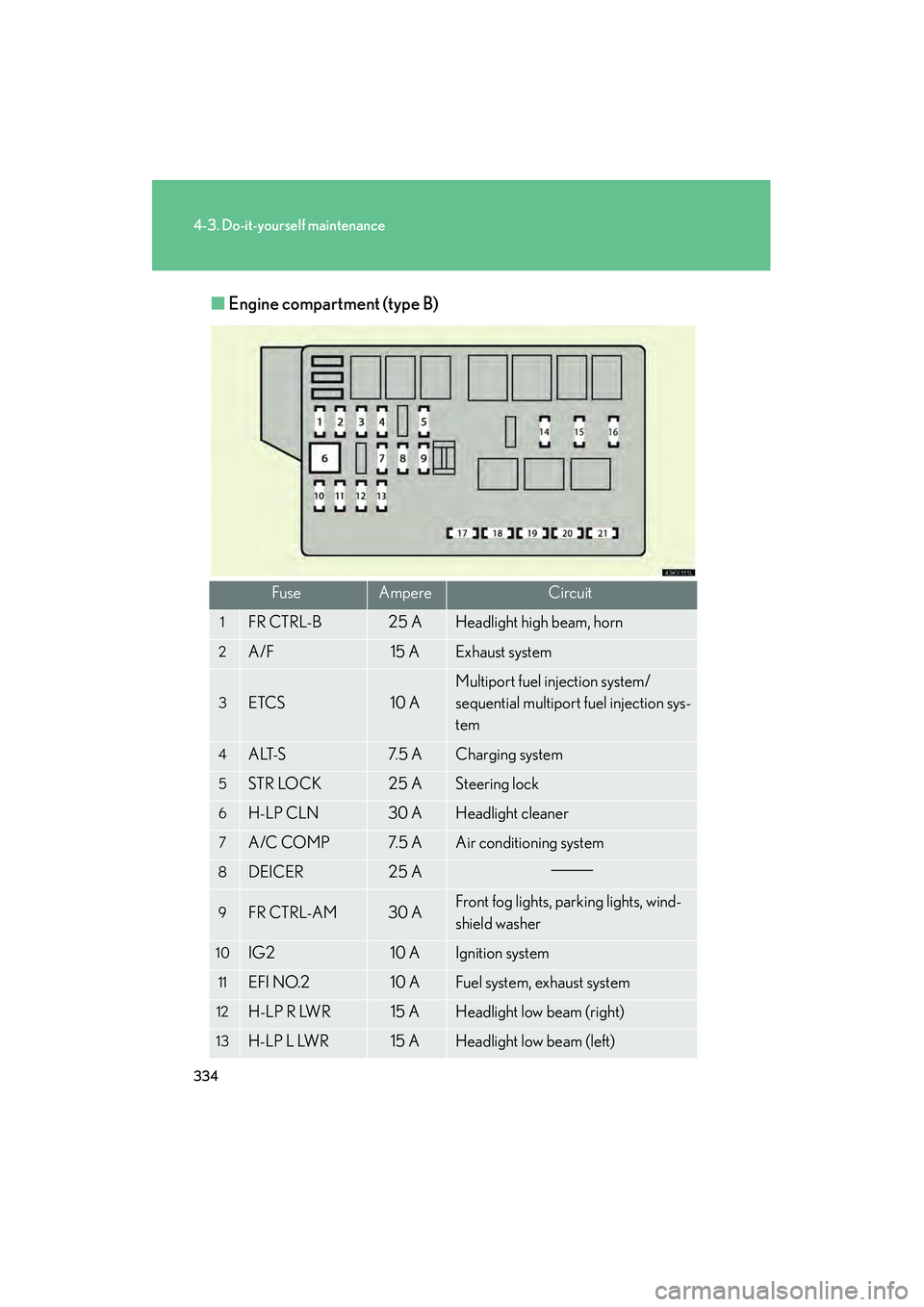

Engine compartment (type B)
FuseAmpereCircuit
1FR CTRL-B25 AHeadlight high beam, horn
2A/F15 AExhaust system
3ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
4ALT-S7. 5 ACharging system
5STR LOCK25 ASteering lock
6H-LP CLN30 AHeadlight cleaner
7A/C COMP7. 5 AAir conditioning system
8DEICER25 A
9FR CTRL-AM30 AFront fog lights, parking lights, wind-
shield washer
10IG210 AIgnition system
11EFI NO.210 AFuel system, exhaust system
12H-LP R LWR15 AHeadlight low beam (right)
13H-LP L LWR15 AHeadlight low beam (left)

335
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
FuseAmpereCircuit

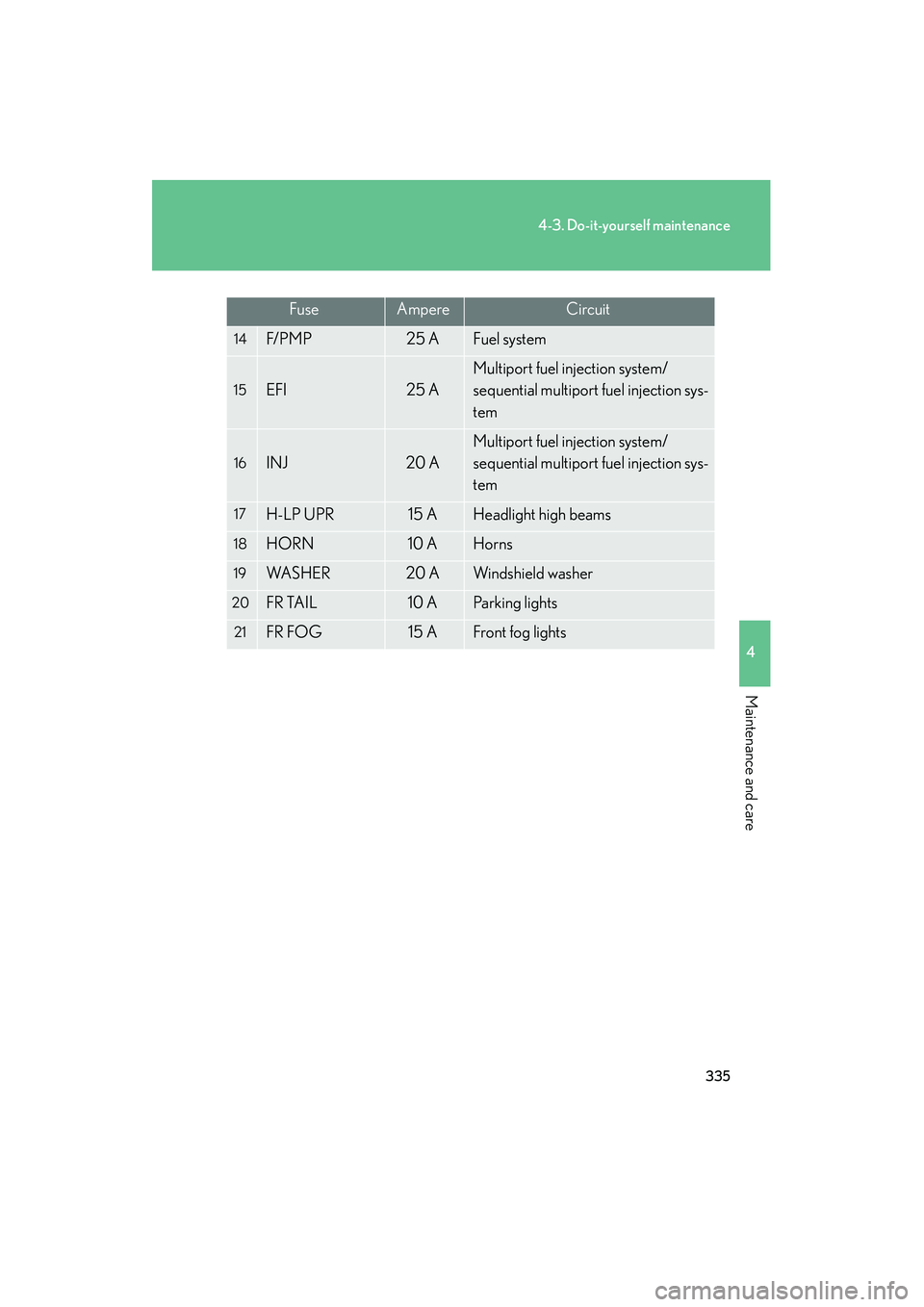

14F/ P M P25 AFuel system
15EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
17H-LP UPR15 AHeadlight high beams
18HORN10 AHorns
19WA S H E R20 AWindshield washer
20FR TAIL10 AParking lights
21FR FOG15 AFront fog lights

336
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)■
Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO.27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AElectric moon roof
9TA I L10 ATail lights, license plate lights, parking
lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, moon roof, tire inflation pres-
sure warning system
13FR S/HTR LH15 ASeat heaters and ventilators

337
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
FuseAmpereCircuit

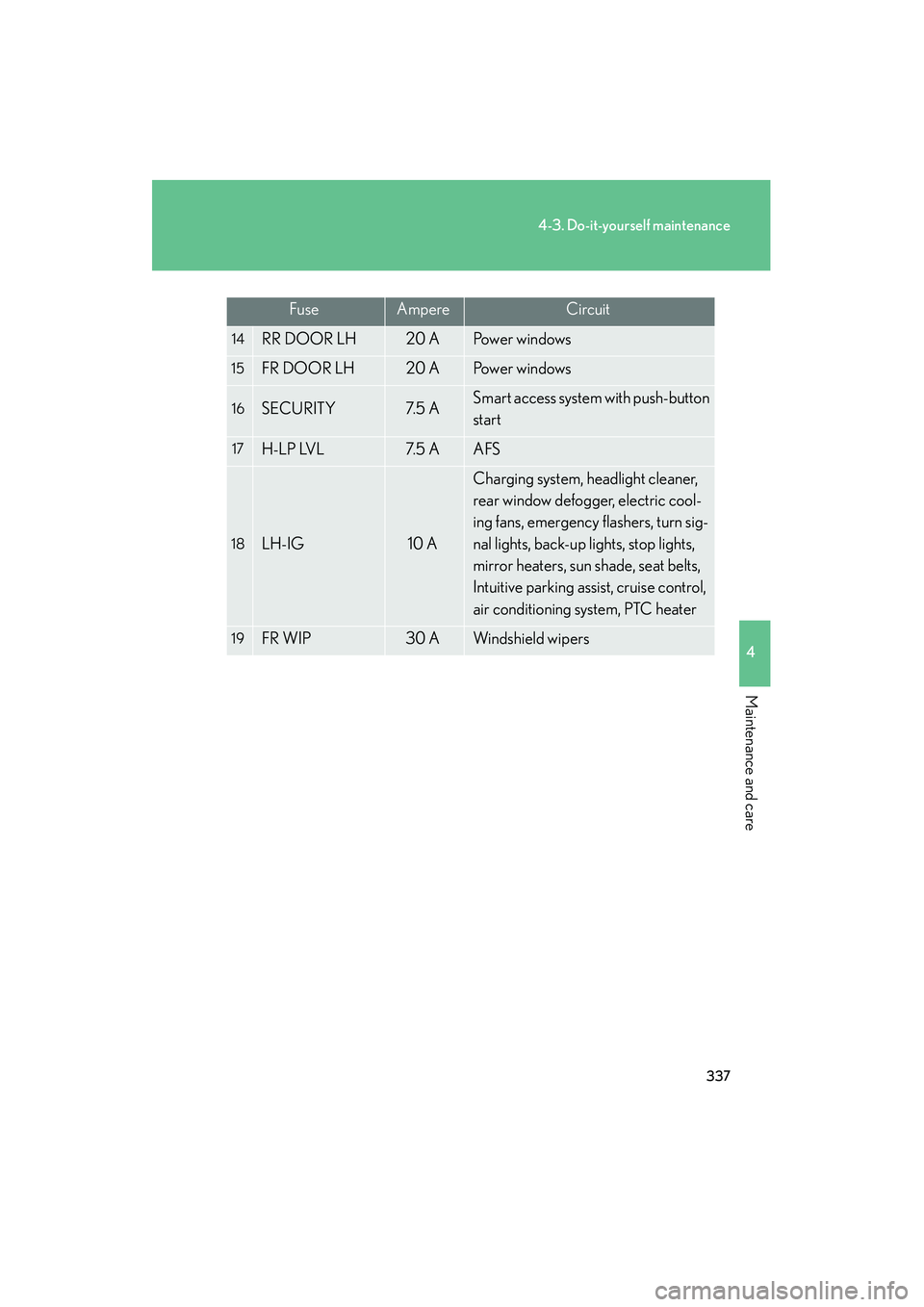

14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APo w e r w i n d o w s
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAFS
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, sun shade, seat belts,
Intuitive parking assist, cruise control,
air conditioning system, PTC heater
19FR WIP30 AWindshield wipers

338
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)■
Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 ASRS airbag system, cruise control,
steering lock system, fuel system
9ACC7. 5 A
Lexus link system, clock, air condition-
ing system, audio, display, outside rear
view mirrors, smart access system
with push-button start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s

339
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
FuseAmpereCircuit
13FR DOOR RH20 APo w e r w i n d o w s , o u t s i d e r e a r v i e w
mirrors
14AM215 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, VSC,
air conditioning system, pre-collision
seat belt, electric tilt and telescopic
steering, power windows, navigation
system
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (
→P. 3 4 2 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
