CD player Lexus IS250 2009 User Guide

237
3-2. Using the audio system
3
Interior features
08_IS350/250_U_(L/O_0808)
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second or
more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), or again.
■When “LOAD”, “ERROR”, “WAIT” or “NO MUSIC” is shown on the display.
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: Make sure the label of the displayed disc is facing up, and then reinsert itin the player.
“WAIT”: Operation is stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Lexus dealer if the CD
still cannot be played back.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
■CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■If CDs are left inside the CD player or in the ejected position for extended peri-
ods
CDs may be damaged and may not play properly.

238
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)

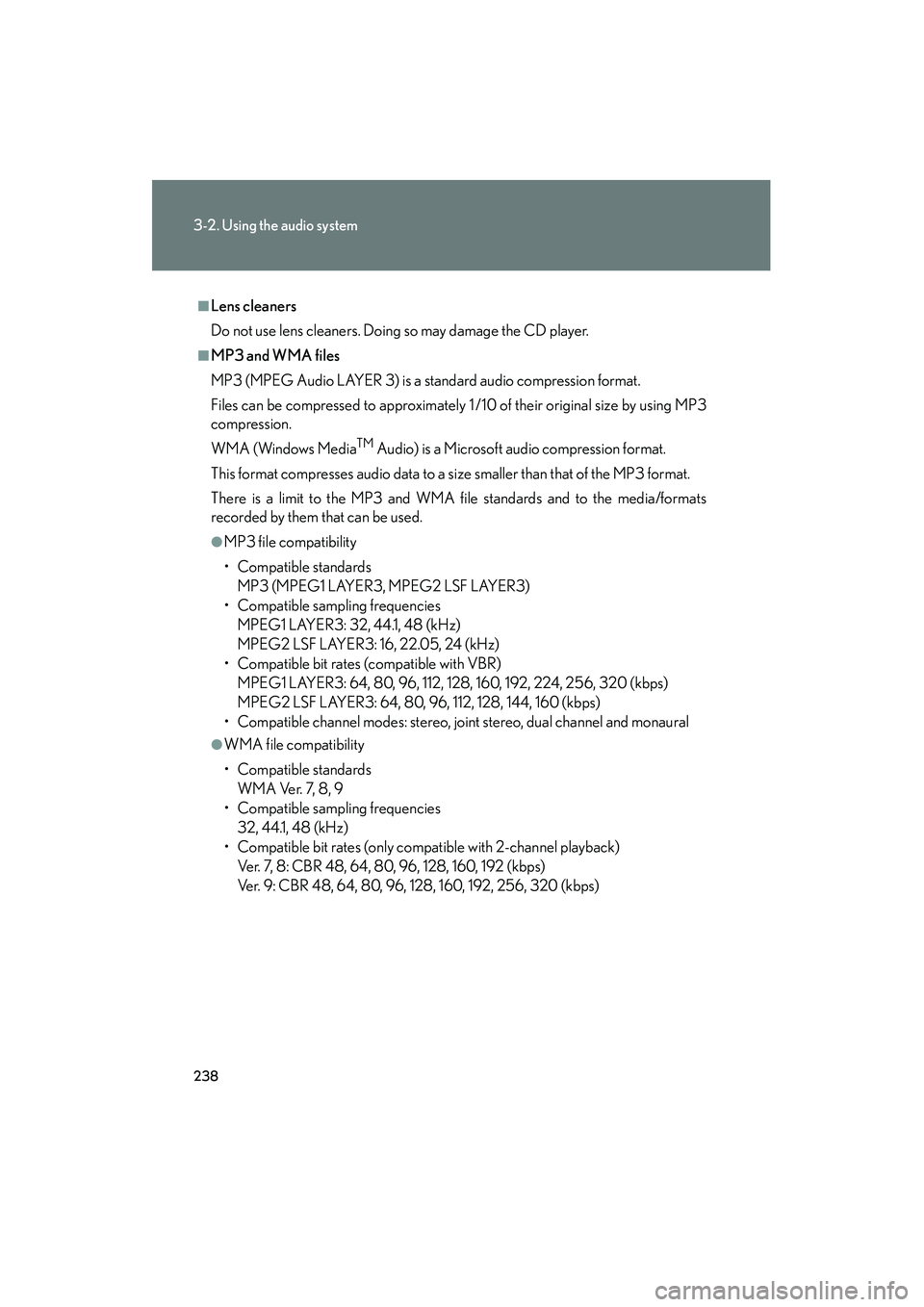

■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size by using MP3
compression.
WMA (Windows Media
TM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
●MP3 file compatibility
• Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
●WMA file compatibility
• Compatible standards WMA Ver. 7, 8, 9
• Compatible sampling frequencies 32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback) Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)

240
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)
●MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc are first
checked. Once the file check is finished, the first MP3 or WMA file is played. To
make the file check finish more quickly, we recommend you do not write in any
files other than MP3 or WMA files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3 or WMA format data cannot
be played.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be mistakenly recognized and played as MP3 and WMA files. This
may result in large amounts of interference and damage to the speakers.
●Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depend-
ing on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding
and the file format, poor sound quality or noise at the start of playback may
result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take
more time to recognize th e disc and in some cases, playback may not be
possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
NOTICE
■CDs and adapters that cannot be used

P. 2 3 3
■CD player precautions

P. 2 3 4

245
3-2. Using the audio system
3
Interior features
08_IS350/250_U_(L/O_0808)

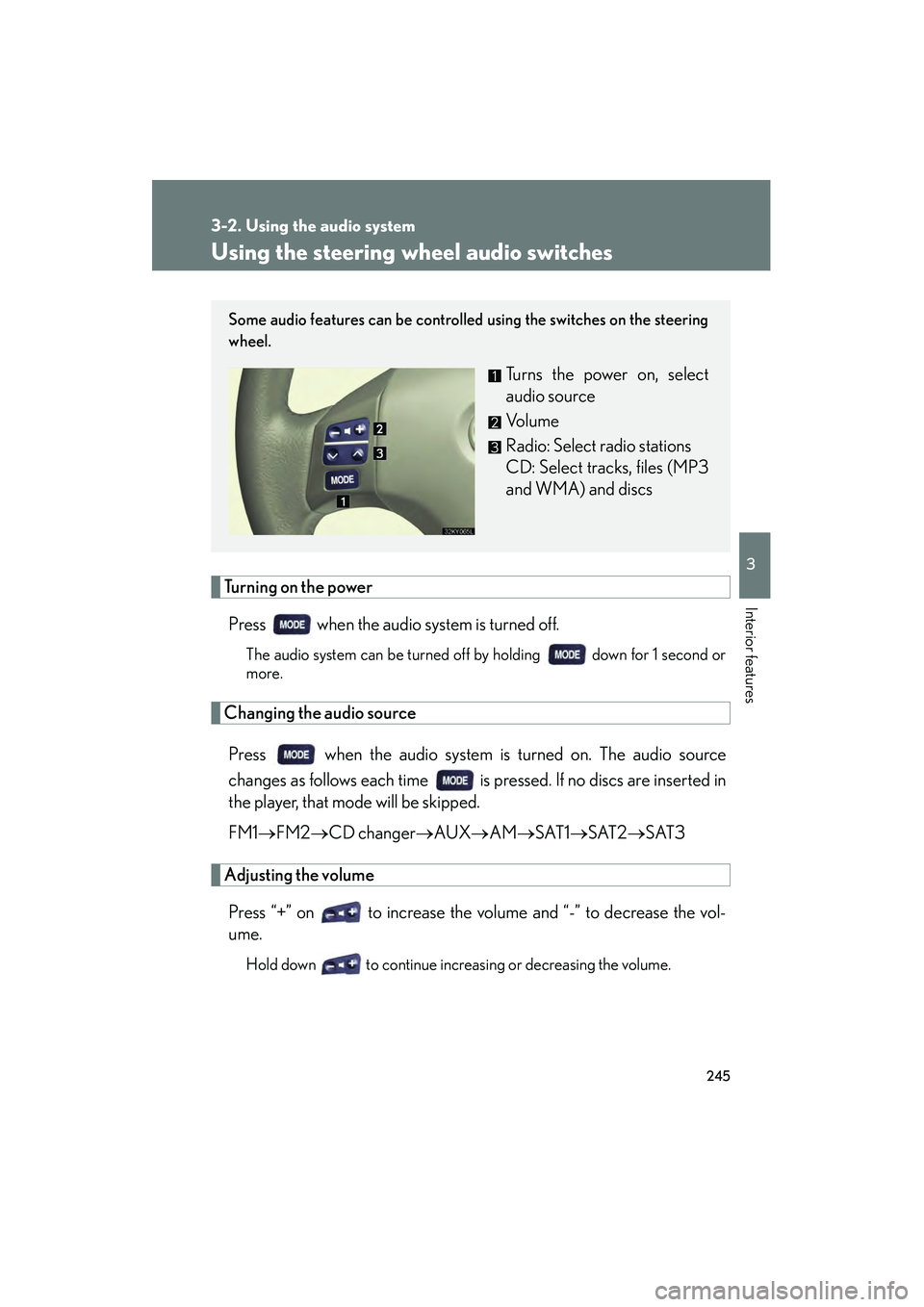

Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding down for 1 second or
more.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If no discs are inserted in
the player, that mode will be skipped.
FM1
FM2
CD changer
AUX
AM
SAT1
SAT2
SAT3
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down to continue increasing or decreasing the volume.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, select
audio source
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3
and WMA) and discs

246
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)

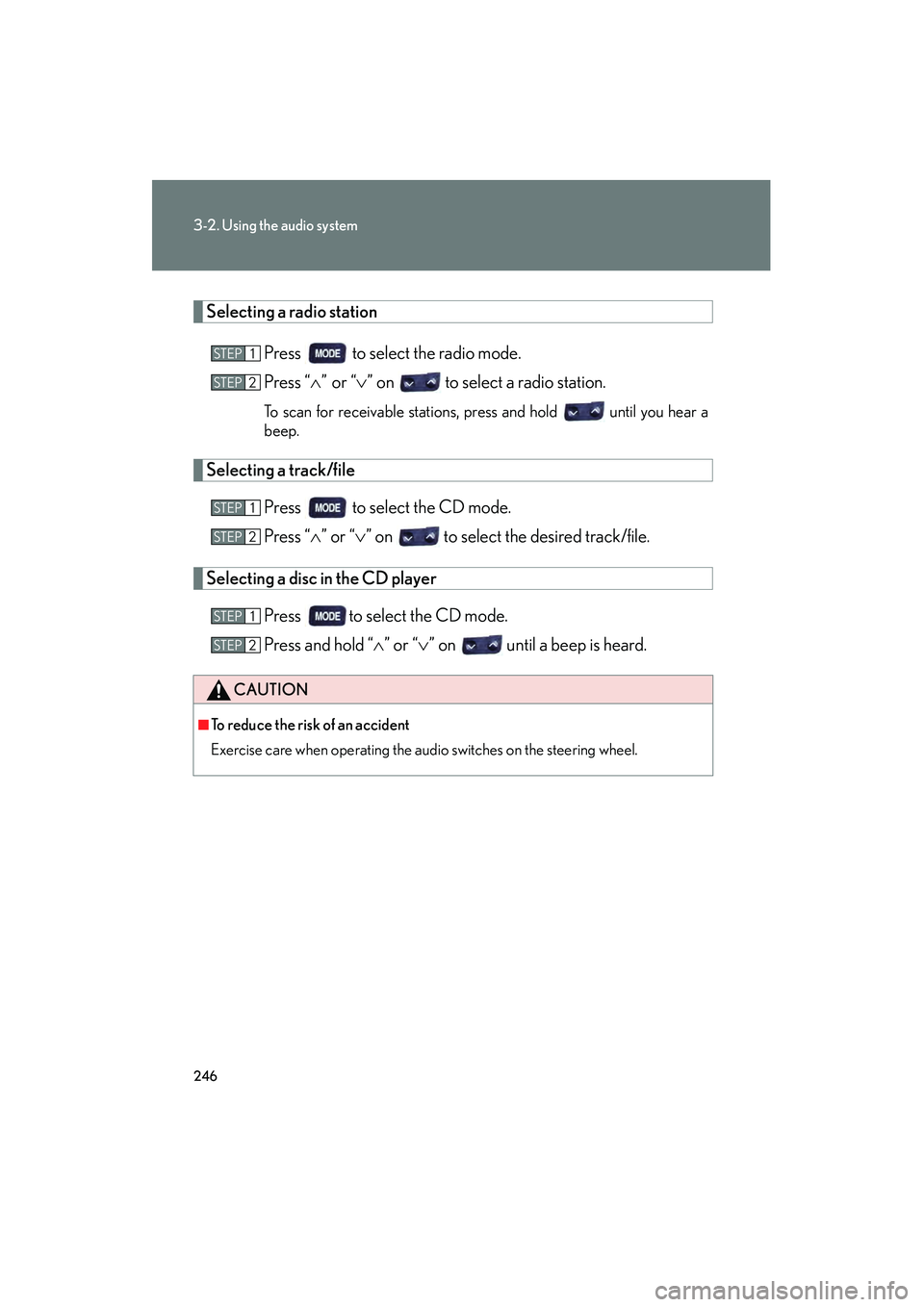

Selecting a radio stationPress to select the radio mode.
Press “”or “ ” on to select a radio station.
To scan for receivable stations, press and hold until you hear a
beep.
Selecting a track/file
Press to select the CD mode.
Press “” or “” on to select the desired track/file.
Selecting a disc in the CD player
Press to select the CD mode.
Press and hold “ ” or “” on until a beep is heard.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

476
08_IS350/250_U_(L/O_0808)

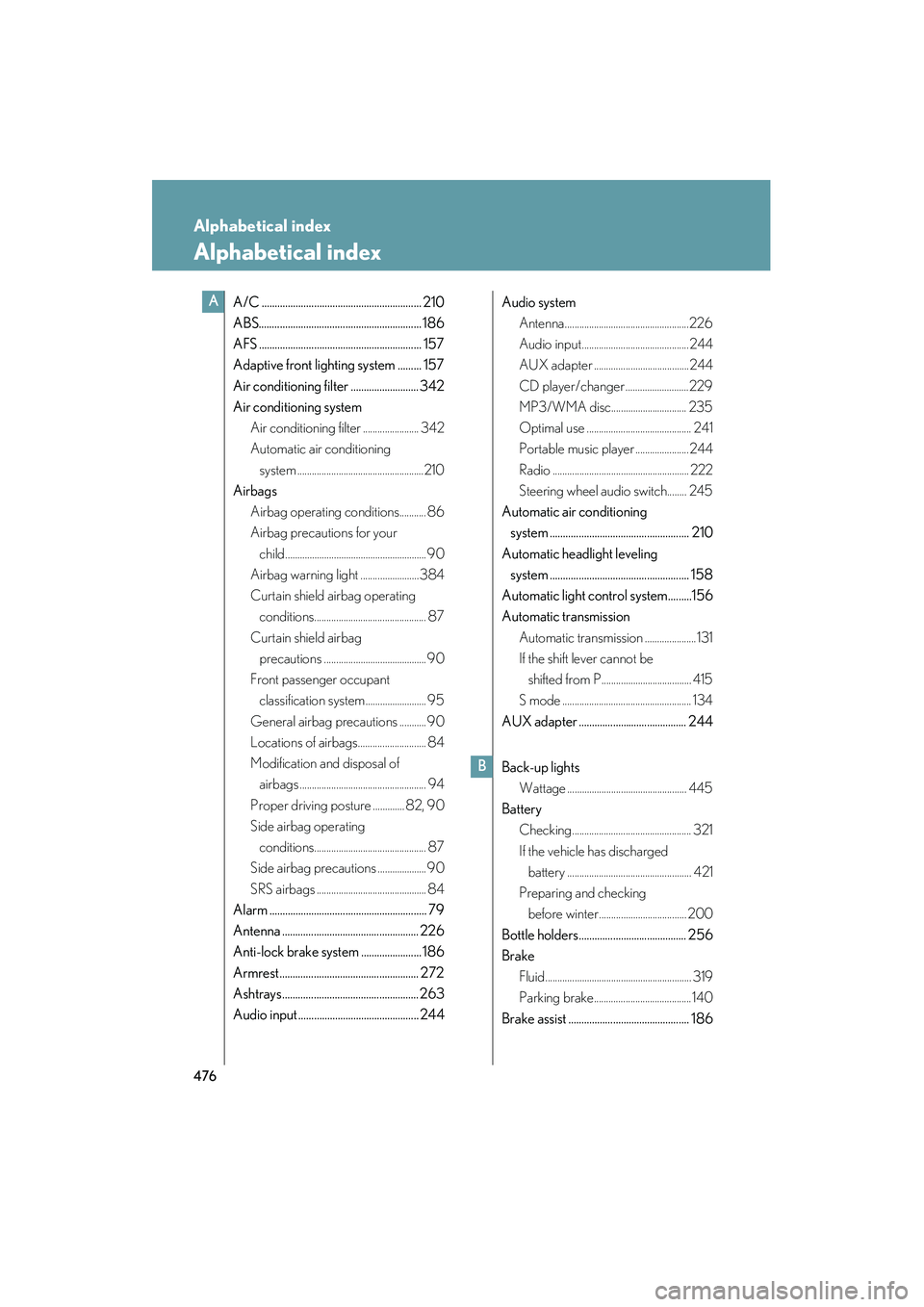

Alphabetical index
Alphabetical index
A/C ............................................................. 210
ABS.............................................................. 186
AFS .............................................................. 157
Adaptive front lighting system ......... 157
Air conditioning filter .......................... 342
Air conditioning system
Air conditioning filter ....................... 342
Automatic air conditioning system ....................................................210
Airbags
Airbag operating conditions........... 86
Airbag precautions for your child.......................................................... 90
Airbag warning light ........................384
Curtain shield airbag operating conditions.............................................. 87
Curtain shield airbag precautions .......................................... 90
Front passenger occupant classification system......................... 95
General airbag precautions ........... 90
Locations of airbags............................ 84
Modification and disposal of airbags .................................................... 94
Proper driving posture ............. 82, 90
Side airbag operating conditions.............................................. 87
Side airbag precautions .................... 90
SRS airbags ............................................. 84
Alarm ............................................................ 79
Antenna .................................................... 226
Anti-lock brake system ....................... 186
Armrest..................................................... 272
Ashtrays .................................................... 263
Audio input .............................................. 244 Audio system
Antenna...................................................226
Audio input............................................244
AUX adapter .......................................244
CD player/changer ..........................229
MP3/WMA disc............................... 235
Optimal use ........................................... 241
Portable music player ...................... 244
Radio ........................................................ 222
Steering wheel audio switch........ 245
Automatic air conditioning
system ..................................................... 210
Automatic headlight leveling system ..................................................... 158
Automatic light control system.........156
Automatic transmission
Automatic transmission ..................... 131
If the shift lever cannot be
shifted from P..................................... 415
S mode ..................................................... 134
AUX adapter ......................................... 244
Back-up lights
Wattage ................................................. 445
Battery
Checking................................................. 321
If the vehicle has discharged battery ................................................... 421
Preparing and checking before winter.................................... 200
Bottle holders......................................... 256
Brake
Fluid ............................................................ 319
Parking brake........................................ 140
Brake assist .............................................. 186
A
B

477
Alphabetical index
08_IS350/250_U_(L/O_0808)
Care
Exterior ....................................................292
Interior..................................................... 295
Seat belts ............................................... 296
Cargo capacity ....................................... 196
Cargo hooks ...........................................278
CD changer ............................................229
CD player.................................................229
Chains....................................................... 200
Child restraint system
Booster seats, definition.................. 100
Booster seats, installation ................ 107
Convertible seats, definition ......... 100
Convertible seats, installation ....... 107
Front passenger occupant classification system ........................ 95
Infant seats, definition ....................... 100
Infant seats, installation...................... 107
Installing CRS with lower anchorages ........................................ 105
Installing CRS with seat belts ........ 107
Installing CRS with top straps ........ 110
Child safety
Airbag precautions ..............................90
Battery precautions .............. 323, 423
Child restraint system .......................100
Child-protectors ................................... 40
How your child should wear
the seat belt ..........................................59
Installing child restraints................... 104
Moon roof precautions...................... 73
Power window lock switch ..............69
Power window precautions ............ 70
Removed electronic key battery
precautions........................................346
Seat belt comfort guide ..................... 57
Seat belt extender precautions........61
Seat belt precautions ..........................60
Seat heater precautions....... 268, 271
Trunk precautions................................. 45
Child-protectors ...................................... 40
Cigarette lighter.................................... 264
Cleaning
Exterior.................................................... 292
Interior .....................................................295
Seat belts ................................................296
Clock ......................................................... 259
Coat hooks .............................................. 276
Compass .................................................. 287
Condenser ............................................... 319
Console box ........................................... 252
Cooling system
Engine overheating........................... 424
Cornering assist sensors .................... 180
C
