CD player Lexus IS250 2009 Owner's Manual

1
2
3
4
5
6
7
08_IS350/250_U_(L/O_0808)
3
Manual transmission .................... 137
Turn signal lever ............................ 139
Parking brake ................................. 140
Horn...................................................... 141
2-2. Instrument cluster Gauges and meters ..................... 142
Indicators and warning lights................................................. 148
Multi-information display ............. 151
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 156
Fog light switch .............................. 159
Windshield wipers and washer............................................. 160
Headlight cleaner switch ........... 165
2-4. Using other driving systems Cruise control ................................ 166
Dynamic radar cruise control............................................. 170
Intuitive parking assist ................. 180
Driving assist systems.................. 186
PCS (Pre-Collision System) ............ 192 2-5. Driving information
Cargo and luggage ...................... 196
Vehicle load limits......................... 199
Winter driving tips ...................... 200
Trailer towing ................................. 204
Dinghy towing (vehicles with an automatic
transmission) .............................. 205
Dinghy towing (vehicles with a manual transmission) ........... 206
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................. 210
Rear window and outside rear view mirror defoggers ............. 218
3-2. Using the audio system Audio system type ........................ 219
Using the radio.............................. 222
Using the CD player................... 229
Playing back MP3 and WMA discs.................................. 235
Optimal use of the audio system ............................................. 241
Using the AUX adapter............ 244
Using the steering wheel audio switches ............................ 245
3Interior features

28
1-2. Opening, closing and locking the doors and trunk
08_IS350/250_U_(L/O_0808)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start from
operating properly:
(Ways of coping:

P. 4 1 7 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When another wireless key (that emits radio waves) is being used nearby
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computer or personal digital assistant (PDA)
• Digital audio player
• Portable game system
●If window tint with a metallic content or metallic objects are attached to the rear
window

94
1-7. Safety information
08_IS350/250_U_(L/O_0808)
CAUTION
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications with-
out consulting your Lexus dealer.
The SRS airbag may malfunction or deploy (inflate) accidentally, causing death or
serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
●Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar
etc.)
●Modifications to the vehicle's suspension system
●Installation of electronic devices such as mobile two-way radios or CD players
●Modifications to your vehicle for a person with a physical disability

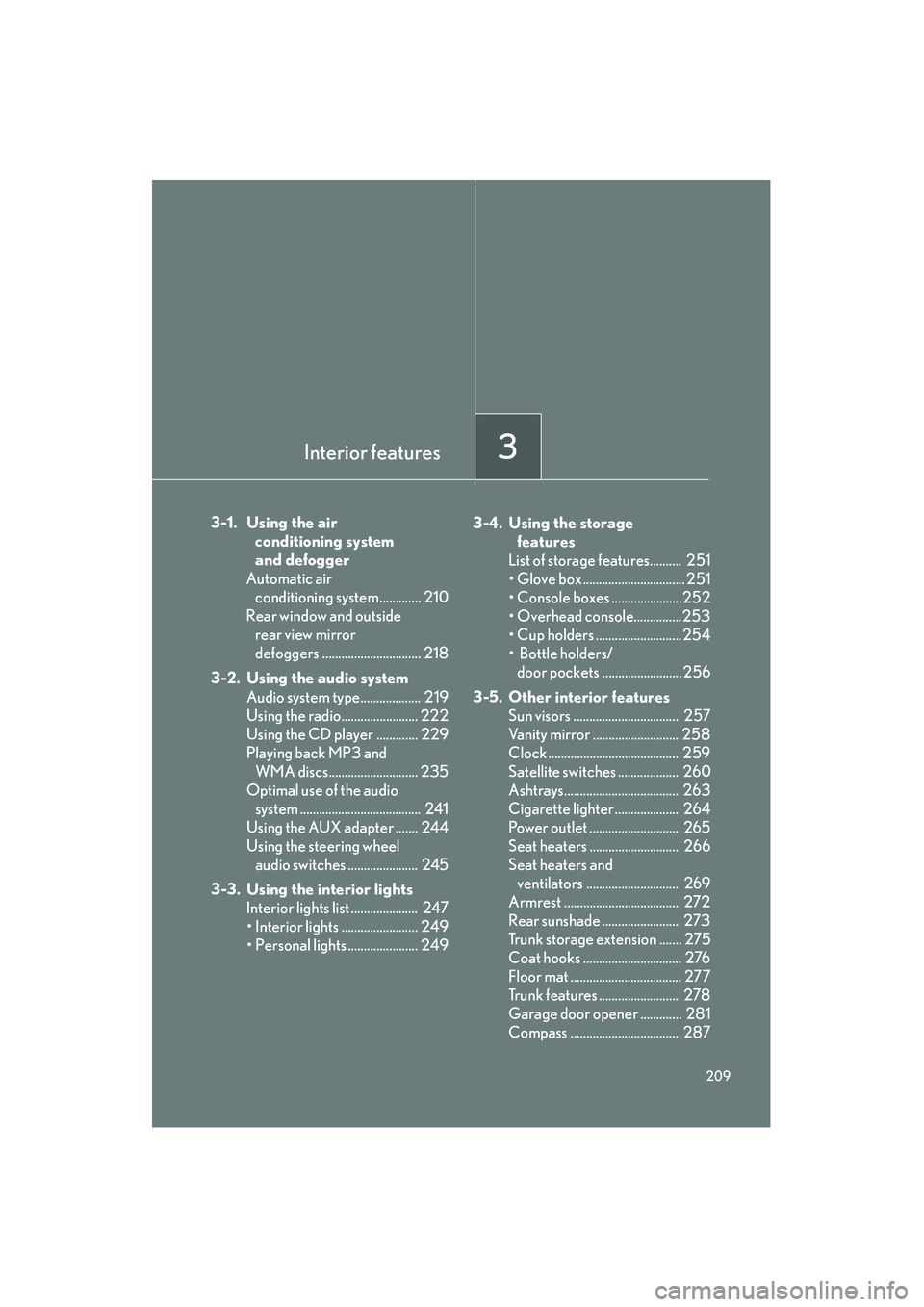

Interior features3
209
08_IS350/250_U_(L/O_0808)
3-1. Using the air conditioning system
and defogger
Automatic air conditioning system............. 210
Rear window and outside rear view mirror
defoggers ............................... 218
3-2. Using the audio system Audio system type................... 219
Using the radio........................ 222
Using the CD player ............. 229
Playing back MP3 and WMA discs............................ 235
Optimal use of the audio system ...................................... 241
Using the AUX adapter ....... 244
Using the steering wheel audio switches ...................... 245
3-3. Using the interior lights Interior lights list ..................... 247
• Interior lights ........................ 249
• Personal lights ...................... 249 3-4. Using the storage
features
List of storage features.......... 251
• Glove box ................................ 251
• Console boxes ......................252
• Overhead console...............253
• Cup holders ...........................254
• Bottle holders/ door pockets ......................... 256
3-5. Other interior features Sun visors ................................. 257
Vanity mirror ........................... 258
Clock ......................................... 259
Satellite switches ................... 260
Ashtrays.................................... 263
Cigarette lighter .................... 264
Power outlet ............................ 265
Seat heaters ............................ 266
Seat heaters and ventilators ............................. 269
Armrest .................................... 272
Rear sunshade ........................ 273
Trunk storage extension ....... 275
Coat hooks ............................... 276
Floor mat ................................... 277
Trunk features ......................... 278
Garage door opener ............. 281
Compass .................................. 287

219
3
Interior features
08_IS350/250_U_(L/O_0808)
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

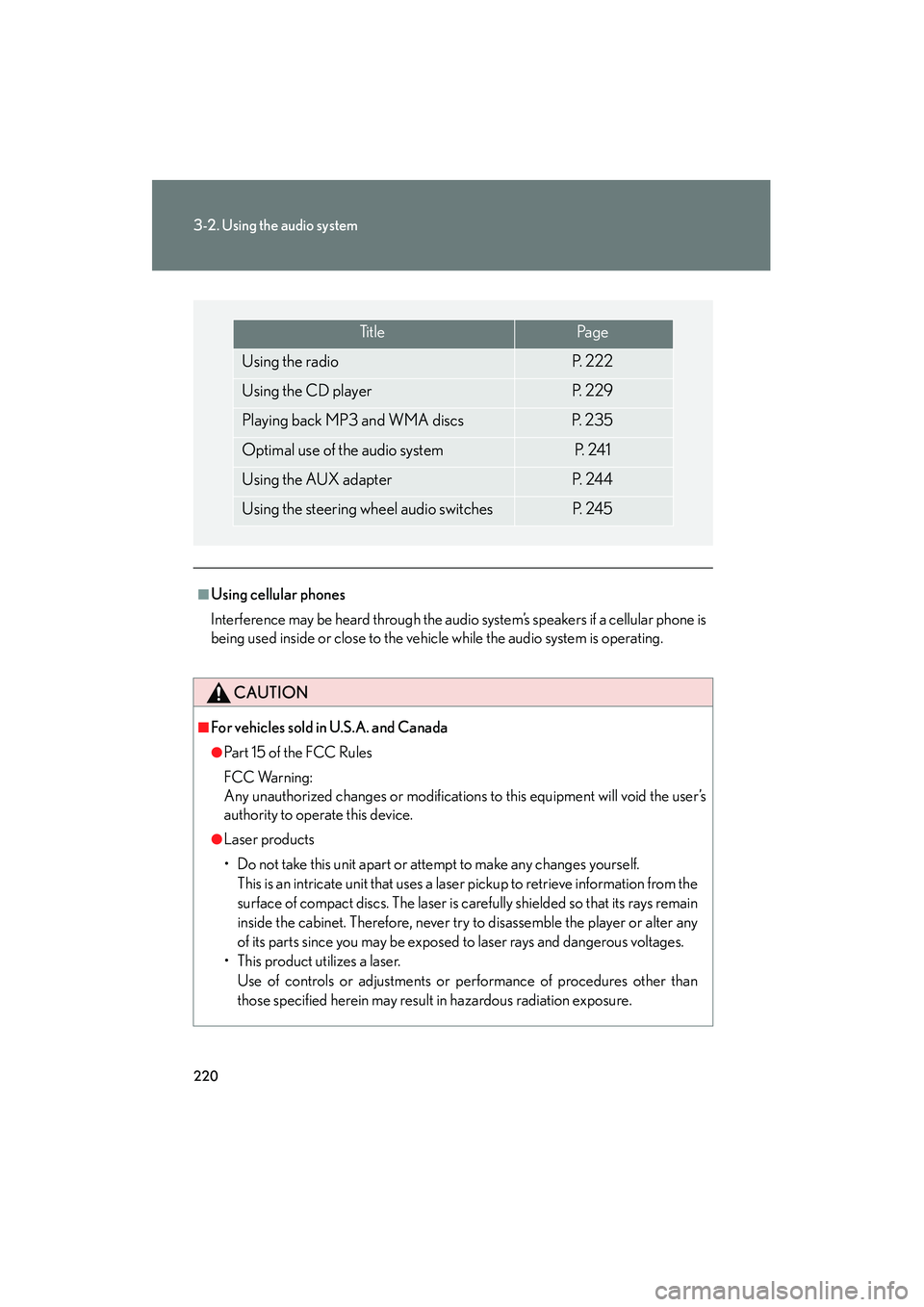

220
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■For vehicles sold in U.S.A. and Canada
●Pa r t 1 5 o f t h e F CC R u l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes yourself. This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Ti t l ePa g e
Using the radioP. 2 2 2
Using the CD playerP. 2 2 9
Playing back MP3 and WMA discsP. 2 3 5
Optimal use of the audio systemP. 2 4 1
Using the AUX adapterP. 2 4 4
Using the steering wheel audio switchesP. 2 4 5

229
3-2. Using the audio system
3
Interior features
08_IS350/250_U_(L/O_0808)
Using the CD player
Loading CDs■ Loading a CD
Push .
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDs
Press and hold until you hear a beep.
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is inserted.
Po w e r Vo l u m e
Track selection CD eject
Playback
Search playback CD loadCD selection
Random playback Repeat play
Displays text
message
STEP1
STEP2
STEP1
STEP2

232
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second or
more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), or again.
■When “LOAD”, “ERROR” or “WAIT” is shown on the display
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: Make sure the label of the displayed disc is facing up, and then reinsert itin the player.
“WAIT”: Operation is stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Lexus dealer if the CD
still cannot be played back.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.

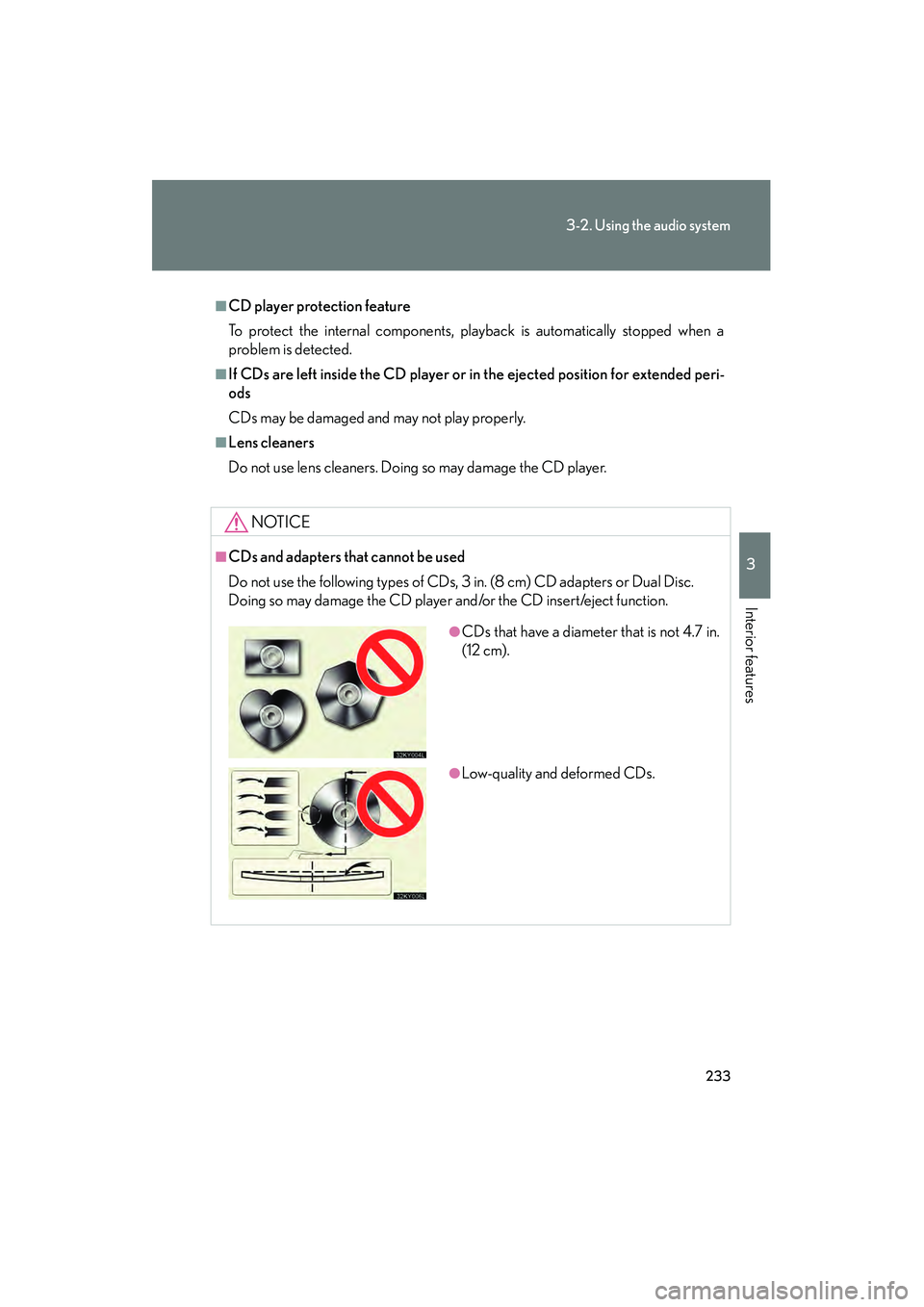

233
3-2. Using the audio system
3
Interior features
08_IS350/250_U_(L/O_0808)
■CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
■If CDs are left inside the CD player or in the ejected position for extended peri-
ods
CDs may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
●CDs that have a diameter that is not 4.7 in.
(12 cm).
●Low-quality and deformed CDs.

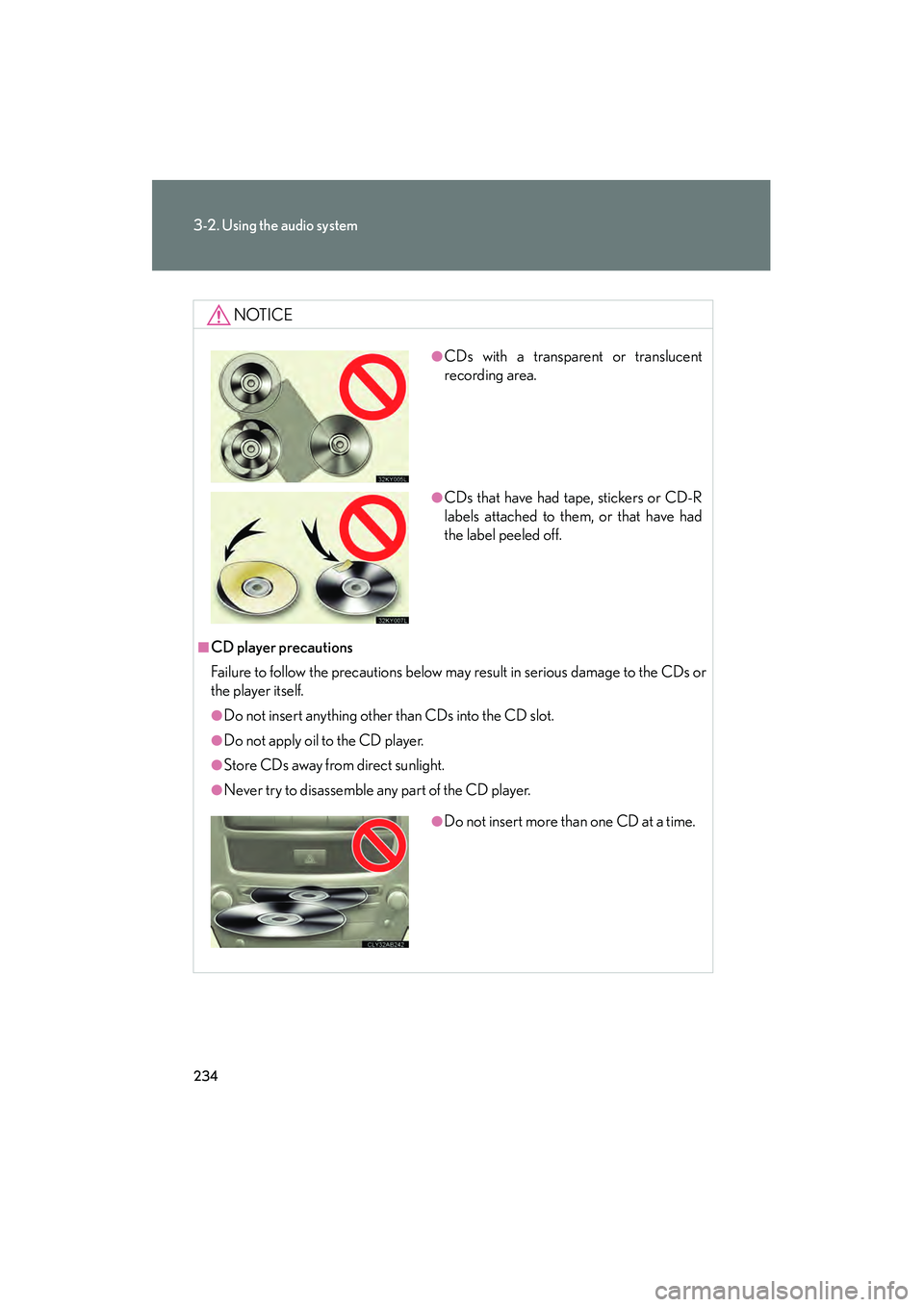

234
3-2. Using the audio system
08_IS350/250_U_(L/O_0808)
NOTICE
■CD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or
the player itself.
●Do not insert anything other than CDs into the CD slot.
●Do not apply oil to the CD player.
●Store CDs away from direct sunlight.
●Never try to disassemble any part of the CD player.
●CDs with a transparent or translucent
recording area.
●CDs that have had tape, stickers or CD-R
labels attached to them, or that have had
the label peeled off.
●Do not insert more than one CD at a time.
