remote control Lexus IS250 2009 Quick Guide

Topic 1
Entering and Exiting
7
IS_U (L/O_0808)
Keys
■Electronic key
Smart access system with push-button start
( → P. 8 , 1 9 )
*: If equipped
■ Mechanical key
● Locks and unlocks the doors
● Opens the trunk
● Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull,
or if equipped with a card key, press the button
and pull.
■ Wireless remote control
Press: locks all doors
Press once: unlocks the driver's door
Press twice: unlocks all doors
Press and hold: opens the windows and moon
roof*
Press and hold: opens the trunk
Press and hold: sounds the alarm
(Use the alarm to attract attention to the vehi-
cle in order to help deter break-ins. To stop the
alarm, press any button on the wireless remote
control.)
*: If equipped
Card key*
1
2
3
4

Topic 1
Entering and Exiting
9
IS_U (L/O_0808)
Theft Deterrent System
■Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
■ Alarm
The system sounds the alarm and flashes lights when forcible entry is detected.
To set the alarm: lock all the doors from outside the vehicle. The security indicator light
comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, or unlock the doors or trunk using the electronic key or the wire-
less remote control.
■ Steering lock
The steering wheel locks when the “ENGINE
START STOP” switch is OFF.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, gently turn the wheel left or right while pressing
the “ENGINE START STOP” switch.
The theft deterrent system includes the following features to help protect your vehicle from
theft.

Topic 2
Before Driving
13
IS_U (L/O_0808)

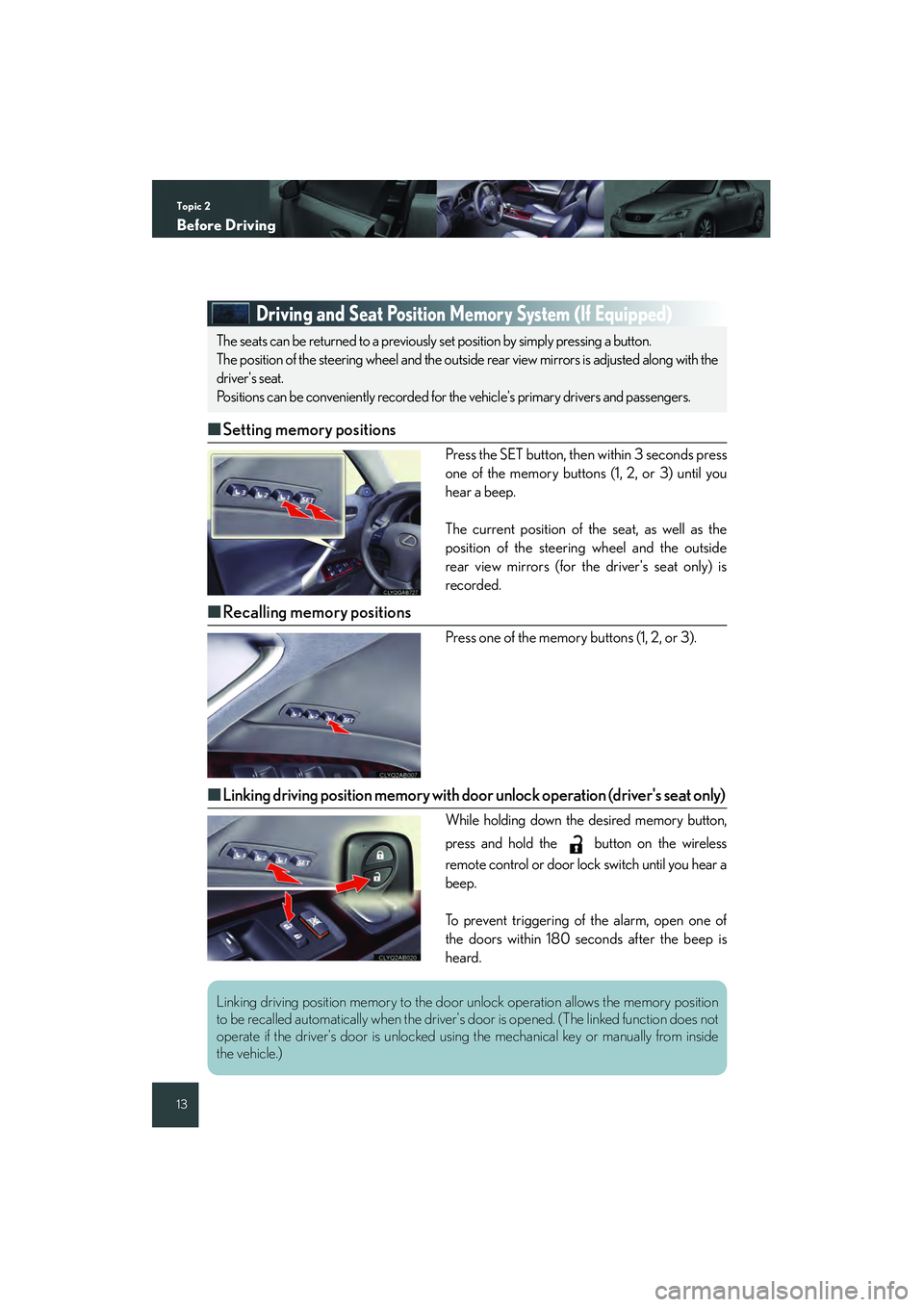

Driving and Seat Position Memory System (If Equipped)
■Setting memory positions
Press the SET button, then within 3 seconds press
one of the memory buttons (1, 2, or 3) until you
hear a beep.
The current position of the seat, as well as the
position of the steering wheel and the outside
rear view mirrors (for the driver's seat only) is
recorded.
■ Recalling memory positions
Press one of the memory buttons (1, 2, or 3).
■Linking driving position memory with door unlock operation (driver's seat only)
While holding down the desired memory button,
press and hold the button on the wireless
remote control or door lock switch until you hear a
beep.
To prevent triggering of the alarm, open one of
the doors within 180 seconds after the beep is
heard.
The seats can be returned to a previously set position by simply pressing a button.
The position of the steering wheel and the outside rear view mirrors is adjusted along with the
driver's seat.
Positions can be conveniently recorded for the vehicle's primary drivers and passengers.
Linking driving position memory to the door unlock operation allows the memory position
to be recalled automatically when the driver's door is opened. (The linked function does not
operate if the driver's door is unlocked using the mechanical key or manually from inside
the vehicle.)

Topic 5
Driving Comfort
41
IS_U (L/O_0808)
■Loading a CD
Press the LOAD button.WAIT is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from WAIT to LOAD.
■Loading multiple CDs
Press and hold the LOAD button until you hear a beep. WAIT is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from WAIT to LOAD.
The indicators on the slot turn to amber when the CD is inserted.
Insert the next CD when the indicators on the slot turn from amber to green again. Repeat the procedure for the remaining CDs.
To stop the operation, press the DISC•AUX button.
■ Remote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Power on/change mode: press
Power off: press and hold
Vo l u m e
Radio: radio tuner
CD: CD/track/file (MP3/WMA) select
1
2
3

Topic 6
Opening and Closing
53
IS_U (L/O_0808)
Door Locks
■Locking the vehicle from inside
Inside lock button
Locks
Unlocks
Door lock switch
Operates all door locks.
Locks
Unlocks
■ Locking the vehicle from outside
Using the entry function or wireless remote control ( → P. 7 , 8 )
■Rear door child-protector lock
Setting the switch to the LOCK position prevents
the rear doors from being opened from the inside.
Always set the child protector locks when chil-
dren are seated in the rear seat.
1
2
1
2

Topic 6
Opening and Closing
56
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing Yo u r L e x u s
IS_U (L/O_0808)
Trunk
■ Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the wireless remote control
or the entry function.
■ Entry function and wireless remote control
→ P. 7 , 8
1
2

Customizing Your Lexus
63
IS_U (L/O_0808)
Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
ItemFunctionDefault settingCustomized setting
Smart access
system with
push-button startOperation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer)OnOff
Wireless remote
control
Unlocking operation
Driver's door unlocked in
one step, all doors
unlocked in two steps
All doors
unlocked in one step
Automatic door lock function
to be activated if door is not
opened after being unlocked
OnOff
Ti m e e l a p s e d b e f o r e a u t o -
matic door lock function is
activated if door is not opened
after being unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer)OnOff
Door lock buzzerOnOff
Tr u n k u n l o c k i n g f u n c t i o nOnOff
Trunk unlocking operationPush and hold Push twice
One short push
Panic functionOnOff

64
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
IS_U (L/O_0808)
ItemFunctionDefault
settingCustomized setting
Door lock
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step
Speed-detecting automatic
door lock function
(Manual transmissions)
OnOff
Speed-detecting automatic
door lock function
(Automatic transmissions)
OffOn
Opening driver's door unlocks
all doors
(Manual transmissions)
OnOff
Opening driver's door unlocks
all doors
(Automatic transmissions)
OffOn
Shifting gears to P unlocks all
doorsOnOff
Shifting gears to position other
than P locks all doorsOnOff
Steering wheelAuto tilt-away functionOnOff
Po w e r w i n d o w s
Linked door lock operationOnOff
Linked door key operationOpen and closeOpen only
Close only
Wireless remote control linked
operationOnOff
Moon roof
Linked door lock operationOnOff
Linked door key operationOpen and closeOpen only
Close only
Linked operation of components
when door key is usedSlide onlyTilt only
Wireless remote control linked
operationOnOff
Linked operation of components
when wireless remote control is
used
Slide onlyTilt only
