168
2-3. Operating the lights and windshield wipers
IS350/250_U

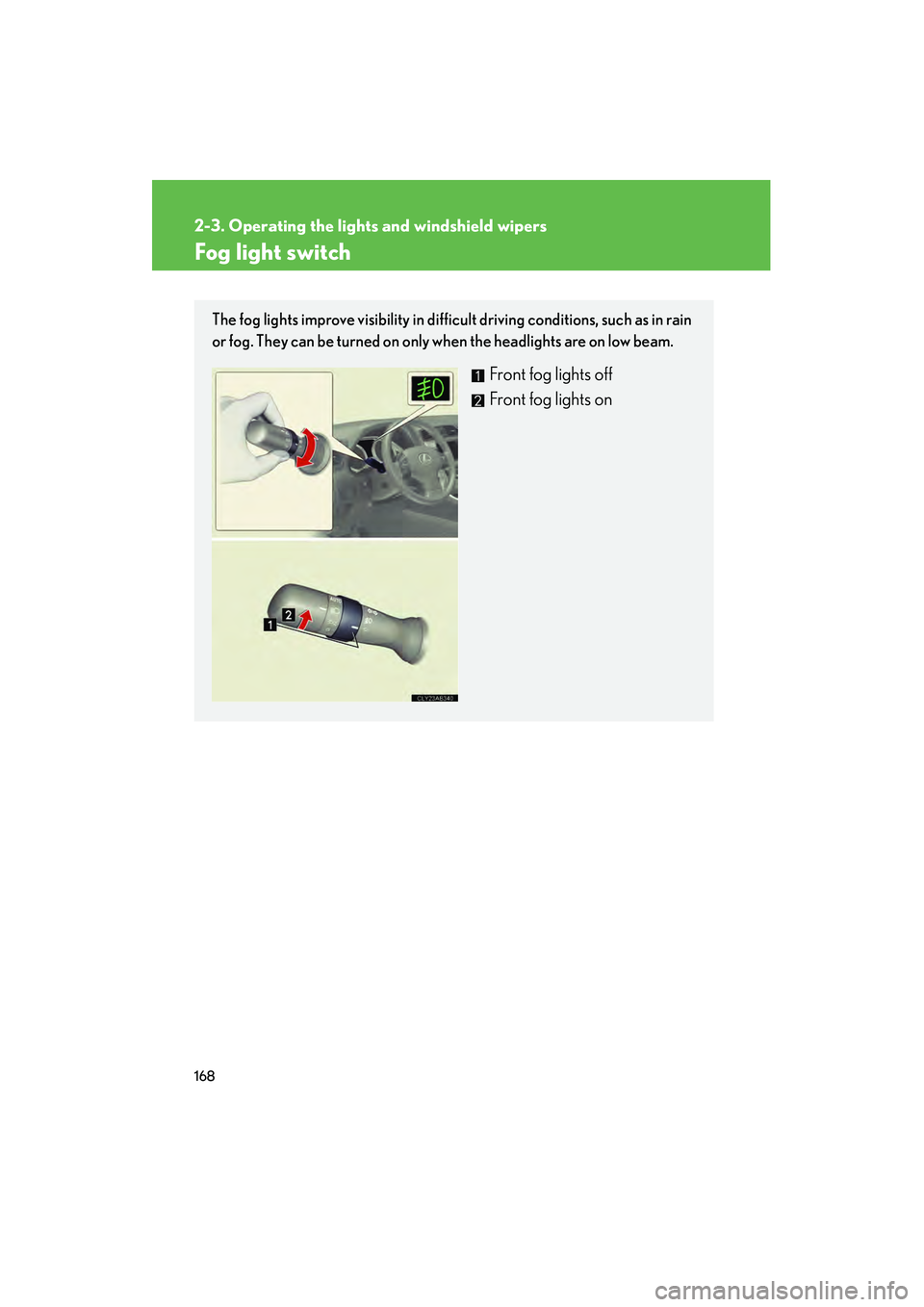

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
Front fog lights off
Front fog lights on

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U
13FR CTRL-AM30 AFR TAIL, FR FOG, WASHER
14IG210 AIgnition system
15EFI NO.210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16H-LP R LWR15 AHeadlight low beam (right)
17H-LP L LWR15 AHeadlight low beam (left)
18F/ P M P25 AFuel system
19EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, EFI NO.2
20INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
21H-LP UPR15 AHeadlight high beams
22HORN10 AHorns
23WA S H E R20 AWindshield washer
24FR TAIL10 AParking lights
25FR FOG15 AFront fog lights
FuseAmpereCircuit

439
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 5 2 4 )
■ Removing the engine compartment cover
→ P. 388
■ Front bulb locations
Parking lights (vehicles with
halogen headlights)
Headlight high beam and daytimerunning lights (vehicles with halogen headlights)
Headlight high beam
(vehicles with discharge
headlights)

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_URemove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (halogen bulbs)
● Headlight high and low beams (discharge bulbs)
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
● Parking lights and daytime running lights (vehicles with discharge
headlights)
STEP3

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

524
6-1. Specifications
IS350/250_U
Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)
9005D4S
H116035
55D
A B
Front turn signal lights21C
Parking lights (vehicles with
halogen headlights)1685E
Front fog lightsH1155B
Rear turn signal lights744021E
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Tr u n k l i g h t5F
Interior lights Front
Rear
5
3E
F
Overhead courtesy lights3F
Front door courtesy lights5E
