Lexus IS250 2012 Owner's Manual

480
5-2. Steps to take in an emergency
IS350/250_U

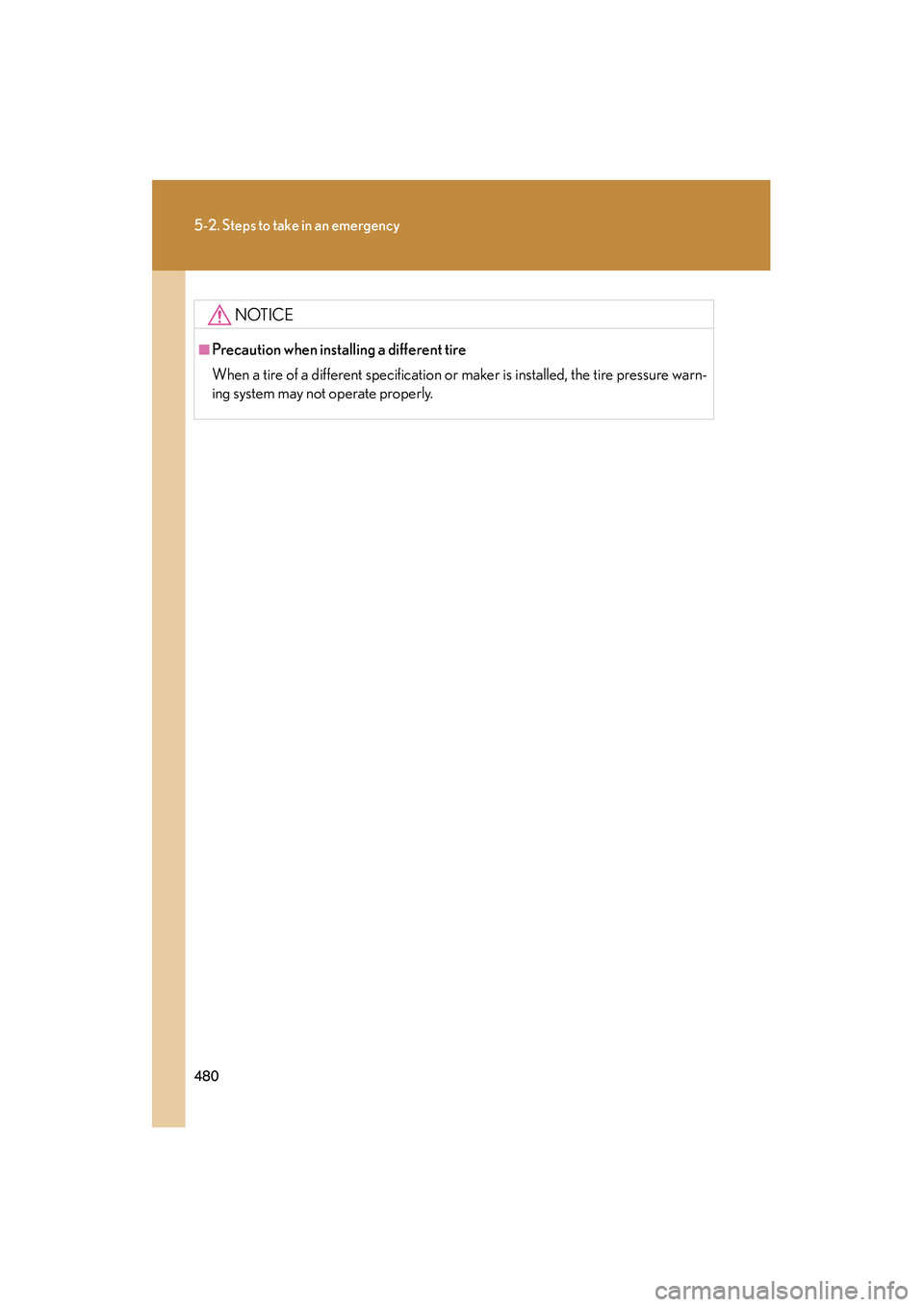

NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

5
When trouble arises
481
5-2. Steps to take in an emergency
IS350/250_U
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(for U.S.A.)
(for Canada) (Flashing)Indicates an abnormal engine oil pressure.The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turns on again after performing the follow-
ing actions, contact your Lexus dealer.

482
5-2. Steps to take in an emergency
IS350/250_U
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates a malfunction in the AWD system.
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates intuitive parking assist malfunction. The malfunctioning assist-sensor is shown flashing on
the display.

5
When trouble arises
483
5-2. Steps to take in an emergency
IS350/250_U

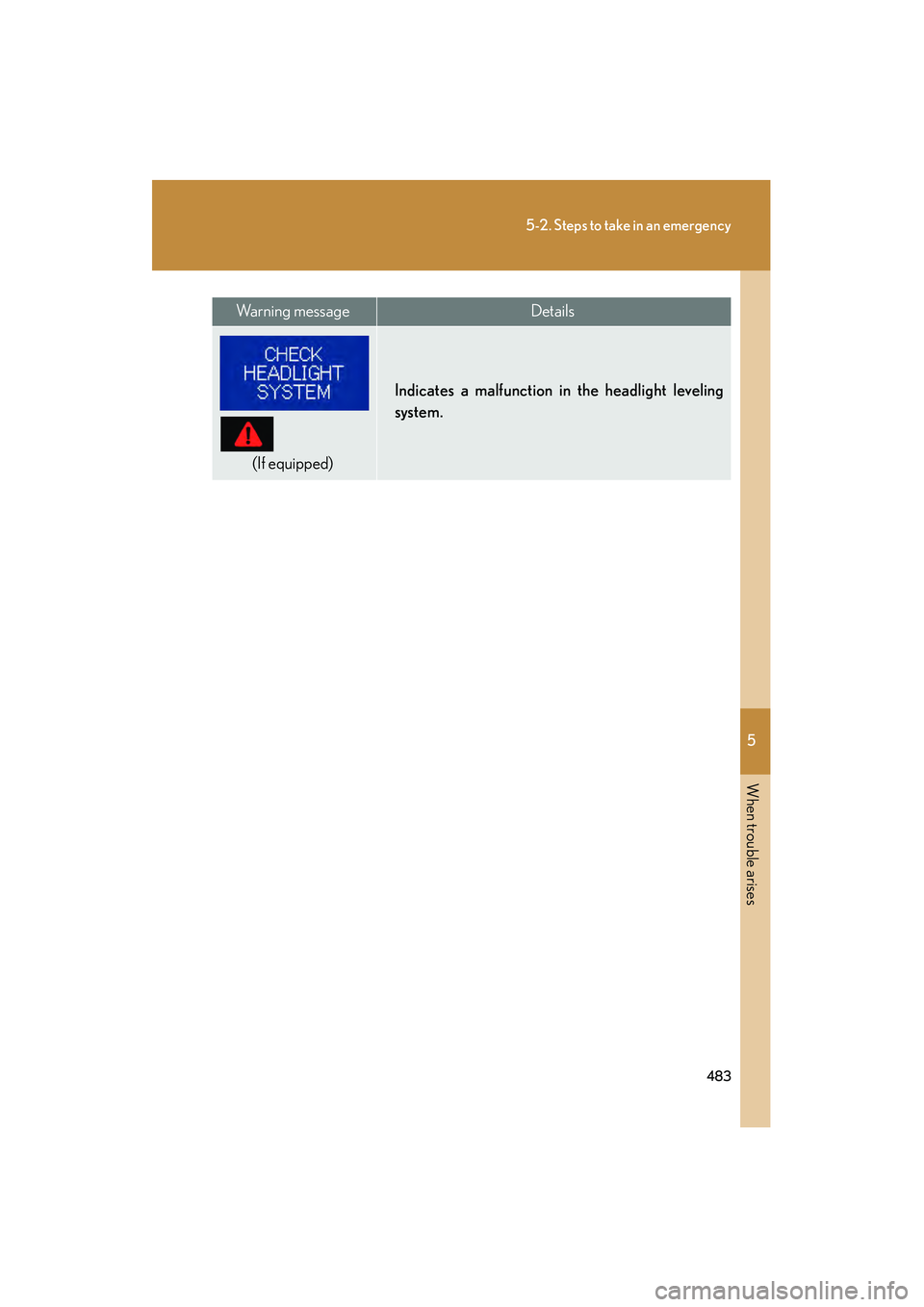

(If equipped)
Indicates a malfunction in the headlight leveling
system.
Wa r n i n g m e s s a g eDetails

484
5-2. Steps to take in an emergency
IS350/250_U
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
Indicates that the hood is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

5
When trouble arises
485
5-2. Steps to take in an emergency
IS350/250_U
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened).
Close the moon roof.
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
Indicates that the washer
fluid level is low.Add washer fluid.
Wa r n i n g m e s s a g eDetailsCorrection procedure

486
5-2. Steps to take in an emergency
IS350/250_U
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.
(U.S.A. only)
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule*
should be performed
soon.
If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km)
after the maintenance
data has been reset.
(U.S.A. only)
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule*.
Pe r f o r m t h e n e c e s s a r y
maintenance. Please reset
the maintenance data
after the maintenance is
performed (→P. 386)
Comes on approximately
5000 miles (8000 km)
after the maintenance
data has been reset.
(The indicator will not
work properly unless the
maintenance data has
been reset.)
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
487
5-2. Steps to take in an emergency
IS350/250_U
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

488
5-2. Steps to take in an emergency
IS350/250_U
Follow the correction procedures.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
489
5-2. Steps to take in an emergency
IS350/250_U
Once3 times
(Vehicles with an auto-matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
OnceCon-
tinuous
(Displayed alternately)
(Vehicles with an auto-matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed (with the
shift lever out of in
P, t h e “ E N G I N E
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area).
• Shift the shift lever to P.
•Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( →P. 4 3 3 )
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
