Lexus IS250 2012 Owner's Manual

520
IS350/250_U
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicle with 18-inch tires
*3: Vehicle with tires other than the above on rear wheels
Overall length180.3 in. (4580 mm)
Overall width70.9 in. (1800 mm)
Overall height *1
2WD
models56.1 in. (1425 mm)
AW D
models56.7 in. (1440 mm)
Wheelbase107.4 in. (2730 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear60.0 in. (1525 mm)*2
60.4 in. (1535 mm)*3
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)

521
6-1. Specifications
6
Vehicle specifications
IS350/250_U

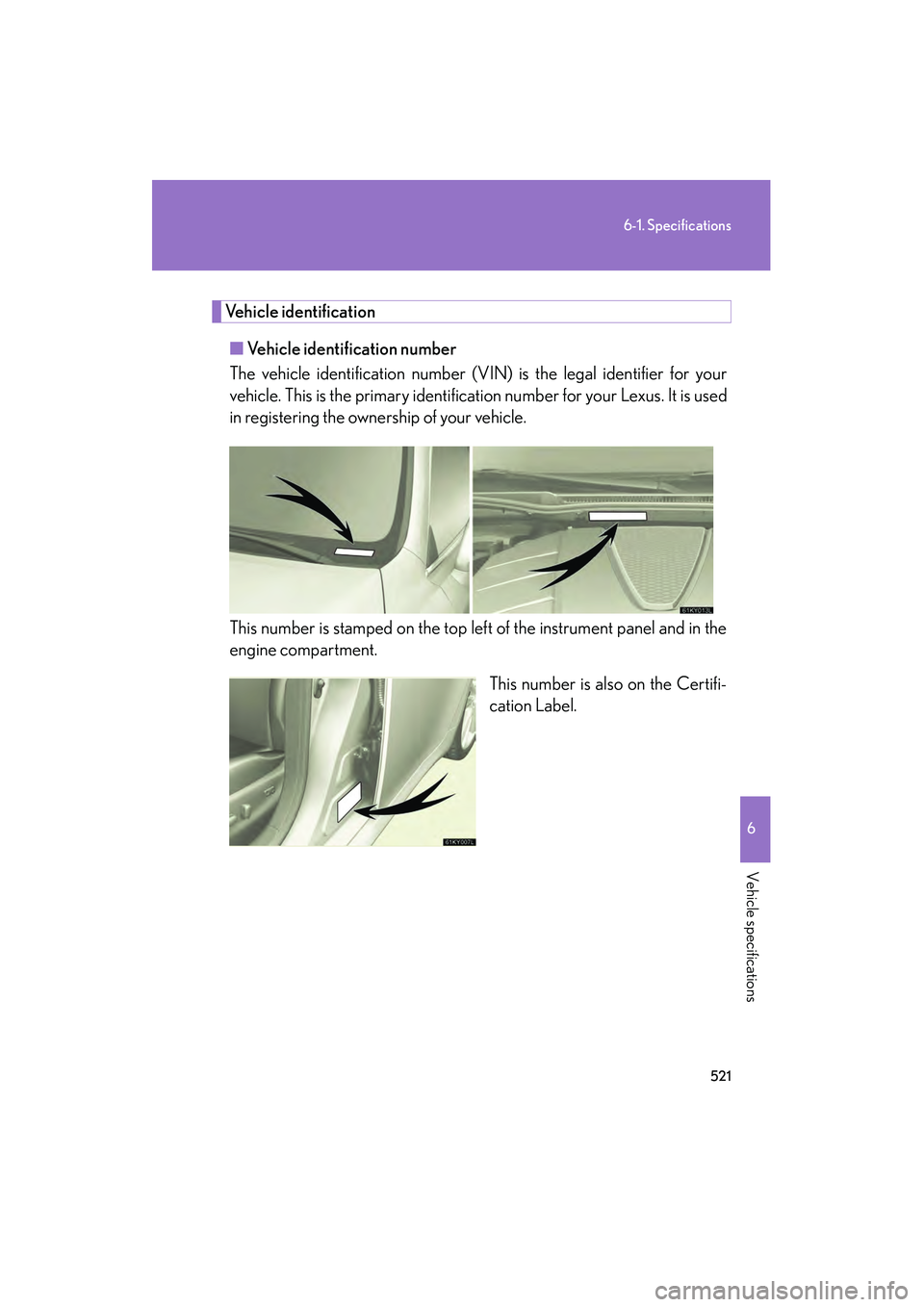

Vehicle identification■ Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.

522
6-1. Specifications
IS350/250_U■

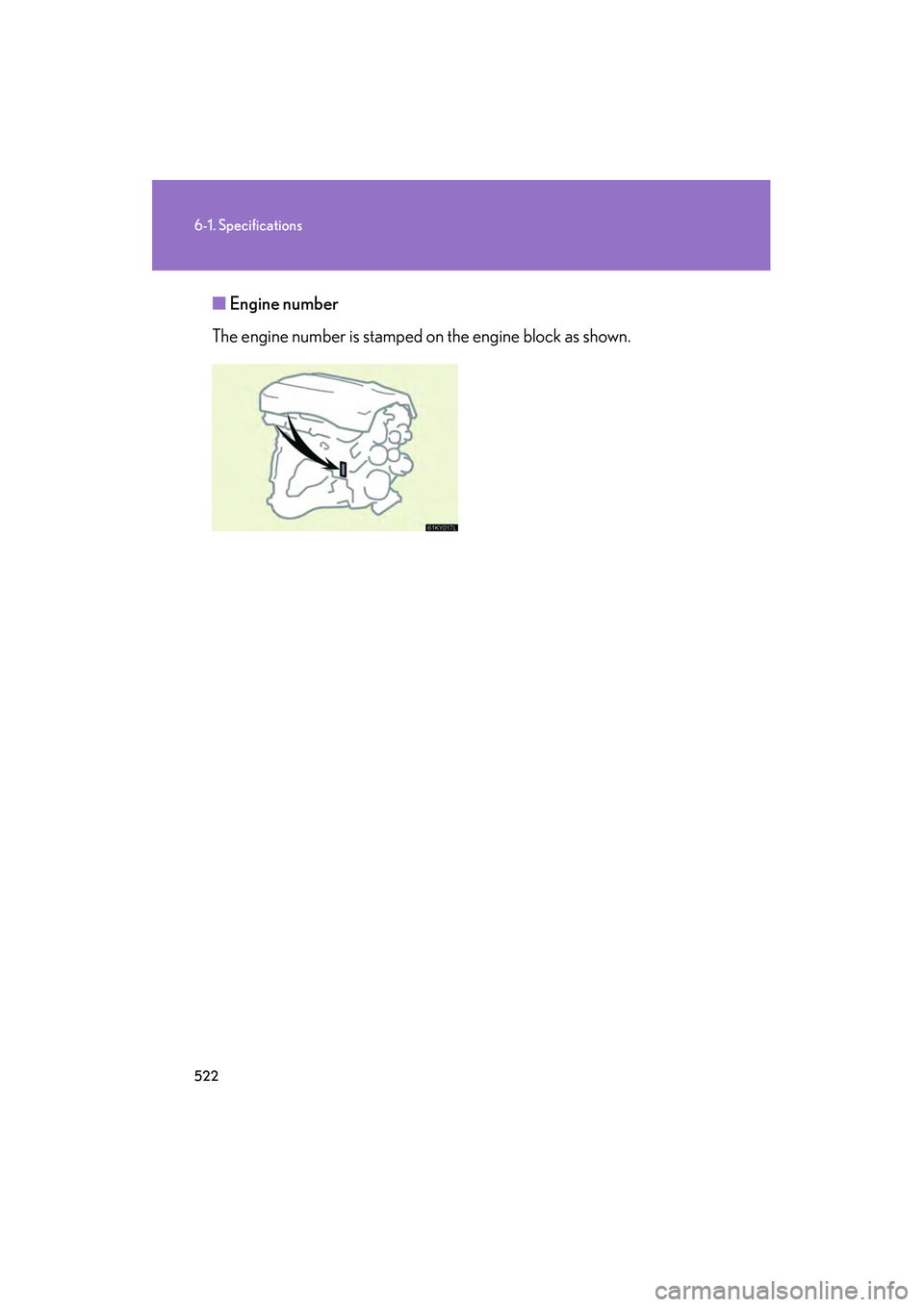

Engine number
The engine number is stamped on the engine block as shown.

523
6-1. Specifications
6
Vehicle specifications
IS350/250_U

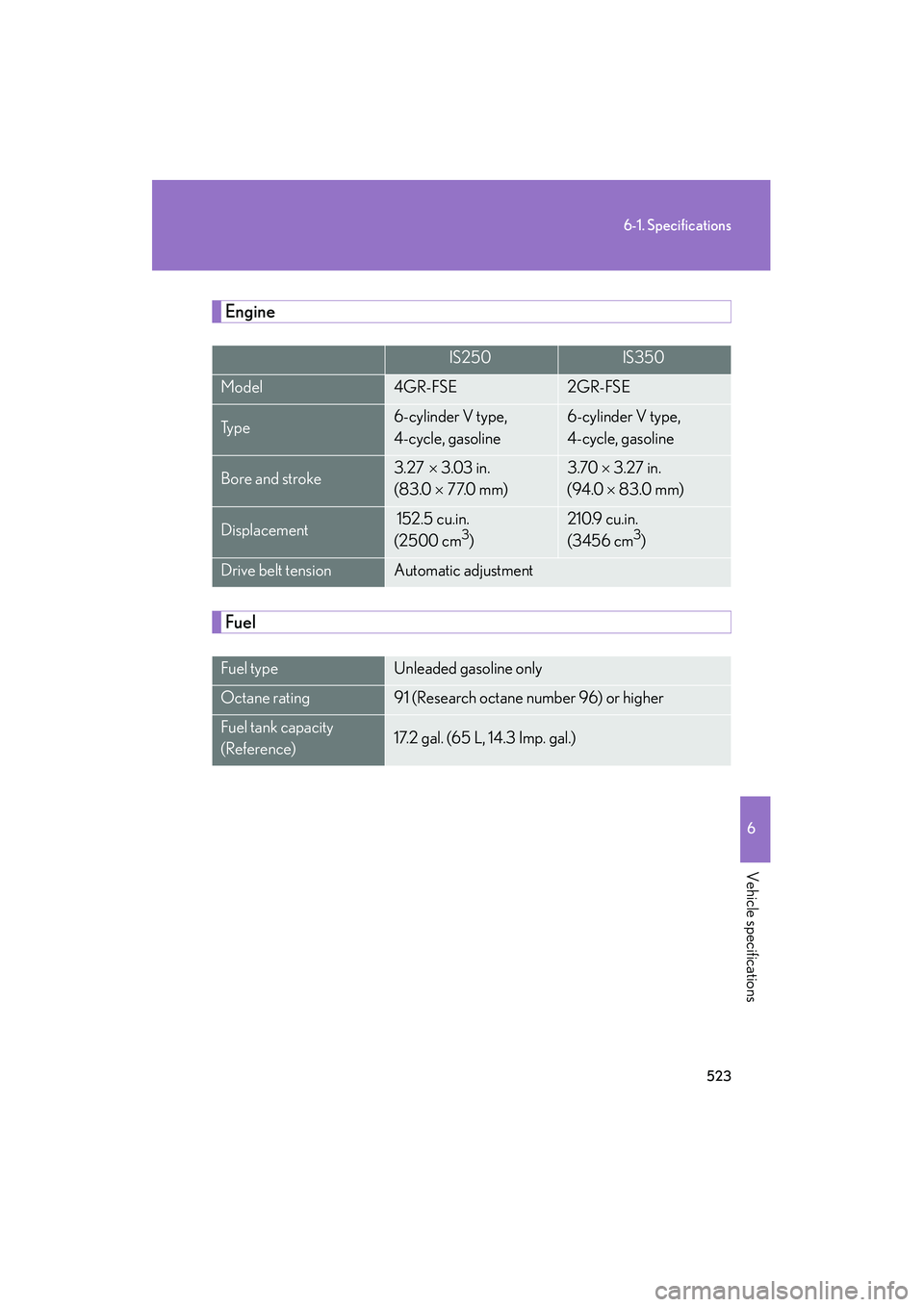

Engine
Fuel
IS250IS350
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.27 × 3.03 in.
(83.0 × 77.0 mm)3.70 × 3.27 in.
(94.0 × 83.0 mm)
Displacement 152.5 cu.in.
(2500 cm3)
210.9 cu.in.
(3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)17.2 gal. (65 L, 14.3 Imp. gal.)

524
6-1. Specifications
IS350/250_U

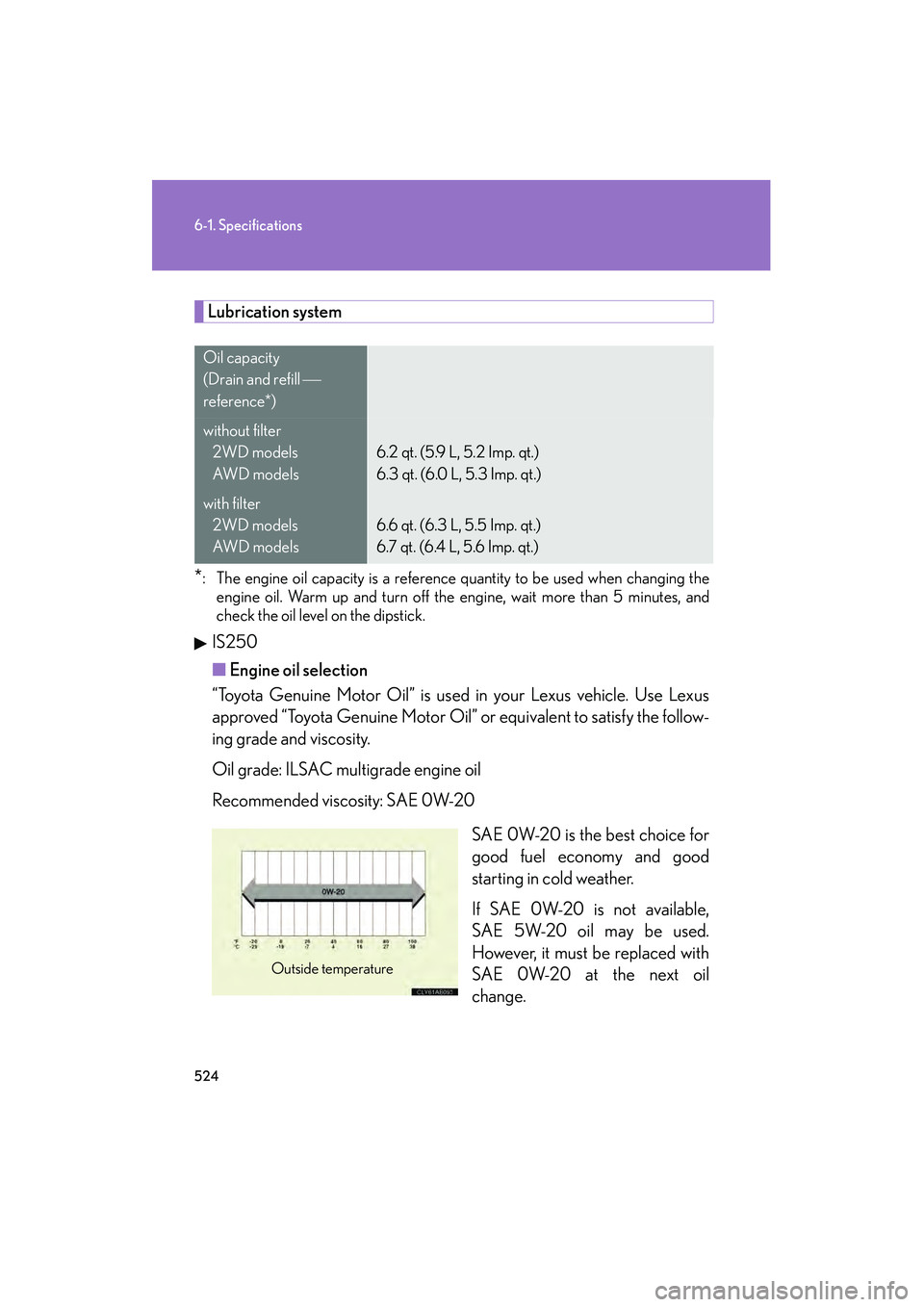

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
IS250
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill 
reference*)
without filter
2WD models
AWD models
6.2 qt. (5.9 L, 5.2 Imp. qt.)
6.3 qt. (6.0 L, 5.3 Imp. qt.)
with filter
2WD models
AWD models
6.6 qt. (6.3 L, 5.5 Imp. qt.)
6.7 qt. (6.4 L, 5.6 Imp. qt.)
Outside temperature

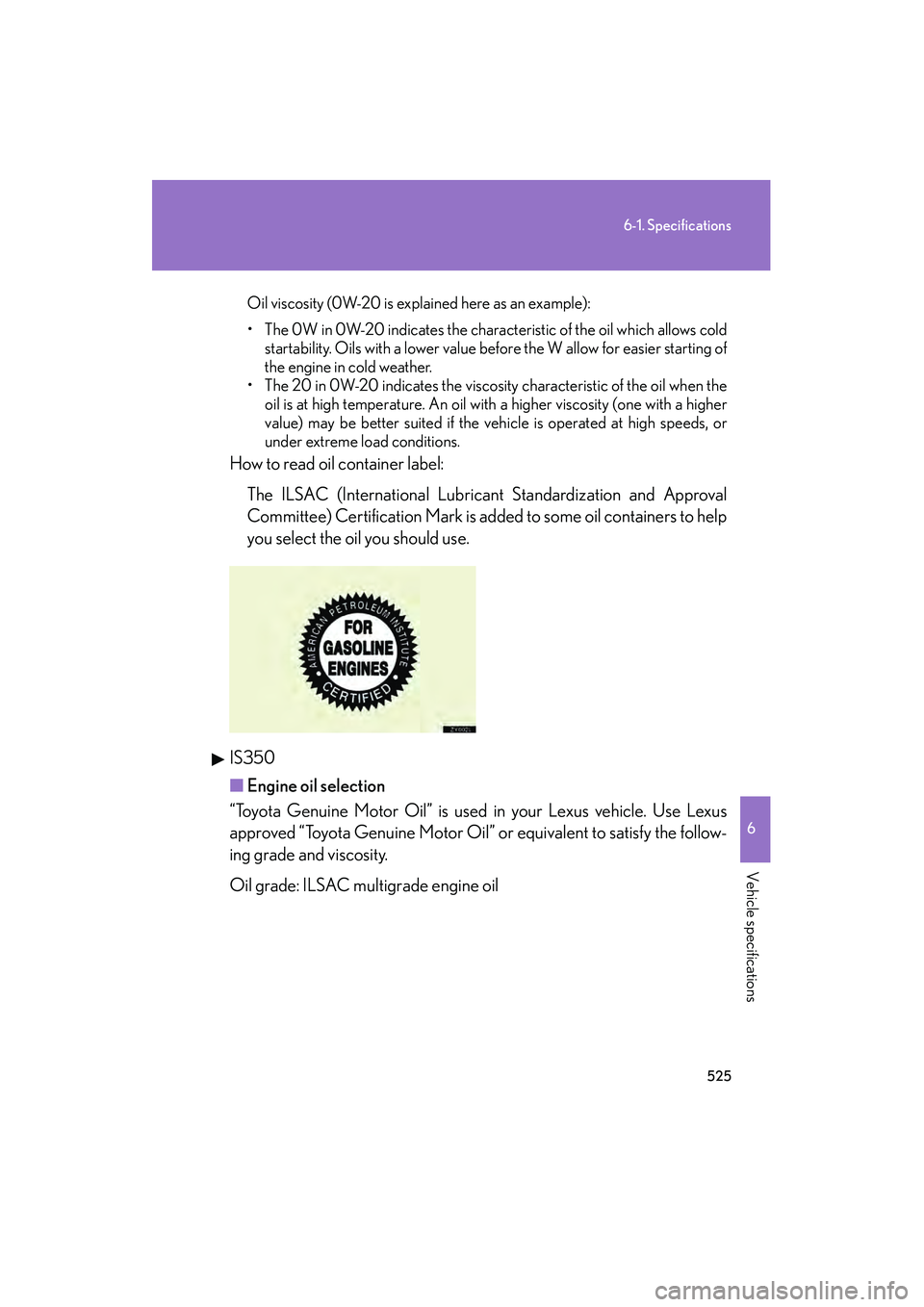

525
6-1. Specifications
6
Vehicle specifications
IS350/250_U
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
IS350
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil

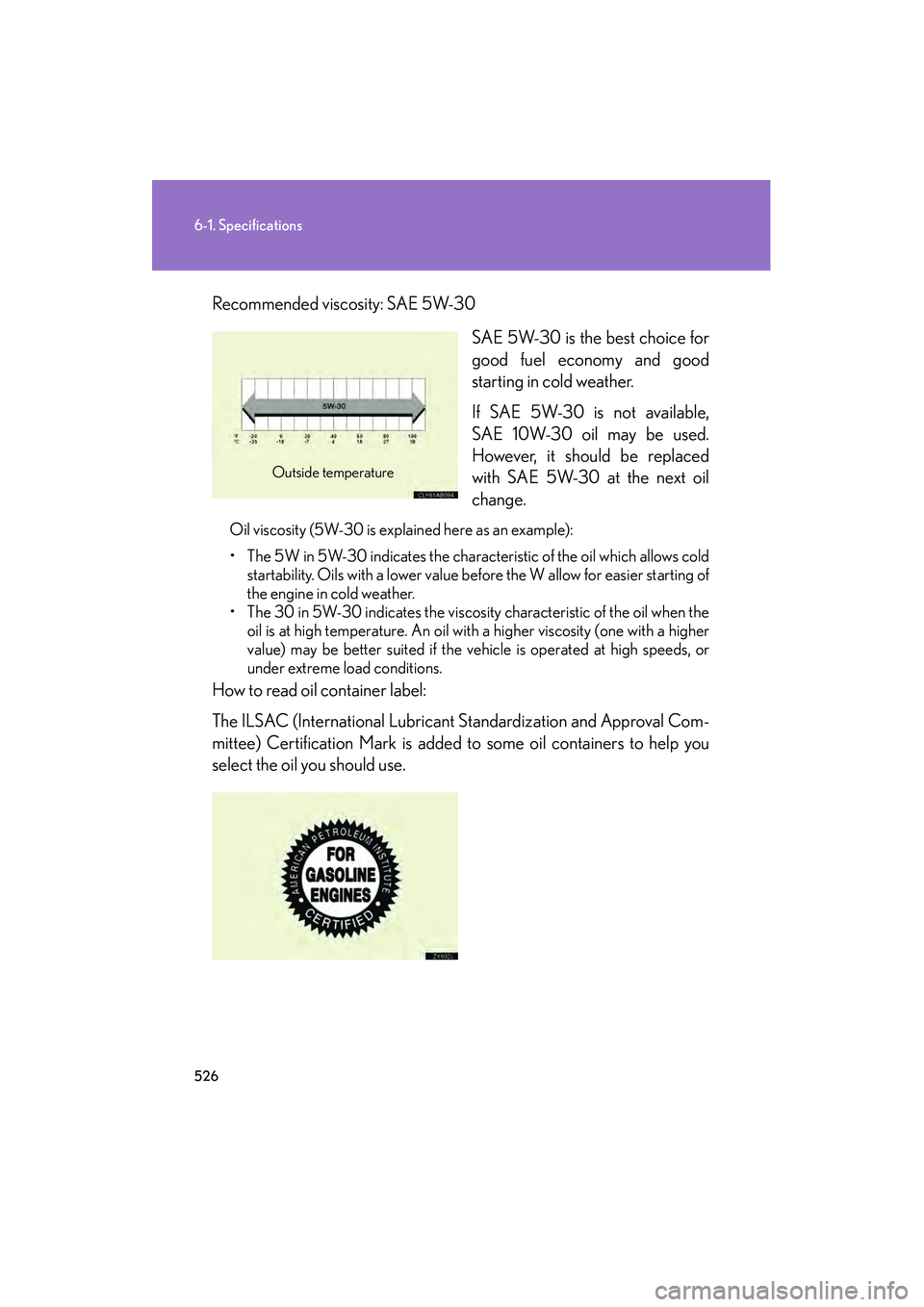

526
6-1. Specifications
IS350/250_URecommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Outside temperature

527
6-1. Specifications
6
Vehicle specifications
IS350/250_U
Cooling system
Ignition system
Capacity
IS350
9.6 qt. (9.1 L, 8.0 Imp. qt.)
IS250
10.9 qt. (10.3 L, 9.1 Imp. qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the engine.

528
6-1. Specifications
IS350/250_U
Electrical system
Differential
Front
Rear
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please contact
your Lexus dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil typeHypoid gear oil API GL-5
Oil viscosityAbove 0 °F (-18 °C): SAE90
Below 0 °F (-18 °C): SAE80W or SAE80W-90
Oil capacity
IS350:
1.42 qt. (1.35 L, 1.19 Imp. qt.)
IS250:
1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

529
6-1. Specifications
6
Vehicle specifications
IS350/250_U

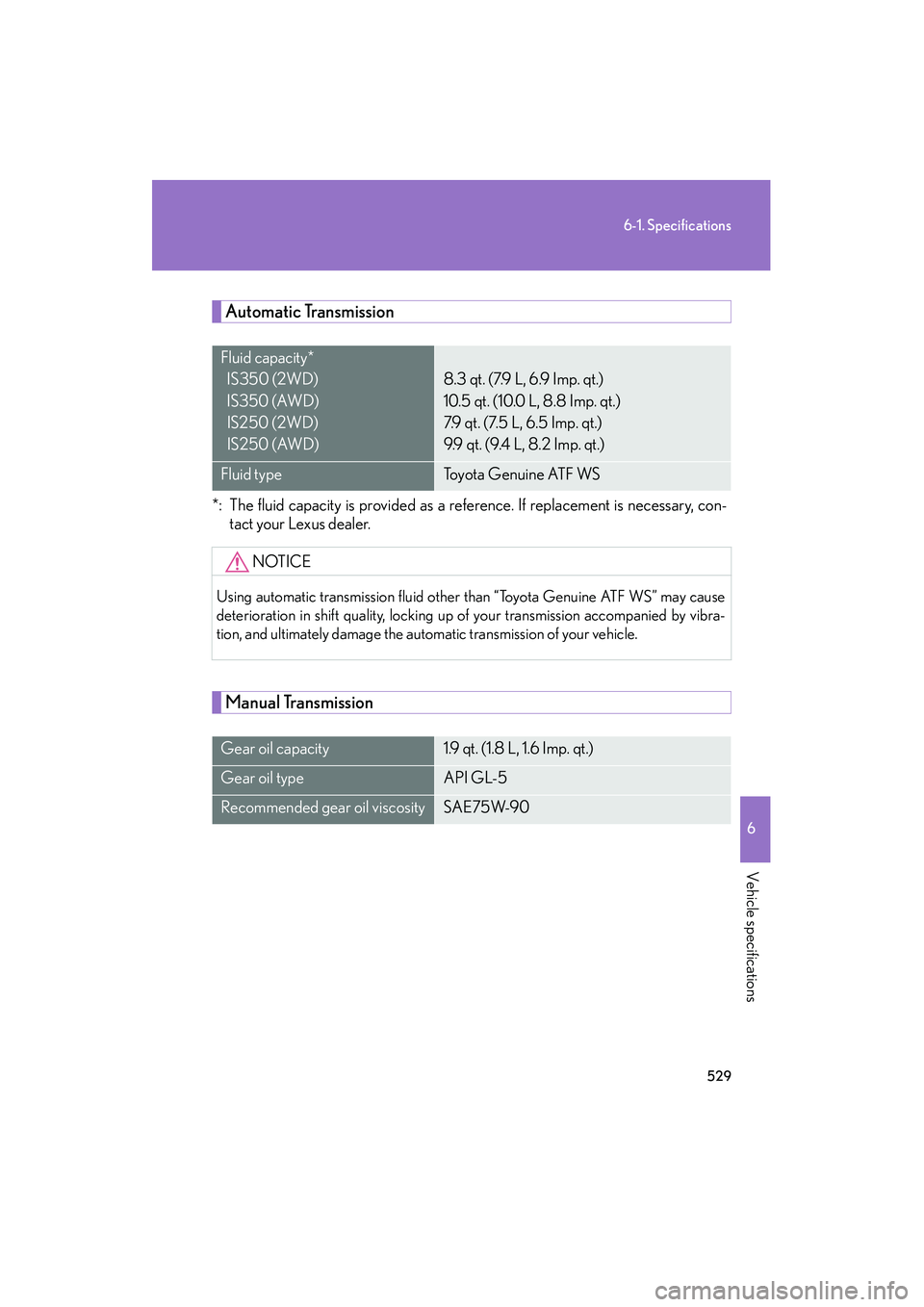

Automatic Transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-
tact your Lexus dealer.
Manual Transmission
Fluid capacity*
IS350 (2WD)
IS350 (AWD)
IS250 (2WD)
IS250 (AWD)
8.3 qt. (7.9 L, 6.9 Imp. qt.)
10.5 qt. (10.0 L, 8.8 Imp. qt.)
7.9 qt. (7.5 L, 6.5 Imp. qt.)
9.9 qt. (9.4 L, 8.2 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.
Gear oil capacity1.9 qt. (1.8 L, 1.6 Imp. qt.)
Gear oil typeAPI GL-5
Recommended gear oil viscositySAE75W-90
