When trouble arises5
461
5-1. Essential informationEmergency flashers............... 462
If your vehicle needs to be towed ...................................... 463
If you think something is wrong ...................................... 469
Fuel pump shut off system ..................................... 470 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................... 471
If a warning message is displayed................................. 481
If you have a flat tire............... 492
If the engine will not start ..... 501
If the shift lever cannot be shifted from P ....................... 503
If you lose your keys .............. 504
If the electronic key does not operate properly.......... 505
If the vehicle battery is discharged ............................. 510
If your vehicle overheats ...... 513
If the vehicle becomes stuck......................................... 516
If your vehicle has to be stopped in an
emergency ............................. 518

5
When trouble arises
481
5-2. Steps to take in an emergency
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(for U.S.A.)
(for Canada) (Flashing)Indicates an abnormal engine oil pressure.The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turns on again after performing the follow-
ing actions, contact your Lexus dealer.

482
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates a malfunction in the AWD system.
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates intuitive parking assist malfunction.
The malfunctioning assist-sensor is shown flashing on
the display.

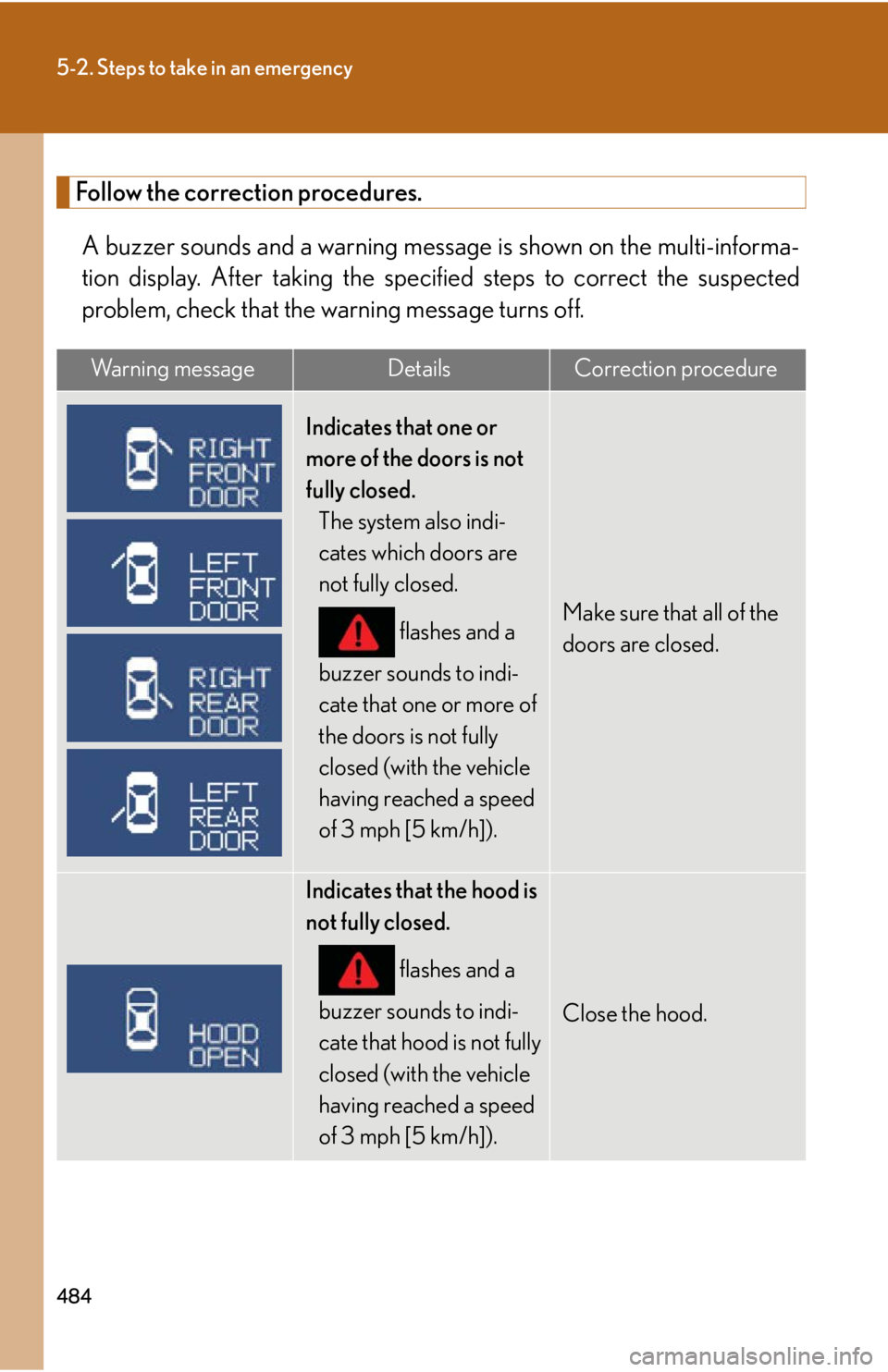

484
5-2. Steps to take in an emergency
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
Indicates that the hood is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

5
When trouble arises
489
5-2. Steps to take in an emergency
Once3 times
(Vehicles with an auto-matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
OnceCon-
tinuous
(Displayed alternately)
(Vehicles with an auto-matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed (with the
shift lever out of in
P, the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area).
• Shift the shift lever to P.
•Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( P. 4 3 3 )
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

557
6-2. Customization
6
Vehicle specifications
Windshield
wipers and
washer
(
P. 1 7 8 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
P. 1 9 0 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
P. 3 2 5 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Seat belt
reminder
(
P. 4 7 3 )
Vehicle speed linked seat
belt reminder buzzerOnOff
ItemFunctionDefault settingCustomizedsetting

558
6-2. Customization
Multi-information display (P. 1 6 7 )
CountryAvailable languages
CanadaEnglish and French

576
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
ABSAnti-lock Brake System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
AW DAll Wheel Drive
CRSChild Restraint System
DISPDisplay
ECTElectronic Controlled Transmission
ECUElectronic Control Unit
EDREvent data recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
ETCSElectronic Throttle Control System
GAWRGross Axle Weight Rating
I/MEmission inspection and maintenance
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTraction Control

580
Alphabetical index
Child-protectors ...................................... 49
Cigarette lighter....................................343
CleaningExterior ................................................... 378
Interior ..................................................... 382
Seat belts................................................383
Clock ........................................................ 338
Coat hooks ..............................................355
Compass ..................................................366
Condenser ..............................................406
Console box .......................................... 330
Cooling system Engine overheating ............................513
Cornering assist sensors .................... 190
Cruise control ......................................... 186
Cup holder ..............................................332
Curtain shield airbags............................98
Customizable features .......................553
Daytime running light system ............174
Defogger* Rear window ........................................ 224
Side mirror ............................................ 224
Dimension ................................................520
Dinghy towing ................................. 211, 212
Display Satellite switch mode ....................... 339
Trip information ................................... 168
Warning message.............................. 481 Do-it-yourself maintenance ...............391
Door courtesy lights
Door courtesy lights ........................ 325
Wattage ................................................. 536
Door pockets ......................................... 334
Doors Door lock ................................33, 45, 48
Door windows ....................................... 80
Side mirrors.............................................. 77
Driver's seat belt reminder light ..... 473
Driving Correct posture.....................................96
Procedures............................................. 130
Driving position memory...................... 58
Electric power steering........................196
Electronic key If the electronic key does not operate properly............................505
Emergency, in case of If a warning message is displayed .............................................. 481
If the electronic key does not
operate properly............................505
If the engine will not start .................501
If the shift lever cannot be shifted from P................................... 503
If the vehicle has a discharged battery ...................................................510
If the warning buzzer sounds........ 471
If the warning light turns on............ 471
D
E

584
Alphabetical index
MaintenanceDo-it-yourself maintenance ...........391
General maintenance ..................... 387
Maintenance data..............................520
Maintenance requirements ..........385
Maintenance data................................ 386
Manual transmission............................. 152
Meter Instrument panel light control ...... 159
Meters ...................................................... 158
Micro dust and pollen filter* ............220
Mirrors Inside rear view mirror....................... 75
Side mirror heater ............................. 224
Side mirrors .............................................. 77
Vanity mirrors...................................... 337
Moon roof ...................................................83
MP3 disc* ................................................ 244
Multi-information display ....................167
Noise from under vehicle...................... 19
Odometer................................................. 158
Oil Engine oil ................................................ 401
Opener Fuel filler door......................................... 87
Hood........................................................ 394
Trunk ........................................................... 52 Outer foot lights
Outer foot lights................................. 325
Wattage ................................................. 536
Outside rear view mirrors Adjusting and folding .......................... 77
Mirror position memory ................... 58
Outside temperature display ........... 168
Overhead console ............................... 332
Overhead courtesy lights Overhead courtesy lights ............. 325
Wattage ................................................. 536
Overheating, Engine ........................... 513
Parking assist sensors*........................ 190
Parking brake.......................................... 155
Parking lights Replacing light bulbs ......................... 451
Switch .........................................................172
Wattage ................................................. 536
Personal lights Switch ....................................................... 327
Power outlet ........................................... 344
Power windows ........................................ 80
Radiator .................................................... 406
Radio* ....................................................... 229
RDS* ............................................................231
Rear sunshade ....................................... 352M
N
O
P
R
