steering Lexus IS250 2014 Navigation Manual

292
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
•These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShows an estimated course when the steering wheel is
turned.
Distance guide lines
Shows distance behind the vehicle when the steering
wheel is turned.
•The guide lines move in conjunction with the estimated
course lines.
•The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
centre of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
CAUTION
●If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
IS_Navi_EE_53C71E.book 292 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

293
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
1Shift the shift lever to the “R” position.
2Turn the steering wheel so that the esti-
mated course lines are within the park-
ing space, and back up slowly.
XParking space
Estimated course lines
3When the rear position of the vehicle
has entered the parking space, turn the
steering wheel so that the vehicle width
guide lines are within the left and right
dividing lines of the parking space.
XVehicle width guide line
4Once the vehicle width guide lines and
the parking space lines are parallel,
straighten the steering wheel and back
up slowly until the vehicle has complete-
ly entered the parking space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.
IS_Navi_EE_53C71E.book 293 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

294
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
IS_Navi_EE_53C71E.book 294 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

295
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
1Shift the shift lever to the “R” position.
2Back up until the parking assist guide
line meets the edge of the left-hand di-
viding line of the parking space.
XParking assist guide line
Parking space dividing line
3Turn the steering wheel all the way to
the right, and back up slowly.
4Once the vehicle is parallel with the
parking space, straighten the steering
wheel and back up slowly until the vehi-
cle has completely entered the parking
space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.
IS_Navi_EE_53C71E.book 295 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

296
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
4. PARALLEL PARKING
VEHICLE MOVEMENT PROCEDURE

Keeping parallel with the road, stop the vehicle leav-
ing a gap of approximately 3 ft. (1 m) between your
vehicle and the parked vehicle. [PARKING] : STEP 1
Back up until the black and yellow vertical pole just
overlaps the rear end of the parked vehicle. Then
stop the vehicle. [PARKING] : STEP 4
Leaving the vehicle stopped, move the steering
wheel until the blue outline meets the desired park-
ing space, and back up while keeping the steering
wheel in that position. [PARKING] : STEP 5
A curved blue line is displayed. Keep the steering
wheel in the same position and back up until the
curved blue line meets the right corner of the park-
ing space. [PARKING] : STEP 7
When it meets the right corner of the parking space,
turn the steering wheel in the opposite direction as
far as it will go. [PARKING] : STEP 8
Keeping the steering wheel in that position, check
your surroundings visually and using mirrors, and
back up using the distance guide lines etc. as a refer-
ence. [PARKING] : STEP 9
When the vehicle is approximately in the desired
parking location, parallel parking assist is complete.
[PARKING] : STEP 10
CAUTION
●Do not use the system if the display is incorrect due to an uneven (curvy/hilly) road or a non-
straight road.
●Make sure to operate the steering wheel only when the vehicle is stopped.
XApprox. 3 ft. (1 m)
IS_Navi_EE_53C71E.book 296 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

298
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
2Shift the shift lever to the “R” position.
3Make sure the monitor displays the part
behind the rear tyres of the parked vehi-
cle, and select .
zIf the area is not displayed, move the vehicle
to forward.
4With the steering wheel straight, back
up slowly to a position at which the black
and yellow vertical pole just overlaps the
rear end of the parked vehicle. Then
stop the vehicle.
XBlack and yellow vertical pole
Back the vehicle up to here
5Turn the steering wheel with the vehicle
stopped until the blue outline meets the
desired parking space.
zIf the extended line from the blue outline is
displayed, the parallel parking assist is
operational.
XBlue outline
Black and yellow vertical pole
Extended line
IS_Navi_EE_53C71E.book 298 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

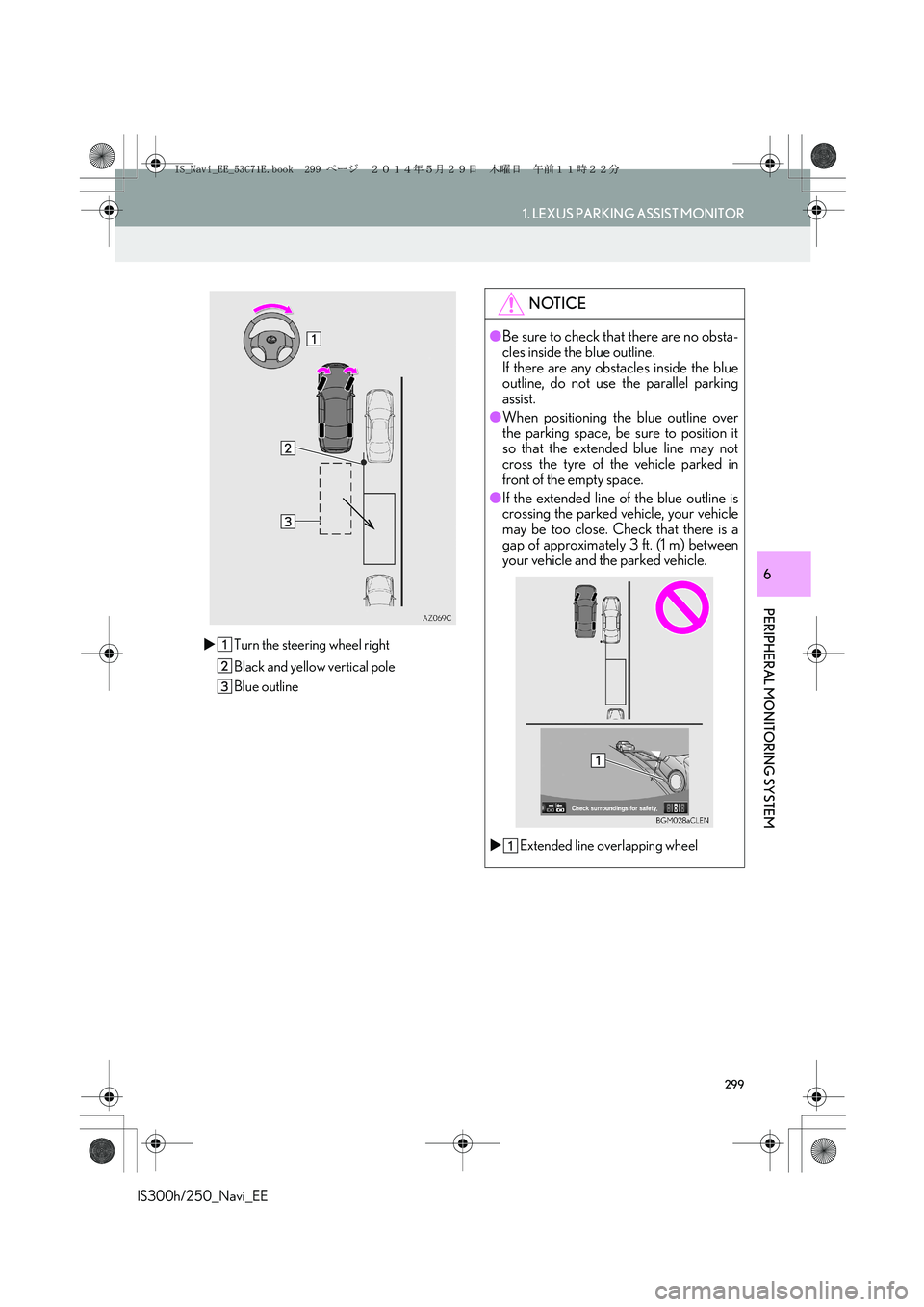

299
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
XTurn the steering wheel right
Black and yellow vertical pole
Blue outline
NOTICE
●Be sure to check that there are no obsta-
cles inside the blue outline.
If there are any obstacles inside the blue
outline, do not use the parallel parking
assist.
●When positioning the blue outline over
the parking space, be sure to position it
so that the extended blue line may not
cross the tyre of the vehicle parked in
front of the empty space.
●If the extended line of the blue outline is
crossing the parked vehicle, your vehicle
may be too close. Check that there is a
gap of approximately 3 ft. (1 m) between
your vehicle and the parked vehicle.
XExtended line overlapping wheel
IS_Navi_EE_53C71E.book 299 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

300
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
6Keep the steering wheel in its current
position and backing up.
zThe parallel parking assist will be canceled
if the steering wheel is moved while back-
ing up. Shift the shift lever out of the “R”
position, and restart from the procedure 1.
7A curved blue line will appear on the
screen. Keep the steering wheel in its
current position and back up slowly.
Stop when the curved blue line meets
the corner of the desired parking space.
XCurved blue line
NOTICE
●When backing up, be careful not to hit
any obstacles with your vehicle. Back the
vehicle up slowly.
IS_Navi_EE_53C71E.book 300 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

301
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
XBack up keeping the steering wheel in its
current position
Curved blue line
Curved blue line meets the corner here
zIf you back up too quickly, you may lose
synchronization with the parallel parking
assist.
8Leaving the vehicle stopped, turn the
steering wheel all the way to the left.
zBe sure to turn the steering wheel only
when the vehicle is stopped.
9When the screen changes, keep the
steering wheel in its current position and
back up.
10When the vehicle is parallel with the
road or the shoulder, straighten the
steering wheel.
Check your surroundings visually and
with the mirrors, then back up using the
distance guide lines as a reference, and
stop.
zWhen the vehicle is approximately in the
desired parking location, the parallel park-
ing assist is complete.
NOTICE
●When backing up, be careful not to hit
any obstacles with your vehicle. Back the
vehicle up slowly.
INFORMATION
●There is a possibility that parallel parking
guidance may not be given when backing
up at a very slow speed.
●If the trunk is opened, the parallel parking
assist will be discontinued halfway.
IS_Navi_EE_53C71E.book 301 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

302
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
1Select .
zIf the Lexus parking assist-sensor detects
an object while you attempt to park in a
parking space on the left, the black and yel-
low vertical pole could be obscured by the
Lexus parking assist-sensor display. In this
event, turn the Lexus parking assist-sensor
switch off (→P.312), and operate the vehi-
cle while checking the safety of the sur-
rounding area direct visually and with
mirror. After the operation, turn the switch
on.
zThe steering wheel has been turned too far,
and the system cannot function. Return the
steering wheel to its original position.
zIf the message is displayed before the out-
line is positioned over the desired parking
space, it is likely that the vehicle is too far
away from the shoulder. Check that there is
a gap of approximately 3 ft. (1 m) between
your vehicle and the parked vehicle.
XNormal mode
Narrow mode
zIf the engine switch is turned off
when the parking assist monitor is canceled
with narrow mode, the caution screen is
displayed first when the parallel parking
assist is selected next time.
CANCELING PARALLEL
PARKING ASSIST
VEHICLES EQUIPPED WITH
LEXUS PARKING ASSIST-
SENSOR
IF THE MESSAGE “Steering
wheel turned too far, please
return.” IS DISPLAYED
NARROW MODE
If the position the vehicle is to be parked
in is narrower than usual, narrow mode
can be used.
