Lexus IS250 2014 Navigation Manual

41
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
■CHANGING THE DISPLAY
ITEMS/AREA
1Select the desired item.
2Select the desired area.
■CHANGING THE HOME SCREEN
LAYOUT
1Select “Change layout”.
2Select the desired screen layout.
INFORMATION
●
When the selected item is already being
displayed and another area is selected for
that item, the item that it is replacing will
be displayed in the original item’s loca-
tion.
IS_Navi_EE_53C71E.book 41 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

42
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
4. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
When searching by an address, name,
etc., or entering data, letters and num-
bers can be entered via the screen.
ENTERING LETTERS AND
NUMBERS
No.Function
Select to enter desired characters.
Select to erase one character. Select
and hold to continue erasing charac-
ters.
Select to change character and key-
board types. (→P.43)
Select to enter characters in lower
case or in upper case.
Select to display other symbols.
INFORMATION
●
Keyboard character is automatically
changed with the search area. (→P.1 1 9 )
IS_Navi_EE_53C71E.book 42 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

43
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
21Select .
2Select the desired character and key-
board and select “OK”.
1Enter characters and select “OK”.
zMatching items from the database are
listed even if the entered address or name
is incomplete.
zThe list will be displayed automatically if the
maximum number of characters is entered
or matching items can be displayed on a
single list screen.
CHANGING CHARACTER
AND KEYBOARD TYPE
INFORMATION
●
Depending on the conditions data is
being entered, it may not possible to
change keyboard characters.
LIST SCREEN
DISPLAYING THE LIST*
The list screen may be displayed after
entering characters.
INFORMATION
●
The number of matching items is shown
on the right side of the screen. If the num-
ber of matching items is more than 999,
the system displays “
∗∗∗” on the screen.
*: With navigation function
IS_Navi_EE_53C71E.book 43 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

44
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
■SELECTING ALL ITEMS
1Select “Select all”.
“Unselect all”: Unselect all items in the list.
Some lists contain “Select all”. If “Select
all” is selected, it is possible to select all
items.
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
IconFunction
Select to skip to the next or previ-
ous page.
Select and hold or to
scroll through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Select to scroll to the end of
the name.
Select to move to the begin-
ning of the name.
INFORMATION
●
The “” and “” buttons on the Remote
Touch can be used to scroll up and down
on list screens.
IS_Navi_EE_53C71E.book 44 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

45
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
1Select “Sort”.
2Select the desired sorting criteria.
1Select the desired character jump but-
tons.
“1 /3”: Select to change characters.
SORTING*
The order of a list displayed on the
screen can be sorted in the order of dis-
tance from the current location, date,
category, etc.
*: With navigation function
CHARACTER JUMP BUTTONS
IN LISTS
Some lists contain character screen but-
tons, “A B C ”, “DEF” etc., which allow a di-
rect jump to list entries that begin with
the same letter as the character screen
button.
INFORMATION
●
Every time the same character screen
button is selected, the list starting with the
subsequent character is displayed.
IS_Navi_EE_53C71E.book 45 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

46
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
1Select “Group list”.
zThe list of memory points that are regis-
tered in the selected group will be dis-
played.
“A l l g r o u p ”: Select to close the displayed
items, and display all groups.
2Select the desired group.
DISPLAYING THE GROUP
LIST*
It is possible to display the desired group
items in the memory point list.
*: With navigation function
IS_Navi_EE_53C71E.book 46 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

47
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
5. SCREEN ADJUSTMENT
1Press the “MENU” button on the
Remote Touch.
2Select “Display”.
3Select the items to be set.The contrast and brightness of the
screen display and the image of the
camera display can be adjusted. The
screen can also be turned off, and/or
changed to either day or night mode.
(For information regarding audio/visual
screen adjustment: →P.200)
No.FunctionPage
Select to turn the screen off.
To turn it on, press any but-
ton on the audio panel or on
the Remote Touch.

Select to turn day mode
on/off.48
Select to adjust the screen
display.
48Select to adjust the camera
display.
INFORMATION
●
When the screen is viewed through
polarized sunglasses, a rainbow pattern
may appear on the screen due to optical
characteristics of the screen. If this is dis-
turbing, please operate the screen with-
out polarized sunglasses.
IS_Navi_EE_53C71E.book 47 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

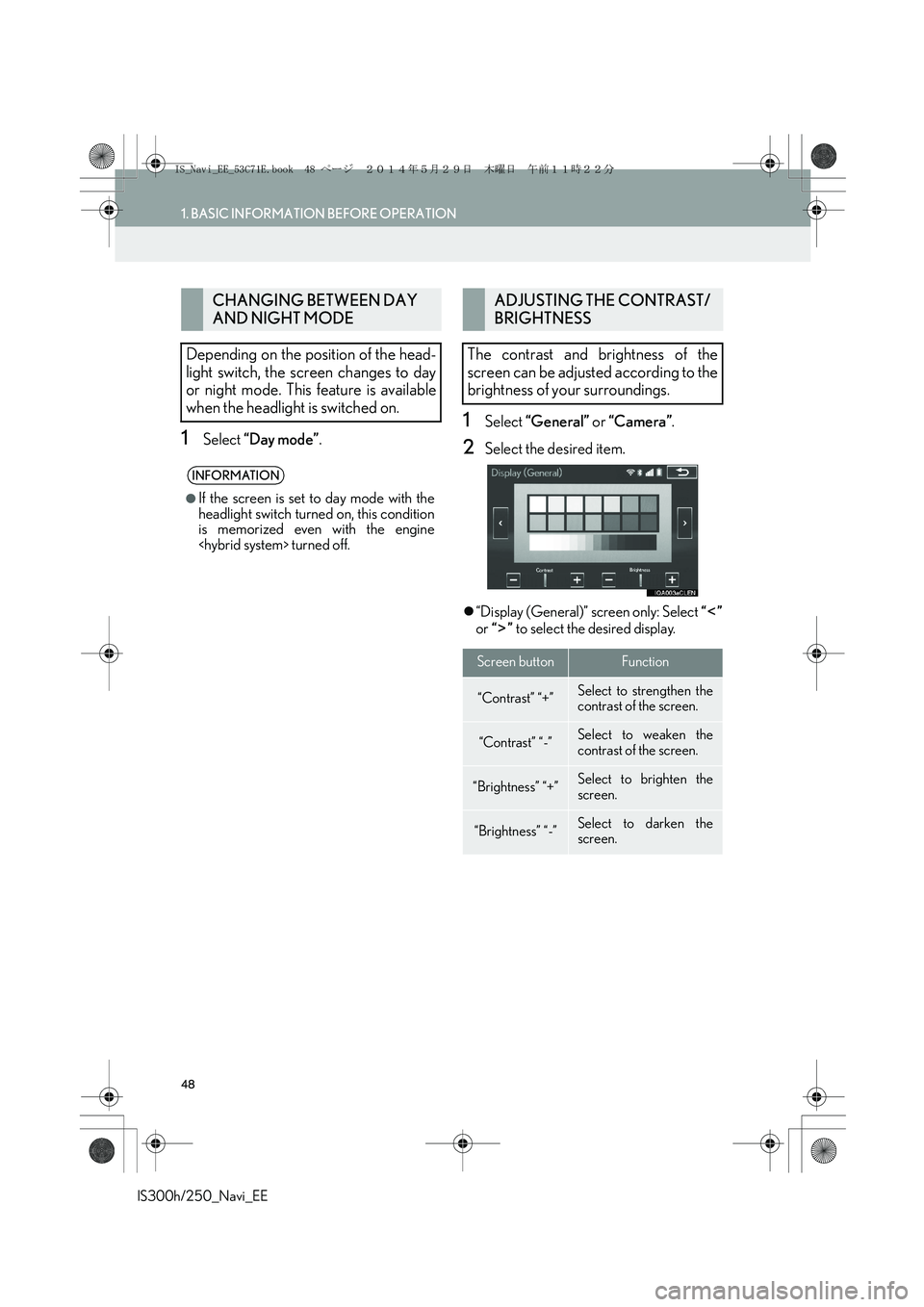

48
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
1Select “Day mode”.
1Select “General” or “Camera”.
2Select the desired item.
z“Display (General)” screen only: Select “”
or “” to select the desired display.
CHANGING BETWEEN DAY
AND NIGHT MODE
Depending on the position of the head-
light switch, the screen changes to day
or night mode. This feature is available
when the headlight is switched on.
INFORMATION
●
If the screen is set to day mode with the
headlight switch turned on, this condition
is memorized even with the engine
turned off.
ADJUSTING THE CONTRAST/
BRIGHTNESS
The contrast and brightness of the
screen can be adjusted according to the
brightness of your surroundings.
Screen buttonFunction
“Contrast” “+”Select to strengthen the
contrast of the screen.
“Contrast” “-”Select to weaken the
contrast of the screen.
“Brightness” “+”Select to brighten the
screen.
“Brightness” “-”Select to darken the
screen.
IS_Navi_EE_53C71E.book 48 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

49
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2

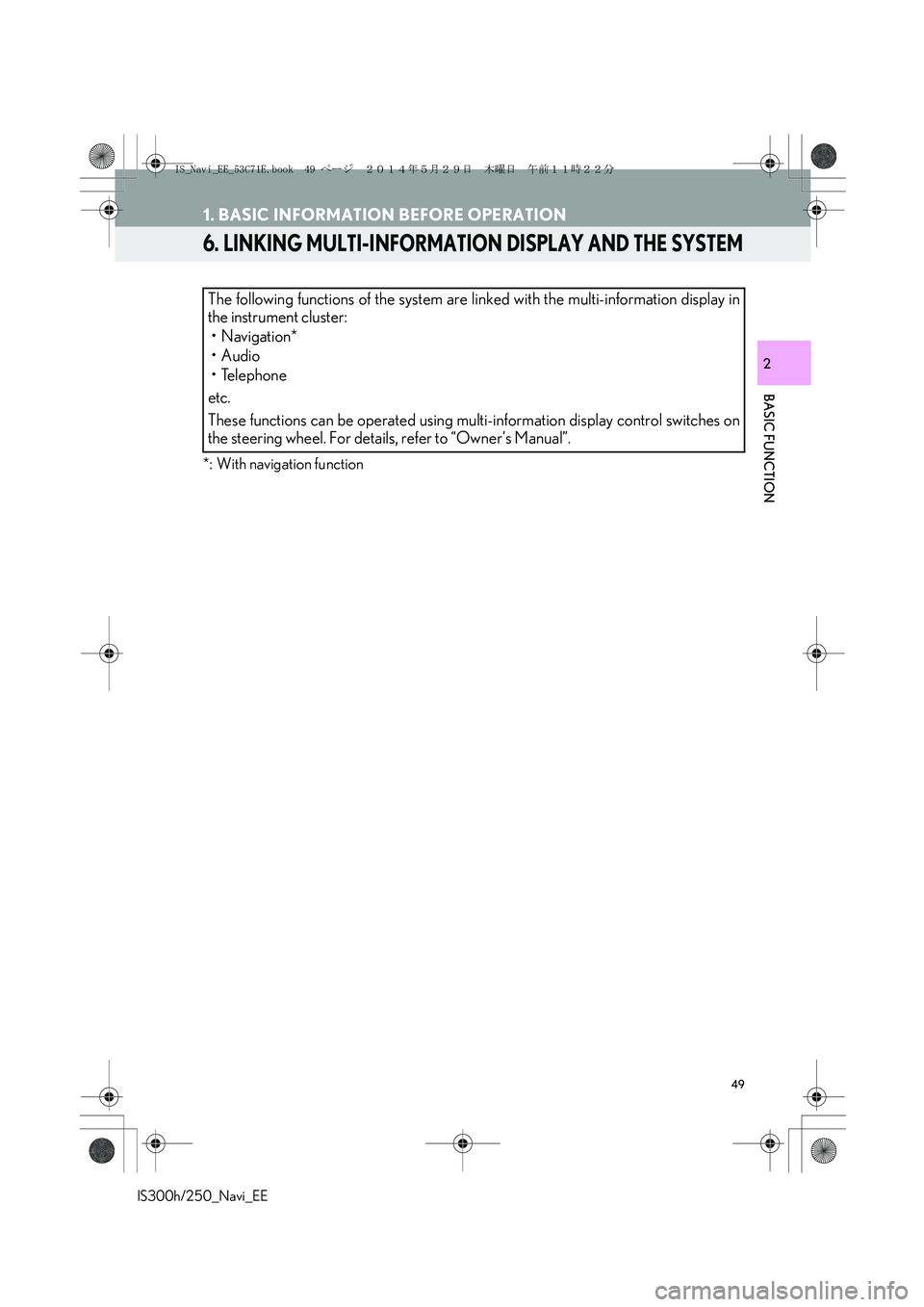

6. LINKING MULTI-INFORMATION DISPLAY AND THE SYSTEM
*: With navigation function
The following functions of the system are linked with the multi-information display in
the instrument cluster:
• Navigation*
•Audio
•Telephone
etc.
These functions can be operated using multi-information display control switches on
the steering wheel. For details, refer to “Owner’s Manual”.
IS_Navi_EE_53C71E.book 49 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

50
IS300h/250_Navi_EE
2. NETWORK SETTINGS
1. REGISTERING/CONNECTING Bluetooth® DEVICE
1Turn the Bluetooth® connection setting
of your cellular phone on.
zThis function is not available when
Bluetooth® connection setting of your cel-
lular phone is set to off.
2Press the “MENU” button on the
Remote Touch.
3Select “Telephone”.
zOperations up to this point can also be per-
formed by pressing the switch on the
steering wheel.
REGISTERING A Bluetooth®
PHONE FOR THE FIRST TIME
To use the hands-free system, it is neces-
sary to register a Bluetooth® phone with
the system.
Once the telephone has been regis-
tered, it is possible to use the hands-free
system.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P.58
