Lexus IS250 2015 Maintenance data (fuel, oil level, etc.) / LEXUS 2015 IS250/350 OWNERS MANUAL (OM53C50U)

511
Vehicle specifications9
IS350/250_U (OM53C50U)
9-1. SpecificationsMaintenance data (fuel, oil level, etc.).................... 512
Fuel information.......................... 522
Tire information ........................... 525
9-2. Customization Customizable features ............ 537
9-3. Initialization Items to initialize ......................... 546

512
IS350/250_U (OM53C50U)9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 255/35R18 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length183.7 in. (4665 mm)
Overall width71.3 in. (1810 mm)
Overall height*156.3 in. (1430 mm)
Wheelbase110.2 in. (2800 mm)
Tr e a d*1
Front60.4 in. (1535 mm)
Rear61.0 in. (1550 mm)
60.6 in. (1540 mm)
*2
Vehicle capacity weight (Occupants + lug-
gage)825 lb. (375 kg)

5139-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifica-
tion Label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

5149-1. Specifications
IS350/250_U (OM53C50U)

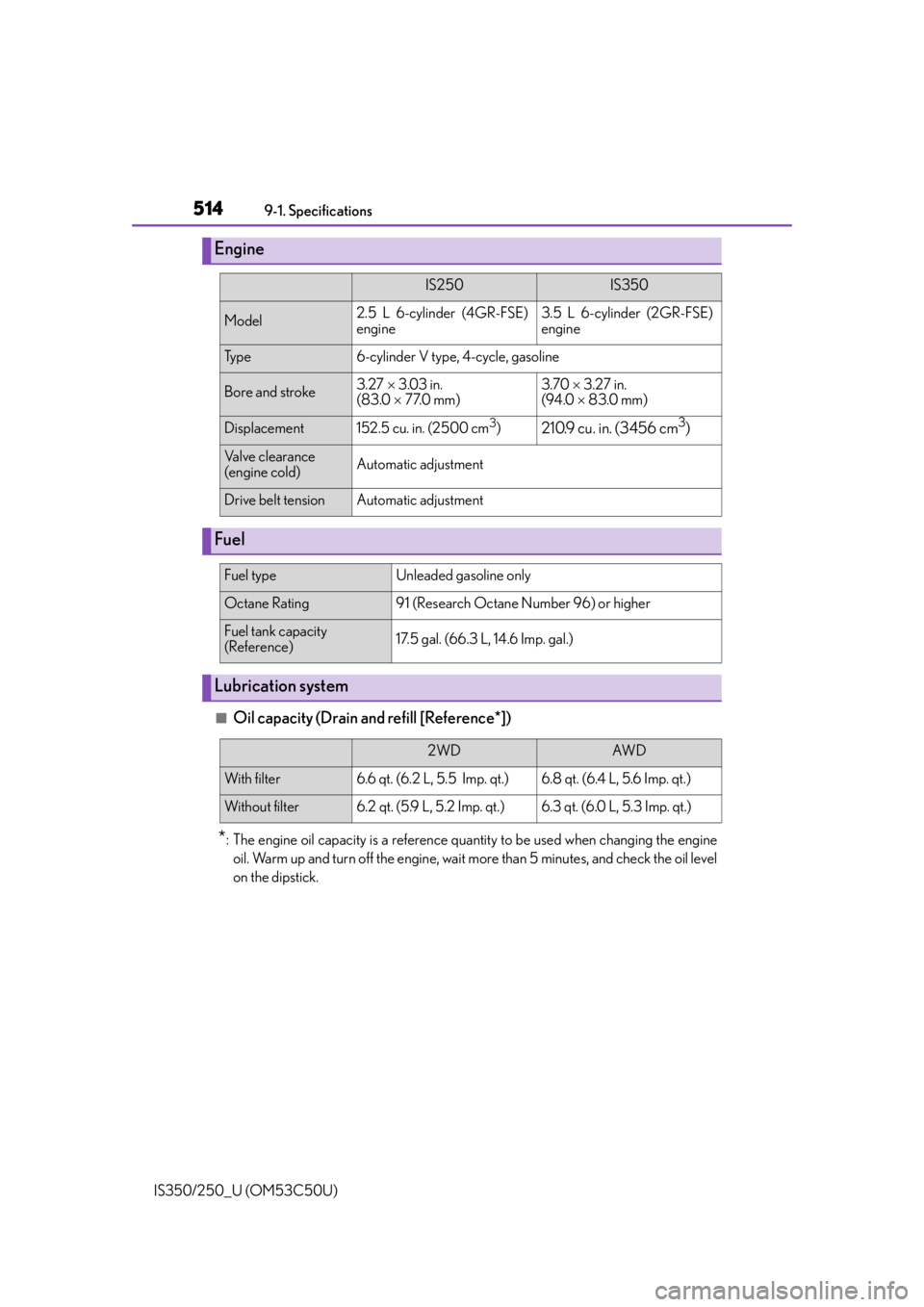

■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
IS250IS350
Model2.5 L 6-cylinder (4GR-FSE)
engine3.5 L 6-cylinder (2GR-FSE)
engine
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.27  3.03 in.
(83.0  77.0 mm)3.70  3.27 in.
(94.0  83.0 mm)
Displacement152.5 cu. in. (2500 cm3)210.9 cu. in. (3456 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp. gal.)
Lubrication system
2WDAW D
With filter6.6 qt. (6.2 L, 5.5 Imp. qt.)6.8 qt. (6.4 L, 5.6 Imp. qt.)
Without filter6.2 qt. (5.9 L, 5.2 Imp. qt.)6.3 qt. (6.0 L, 5.3 Imp. qt.)

5159-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

5169-1. Specifications
IS350/250_U (OM53C50U)
■Spark plug
Cooling system
IS250IS350
Capacity 11.1 qt. (10.5 L, 9.2 Imp. qt.) 9.8 qt. (9.3 L, 8.2 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Make DENSO FK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage at 68F
(20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8
 12.0 V Discharged
(Check the voltage 20 minutes after the engine and all
lights are turned off.)
Charging rates5 A max.

5179-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Automatic transmission
IS250IS350
Fluid capacity*2WD7.9 qt. (7.5 L, 6.6 Imp. qt.)10.0 qt. (9.5 L, 8.4 Imp. qt.)
AW D9.9 qt. (9.4 L, 8.3 Imp. qt.)10.6 qt. (10.0 L, 8.8 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above 0F (-18 C): SAE90
Below 0 F (-18 C): SAE80W or SAE80W-90
Rear differential
Oil capacityIS2501.20 qt. (1.15 L, 1.01 Imp. qt.)
IS3501.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

5189-1. Specifications
IS350/250_U (OM53C50U)

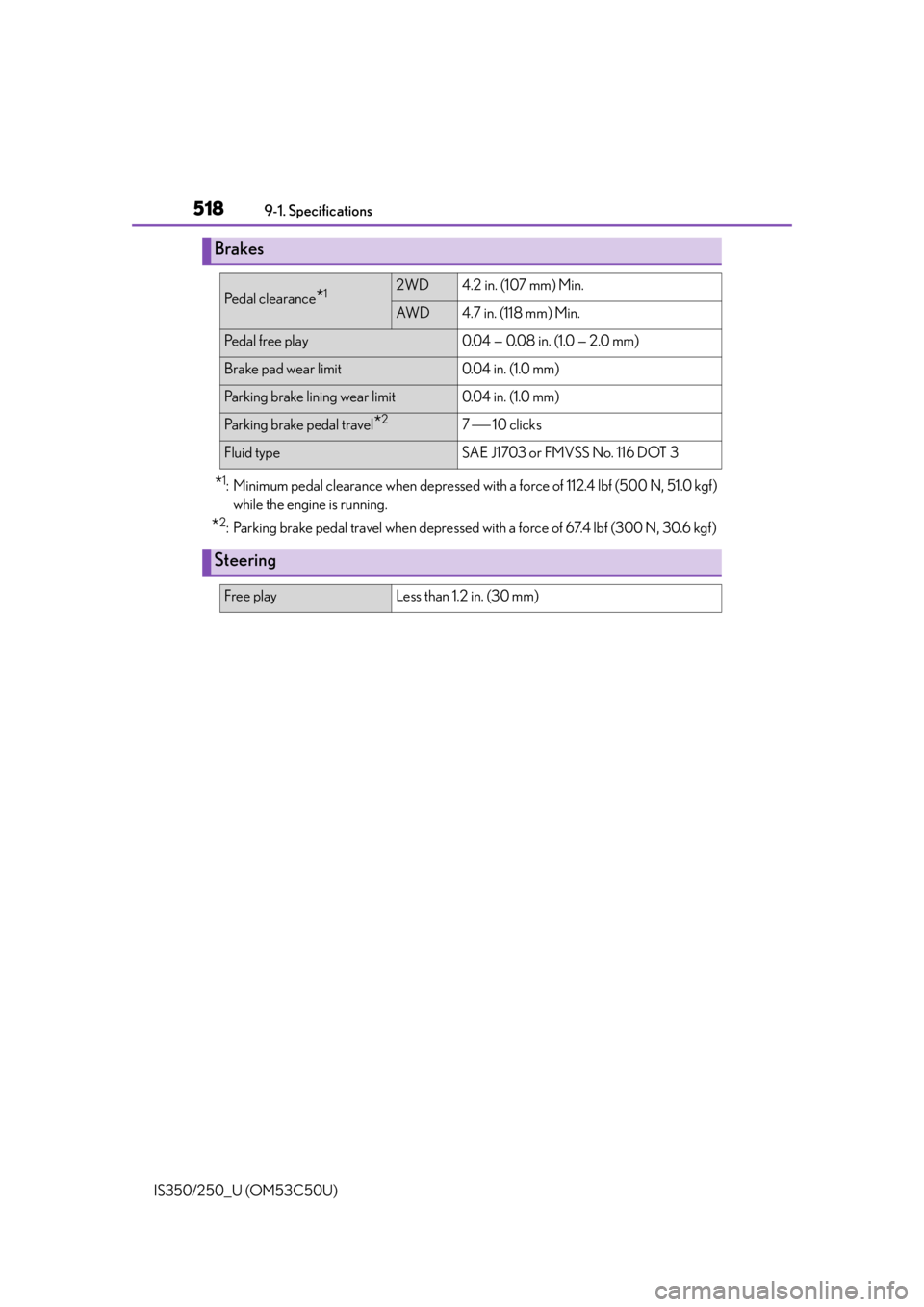

*1: Minimum pedal clearance when depressed wi th a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N, 30.6 kgf)
Brakes
Pe d a l c l e a r a n c e*12WD4.2 in. (107 mm) Min.
AW D4.7 in. (118 mm) Min.
Pedal free play0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*27  10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

5199-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)

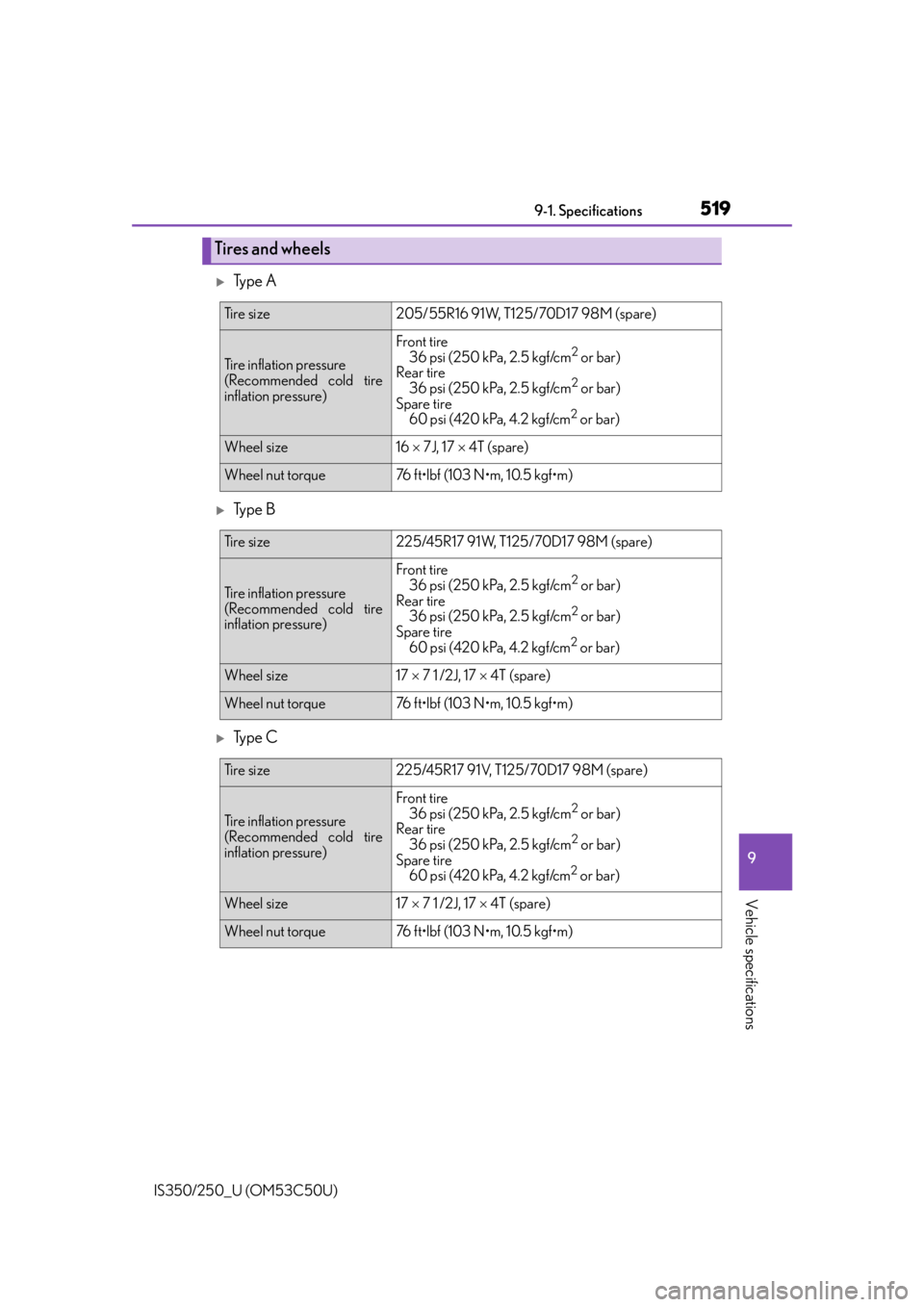

Ty p e A
Ty p e B
Ty p e C
Tires and wheels
Ti r e s i z e205/55R16 91W, T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare tire 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size16  7J, 17  4T (spare)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e225/45R17 91W, T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare tire 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size17  7 1 /2J, 17  4T (spare)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e225/45R17 91V, T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare tire 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size17  7 1 /2J, 17  4T (spare)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)

5209-1. Specifications
IS350/250_U (OM53C50U)

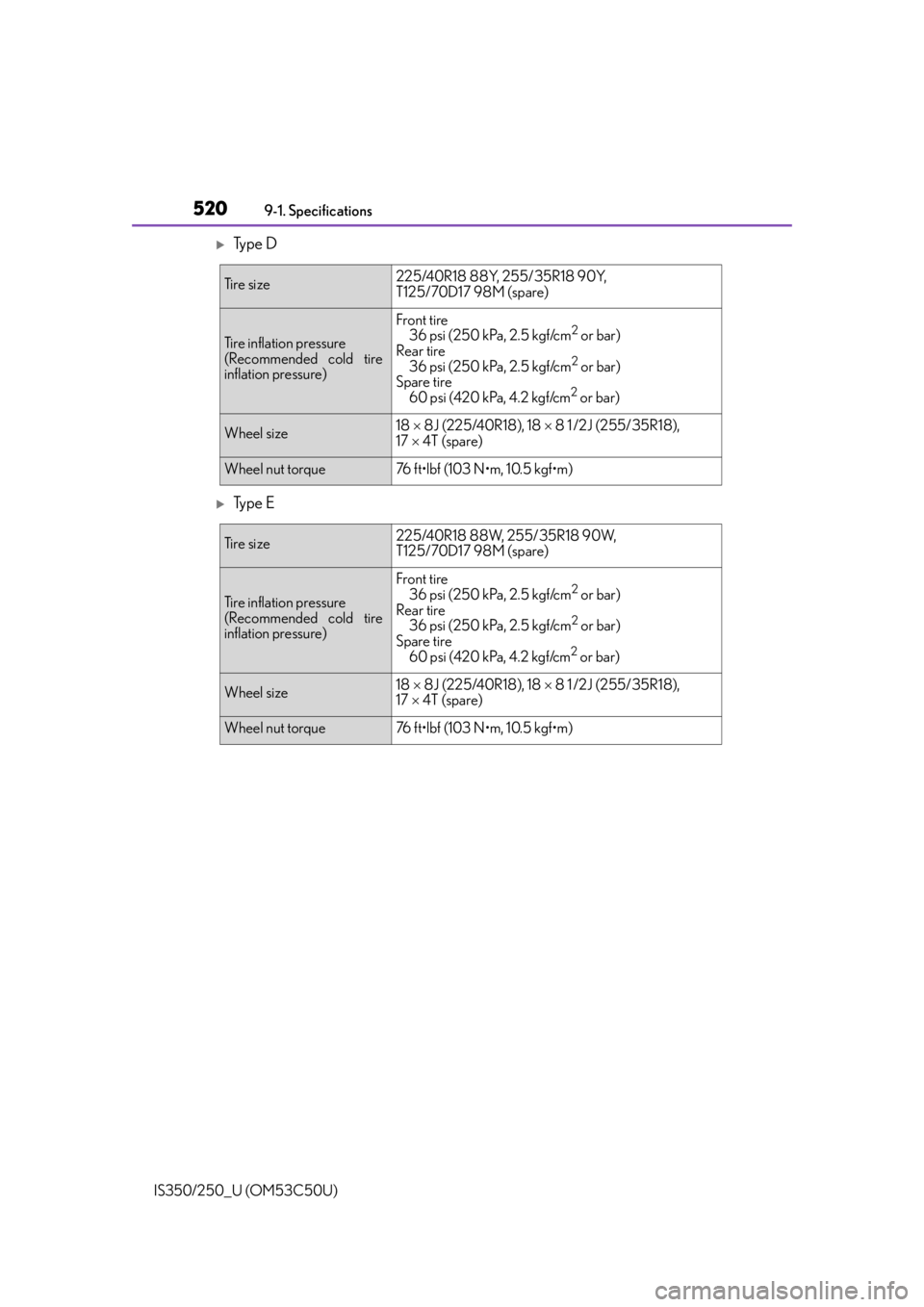

Ty p e D
Ty p e E
Ti r e s i z e225/40R18 88Y, 255/35R18 90Y,
T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear tire
36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare tire 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size18  8J (225/40R18), 18  8 1 /2J (255/35R18),
17  4T (spare)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e225/40R18 88W, 255/35R18 90W,
T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare tire 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size18  8J (225/40R18), 18  8 1 /2J (255/35R18),
17  4T (spare)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
