1. INFORMATION DISPLAY
IS250/350_Navi_U
2. DATA SERVICES SETTINGS
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Data Services Settings” .
4Select the desired item to be set.
zSelect a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is com-
prised of traffic information and weather
information, can be received via HD Ra-
dio broadcast and by the LEXUS App
Suite application on a Bluetooth
®
phone. The receiving method can be set
to both or only via HD Radio broadcast.
For details about the LEXUS App Suite
application: →P. 358
No.Function
Select to receive data service infor-
mation via both HD Radio broadcast
and the LEXUS App Suite applica-
tion on a Bluetooth
® phone. When
both methods are available, HD Ra-
dio broadcast will be selected.
Select to receive data only via HD
Radio broadcast.

7
281
IS250/350_Navi_U
2
7
4
5
6
3
8
9
1
1. LEXUS PARKING ASSIST MONITOR ............................................. 282
DRIVING PRECAUTIONS .............................. 282
SCREEN DISPLAY ............................................... 284
USING THE SYSTEM.......................................... 285
2. ESTIMATED COURSE LINE DISPLAY MODE ................................. 287
SCREEN DESCRIPTION ................................... 287
PARKING .................................................................. 288
3. PARKING ASSIST GUIDE LINE DISPLAY MODE ................................. 289
SCREEN DESCRIPTION .................................. 289
PARKING .................................................................. 290
4. LEXUS PARKING ASSIST MONITOR PRECAUTIONS ........... 291
AREA DISPLAYED ON SCREEN .................. 291
THE CAMERA ......................................................... 292
DIFFERENCES BETWEEN
THE SCREEN AND
THE ACTUAL ROAD...................................... 293
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS.......... 294
5. THINGS YOU SHOULD KNOW ..................................................... 296
IF YOU NOTICE ANY SYMPTOMS ......... 296
1. INTUITIVE PARKING ASSIST ........... 298
TYPES OF SENSORS.......................................... 298
INTUITIVE PARKING
ASSIST SWITCH................................................. 298
DISPLAY .................................................................... 299
THE DISTANCE DISPLAY AND BUZZER ................................................................. 300
DETECTION RANGE OF THE SENSORS.................................................... 302
SENSOR DETECTION INFORMATION ................................................. 302
INTUITIVE PARKING ASSIST-SENSOR FAILURE
WARNING............................................................ 304
CERTIFICATION ................................................... 305
2. INTUITIVE PARKING ASSIST SETTING.................................. 306
SETTING AN ALERT VOLUME.................... 307
SETTING A PARKING SONAR
DISPLAY................................................................. 307
SETTING A DISPLAY AND TONE INDICATION ....................................................... 308
1LEXUS PARKING ASSIST
MONITOR2INTUITIVE PARKING ASSIST
PERIPHERAL MONITORING SYSTEM

282
IS250/350_Navi_U
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR*
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backin g up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
*: If equipped
CAUTION
● Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
● If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle.
● The instructions gi ven are only guide-
lines. When and how much to turn the
steering wheel will vary according to traf-
fic conditions, road surface conditions,
vehicle condition, etc. when parking. It is
necessary to be fully aware of this before
using the parking assist system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.

283
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS250/350_Navi_U
7

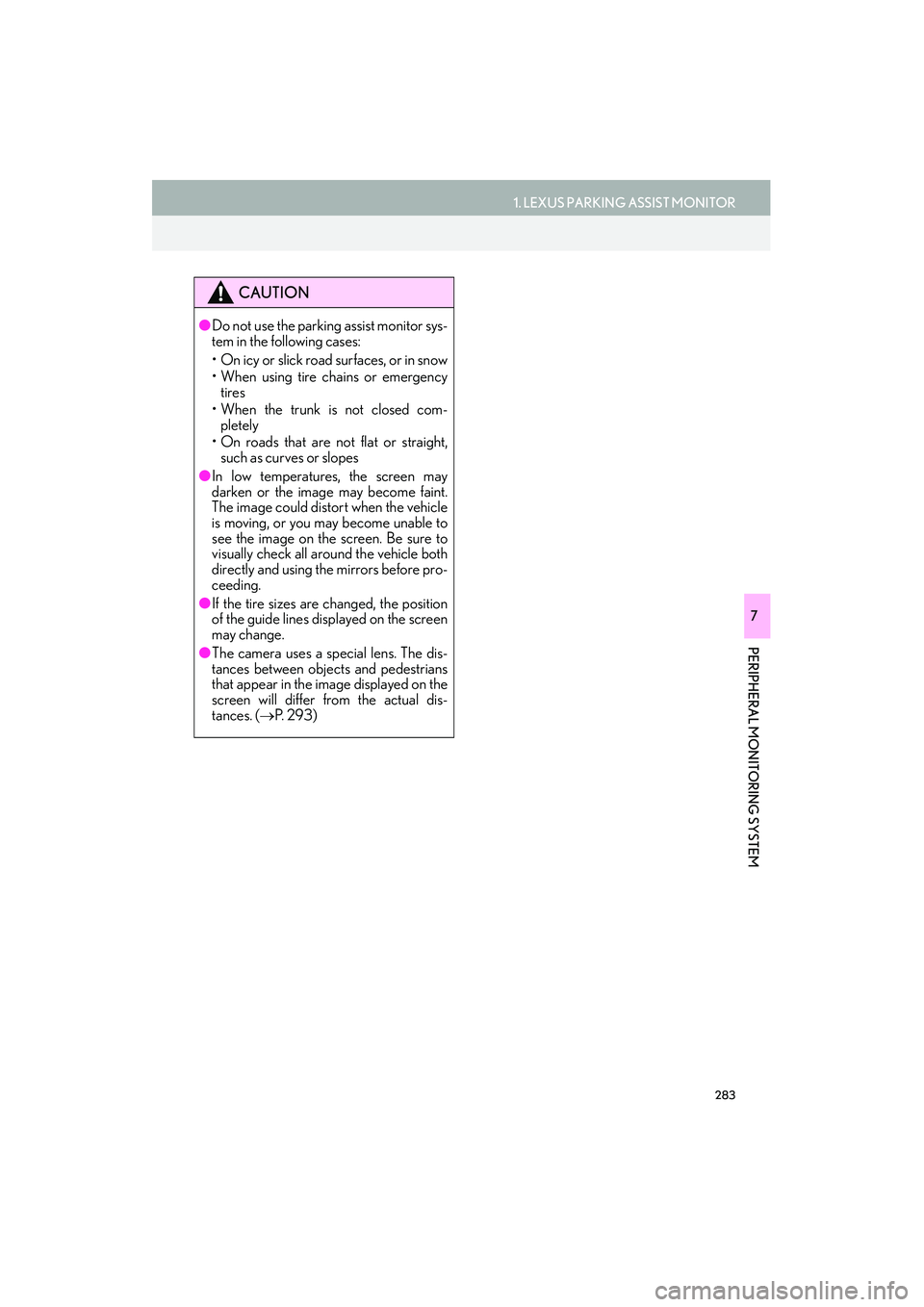

CAUTION
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or emergency tires
• When the trunk is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
● If the tire sizes are changed, the position
of the guide lines displayed on the screen
may change.
● The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. ( →P. 2 9 3 )

284
1. LEXUS PARKING ASSIST MONITOR
IS250/350_Navi_UX
Intuitive parking assist
If an obstacle is detected while the intuitive parking assist-sensor is on, a display is
shown in the top right corner of the screen.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any position
other than the “R” position.

285
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS250/350_Navi_U
7
XEstimated course line display mode
(→ P. 287) X
Parking assist guide line display mode
(→ P. 289)
X Distance guide line display mode
USING THE SYSTEM
Use any of the following modes.
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.

286
1. LEXUS PARKING ASSIST MONITOR
IS250/350_Navi_U
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Vehicle” .
4Select “Back Camera Guide Line
Setting” .
5Select the display mode.
SWITCHING THE DISPLAY
MODE
When the shift lever is in any position
other than the “R” position, the display
mode can be changed in the following
procedure.
No.NameDetail
Estimated course
line display mode287
Parking assist
guide line display
mode289
Distance guide
line display modeDistance guide lines only are
displayed.

287
1. LEXUS PARKING ASSIST MONITOR
IS250/350_Navi_U
PERIPHERAL MONITORING SYSTEM
7
2. ESTIMATED COURSE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
• These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShows an estimated course when the steering wheel is
turned.
Distance guide lines
Shows distance behind the vehicle when the steering
wheel is turned.
•The guide lines move in conjunction with the estimated
course lines.
• The guide lines display points approximately 1.5 ft. (0.5
m) (red) and approximately 3 ft. (1 m) (yellow) from the
center of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (blue)
from the edge of the bumper.
Vehicle center guide lineThe line indicates the estimated vehicle center on the
ground.
CAUTION
● If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by your Lexus dealer.

288
1. LEXUS PARKING ASSIST MONITOR
IS250/350_Navi_U
1Shift the shift lever to the “R” position.
2Turn the steering wheel so that the esti-
mated course lines are within the park-
ing space, and back up slowly.
XParking space
Estimated course lines
3When the rear position of the vehicle
has entered the parking space, turn the
steering wheel so that the vehicle width
guide lines are within the left and right
dividing lines of the parking space.
XVehicle width guide line
4Once the vehicle width guide lines and
the parking space lines are parallel,
straighten the steering wheel and back
up slowly until the vehicle has complete-
ly entered the parking space.
5Stop the vehicle in an appropriate place,
and finish parking.
PARKING
When parking in a space which is in the
reverse direction to the space described
in the procedure below, the steering di-
rections will be reversed.

289
1. LEXUS PARKING ASSIST MONITOR
IS250/350_Navi_U
PERIPHERAL MONITORING SYSTEM
7
3. PARKING ASSIST GUIDE LINE DISPLAY MODE
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Vehicle center guide lineThe line indicates the estimated vehicle center on the
ground.
