display Lexus IS250 2015 Navigation Manual

48
2. Bluetooth® SETTINGS
IS250/350_Navi_U
4Select “Yes” to register a phone.
5When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
zFor details about operating the Bluetooth®
device, see the manual that comes with it.
z To cancel the registration, select “Cancel”.
6Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
7Check that the following screen is dis-
played when registration is complete.
z The system waits for connection requests
coming from the registered device.
z At this stage, the Bluetooth
® functions are
not yet available.

49
2. Bluetooth® SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
8Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
REGISTERING A Bluetooth®
AUDIO PLAYER FOR THE
FIRST TIME
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth
® Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth
® device: →P. 57

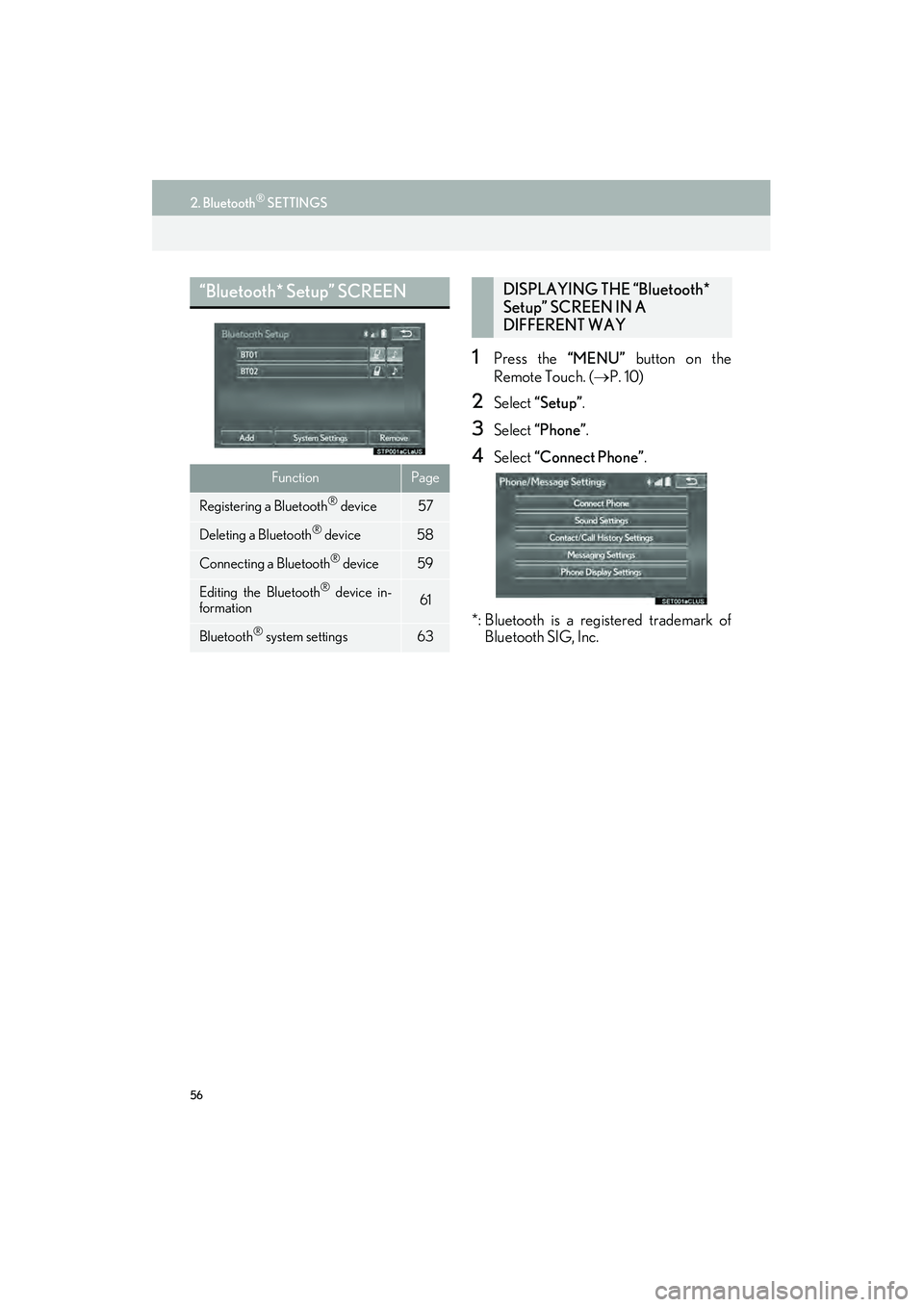

56
2. Bluetooth® SETTINGS
IS250/350_Navi_U
1Press the “MENU” button on the
Remote Touch. ( →P. 10)
2Select “Setup” .
3Select “Phone”.
4Select “Connect Phone” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
“Bluetooth* Setup” SCREEN
FunctionPage
Registering a Bluetooth® device57
Deleting a Bluetooth® device58
Connecting a Bluetooth® device59
Editing the Bluetooth® device in-
formation61
Bluetooth® system settings63
DISPLAYING THE “Bluetooth*
Setup” SCREEN IN A
DIFFERENT WAY

57
2. Bluetooth® SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
1Display the “Bluetooth* Setup” screen.
(→ P. 55)
2Select “A d d ”.
X When another Bluetooth
® device is con-
nected
z To disconnect the Bluetooth® device,
select “Yes”.
XWhen 5 Bluetooth® devices have al-
ready been registered
z A registered device needs to be replaced.
Select “Yes”, and select the device to be
replaced.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
z For details about operating the Bluetooth®
device, see the manual that comes with it.
z To cancel the registration, select “Cancel”.
4Register the Bluetooth® device using
your Bluetooth
® device.
z A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being con-
nected, a message confirming registration
may be displayed on the Bluetooth
®
device’s screen. Respond and operate the
Bluetooth® device according to the confir-
mation message.
REGISTERING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices can be reg-
istered.
Bluetooth
® compatible phones (HFP)
and audio players (AVP) can be regis-
tered simultaneously.
This operation cannot be performed
while driving.

58
2. Bluetooth® SETTINGS
IS250/350_Navi_U
5Check that the following screen is dis-
played when registration is complete.
zThe system waits for connection requests
coming from the registered device.
z At this stage, the Bluetooth
® functions are
not yet available.
6Select “OK” when the connection sta-
tus changes from “Connecting...” to
“Connected”.
z If an error message is displayed, follow the
guidance on the screen to try again.
1Display the “Bluetooth* Setup” screen.
(→ P. 55)
2Select “Remove” .
3Select the desired device.
4Select “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is dis-
played when the operation is complete.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
DELETING A Bluetooth®
DEVICE
INFORMATION
● When deleting a Bluetooth® phone, the
contact data will be deleted at the same
time.

59
2. Bluetooth® SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
1Display the “Bluetooth* Setup” screen.
(→ P. 55)
2Select the device to be connected.
zSupported profile icons will be displayed.
: Phone
: Audio player
: Phone/“LEXUS App Suite” service
zThe profile icon for a currently connected
device will be displayed in color.
z Selecting a profile icon which is not cur-
rently connected will switch the connection
to the function.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
3Select the desired connection.
X When another Bluetooth
® device is con-
nected
z To disconnect the Bluetooth® device,
select “Yes”.
4Check that a confirmation screen is dis-
played when the connection is com-
plete.
zIf an error message is displayed, follow the
guidance on the screen to try again.
CONNECTING A Bluetooth®
DEVICE
Up to 5 Bluetooth® devices (Phones
(HFP) and audio players (AVP)) can be
registered.
If more than 1 Bluetooth
® device has
been registered, select which device to
connect to.
z If the desired Bluetooth® device is not on
the list, select “A d d ” to register the
device. ( →P. 5 7 )
INFORMATION
●It may take time if the device connection
is carried out during Bluetooth® audio
playback.
● Depending on the type of Bluetooth
®
device being connected, it may be neces-
sary to perform additional steps on the
device.

61
2. Bluetooth® SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
1Display the “Bluetooth* Setup” screen.
(→ P. 55)
2Select the desired device to be edited.
3Select “Device Info” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
4Confirm and change the Bluetooth®
device information.EDITING THE Bluetooth®
DEVICE INFORMATION
The Bluetooth® device’s information
can be displayed on the screen. The dis-
played information can be edited.
No.Information
The name of the Bluetooth® device.
Can be changed to a desired name.
( → P. 62)
Select to set the Bluetooth® audio
player connection method.
( → P. 62)
Device address is unique to the de-
vice and cannot be changed.
Phone number of the Bluetooth®
phone.
Compatibility profile of the
Bluetooth® device.
Select to reset all setup items.

62
2. Bluetooth® SETTINGS
IS250/350_Navi_U
1Select “Device Name” .
2Enter the name and select “OK” .
1Select “Connect Audio Player from” .
2Select the desired connection method.
“Vehicle” : Select to connect the audio sys-
tem to the audio player.
“Device” : Select to connect the audio play-
er to the audio system.
z Depending on the audio player, the “Vehi-
cle” or “Device” connection method may
be best. As such, refer to the manual that
comes with the audio player.
z To reset the connection method, select
“Default” .
INFORMATION
●If 2 Bluetooth® devices have been regis-
tered with the same device name, the
devices can be distinguished referring to
the device’s address.
● Depending on the type of phone, some
information may not be displayed.
CHANGING A DEVICE NAME
INFORMATION
● Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.
SETTING AUDIO PLAYER
CONNECTION METHOD

63
2. Bluetooth® SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
1Display the “Bluetooth* Setup” screen.
(→ P. 55)
2Select “System Settings” .
3Select the desired item to be set.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
“System Settings” SCREEN
The Bluetooth® settings can be con-
firmed and changed.
No.InformationPage
Select to set Bluetooth®
connection on/off.64
Displays system name. Can
be changed to a desired
name.64
PIN-code used when the
Bluetooth® device was
registered. Can be
changed to a desired code.64
Device address is unique to
the device and cannot be
changed.
Select to set the phone con-
nection status display on/
off.
Select to set the connection
status display of the audio
player on/off.
Compatibility profile of the
system
Select to reset all setup
items.

67
3. OTHER SETTINGS
IS250/350_Navi_U
BASIC FUNCTION
2
1Display the “General Settings” screen.
(→ P. 65)
2Select “System Time” .
3Select the items to be set.
Select to adjust the pointer sound vol-
ume.
Select to adjust the strength of the
pull from the buttons to the pointer.
Select to delete personal data.
(→ P. 72)
Select to update software versions.
For details, contact your Lexus deal-
er.
Select to update “Gracenote” data-
base versions. For details, contact
your Lexus dealer.
Select to display the software infor-
mation. Notices related to third party
software used in this product are en-
listed. (This includes instructions for
obtaining such software, where appli-
cable.)
No.FunctionSYSTEM TIME SETTINGS
Used for changing time zones and the
on/off settings of daylight saving time.
No.Function
Select to change the time zone.
( → P. 68)
Select to set daylight saving time on/
off.
Select to set automatic adjustment of
the clock by GPS on/off. When set to
on, the system will automatically ad-
just the clock to the current position’s
time zone when the vehicle moves to
a different time zone.
