jump start Lexus IS250 2015 Owner's Manual

5028-2. Steps to take in an emergency
IS350/250_U (OM53C50U)

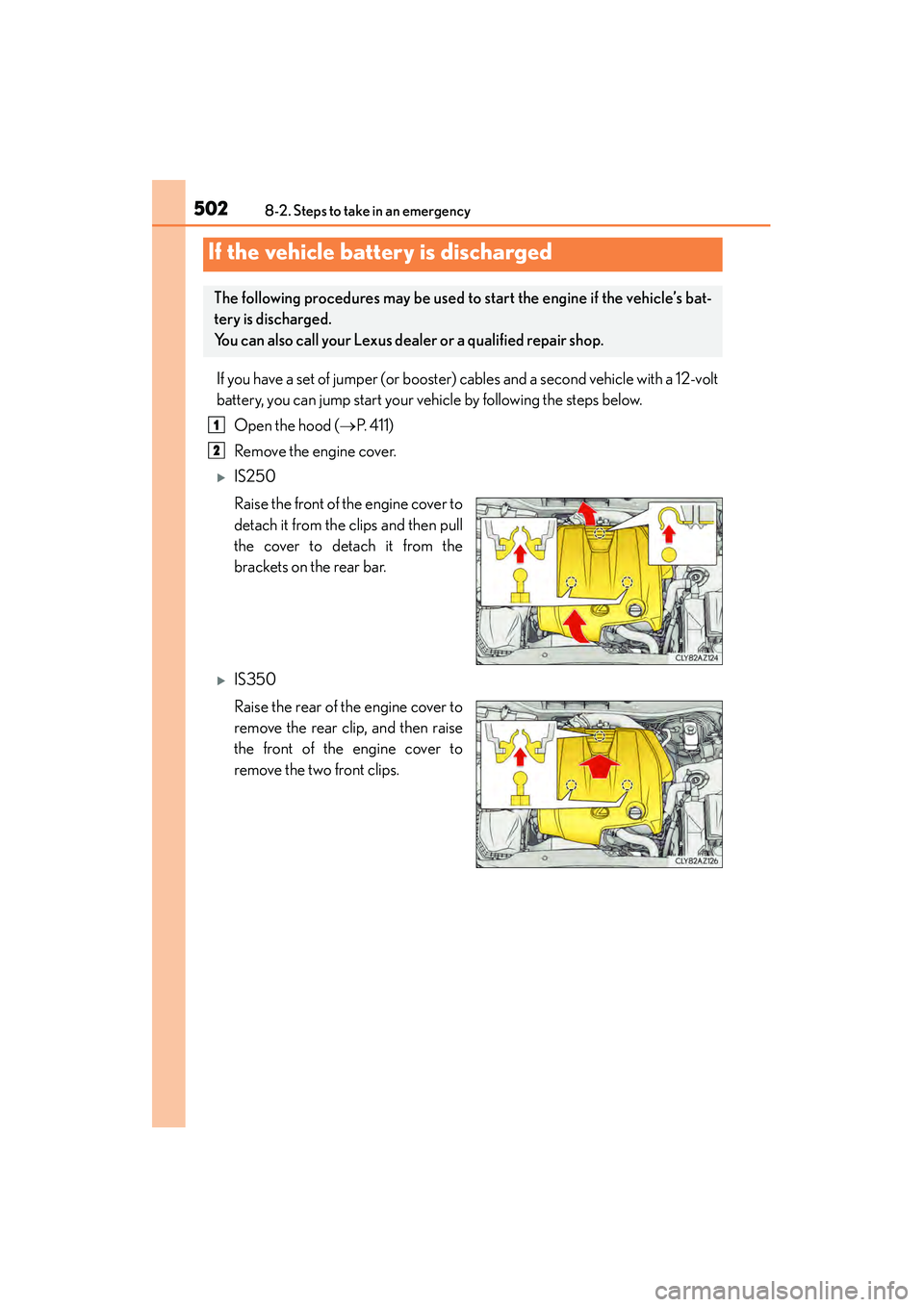

If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below.Open the hood ( →P. 411)
Remove the engine cover.
XIS250
Raise the front of the engine cover to
detach it from the clips and then pull
the cover to detach it from the
brackets on the rear bar.
XIS350
Raise the rear of the engine cover to
remove the rear clip, and then raise
the front of the engine cover to
remove the two front clips.
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s bat-
tery is discharged.
You can also call your Lexus dealer or a qualified repair shop.
1
2

5038-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53C50U)

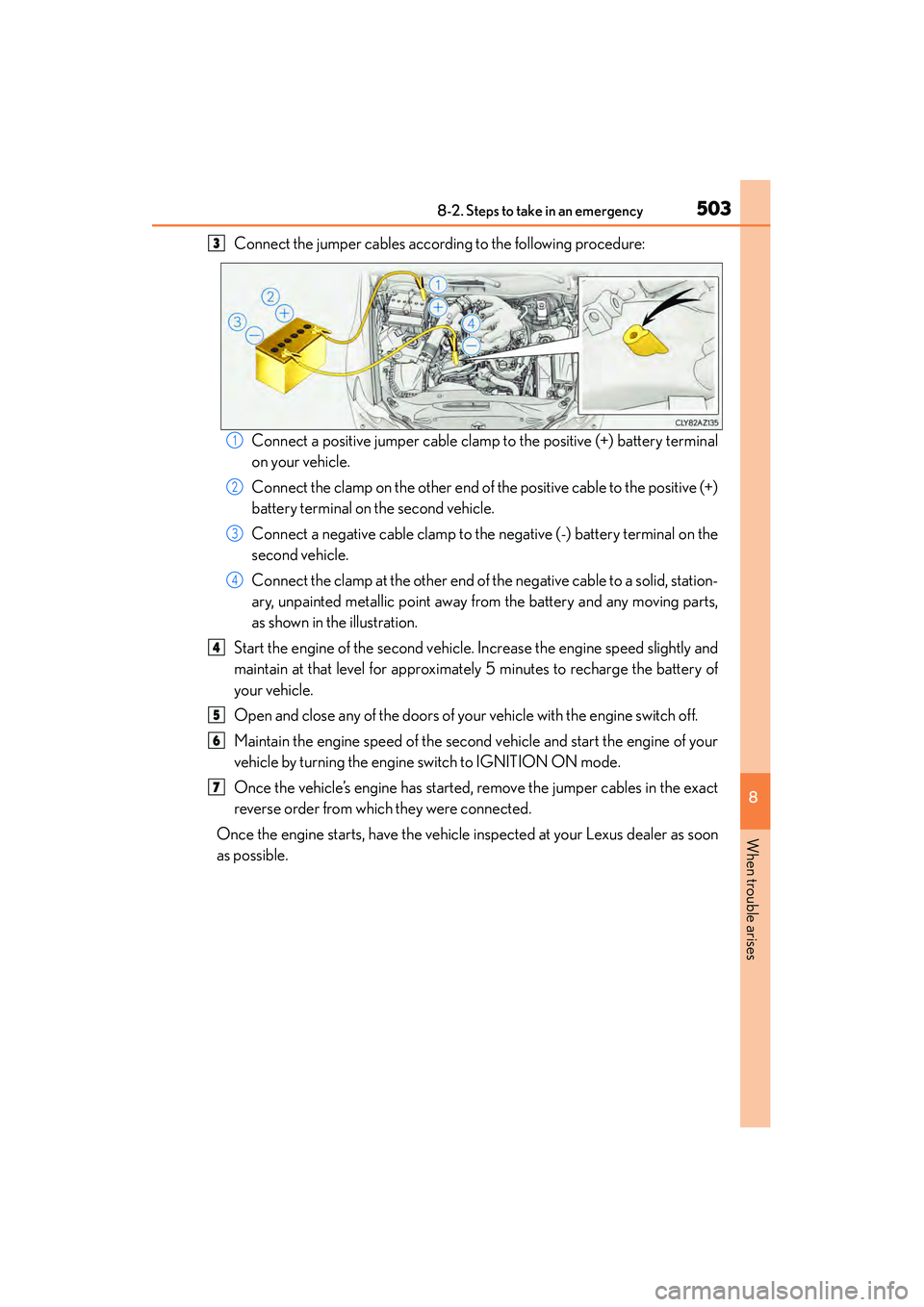

Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the positive (+) battery terminal
on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the battery and any moving parts,
as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Lexus dealer as soon
as possible.3
1
2
3
4
4
5
6
7
