3786-4. Using the other interior features
IS350/250_U (OM53C50U)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
Power outlet
●To fully close the console box with the cable
routed to outside the console box, insert the
cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power
outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an accessory that uses more than 12 V 10 A.
●To prevent battery discharge, do not use the power outlet longer than necessary
when the engine is off.

4137-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53C50U)

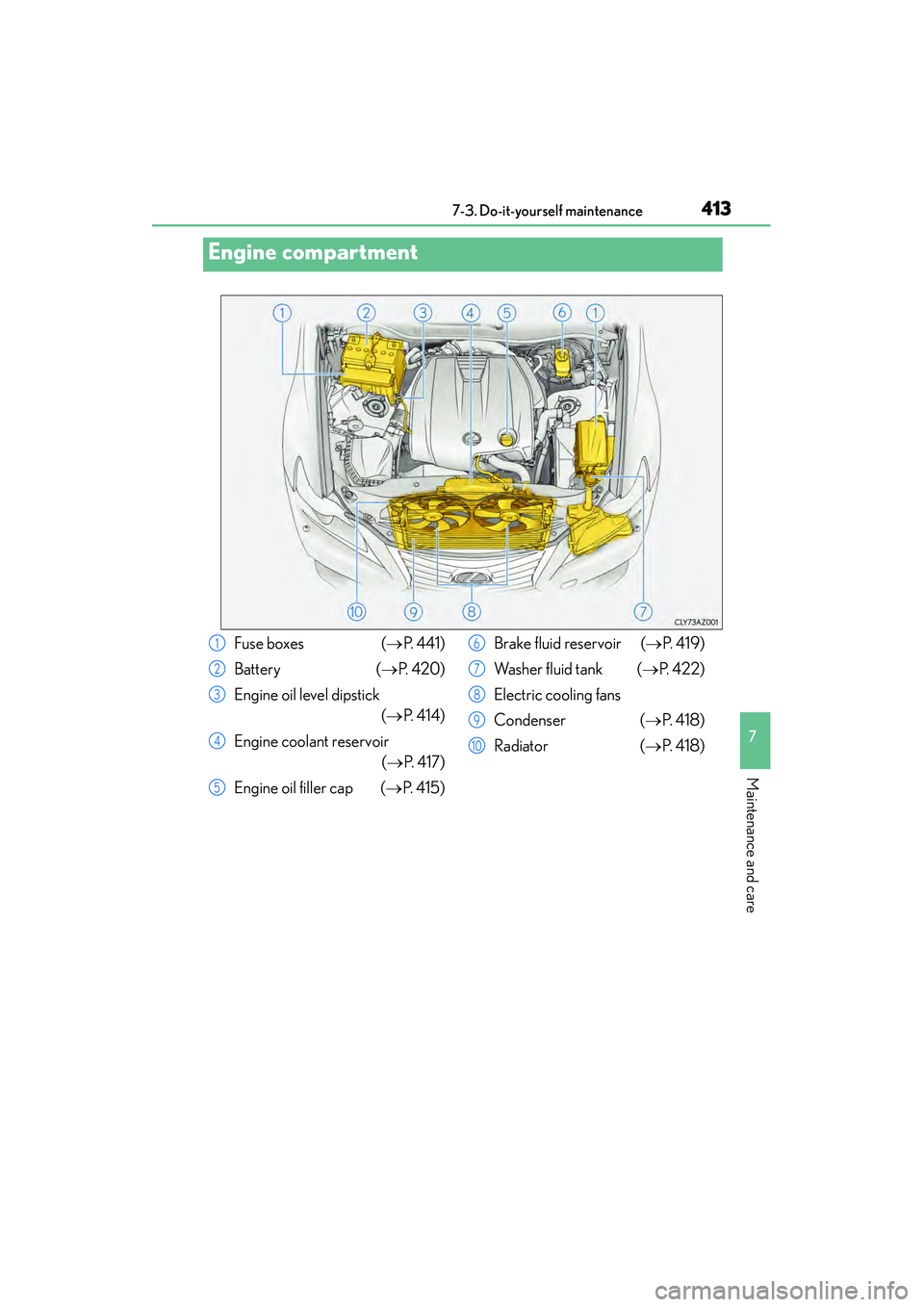

Engine compartment
Fuse boxes (→P. 4 4 1 )
Battery ( →P. 4 2 0 )
Engine oil level dipstick (→ P. 4 1 4 )
Engine coolant reservoir (→ P. 4 1 7 )
Engine oil filler cap (→ P. 4 1 5 )Brake fluid reservoir (
→P. 4 1 9 )
Wa s h e r f l u i d t a n k ( →P. 422)
Electric cooling fans
Condenser ( →P. 4 1 8 )
Radiator ( →P. 4 1 8 )1
2
3
4
5
6
7
8
9
10

4417-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53C50U)
Turn the engine switch off.
Open the Fuse box cover.
XEngine compartment (type A fuse box)
Push the tab in and lift the lid off.
XEngine compartment (type B fuse box)
Push the tab in and lift the lid off.
XDriver’s side instrument panel
Remove the lid.

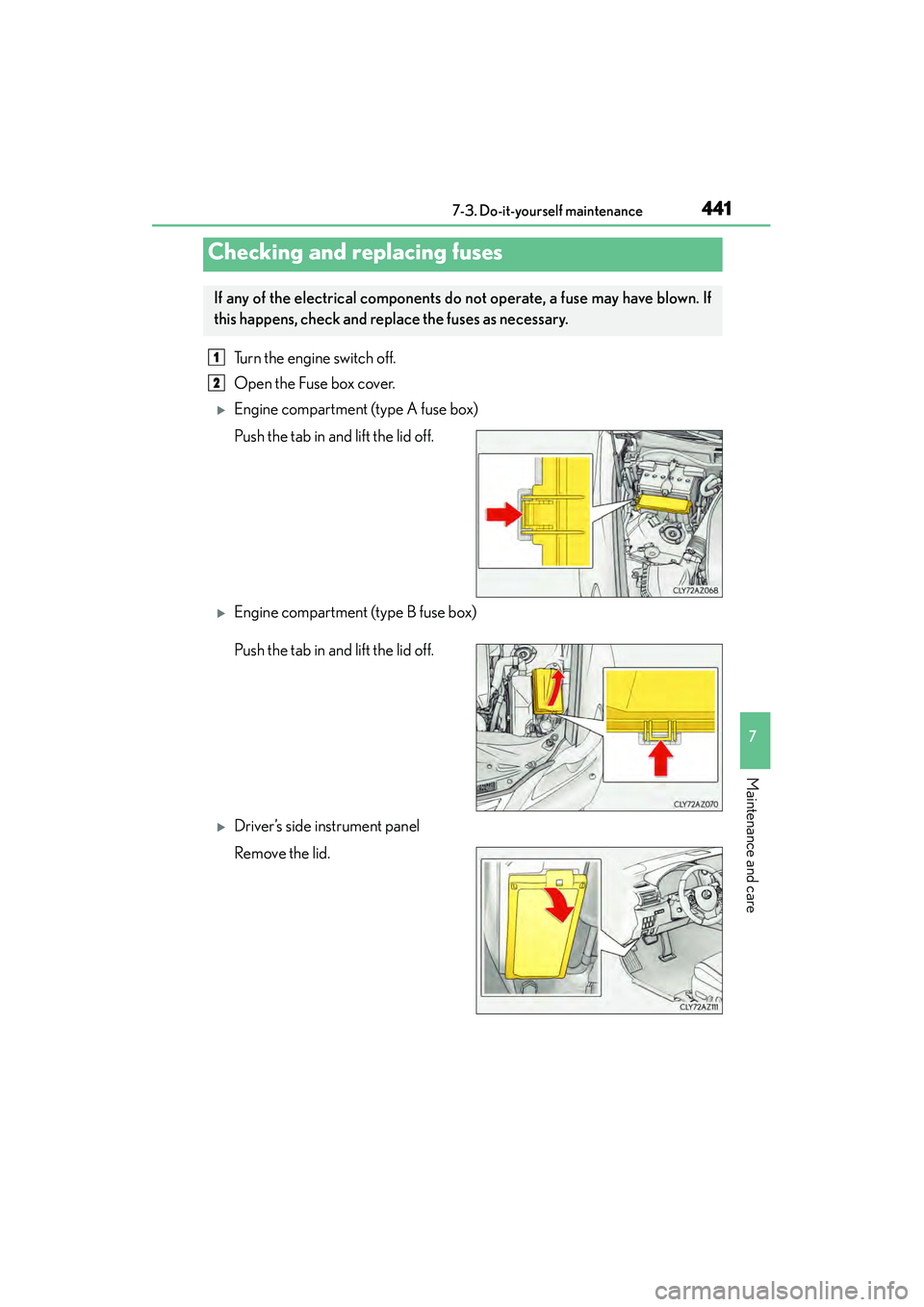

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2

4427-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)

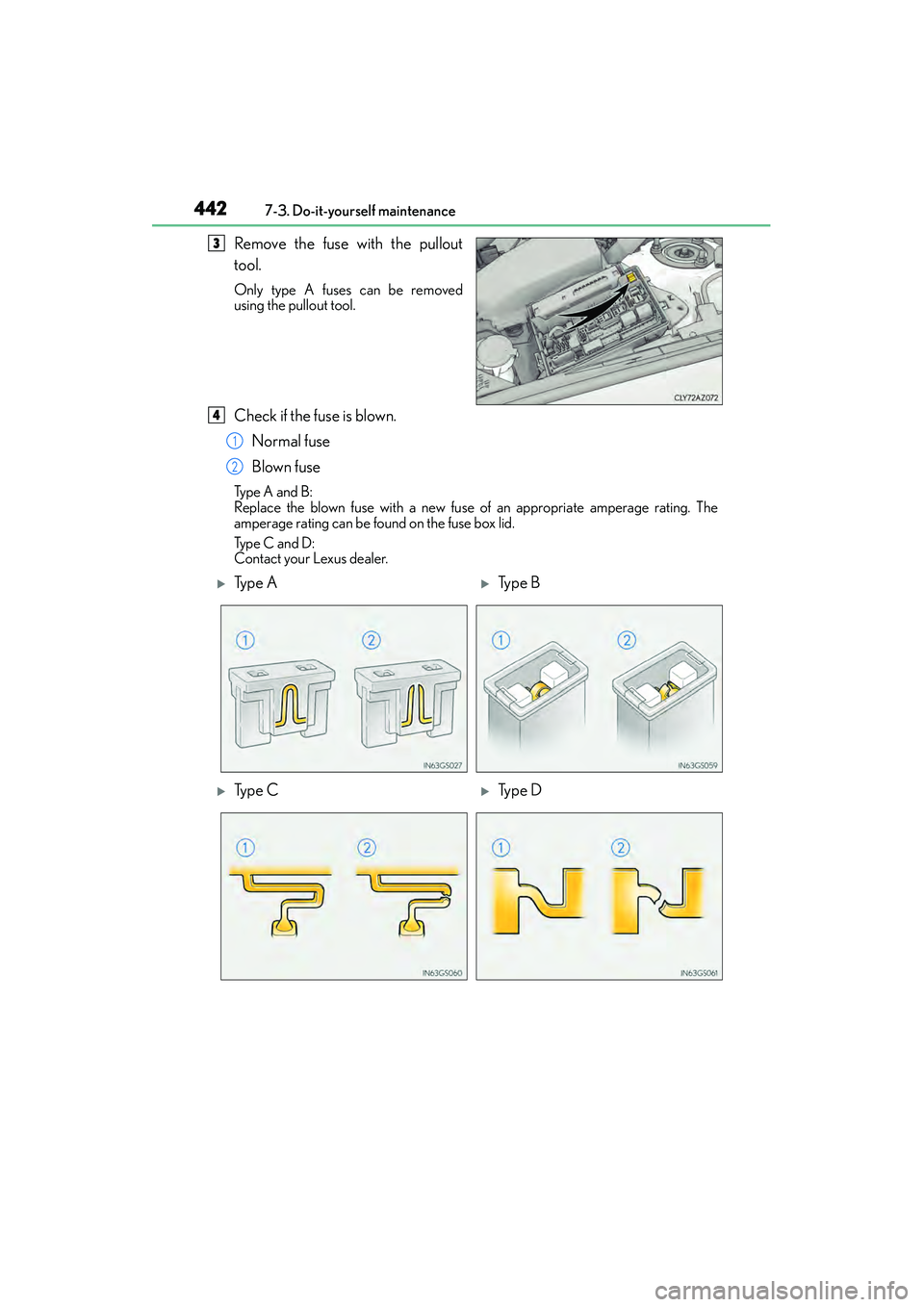

Remove the fuse with the pullout
tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown. Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Ty p e C a n d D :
Contact your Lexus dealer.
3
4
1
2
XTy p e AXTy p e B
XTy p e CXTy p e D

4437-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53C50U)

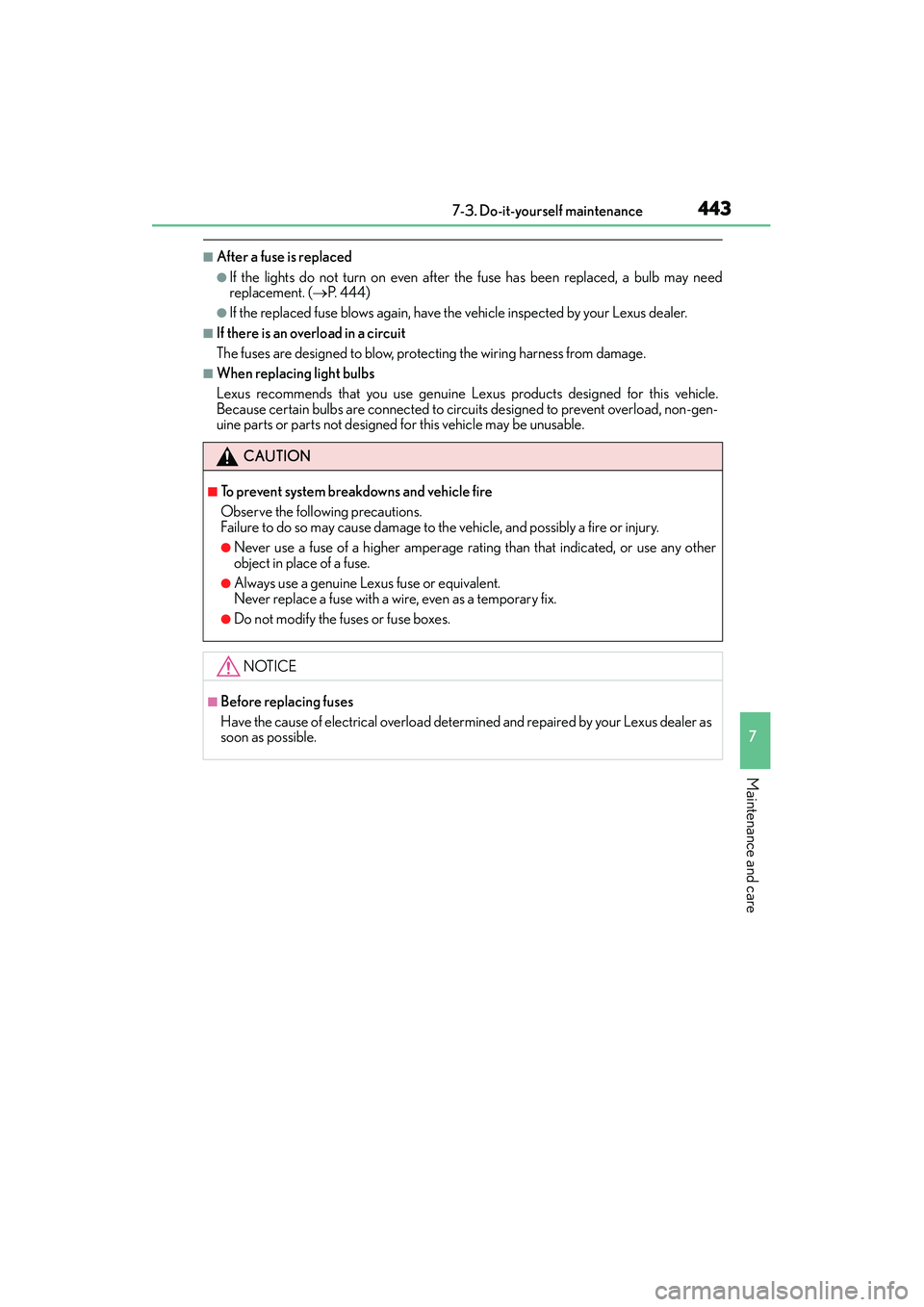

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 444)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.
