LEXUS IS250 2016 Owners Manual

272
3-5. Other interior features
Armrest
NOTICE
nTo prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

273
3-5. Other interior features
3

Interior features
Rear sunshade∗
nReverse operation feature
To ensure adequate rear visibility, the sunshade automatically lowers when the gear
is shifted to R.
However, the rear sunshade is raised again if either of the following occurs:
lThe switch is pressed again.
lThe shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph (15
km/h).
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 9 mph (15 km/h). To raise the sunshade
again, press the switch.
nThe rear sunshade can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
The rear sunshade can be raised and lowered by operating the switch
shown below.
Raise/lower
∗: If equipped

274
3-5. Other interior features
CAUTION
nWhen the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
nTo prevent the battery from being discharged
Do not operate the rear sunshade when the engine is not running.
nTo ensure normal operation of the sunshade
Observe the following precautions.
lDo not place excessive load on the motor or other components.
lDo not place objects where they may hinder opening and closing operations.
lDo not attach items to the rear sunshade.
lKeep the opening clean and clear of obstructions.
lDo not operate the rear sunshade continuously over long periods of time.

275
3-5. Other interior features
3

Interior features
Trunk storage extension
CAUTION
nWhen not in use
Ensure that the inside trunk door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward into
the cabin, resulting in injury.
Long objects can be loaded in the vehicle by utilizing the trunk space and
rear seat area.
Pull down the rear seat armrest.
Open the inside trunk door
from the trunk and load bag-
gage or other items.
STEP1
STEP2

276
3-5. Other interior features
Coat hooks
CAUTION
nItems that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles that cause death
or serious injury.
Pull out the hooks to hang coats or other soft items.

277
3-5. Other interior features
3

Interior features
Floor mat
CAUTION
nWhen inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering with the move-
ment of the pedals during driving, resulting in an accident.
lMake sure the floor mat is properly placed on the vehicle carpet and the correct
side faces upward.
lDo not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the carpet.
Secure the driver’s floor mat
using the hooks provided.

278
3-5. Other interior features

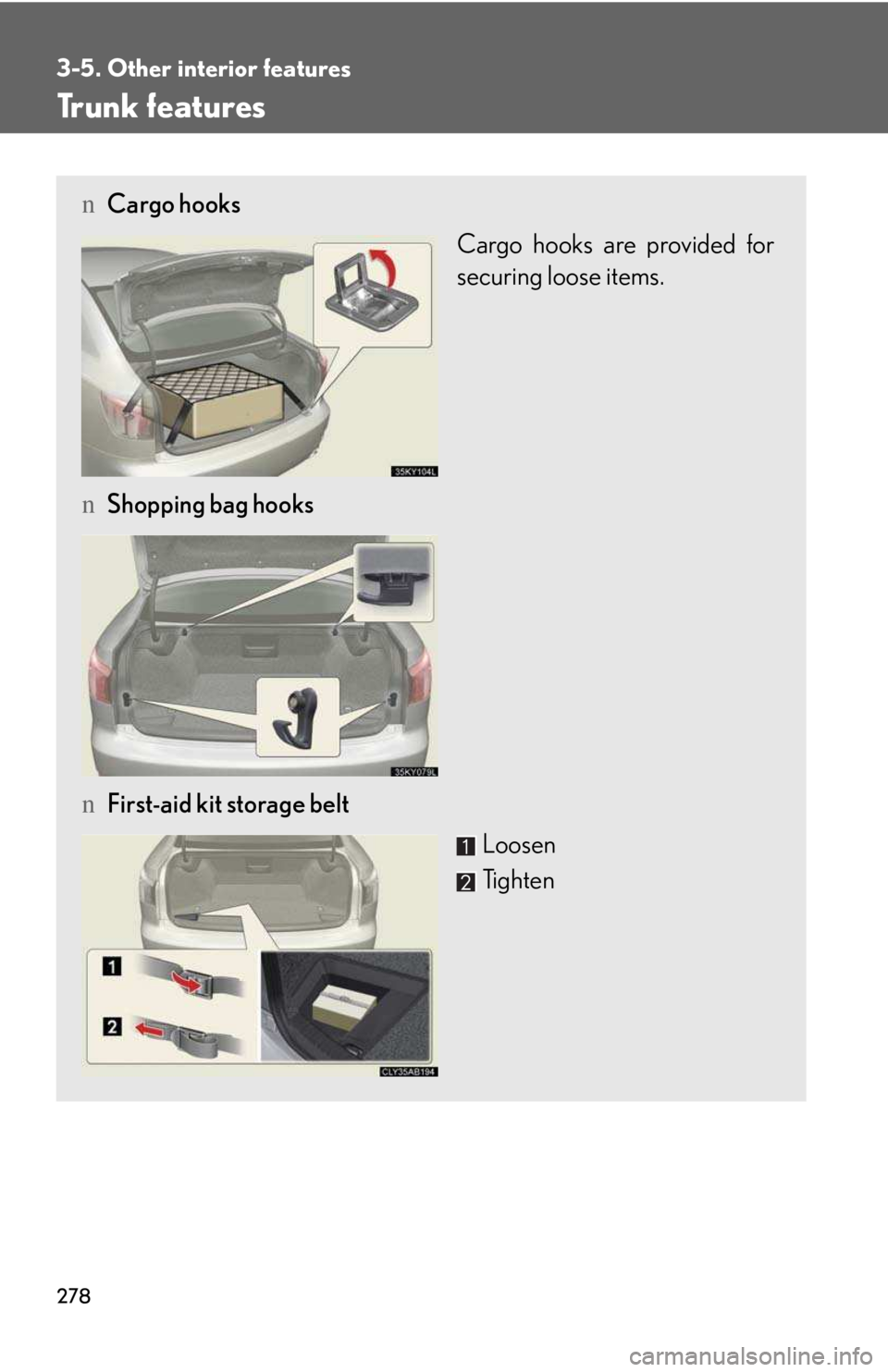

Trunk features
nCargo hooks
Cargo hooks are provided for
securing loose items.
nShopping bag hooks
nFirst-aid kit storage belt
Loosen
Tighten

279
3-5. Other interior features
3

Interior features
CAUTION
nWhen the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they are not in
use.
nWarning triangle storage belt
Loosen
Tighten
nLuggage mat
Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.

280
3-5. Other interior features
NOTICE
nWhen closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk.
The luggage mat may get damaged.

281
3-5. Other interior features
3

Interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
nProgramming the HomeLink®
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink® but-
tons.
Keep the HomeLink® indicator
light in view while programming.
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1
