LEXUS IS250 2016 Owners Manual

394
5-2. Steps to take in an emergency

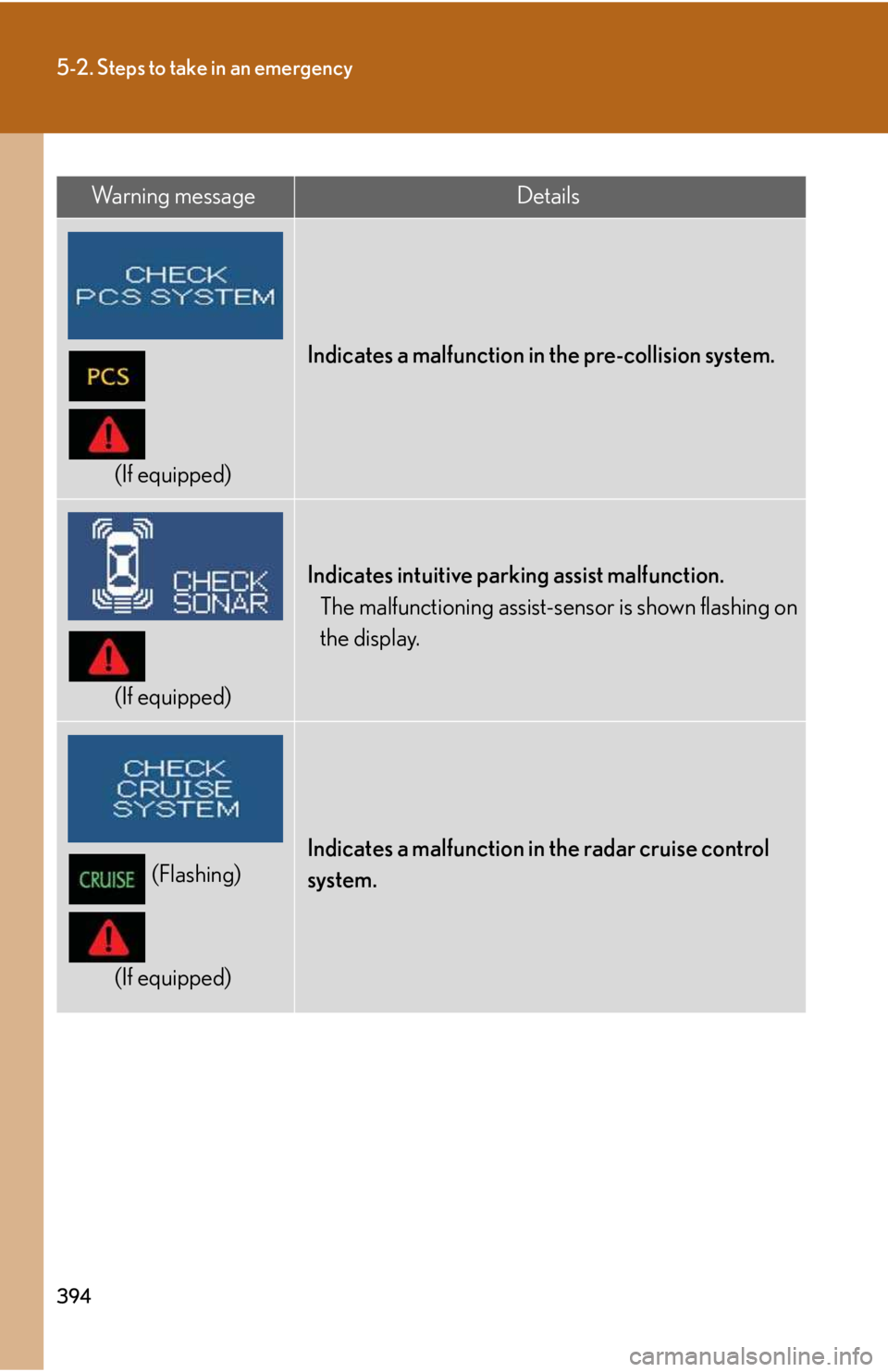

Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates a malfunction in the pre-collision system.
(If equipped)
Indicates intuitive parking assist malfunction.
The malfunctioning assist-sensor is shown flashing on
the display.
(Flashing)
(If equipped)
Indicates a malfunction in the radar cruise control
system.

5

When trouble arises
395
5-2. Steps to take in an emergency

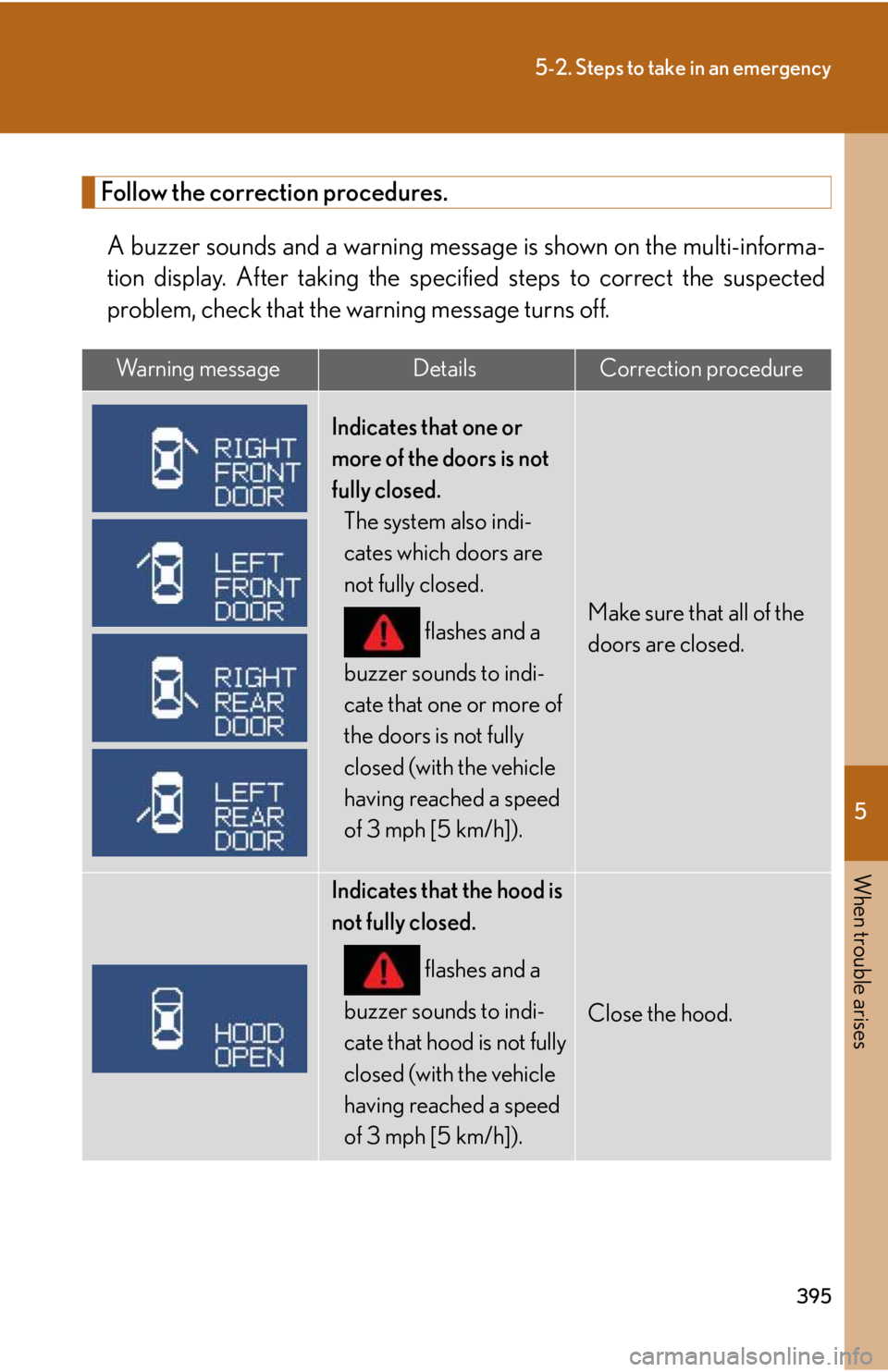

Follow the correction procedures.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the specified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
Indicates that the hood is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

396
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure

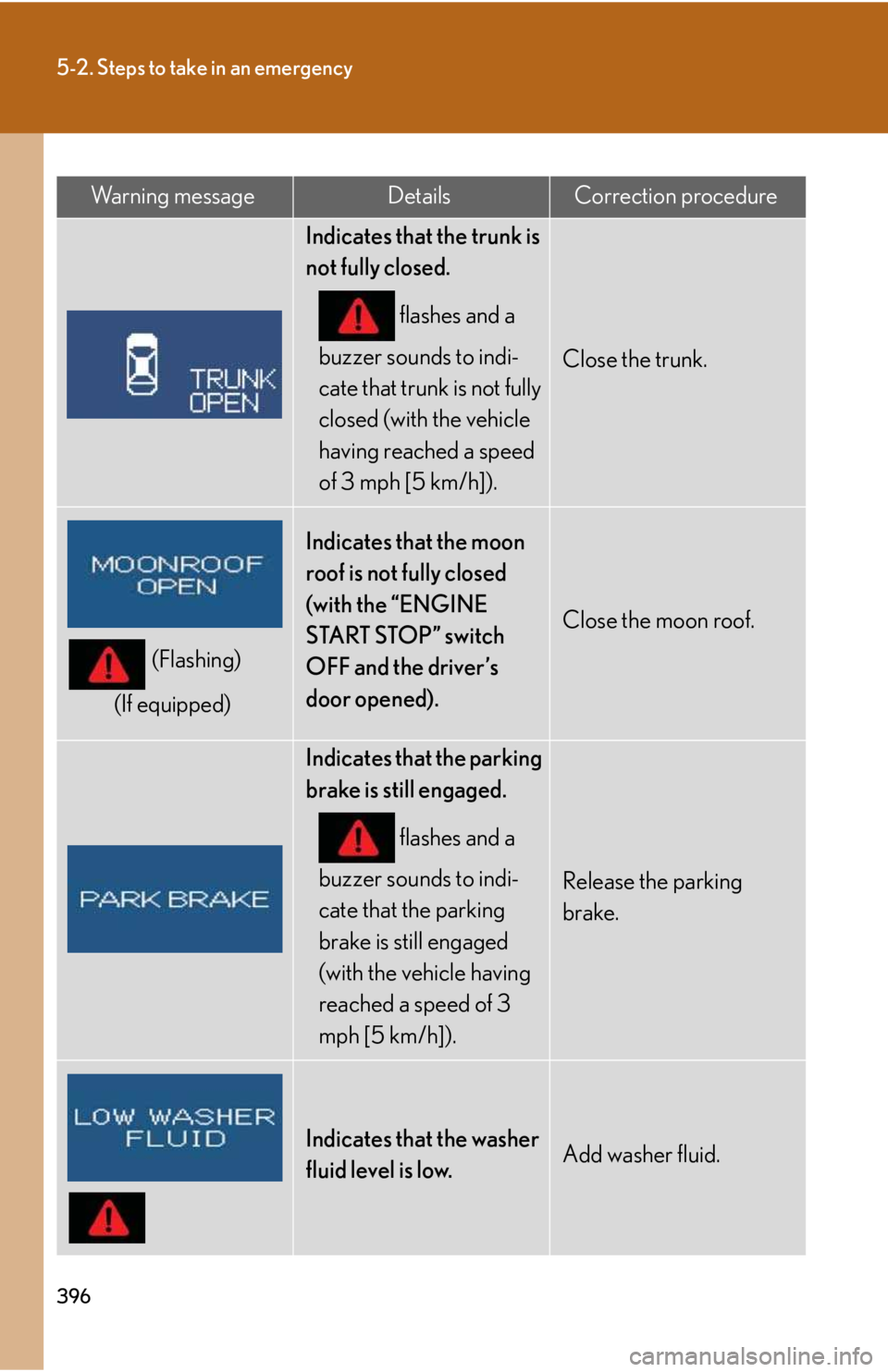

Indicates that the trunk is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened).
Close the moon roof.
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
Indicates that the washer
fluid level is low.Add washer fluid.

5

When trouble arises
397
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that engine oil
level is low.
Check the level of engine
oil, and add if necessary.
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil should be changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).

398
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure

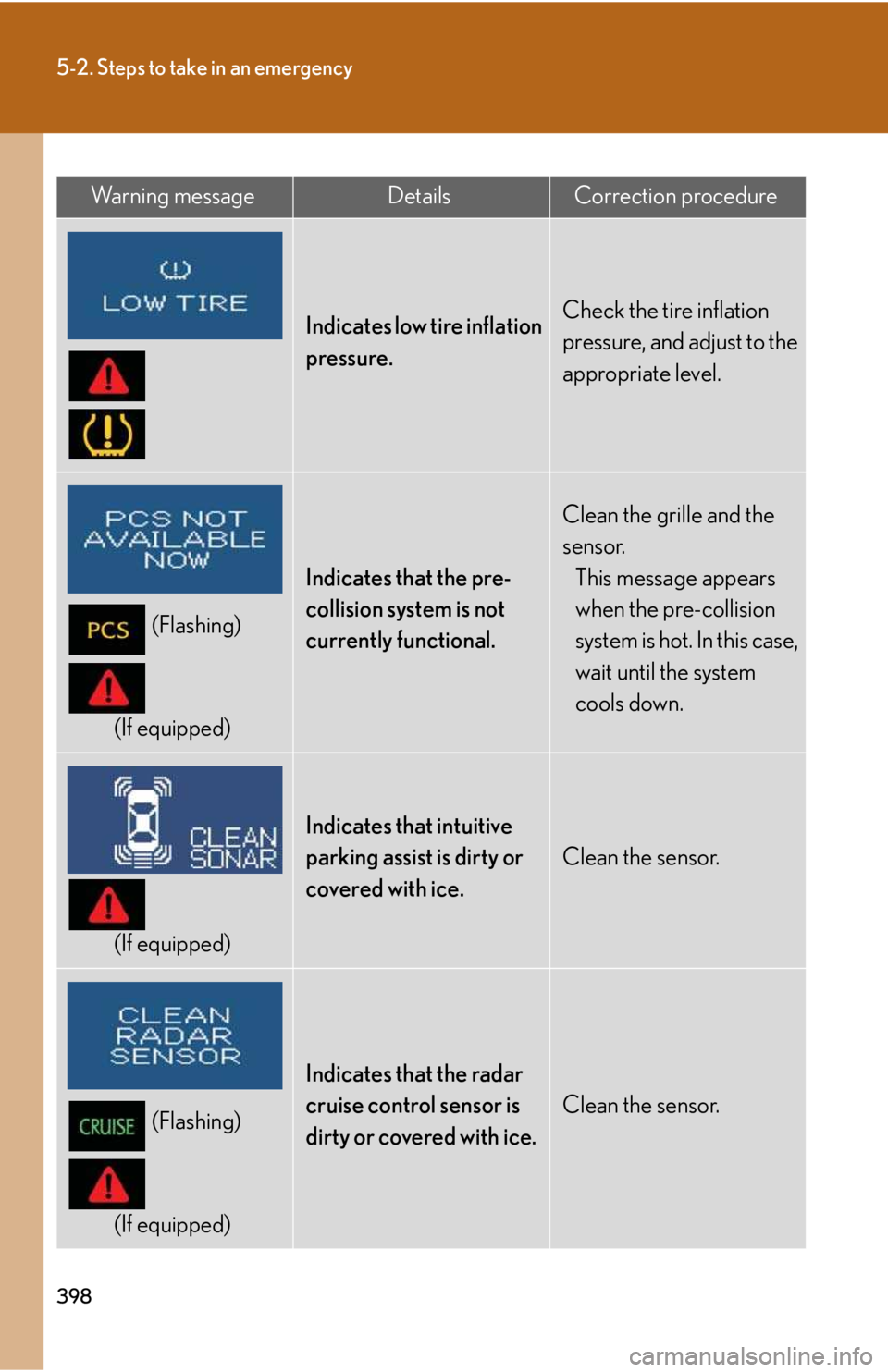

Indicates low tire inflation
pressure.
Check the tire inflation
pressure, and adjust to the
appropriate level.
(Flashing)
(If equipped)
Indicates that the pre-
collision system is not
currently functional.
Clean the grille and the
sensor.
This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
(Flashing)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice.
Clean the sensor.

5

When trouble arises
399
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure

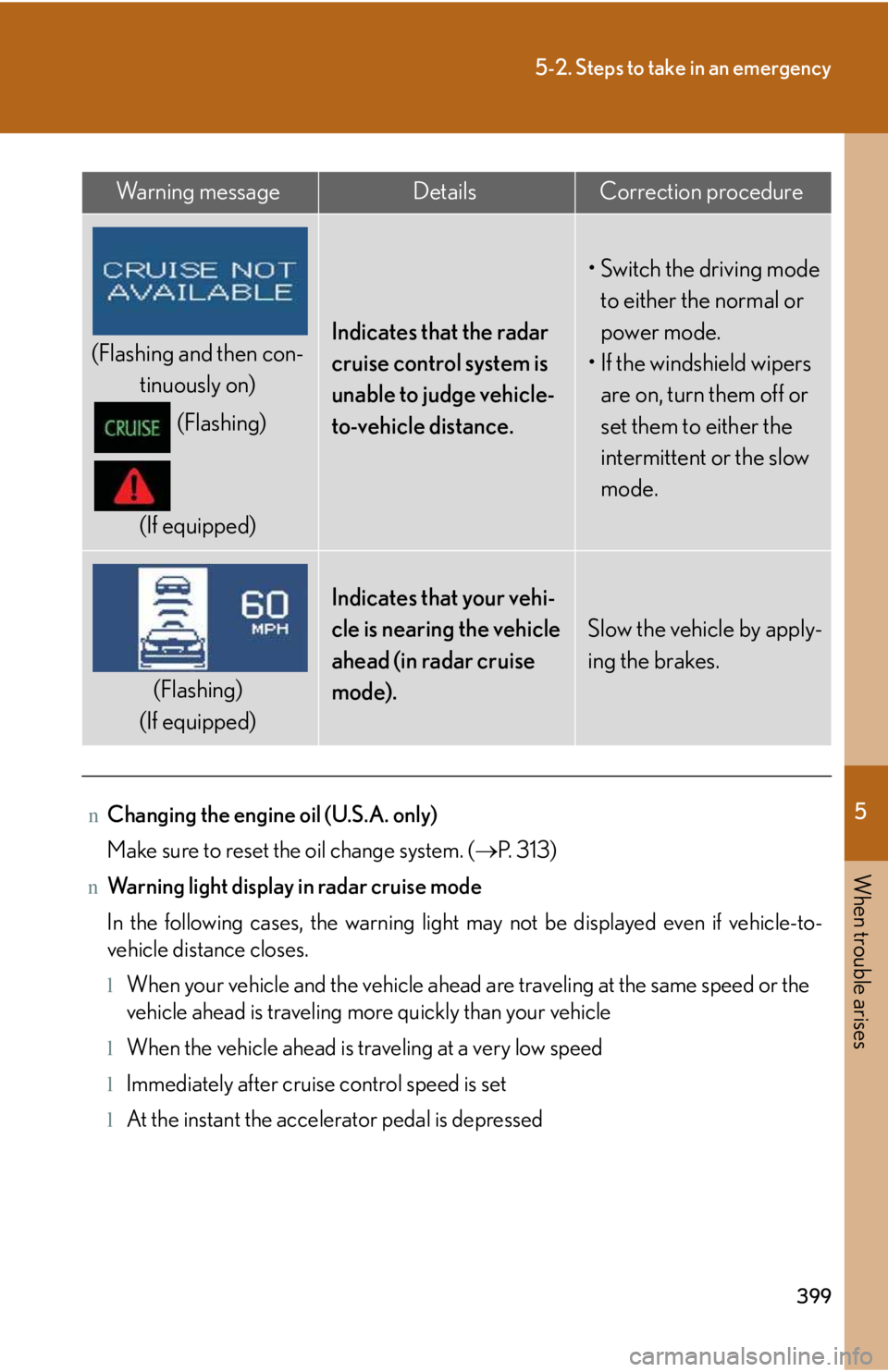

(Flashing and then con-
tinuously on)
(Flashing)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance.

400
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure
Once⎯

(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.*
Once

3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

5

When trouble arises
401
5-2. Steps to take in an emergency
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure

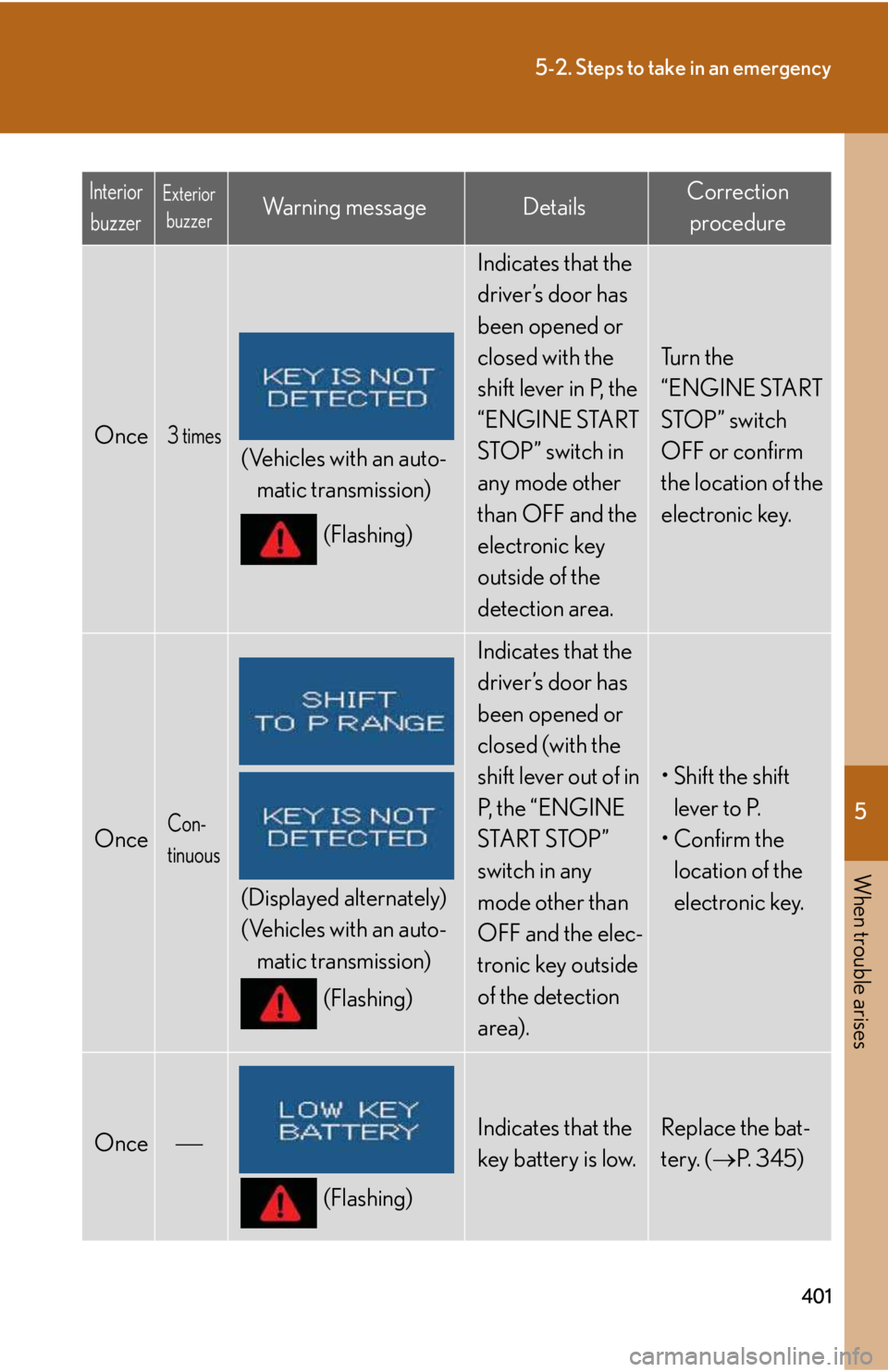

Once

3 times
(Vehicles with an auto-
matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
Once

Con-
tinuous
(Displayed alternately)
(Vehicles with an auto-
matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed (with the
shift lever out of in
P, the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area).

402
5-2. Steps to take in an emergency
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure

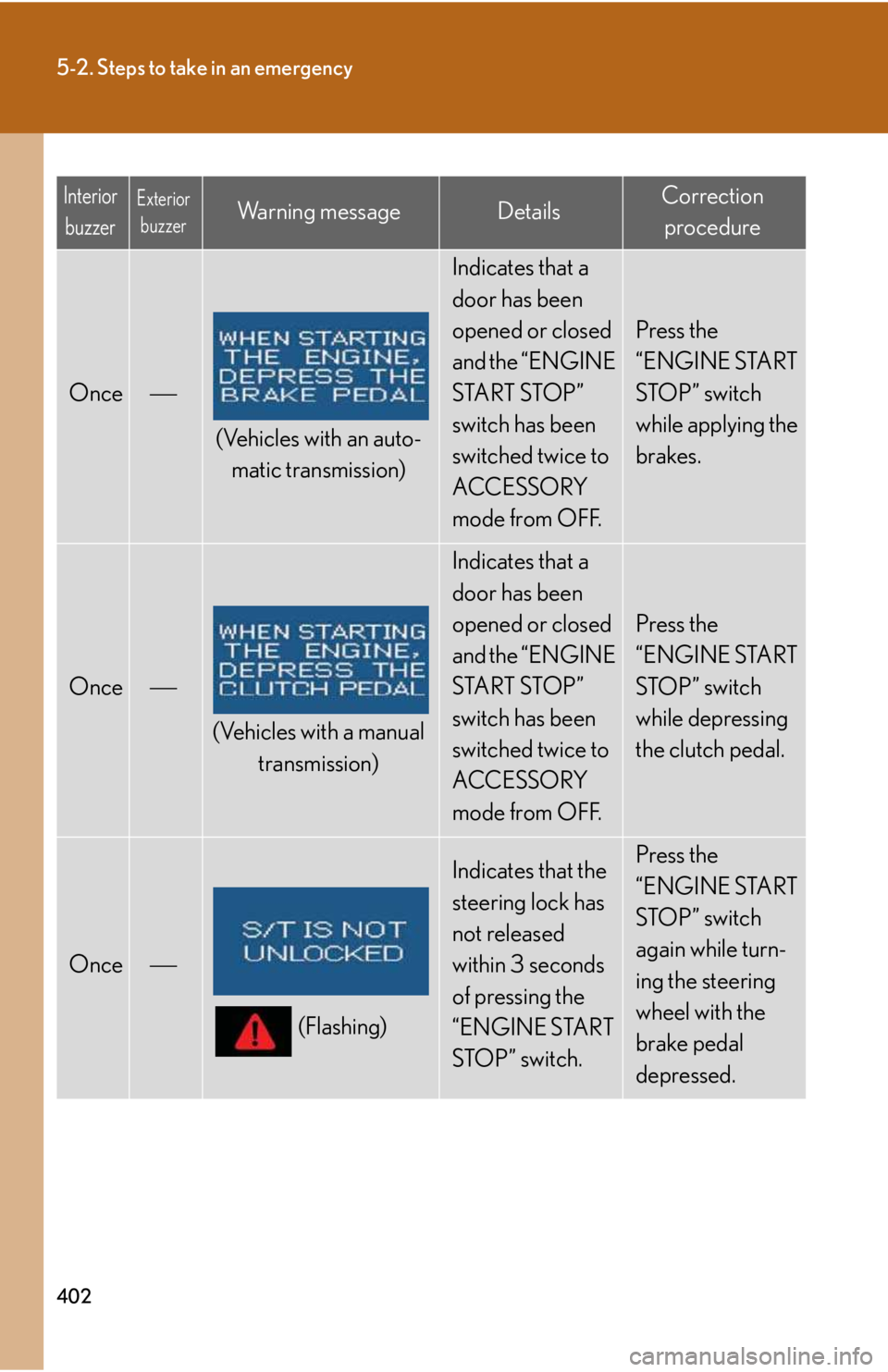

Once⎯
(Vehicles with an auto-
matic transmission)
Indicates that a
door has been
opened or closed
and the “ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from OFF.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.
Once⎯
(Vehicles with a manual
transmission)
Indicates that a
door has been
opened or closed
and the “ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from OFF.
Press the
“ENGINE START
STOP” switch
while depressing
the clutch pedal.
Once⎯
(Flashing)
Indicates that the
steering lock has
not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.
Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.

5

When trouble arises
403
5-2. Steps to take in an emergency
*: If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulties receiving the
signal from the key. (→P. 2 8 )
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure
Once⎯
(Vehicles with an auto-
matic transmission)
Indicates that the
electronic key
does not operate
properly.
→P. 4 1 8
⎯⎯
(Vehicles with an auto-
matic transmission)
Once⎯
(Vehicles with a manual
transmission)
Indicates that the
electronic key
does not operate
properly.
→P. 4 1 8
⎯⎯
(Vehicles with a manual
transmission)
