LEXUS IS250 2016 Owners Manual

404
5-2. Steps to take in an emergency

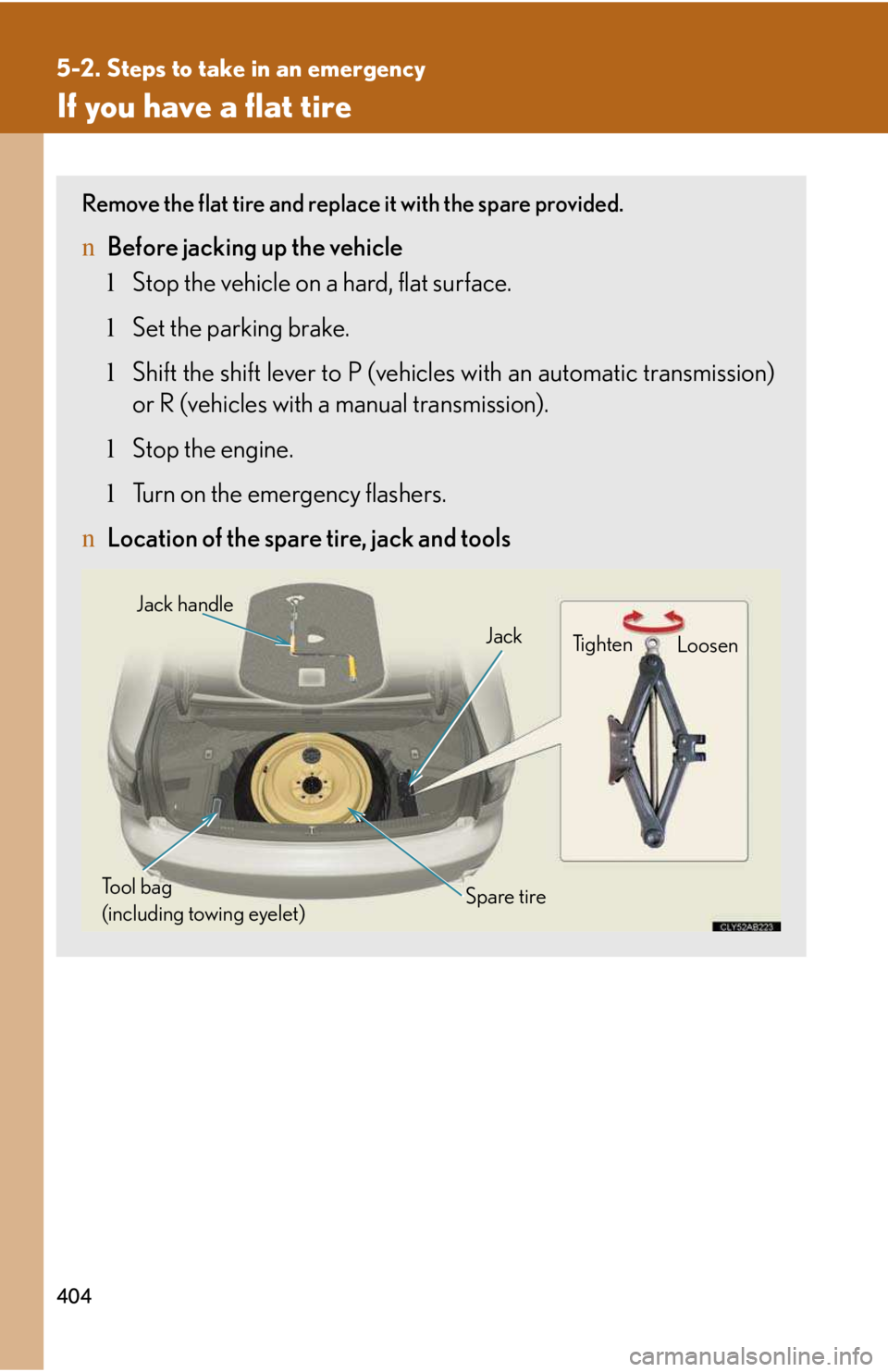

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
nBefore jacking up the vehicle
lStop the vehicle on a hard, flat surface.
lSet the parking brake.
lShift the shift lever to P (vehicles with an automatic transmission)
or R (vehicles with a manual transmission).
lStop the engine.
lTurn on the emergency flashers.
nLocation of the spare tire, jack and tools
Tool bag
(including towing eyelet)
Jack
Jack handle
Spare tire
Ti g h t e nLoosen

5

When trouble arises
405
5-2. Steps to take in an emergency
Taking out the spare tire
Lift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Loosen the center fastener that
secures the spare tire.
STEP1
STEP2
STEP3

406
5-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is in
contact with the jack point.
STEP1
Flat tireWheel chock
positions
Front
Left-hand
side
Behind the
rear right-
hand side tire
Right-
hand side
Behind the
rear left-
hand side tire
Rear
Left-hand
side
In front of the
front right-
hand side tire
Right-
hand side
In front of the
front left-
hand side tire
STEP2
STEP3

5

When trouble arises
407
5-2. Steps to take in an emergency
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tire
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP4
STEP5
STEP1

408
5-2. Steps to take in an emergency
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft

5

When trouble arises
409
5-2. Steps to take in an emergency
nThe compact spare tire
lThe compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
lMake sure to check the tire pressure of the compact spare tire. (→P. 43 9 )
nWhen using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be warned. Also, if you
replace the compact spare tire after the tire pressure warning light comes on, the
light remains on.
nIf you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the following steps
and fit tire chains to the rear tires.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehi-
cle.
Fit tire chains to the rear tires.
nAfter completing the tire change
The tire pressure warning system must be reset. (→P. 3 2 7 )
STEP1
STEP2
STEP3

410
5-2. Steps to take in an emergency
CAUTION
nUsing the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle sud-
denly falling off the jack.
lDo not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
lOnly use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
lAlways check that the tire jack is securely set to the jack point.
lDo not put any part of your body under the vehicle supported by a jack.
lDo not start or run the engine while your vehicle is supported by the jack.
lDo not raise the vehicle while someone is in it.
lWhen raising the vehicle, do not put an object on or under the jack.
lDo not raise the vehicle to a height greater than that required to replace the tire.
lUse a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
nReplacing a flat tire
Observe the following precautions to reduce the risk of death or serious injury.
lNever use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a serious accident.
Remove any oil or grease on the wheel bolts or wheel nuts.
lHave the wheel nuts tightened with a torque wrench to 76 ft

5

When trouble arises
411
5-2. Steps to take in an emergency
CAUTION
nWhen using the spare tire
lRemember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
lDo not use two compact spare tires simultaneously.
lReplace the compact spare tire with a standard tire as soon as possible.
lAvoid sudden acceleration, deceleration and braking, as well as sharp cornering.
nSpeed limit when using the spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
nWhen the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
lABS & brake assist
lVSC
lTRAC
lVDIM
lNavigation system (if equipped)
Also, not only can the following system not be utilized fully, it may actually negatively
effect the drive-train components:
lAWD system (if equipped)

412
5-2. Steps to take in an emergency
NOTICE
nDo not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
nBe careful when driving over bumps with the compact spare tire installed on the
vehicle.
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires. Be careful when driving over uneven road sur-
faces.
nDriving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
nWhen replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
nTo avoid damaging the tire pressure warning valves and transmitters
Do not use liquid sealants on flat tires.

5

When trouble arises
413
5-2. Steps to take in an emergency

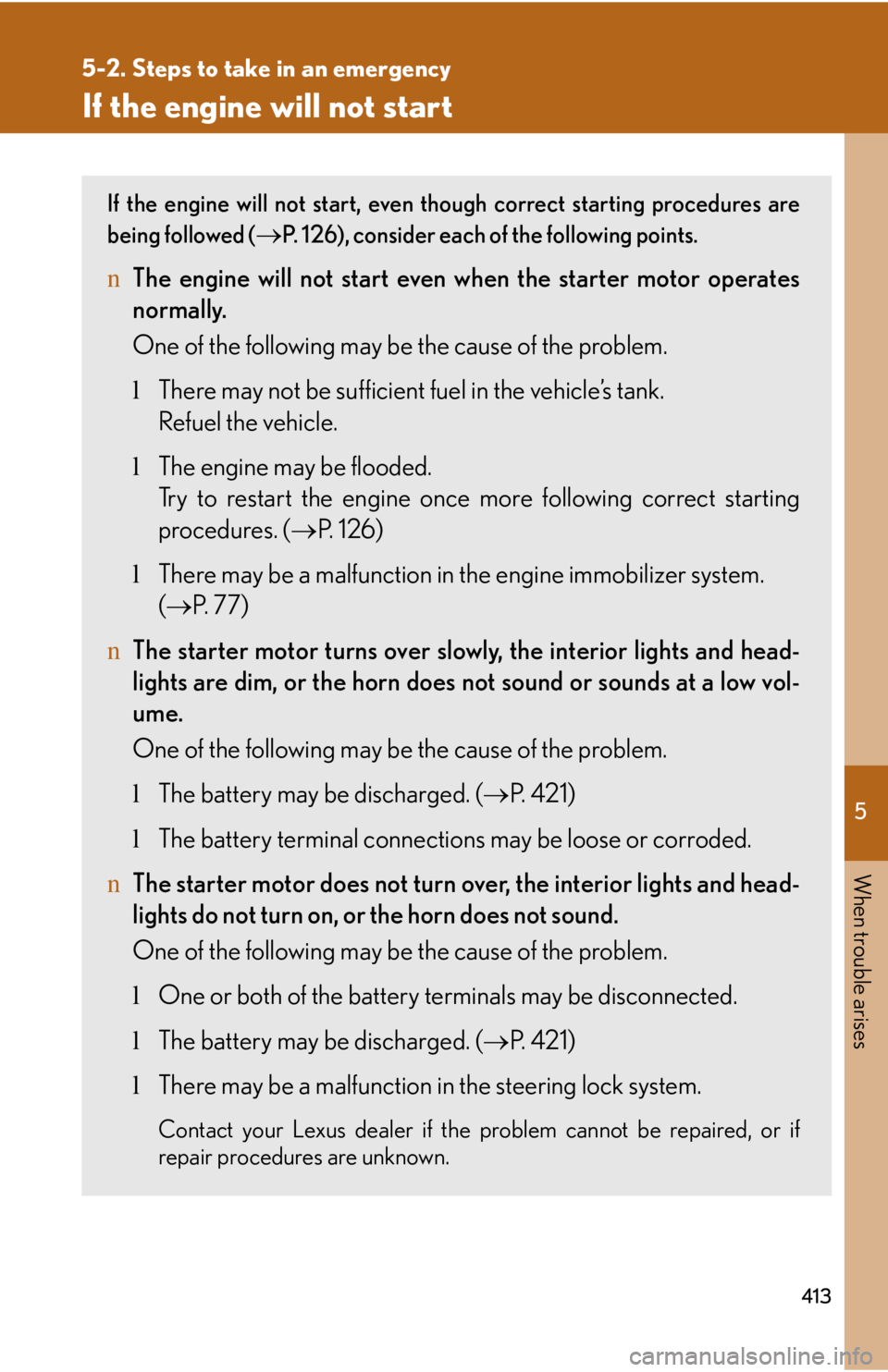

If the engine will not start
If the engine will not start, even though correct starting procedures are
being followed (→P. 126), consider each of the following points.
nThe engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
lThere may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
lThe engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (→P. 1 2 6 )
lThere may be a malfunction in the engine immobilizer system.
(→P. 7 7 )
nThe starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
lThe battery may be discharged. (→P. 4 2 1 )
lThe battery terminal connections may be loose or corroded.
nThe starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
lOne or both of the battery terminals may be disconnected.
lThe battery may be discharged. (→P. 4 2 1 )
lThere may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.
