371
3-7. Other interior features
3
Interior features
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle is
stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (retractable hardtop, power
windows, etc.) as they may interfere with the calibration.

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
10ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, tire inflation pressure warning
system, vehicle stability control
11FR S/HTR LH15 ASeat heaters and ventilators, air condi-
tioning system
12FR DOOR LH20 APower windows, outside rear view
mirrors
13SECURITY7. 5 ASmart access system with push-button
start
14H-LP LVL7. 5 AAFS
15LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, seat belt pretensioner,
intuitive parking assist, cruise control,
PTC heater, exhaust system, smart
access system with push-button start
16FR WIP30 AWindshield wipers
FuseAmpereCircuit

5
When trouble arises
467
5-1. Essential information
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly cont ains the EDR. In a crash or a near
car crash event, this devic e may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver's seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information abov e is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general da ta recorders, the EDR
does not record sound data such as conversation between passengers.
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data usef ul for troubleshooting, there is an event data
recorder (EDR) that records data in a crash or a near car crash event.

5
When trouble arises
473
5-2. Steps to take in an emergency
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your Lexus dealer as
soon as possible.
■Electric power steering warning light
When the battery is low or when the voltage drops temporarily, the electric power
steering warning light may come on.
■Front passenger detection se nsor and passenger seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound,
even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pressing the
satellite switch does not turn off the tire pressure warning light.

5
When trouble arises
479
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a message is show n. Failure to investigate the cause
of the following messages may lead to the system operating abnormally
and possibly cause an accident. Have the vehicle inspected by your
Lexus dealer immediately.
MessageDetails
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates a malfunction in the pre-collision system.
(If equipped)
Indicates intuitive parking assist malfunction.
The malfunctioning assist-sensor is shown flashing on
the display.

5
When trouble arises
485
5-2. Steps to take in an emergency
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil should be changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
(Flashing)
(If equipped)
Indicates that the pre-
collision system is not
currently functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
MessageDetailsCorrection procedure

486
5-2. Steps to take in an emergency
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
(Flashing)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice.
Clean the sensor.
(Flashing and then con- tinuously on)
(Flashing)
(If equipped)Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance.
• Switch the driving mode to either the normal or
power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(Flashing)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode).
Slow the vehicle by apply-
ing the brakes.
MessageDetailsCorrection procedure

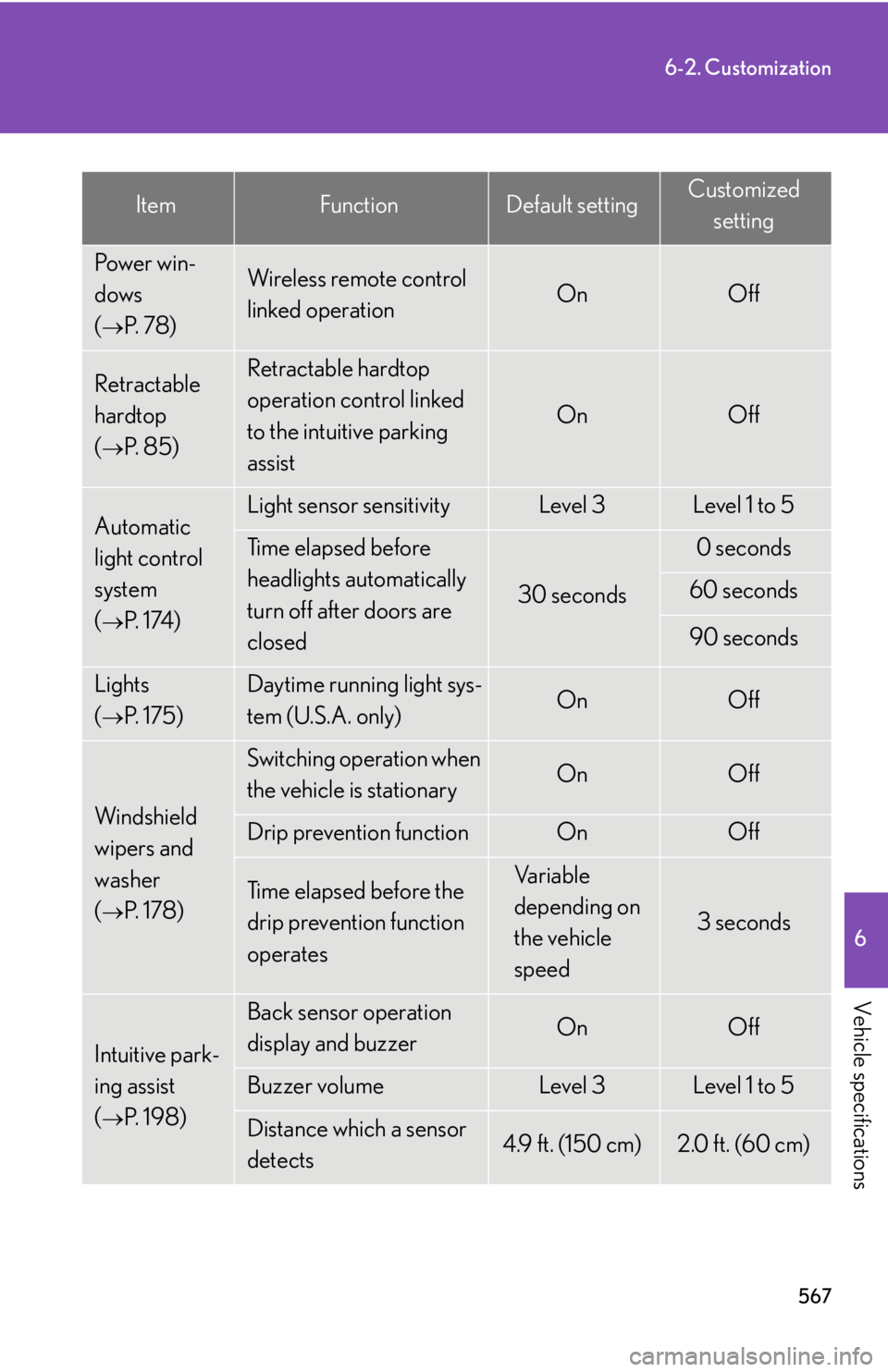

567
6-2. Customization
6
Vehicle specifications
Pow e r w i n -
dows
(
P. 7 8 )
Wireless remote control
linked operationOnOff
Retractable
hardtop
(
P. 8 5 )
Retractable hardtop
operation control linked
to the intuitive parking
assist
OnOff
Automatic
light control
system
(
P. 1 74 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
P. 1 7 5 )
Daytime running light sys-
tem (U.S.A. only)OnOff
Windshield
wipers and
washer
(
P. 1 7 8 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
P. 1 9 8 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
ItemFunctionDefault settingCustomizedsetting

581
Alphabetical index
Back-up lightsWattage ................................................. 547
Battery Checking ...............................................408
If the vehicle has a discharged battery.................................................... 512
Preparing and checking before winter .................................... 220
Bluetooth
® audio ................................ 289
Bluetooth® phone ............................... 307
Brake Fluid .......................................................... 406
Parking brake ........................................ 157
Brake assist ............................................. 204
Care Exterior ...................................................380
Interior..................................................... 383
Seat belts ............................................... 384
Cargo capacity ....................................... 216
Cargo hooks .......................................... 359
CD changer ........................................... 250
CD player................................................ 250
Chains ....................................................... 220
Child restraint system Booster seats, definition.....................116
Booster seats, installation ................ 123
Convertible seats, definition ............116
Convertible seats, installation ....... 123
Front passenger occupant classification system ...........................111
Infant seats, definition ..........................116
Infant seats, installation...................... 123
Installing CRS with LATCH anchors ................................................... 121
Installing CRS with seat belts ........ 123 Installing CRS with top straps........126
Child safety Airbag precautions ............................ 106
Battery precautions .................410, 514
Child restraint system ......................... 116
How your child should wear the seat belt ..........................................68
Installing child restraints................... 120
Power window lock switch .............. 78
Power window precautions ........... 80
Removed electronic key battery precautions........................................ 432
Seat belt guide........................................66
Seat belt extender precautions...... 70
Seat belt precautions ..........................69
Seat heater precautions..................357
Trunk precautions................................. 49
Cigarette lighter....................................353
Cleaning Exterior................................................... 380
Interior .................................................... 383
Seat belts ............................................... 384
Clock .........................................................348
Compass ..................................................368
Condenser ..............................................406
Console box ............................................ 341
Cooling system Engine overheating............................ 515
Cornering assist sensors .................... 198
B
C

586
Alphabetical index
Parking assist sensors .......................... 198
Parking brake .......................................... 157
Parking lightsReplacing light bulbs........................450
Switch ........................................................ 174
Wattage.................................................. 547
PCS ............................................................. 212
Personal lights Switch ...................................................... 339
Power outlet............................................354
Power windows ........................................ 78
Pre-collision system.............................. 212
Radar cruise control ............................. 187
Radiator ....................................................406
Radio .......................................................... 242
RDS ............................................................ 244
Rear turn signal lights Replacing light bulbs........................450
Wattage.................................................. 547
Rear view mirror Compass ...............................................368
Rear window defogger.......................238
Replacing Electronic key battery........................ 431
Fuses ........................................................ 433
Light bulbs.............................................450
Tires .......................................................... 492
Reporting safety defects for U.S. owners .......................................... 572
Retractable hardtop ................................ 81 Safety connect ....................................... 372
Scuff lights................................................ 338
Seat belts
Adjusting the seat belt ....................... 65
Automatic locking retractor ............ 67
Child restraint system installation ............................................ 120
Cleaning and maintaining the seat belts .................................... 384
Emergency locking retractor.......... 67
How to wear your seat belt ............ 65
How your child should wear the seat belt.......................................... 68
Pregnant women, proper seat belt use ........................ 68
Reminder light....................................... 471
Seat belt extenders.............................. 68
Seat belt guide ........................................66
Seat belt pretensioners ...................... 67
Seat heaters ............................................ 355
Seat position memory............................ 60
Seat ventilators ...................................... 355
Seating capacity......................................219
Seats Adjustment ................................................ 51
Adjustment precautions ................... 55
Child seats/child restraint system installation............................ 120
Cleaning ................................................ 383
Driver’s seat position memory ...... 56
Front passenger seat position memory ................................................. 60
Head restraint ......................................... 62
Properly sitting in the seat................ 98
Seat heaters ......................................... 355
Ventilated seats.................................. 355
Service reminder indicators .............166P
R
S
