Lexus IS250C 2014 Owner's Manual

550
5-2. Steps to take in an emergency
IS250C/350C_U
If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
Stop the engine by pressing and
holding the “ENGINE START
STOP” switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP4
STEP5

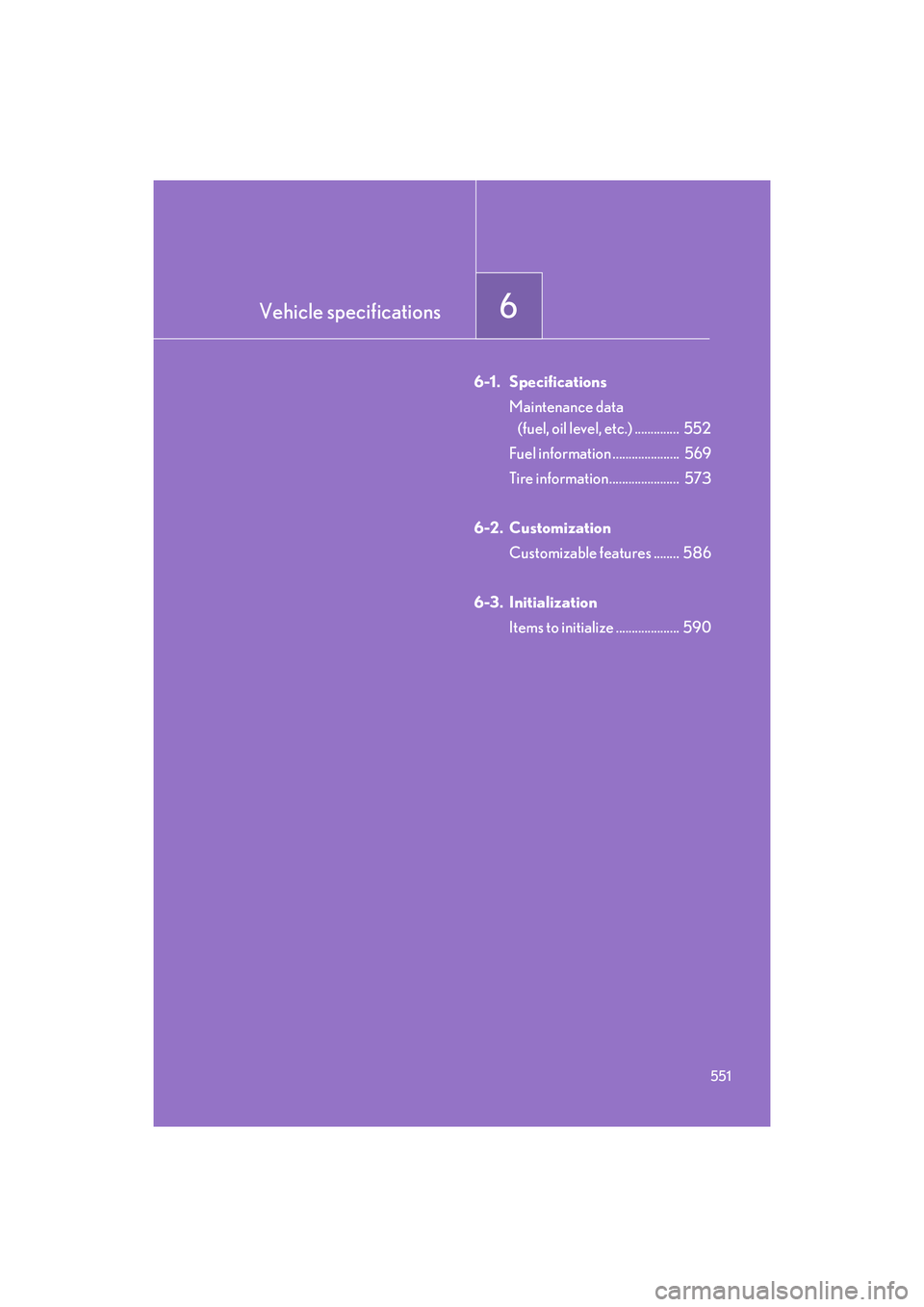

Vehicle specifications6
551
IS250C/350C_U
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 552
Fuel information ..................... 569
Tire information...................... 573
6-2. Customization Customizable features ........ 586
6-3. Initialization Items to initialize .................... 590

552
IS250C/350C_U
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicle with 17 inch disk wheels
*3: Vehicle with 18 inch disk wheels
Overall length182.5 in. (4635 mm)
Overall width70.9 in. (1800 mm)
Overall height *155.7 in. (1415 mm)
Wheelbase107.4 in. (2730 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear60.4 in. (1535 mm)*2
60.0 in. (1525 mm)*3
Vehicle capacity weight
(Occupants + luggage)660 lb. (295 kg)

553
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Vehicle identification■ Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.

554
6-1. Specifications
IS250C/350C_U■
Engine number
The engine number is stamped on the engine block as shown.

555
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Engine
Fuel
IS250CIS350C
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.27 × 3.03 in.
(83.0 × 77.0 mm)3.70 × 3.27 in.
(94.0 × 83.0 mm)
Displacement 152.5 cu.in.
(2500 cm3)
210.9 cu.in.
(3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)17.2 gal. (65 L, 14.3 Imp. gal.)

556
6-1. Specifications
IS250C/350C_U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
IS250C
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill 
reference*)
without filter
with filter
6.2 qt. (5.9 L, 5.2 Imp. qt.)
6.7 qt. (6.3 L, 5.5 Imp. qt.)
Outside temperature

557
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

558
6-1. Specifications
IS250C/350C_U IS350C
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Outside temperature

559
6-1. Specifications
6
Vehicle specifications
IS250C/350C_UHow to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Cooling system
Capacity
IS350C
9.6 qt. (9.1 L, 8.0 Imp. qt.)
IS250C
10.9 qt. (10.3 L, 9.1 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
