Lexus IS250C 2014 Owner's Manual

520
5-2. Steps to take in an emergency
IS250C/350C_U
CAUTION
■When using the compact spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●VDIM
●EPS
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Dynamic radar cruise control (if equipped)
●Cruise control (if equipped)
●PCS (if equipped)

5
When trouble arises
521
5-2. Steps to take in an emergency
IS250C/350C_U

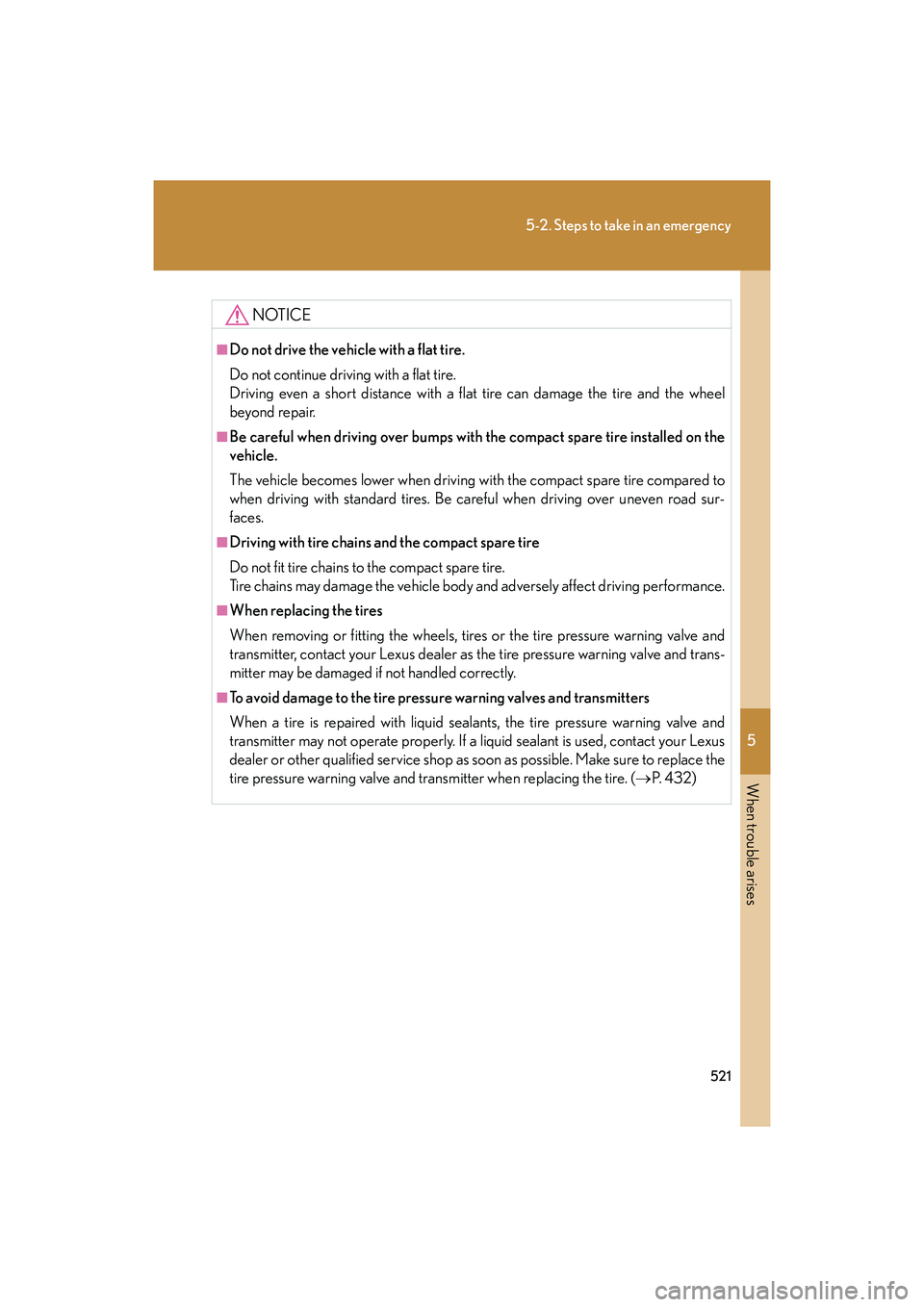

NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■Be careful when driving over bumps with the compact spare tire installed on the
vehicle.
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires. Be careful when driving over uneven road sur-
faces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as soon as possible. Make sure to replace the
tire pressure warning valve and transmitter when replacing the tire. (→P. 4 3 2 )

522
5-2. Steps to take in an emergency
IS250C/350C_U
If you have a flat tire (vehicles with run-flat tires)
■In some condition (such as at high temperatures)
You cannot continue driving for up to 100 miles (160 km).
■If you cannot distinguish between the standard tires and run-flat tires
Consult your Lexus dealer.
■Spare tire
A spare tire is not provided on the vehicle with run-flat tires.
■For the detailed information on run-flat tires
See the tire warranty book.
Take your vehicle to the nearest Lexus dealer or authorized tire dealer as
soon as possible.
■Run-flat tires (A “RFT” or “DSST” mark is molded on the sidewall)
You can continue driving a vehi-
cle with run-flat tires even if any
tire goes flat.
It is able to run for a maximum of
100 miles (160 km) at a speed
below 50 mph (80 km/h) after
the tire pressure warning light
comes on. (→ P. 4 9 3 )

5
When trouble arises
523
5-2. Steps to take in an emergency
IS250C/350C_U
NOTICE
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damaging the tire pressure warning valves and transmitters
When a tire is repaired with the emergency tire puncture repair kit, the tire pressure
warning valve and transmitter may not operate properly. If the emergency tire
puncture repair kit is used, replace the tire pressure warning valve and transmitter
when replacing the tire.

524
5-2. Steps to take in an emergency
IS250C/350C_U
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (
→P. 147), consider each of the following points.
■The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 147)
● There may be a malfunction in the engine immobilizer system.
(→ P. 9 8 )
■ The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
● The battery may be discharged. ( →P. 5 3 2 )
● The battery terminal connections may be loose or corroded.

5
When trouble arises
525
5-2. Steps to take in an emergency
IS250C/350C_U
■The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 5 3 2 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

526
5-2. Steps to take in an emergency
IS250C/350C_U
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
527
5-2. Steps to take in an emergency
IS250C/350C_U
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate.

528
5-2. Steps to take in an emergency
IS250C/350C_U
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk
Use the mechanical key built in to the electronic keys to operate the
doors. (→ P. 2 9 )
Doors Remove the cover on the driver’s
door handle.
Locks both side doors
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver's door. Turning the key
once again unlocks the passenger’s
door.
If communication between the electronic key and vehicle is interrupted
(→ P. 36) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
STEP1
STEP2

5
When trouble arises
529
5-2. Steps to take in an emergency
IS250C/350C_UAfter the operation is completed,
reinstall the cover.
Hook the upper claw of the cover
onto the upper catch on the vehi-
cle side, and then push on the
lower side of the cover.
Make sure that the lower claw of
the cover is securely fastened to
the lower catch on the vehicle side.
If the cover is not securely
attached, it may fall off while driv-
ing.
Tr u n k
Remove the cover using a
mechanical key.
Turn the mechanical key clock-
wise to open.
STEP3
STEP1
STEP2
