INTERIOR EQUIPMENT
48
VANITY MIRRORS
SS14001

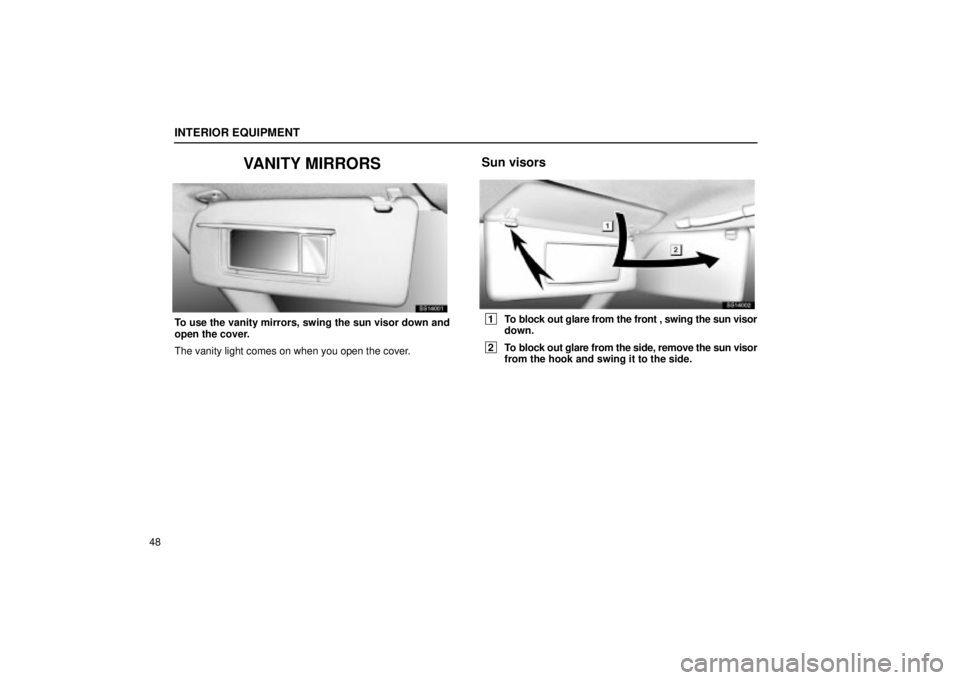

To use the vanity mirrors, swing the sun visor down and
open the cover.
The vanity light comes on when you open the cover.
Sun visors
SS14002
1To block out glare from the front , swing the sun visor
down.
2To block out glare from the side, remove the sun visor
from the hook and swing it to the side.

INTERIOR EQUIPMENT
49
INTERIOR LIGHTS
SS14003
To turn on the interior light, slide the switch.
With the switch in the ºDOORº position, the light comes on
when any of the doors are opened. After all the doors are
closed, the light remains on for about 15 seconds and then
goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in ºACCº or
ºONº position.
2. The ignition key is turned to ºACCº or ºONº when the light
is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in while the
other doors are locked.
PERSONAL LIGHTS
SS14005

With moon roof
SS14006

Without moon roof
To turn on the personal light, push the switch. To turn it
off, push the switch again.

INTERIOR EQUIPMENT
50
IGNITION SWITCH LIGHT
SS14007
For easy access to the ignition switch, the ignition switch
light comes on when any of the doors are opened.
The light remains on for about 15 seconds and goes out after
all the doors are closed. However, the light goes out
immediately when all the doors are locked or the ignition key
is in the ºACCº or ºONº position.
CLOCK
SS14008

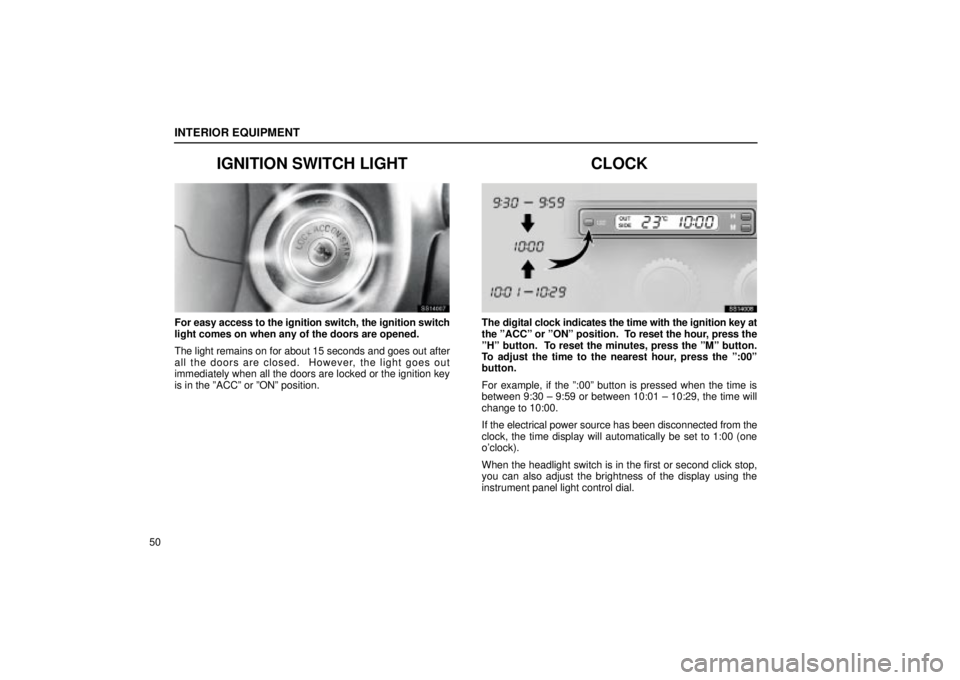

The digital clock indicates the time with the ignition key at
the ºACCº or ºONº position. To reset the hour, press the
ºHº button. To reset the minutes, press the ºMº button.
To adjust the time to the nearest hour, press the º:00º
button.
For example, if the º:00º button is pressed when the time is
between 9:30 ± 9:59 or between 10:01 ± 10:29, the time will
change to 10:00.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o'clock).
When the headlight switch is in the first or second click stop,
you can also adjust the brightness of the display using the
instrument panel light control dial.

INTERIOR EQUIPMENT
51
OUTSIDE TEMPERATURE DISPLAY
SV14006

Vehicles sold in U.S.A.
SS14009

Vehicles sold in Canada

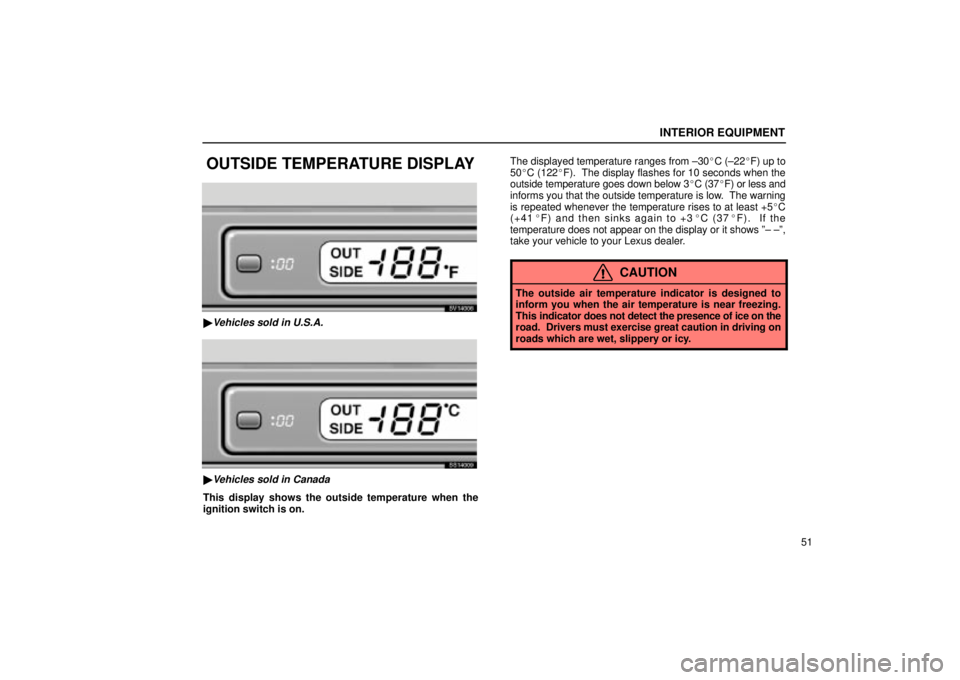

This display shows the outside temperature when the
ignition switch is on.The displayed temperature ranges from ±30
C (±22F) up to
50 C (122 F). The display flashes for 10 seconds when the
outside temperature goes down below 3 C (37F) or less and
informs you that the outside temperature is low. The warning
is repeated whenever the temperature rises to at least +5 C
(+41 F) and then sinks again to +3 C ( 3 7 F). If the
temperature does not appear on the display or it shows º± ±º,
take your vehicle to your Lexus dealer.
CAUTION
The outside air temperature indicator is designed to
inform you when the air temperature is near freezing.
This indicator does not detect the presence of ice on the
road. Drivers must exercise great caution in driving on
roads which are wet, slippery or icy.

INTERIOR EQUIPMENT
52
CIGARETTE LIGHTER ANDASHTRAY
SV14002

Cigarette lighter and front ashtray
SS14011

Rear ashtray
Cigarette Lighter

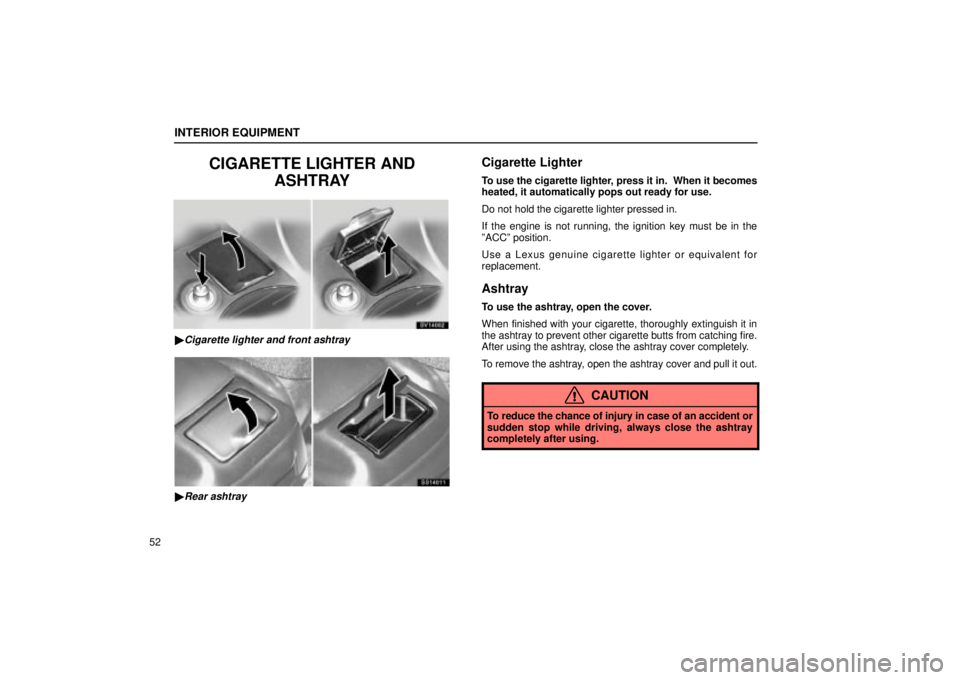

To use the cigarette lighter, press it in. When it becomes
heated, it automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
ºACCº position.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
Ashtray
To use the ashtray, open the cover.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the ashtray cover completely.
To remove the ashtray, open the ashtray cover and pull it out.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always close the ashtray
completely after using.

INTERIOR EQUIPMENT
53
POWER OUTLET
SV14004

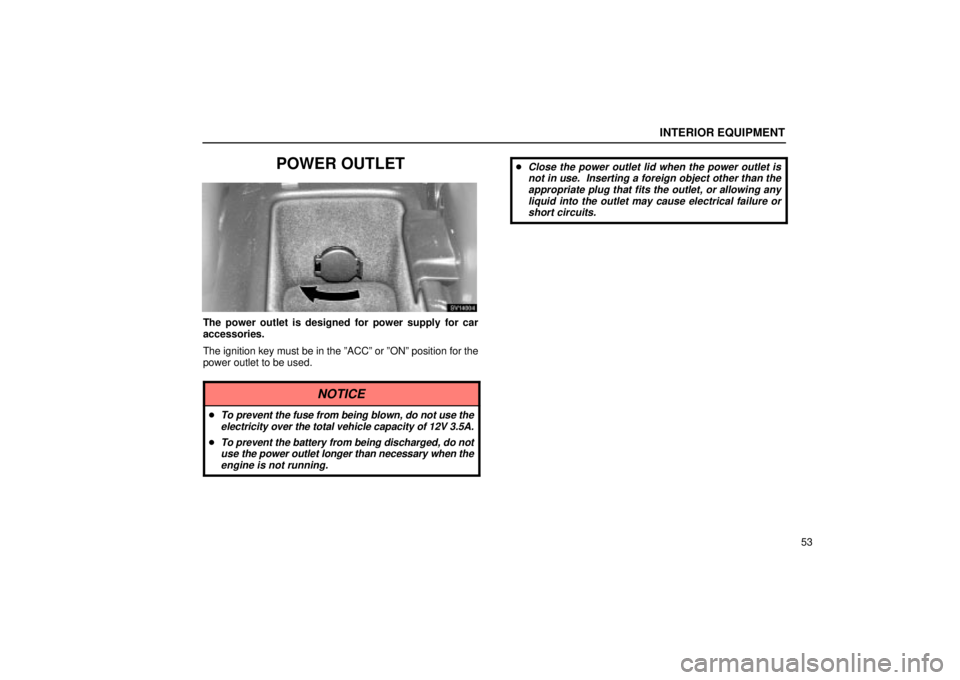

The power outlet is designed for power supply for car
accessories.
The ignition key must be in the ºACCº or ºONº position for t\
he
power outlet to be used.
NOTICE
To prevent the fuse from being blown, do not use theelectricity over the total vehicle capacity of 12V 3.5A.
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting a foreign object other than theappropriate plug that fits the outlet, or allowing anyliquid into the outlet may cause electrical failure orshort circuits.

INTERIOR EQUIPMENT
54
GLOVE BOX
SS14012

1Unlock 2Open 3Lock

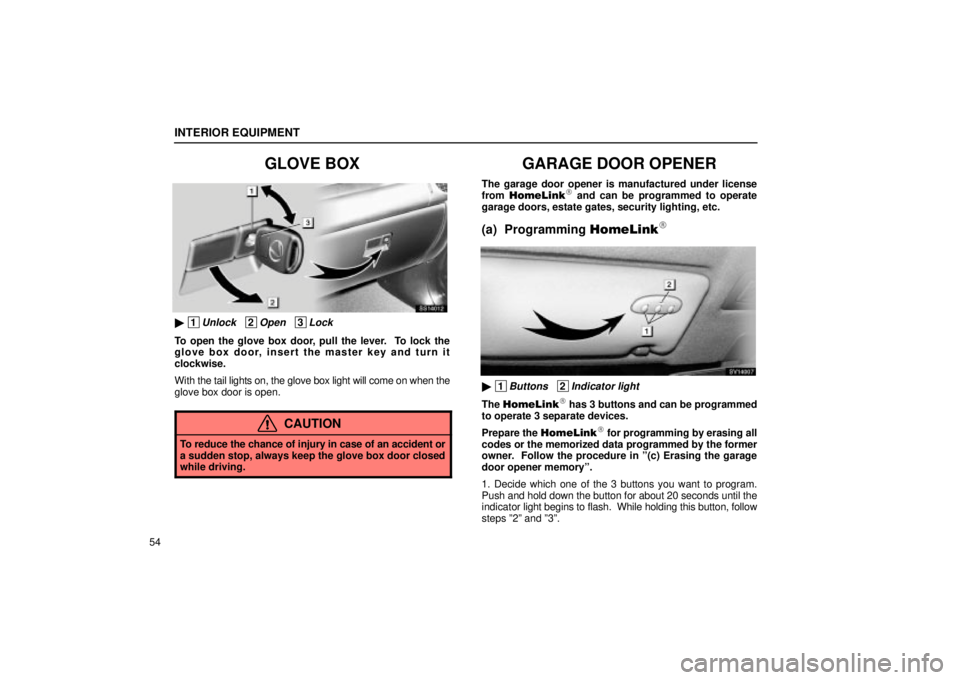

To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
GARAGE DOOR OPENER
The garage door opener is manufactured under license
from HomeLink and can be programmed to operate
garage doors, estate gates, security lighting, etc.
(a) Programming HomeLink
SV14007

1Buttons 2Indicator light
The HomeLink has 3 buttons and can be programmed
to operate 3 separate devices.
Prepare the HomeLink
 for programming by erasing all
codes or the memorized data programmed by the former
owner. Follow the procedure in º(c) Erasing the garage
door opener memoryº.
1. Decide which one of the 3 buttons you want to program.
Push and hold down the button for about 20 seconds until the
indicator light begins to flash. While holding this button, follow
steps º2º and º3º.

INTERIOR EQUIPMENT
55
2. Bring
the hand held garage door opener within about 25 mm
(1 in.) of the button being programmed and push the button on
the hand held garage door opener. The signal from the hand
held garage door opener is sent to the vehicle's opener.
3. When the frequency and code is registered, the indicator
light flashes rapidly. At this point, you can release both buttons.
4. To program the remaining buttons, repeat steps º1º through
º3º.
If you want to replace an existing program with a new program,
select the button you want to program. Follow the procedure
from step 1.
If the transmitter has a ºrolling code featureº, it is
necessary to program the in±garage receiver after
programming HomeLink
.
1. Locate the ºtrainingº or ºlearningº button on the
in±garage receiver and push and release this button.
Location of the button may vary by the garage door
opener manufacturer.
2. Firmly push and release the trained HomeLink

button 2 times (some garage door manufacturer may
require you to push the HomeLink button up to 3 times)
to complete the process.
The garage door should now operate when the
HomeLink
 button is pushed. Do not use the
HomeLink
 universal transmitter with any
garage door opener that lacks the safety stop and reverse
feature as required by Federal Safety Standards. This
includes any garage door opener model manufactured before
April 1, 1982.
CAUTION
When programming or operating the garage door
opener, make sure there is no one around the moving
door. It is dangerous if someone is caught.
(b) Operating the garage door opener
Push the appropriate button to activate the garage door
opener. The indicator light comes on. The garage door opener
continues to send the signal for up to 20 seconds as long as
the button is pushed.
(c) Erasing the garage door opener memory
Push and hold down the 2 outside buttons for about 20
seconds until the indicator light flashes. All memorized data
will be erased.

INTERIOR EQUIPMENT
56
FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Rules Part 15.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
that may be received, including interference that
may cause undesired operation. WARNING: This
transmitter has been tested and complies with
FCC and DOC/MDC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate the device.

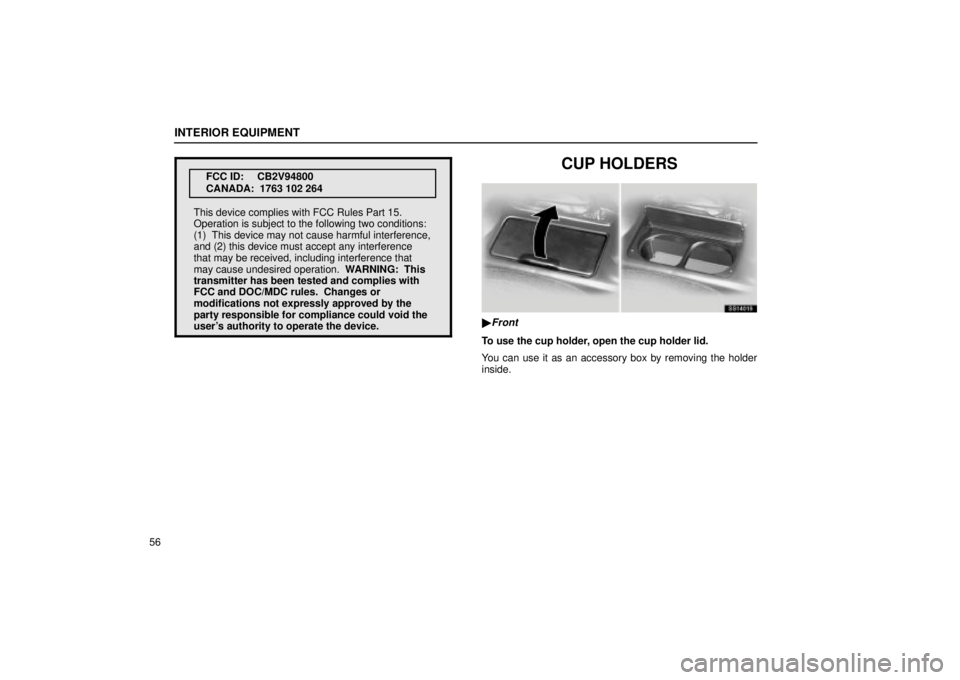

CUP HOLDERS
SS14015

Front

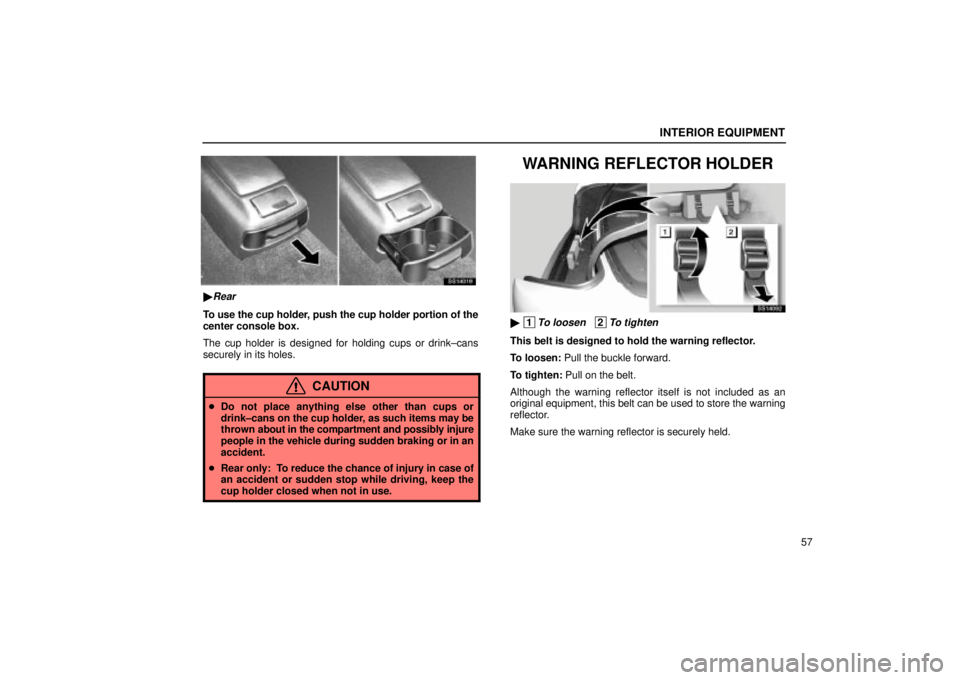

To use the cup holder, open the cup holder lid.
You can use it as an accessory box by removing the holder
inside.

INTERIOR EQUIPMENT
57
SS14018

Rear
To use the cup holder, push the cup holder portion of the
center console box.
The cup holder is designed for holding cups or drink±cans
securely in its holes.
CAUTION
Do not place anything else other than cups or
drink±cans on the cup holder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 Rear only: To reduce the chance of injury in case of
an accident or sudden stop while driving, keep the
cup holder closed when not in use.
WARNING REFLECTOR HOLDER
SS14092

1To loosen 2To tighten
This belt is designed to hold the warning reflector.
To loosen: Pull the buckle forward.
To tighten: Pull on the belt.
Although the warning reflector itself is not included as an
original equipment, this belt can be used to store the warning
reflector.
Make sure the warning reflector is securely held.
