INTRODUCTION
298
DO±IT±YOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do±it±yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do±it±yourself
maintenance, see ºParts and toolsº on page 299.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION

When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)

Right after driving, the engine compartment ± the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. ± will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.

Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.

Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.

Be sure the ignition is off if you work near the electric
cooling fan or radiator grille. With the ignition on, the
electric cooling fan may automatically start to run if
the air conditioning is on and/or if the coolant
temperature is high.

Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.

Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.

Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling.

INTRODUCTION
299
NOTICE

Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally causing a short circuit.

Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.

Do not drive with the air cleaner removed, or excessive engine wear could result. Also backfiringcould cause a fire in the engine compartment.

Do not overfill automatic transmission fluid, or thetransmission could be damaged.

Be careful not to scratch the glass surface with thewiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do±it±yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):

Use API grade SJ, ºEnergy±Conservingº multigrade engine
oil or ILSAC multigrade engine oil. For recommended oil
viscosity, see page 312.
Tools:

Rag or paper towel

Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT LEVEL
Parts (if level is low):

ºToyota Long Life Coolantº or equivalent
See ºChecking the engine coolant levelº on page 313 for
instructions.

Demineralized or distilled water
Tools:

Funnel (only for adding coolant)

SECTION 6 ± 2
303
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Fuel 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel pump shut off system 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption 308
. . . . . . . . . . . . . . . . . . . . . . . .
Used engine oil 310
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Checking the engine oil level 310
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 313
. . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plugs 314
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

ENGINE
305
± COOLING SYSTEM
Capacity
Coolant type
7.5 L (7.9 qt., 6.6 lmp.qt.)
ºToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
± FUELFuel type
Octane rating
Only UNLEADED
91 (Research octane number 96) or higher
± IGNITION SYSTEMSpark plug ± Make DENSO ± Gap
SK16R±P11
1.1 mm (0.043 in.)
± ELECTRICAL SYSTEM
Battery ± Open voltage at 20 C (68F):
Charging rates
12.7V Fully charged
12.3V Half charged
11.9V Discharged
[Voltage that is checked 20 minutes after the key is removed
with all the lights turned off]
5A max.

ENGINE
313
CHECKING THE ENGINE COOLANTLEVEL
SV62006

1Reservoir cap 2Upper line 3Lower line
Look at the see±through coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between theºFULLº and ºLº lines on the reservoir. If the
level is low, add ethylene±glycol type coolant for a proper
corrosion protection of aluminum components.
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the ºLº line,
add coolant. Bring the level up to the ºFULLº line.
Always use ethylene±glycol type coolant for a proper corrosion
protection of aluminum components. See information in the
next column. If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. V isually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.

ENGINE
314
Coolant type selection
Use of improper coolants may damage your engine cooling
system. Your coolant must contain ethylene±glycol type
coolant for a proper corrosion protection of your engine that
contains aluminum components. Use ºToyota Long Life
Coolantº or equivalent.
In addition to preventing freezing and subsequent damage to
the engine, this type of coolant will also prevent corrosion.
Further supplemental inhibitors or additives are neither
needed nor recommended.
Read the coolant container for information on freeze
protection. Follow the manufacturer's directions for how much
to mix with plain water (preferably demineralized water or
distilled water). The total capacity of the cooling system is
given on page 305.
We recommend to use 50% solution for your Lexus, to provide
protection down to about ±35 C (±31F). When it is extremely
cold, to provide protection down to about ±50C (±58F), 60%
solution is recommended. Do not use more than 70% solution
for better coolant performance.
NOTICE
Do not use alcohol type antifreeze or plain water alone.
SPARK PLUGS
SV62007

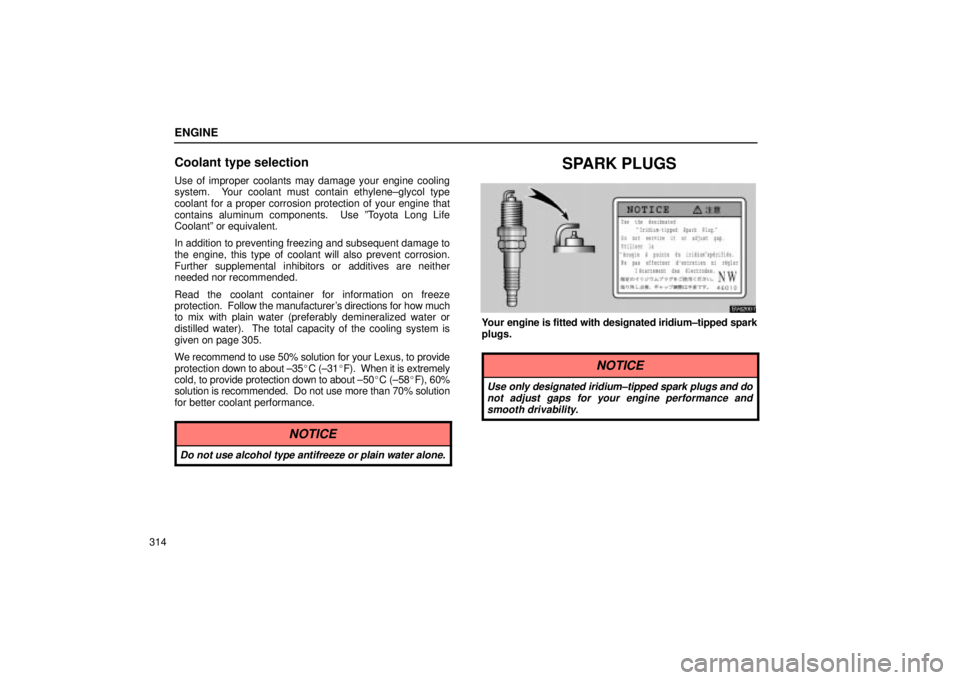

Your engine is fitted with designated iridium±tipped spark
plugs.
NOTICE
Use only designated iridium±tipped spark plugs and do not adjust gaps for your engine performance andsmooth drivability.

3
GAS STATION INFORMATION

Fuel selection:
Select premium unleaded gasoline with an Octane Rat-
ing of 91 (Research Octane Number 96) or higher for
optimum engine performance. However, if such pre-
mium type cannot be obtained, you may temporarily use
unleaded gasoline with an Octane Rating as low as 87
(Research Octane Number 91).

Fuel tank capacity:
66 L (17.5 gal., 14.5 lmp.gal.)

Engine oil:
API SJ, ºEnergy±Conservingº multigrade engine oil or
ILSAC multigrade engine oil.
Recommend oil viscosity ± SAE 5W±30 if normal
temperatures are below 38 C (100F)
Oil capacity: L (qt., lmp.qt.)
Drain and refill with filter 5.4 (5.7, 4.8)
without filter 5.1 (5.4, 4.5)
See page 310 for detailed information.

Engine coolant:
Capacity: 7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant type ± ºToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper corrosion
protection of aluminum components For checking the engine coolant, see page 313.
Do not use alcohol type antifreeze or plain water alone.

Automatic transmission:
Fluid type ± Automatic transmission fluid Type T±IV
See page 316 for detailed information.

Tire information:
See page 323 through 332 for detailed information.

Tire pressure:
Tire size: 225/45ZR17, 215/45ZR17 or P205/55R16 89V
Tire pressure: cold tires
kPa (kgf/cm
2 or bar, psi)
Ti
re sizeFrontRear
225/45ZR17 ± 240 (2.4, 35)
215/45ZR17 230 (2.3, 33) 230 (2.3, 33)
P205/55R16 89V 230 (2.3, 33) 230 (2.3, 33)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the
tire sidewall.
225/45ZR17 70kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
215/45ZR17 70kPa (0.8 kgf/cm2, 0.7 bar, 10 psi)
P205/55R16 89V 70kPa (0.8 kgf/cm2, 0.7 bar, 10 psi)
