1.
FOREWORD
i
Welcome to the growing group of value±conscious people who drive Lexus\
vehicles. We
are proud of the advanced engineering and quality construction of each v\
ehicle we build.
This
Owner's Manual explains the features of your new Lexus. Please read it and follow the
instructions carefully so that you can enjoy many years of safe motoring\
.
When it comes to service, remember that your Lexus dealer knows your veh\
icle best and
is interested in your complete satisfaction. Your Lexus dealer will provide quality
maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance \
for any reason,
please call the following number:
U.S. OWNERS

When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1±800±25±LEXUS (Toll±Free)
(1±800±255±3987)

HAWAII:
Lexus Customer Service Assistance 1±800±25±LEXUS (Toll±Free)
(1±800±255±3987)
CANADIAN OWNERS

When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service 1±800±26±LEXUS (Toll±Free)
(1±800±265±3987)
Please leave this Owner's Manual in this vehicle at the time of resale. The next owner
will need this information also.
All information and specifications in this manual are current at the tim\
e of printing.
However, because of the Lexus policy of continual product improvement, we reserve\
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipm\
ent not
installed on your vehicle.

2.
INTRODUCTION
ii
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:

New vehicle warranty

Emission control systems warranty

Others
For further information, please refer to the ºOwner's Guideº,
ºOwner's Manual Supplementº or ºWarranty Bookletº.
Your responsibility for maintenance
It is the owner's responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner's Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, pl ease refer to the ºOwner's Manual
Supplement/Scheduled Maintenanceº.
Accessories, spare parts and modification of
your Lexus
A wide variety of non±genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle. This vehicle should not be modified with non±genuine Lexus
products. Modification with non±genuine Lexus products
could af
fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems re sulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference±Causing
Equipment Standard.
Installation of a mobile two±way radio system
As the installation of a mobile two±way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti±lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.

3.
HOW TO USE THIS MANUAL
iii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION ± QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 ± INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 ± AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 ± STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember ± drive safely!
SECTION 4 ± IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner's Manual and follow the instructions given.
SECTION 5 ± MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 ± SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

4.
HOW TO USE THIS MANUAL
iv
INDEX
The page number is listed for each item in the Owner's Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means ºDo notº, ºDo not do thisº, or ºDo not le\
t this
happenº.
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed what you must or must not do in order to avoid
or reduce the risk to yourself and other people.
NOTICE
This is a warning against something which may cause damage to the vehicle or its equipment if the warning isignored. You are informed what you must or must notdo in order to avoid or reduce the risk of damage to yourLexus and its equipment.
Your Lexus Owner's Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.

5.
SVPC011
PICTORIAL INDEX
v
INSTRUMENT PANEL

6.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
vi
Page
1 Power door lock switch and power window switches 18, 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Power rear view mirror control switches 82 . . . . . . .
3 Headlight cleaner switch 26
. . . . . . . . . . . . . . . . . . . . .
4 Headlight, turn signal and fog light
switch 22, 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Instrument panel light control 46
. . . . . . . . . . . . . . . . .
6 Cruise control switch 180
. . . . . . . . . . . . . . . . . . . . . . .
7 Wiper and washer switches 25
. . . . . . . . . . . . . . . . . . .
8 Emergency flasher switch 30
. . . . . . . . . . . . . . . . . . . .
9 Outside temperature display/Clock 50
. . . . . . . . . . . .
10 Front passenger's seat belt reminder light 40 . . . . . Page
11 Automatic air conditioning controls
124
. . . . . . . . . .
12 Car audio 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Seat heater switches 30
. . . . . . . . . . . . . . . . . . . . . . . . .
14 Glove box 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 Parking brake lever 168
. . . . . . . . . . . . . . . . . . . . . . . . .
16 Driving pattern selector switch 169
. . . . . . . . . . . . . . .
17 Ashtray 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
18 Cigarette lighter 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Automatic transmission selector lever 169 . . . . . . . .
20 Traction control system off switch 183
. . . . . . . . . . .
21 Hood lock release lever 64
. . . . . . . . . . . . . . . . . . . . . .

7.
SVPC014
PICTORIAL INDEX
vii

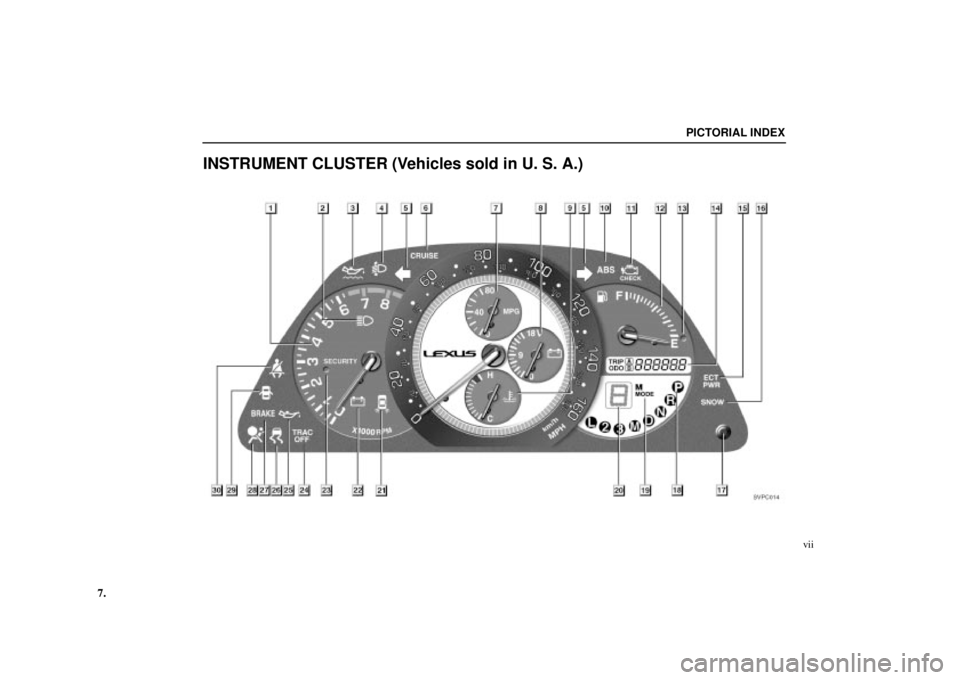

INSTRUMENT CLUSTER (Vehicles sold in U. S. A.)

8.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viii
Page
1 Tachometer37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Headlight high beam indicator light 24
. . . . . . . . . . .
3 Low engine oil level warning light 42
. . . . . . . . . . . . .
4 Automatic headlight leveling system warning
light 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
5 Turn signal indicator lights 24
. . . . . . . . . . . . . . . . . . .
6 Cruise control indicator light 180
. . . . . . . . . . . . . . . .
7 Momentary fuel consumption meter 36. . . . . . . . . . .
8 Voltmeter36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Engine coolant temperature gauge 35
. . . . . . . . . . . .
10 Anti±lock brake system warning light 43
. . . . . . . . . .
11 Malfunction indicator lamp 43
. . . . . . . . . . . . . . . . . . .
12 Fuel gauge 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Low fuel level warning light 44
. . . . . . . . . . . . . . . . . . .
14 Odometer and trip meter 38
. . . . . . . . . . . . . . . . . . . . .
15 Power mode indicator light 171
. . . . . . . . . . . . . . . . . . Page
16 Snow mode indicator light
171
. . . . . . . . . . . . . . . . . . .
17 ODO/TRIP knob 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Automatic transmission indicator lights 169 . . . . . .
19 M mode indicator 173
. . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Gear position indicator for manual control 173 . . . .
21 Rear light failure warning light 44
. . . . . . . . . . . . . . . .
22 Discharge warning light 41
. . . . . . . . . . . . . . . . . . . . . .
23 Security indicator light 120. . . . . . . . . . . . . . . . . . . . . .
24 Traction control system
off indicator/warning light 44 . . . . . . . . . . . . . . . . . . .
25 Low engine oil pressure warning light 42
. . . . . . . . .
26 Slip indicator light 183
. . . . . . . . . . . . . . . . . . . . . . . . . .
27 Brake system warning light 39
. . . . . . . . . . . . . . . . . . .
28 SRS warning light 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
29 Open door warning light 44
. . . . . . . . . . . . . . . . . . . . . .
30 Driver's seat belt reminder light 40
. . . . . . . . . . . . . . .

9.
SVPC015
PICTORIAL INDEX
ix

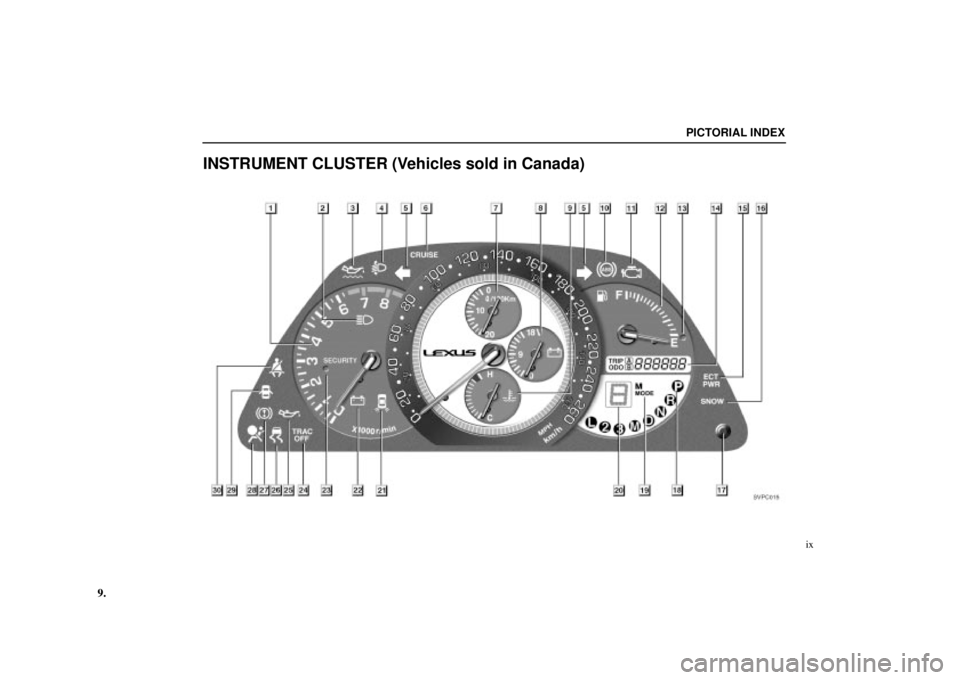

INSTRUMENT CLUSTER (Vehicles sold in Canada)

10.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
x
Page
1 Tachometer37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Headlight high beam indicator light 24
. . . . . . . . . . .
3 Low engine oil level warning light 42
. . . . . . . . . . . . .
4 Automatic headlight leveling system warning
light 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
5 Turn signal indicator lights 24
. . . . . . . . . . . . . . . . . . .
6 Cruise control indicator light 180
. . . . . . . . . . . . . . . .
7 Momentary fuel consumption meter 36. . . . . . . . . . .
8 Voltmeter36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Engine coolant temperature gauge 35
. . . . . . . . . . . .
10 Anti±lock brake system warning light 43
. . . . . . . . . .
11 Malfunction indicator lamp 43
. . . . . . . . . . . . . . . . . . .
12 Fuel gauge 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Low fuel level warning light 44
. . . . . . . . . . . . . . . . . . .
14 Odometer and trip meter 38
. . . . . . . . . . . . . . . . . . . . .
15 Power mode indicator light 171
. . . . . . . . . . . . . . . . . . Page
16 Snow mode indicator light
171
. . . . . . . . . . . . . . . . . . .
17 ODO/TRIP knob 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Automatic transmission indicator lights 169 . . . . . .
19 M mode indicator 173
. . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Gear position indicator for manual control 173 . . . .
21 Rear light failure warning light 44
. . . . . . . . . . . . . . . .
22 Discharge warning light 41
. . . . . . . . . . . . . . . . . . . . . .
23 Security indicator light 120. . . . . . . . . . . . . . . . . . . . . .
24 Traction control system
off indicator/warning light 44 . . . . . . . . . . . . . . . . . . .
25 Low oil pressure warning light 42
. . . . . . . . . . . . . . . .
26 Slip indicator light 183
. . . . . . . . . . . . . . . . . . . . . . . . . .
27 Brake system warning light 39
. . . . . . . . . . . . . . . . . . .
28 SRS warning light 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
29 Open door warning light 44
. . . . . . . . . . . . . . . . . . . . . .
30 Driver's seat belt reminder light 40
. . . . . . . . . . . . . . .
