FOREWORD
i
Welcome to the growing group of value±conscious people who drive Lexus\
vehicles. We
are proud of the advanced engineering and quality construction of each v\
ehicle we build.
This
Owner's Manual explains the features of your new Lexus. Please read it and follow the
instructions carefully so that you can enjoy many years of safe motoring\
.
When it comes to service, remember that your Lexus dealer knows your veh\
icle best and
is interested in your complete satisfaction. Your Lexus dealer will provide quality
maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance \
for any reason,
please call the following number:
U.S. OWNERS

When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1±800±25±LEXUS (Toll±Free)
(1±800±255±3987)

HAWAII:
Lexus Customer Service Assistance 1±800±25±LEXUS (Toll±Free)
(1±800±255±3987)
CANADIAN OWNERS

When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service 1±800±26±LEXUS (Toll±Free)
(1±800±265±3987)
Please leave this Owner's Manual in this vehicle at the time of resale. The next owner
will need this information also.
All information and specifications in this manual are current at the tim\
e of printing.
However, because of the Lexus policy of continual product improvement, we reserve\
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipm\
ent not
installed on your vehicle.

3.
HOW TO USE THIS MANUAL
iii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION ± QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 ± INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 ± AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 ± STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember ± drive safely!
SECTION 4 ± IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner's Manual and follow the instructions given.
SECTION 5 ± MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 ± SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

8.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viii
Page
1Tachometer41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Headlight high beam indicator light 28
. . . . . . . . . . .
3Low engine oil level warning light 47
. . . . . . . . . . . . .
4Vehicle skid control system warning light 49 . . . . . .
5Turn signal indicator lights 28
. . . . . . . . . . . . . . . . . . .
6Cruise control indicator light 237
. . . . . . . . . . . . . . . .
7Momentary fuel consumption meter 40. . . . . . . . . . .
8Voltmeter40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Automatic headlight leveling system warning
light 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
10Engine coolant temperature gauge 39
. . . . . . . . . . . .
11Anti±lock brake system warning light 48
. . . . . . . . . .
12Malfunction indicator lamp 47
. . . . . . . . . . . . . . . . . . .
13Fuel gauge 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Low fuel level warning light 49
. . . . . . . . . . . . . . . . . . .
15Odometer and trip meter 42
. . . . . . . . . . . . . . . . . . . . .
16Power mode indicator light 228
. . . . . . . . . . . . . . . . . . Page
17Snow mode indicator light
228
. . . . . . . . . . . . . . . . . . .
18ODO/TRIP knob 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic transmission indicator lights 226 . . . . . .
20M mode indicator 229
. . . . . . . . . . . . . . . . . . . . . . . . . . .
21Gear position indicator for manual control 229 . . . .
22Discharge warning light 46
. . . . . . . . . . . . . . . . . . . . . .
23Rear light failure warning light 49
. . . . . . . . . . . . . . . .
24Security indicator light 172. . . . . . . . . . . . . . . . . . . . . .
25Traction control system
off indicator/warning light 49 . . . . . . . . . . . . . . . . . . . .
26Low engine oil pressure warning light 46
. . . . . . . . .
27Slip indicator light 240
. . . . . . . . . . . . . . . . . . . . . . . . . .
28Brake system warning light 43
. . . . . . . . . . . . . . . . . . .
29SRS warning light 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Open door warning light 48
. . . . . . . . . . . . . . . . . . . . . .
31Driver's seat belt reminder light 45
. . . . . . . . . . . . . . .

10.
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
x
Page
1Tachometer41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Headlight high beam indicator light 28
. . . . . . . . . . .
3Low engine oil level warning light 47
. . . . . . . . . . . . .
4Vehicle skid control system warning light 49 . . . . . .
5Turn signal indicator lights 28
. . . . . . . . . . . . . . . . . . .
6Cruise control indicator light 237
. . . . . . . . . . . . . . . .
7Momentary fuel consumption meter 40. . . . . . . . . . .
8Voltmeter40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9Automatic headlight leveling system warning
light 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
10Engine coolant temperature gauge 39
. . . . . . . . . . . .
11Anti±lock brake system warning light 48
. . . . . . . . . .
12Malfunction indicator lamp 47
. . . . . . . . . . . . . . . . . . .
13Fuel gauge 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14Low fuel level warning light 49
. . . . . . . . . . . . . . . . . . .
15Odometer and trip meter 42
. . . . . . . . . . . . . . . . . . . . .
16Power mode indicator light 228
. . . . . . . . . . . . . . . . . . Page
17Snow mode indicator light
228
. . . . . . . . . . . . . . . . . . .
18ODO/TRIP knob 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Automatic transmission indicator lights 226 . . . . . .
20M mode indicator 229
. . . . . . . . . . . . . . . . . . . . . . . . . . .
21Gear position indicator for manual control 229 . . . .
22Discharge warning light 46
. . . . . . . . . . . . . . . . . . . . . .
23Rear light failure warning light 49
. . . . . . . . . . . . . . . .
24Security indicator light 172. . . . . . . . . . . . . . . . . . . . . .
25Traction control system
off indicator/warning light 49 . . . . . . . . . . . . . . . . . . . .
26Low engine oil pressure warning light 46
. . . . . . . . .
27Slip indicator light 240
. . . . . . . . . . . . . . . . . . . . . . . . . .
28Brake system warning light 43
. . . . . . . . . . . . . . . . . . .
29SRS warning light 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Open door warning light 48
. . . . . . . . . . . . . . . . . . . . . .
31Driver's seat belt reminder light 45
. . . . . . . . . . . . . . .

OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
M: Position for manual shifting up or downshifting
(Shifting into overdrive possible)*
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
SVBA009
Shift while pressing the brake pedal. (Ignition
switch must be in the ºONº position.)
*:When the cruise control is being used, even if you downshift from º5º to º4º\
, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the \
vehicle speed, see page 239.
SV31020
BASIC OPERATION ± QUICK REFERENCE
4
3. AUTOMATIC TRANSMISSION

BASIC OPERATION ± QUICK REFERENCE
5
4. HEADLIGHT AND TURN SIGNAL
SWITCH
SVBA013
SVBA013

HEADLIGHT SWITCHWith the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control
Headlights also turn on.
With the engine started and parking brake
released Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity.
Automatic light control
SVBA014
SSBA011b
Right or left turn
Lane change
(Right or left) High beam
Headlight flasher

TURN SIGNAL SWITCH

SECTION 1 ± 1
7
INSTRUMENTS AND CONTROLS
Keys and doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Engine immobiliser system 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Back door 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .

KEYS AND DOORS
8
KEYS
11L025a

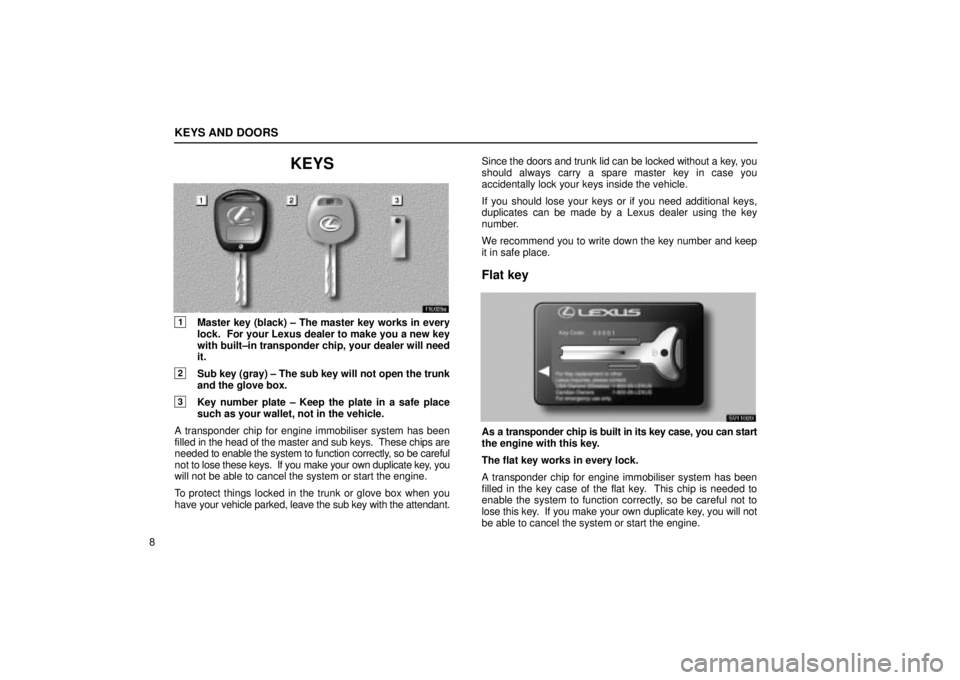

1Master key (black) ± The master key works in every
lock. For your Lexus dealer to make you a new key
with built±in transponder chip, your dealer will need
it.
2Sub key (gray) ± The sub key will not open the trunk
and the glove box.
3Key number plate ± Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobiliser system has been
filled in the head of the master and sub keys. These chips are
needed to enable the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect things locked in the trunk or glove box when you
have your vehicle parked, leave the sub key with the attendant. Since the doors and trunk lid can be locked without a key, you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend you to write down the key number and keep
it in safe place.
Flat key
SV11020
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobiliser system has been
filled in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key. If you make your own duplicate key, you will not
be able to cancel the system or start the engine.

KEYS AND DOORS
9
Insert
your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
SV11011

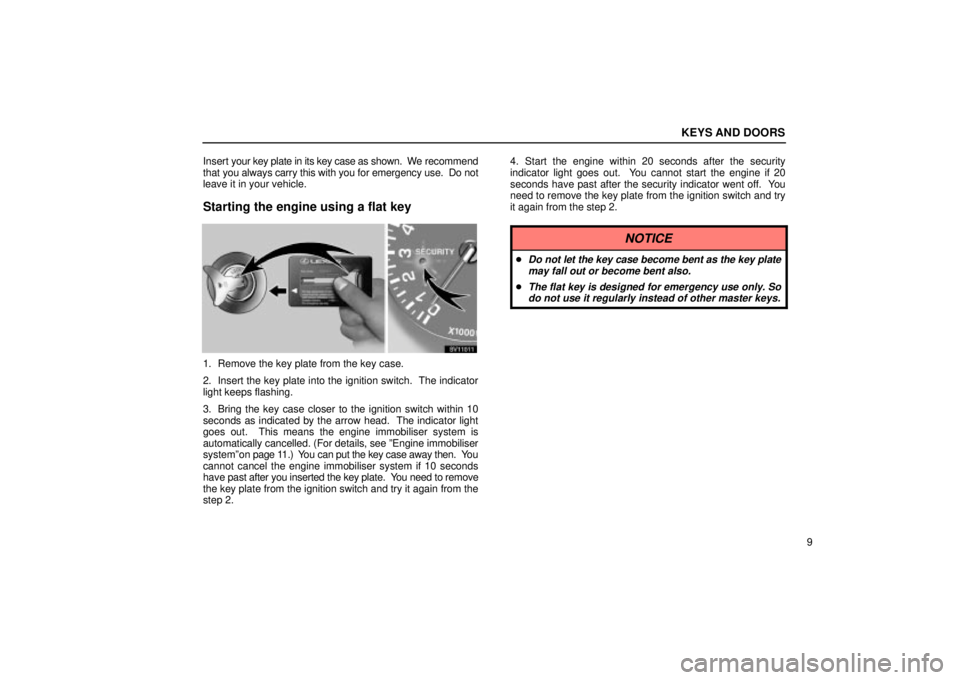

1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobiliser system is
automatically cancelled. (For details, see ºEngine immobiliser
systemºon page 11.) You can put the key case away then. You
cannot cancel the engine immobiliser system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2. 4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
NOTICE
Do not let the key case become bent as the key plate
may fall out or become bent also.
The flat key is designed for emergency use only. Sodo not use it regularly instead of other master keys.

KEYS AND DOORS
10
11L021-2

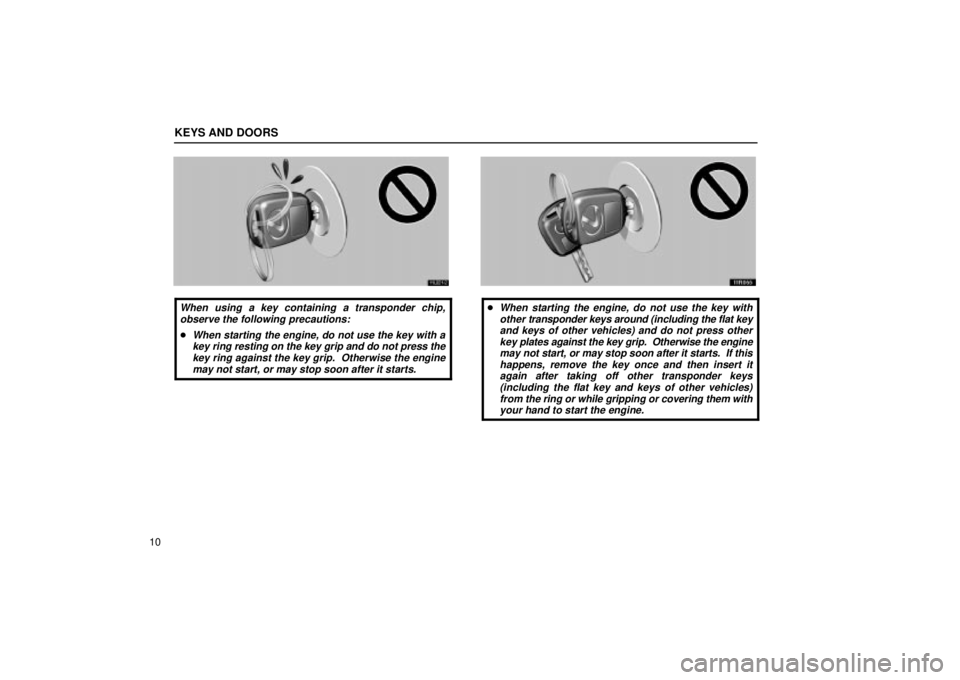

When using a key containing a transponder chip,observe the following precautions:
When starting the engine, do not use the key with akey ring resting on the key grip and do not press thekey ring against the key grip. Otherwise the enginemay not start, or may stop soon after it starts.
11R055
When starting the engine, do not use the key withother transponder keys around (including the flat key
and keys of other vehicles) and do not press other key plates against the key grip. Otherwise the enginemay not start, or may stop soon after it starts. If thishappens, remove the key once and then insert itagain after taking off other transponder keys
(including the flat key and keys of other vehicles)from the ring or while gripping or covering them with
your hand to start the engine.
