INTERIOR EQUIPMENT
48
VANITY MIRRORS
SS14001

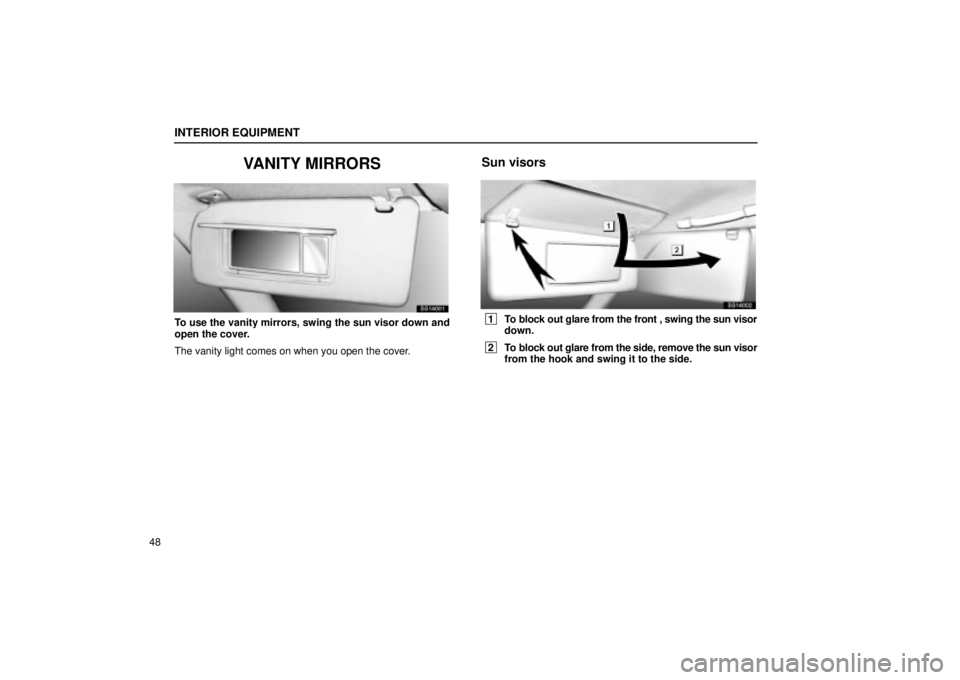

To use the vanity mirrors, swing the sun visor down and
open the cover.
The vanity light comes on when you open the cover.
Sun visors
SS14002
1To block out glare from the front , swing the sun visor
down.
2To block out glare from the side, remove the sun visor
from the hook and swing it to the side.

INTERIOR EQUIPMENT
49
INTERIOR LIGHTS
SS14003
To turn on the interior light, slide the switch.
With the switch in the ºDOORº position, the light comes on
when any of the doors are opened. After all the doors are
closed, the light remains on for about 15 seconds and then
goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in ºACCº or
ºONº position.
2. The ignition key is turned to ºACCº or ºONº when the light
is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in while the
other doors are locked.
PERSONAL LIGHTS
SS14005

With moon roof
SS14006

Without moon roof
To turn on the personal light, push the switch. To turn it
off, push the switch again.

INTERIOR EQUIPMENT
50
IGNITION SWITCH LIGHT
SS14007
For easy access to the ignition switch, the ignition switch
light comes on when any of the doors are opened.
The light remains on for about 15 seconds and goes out after
all the doors are closed. However, the light goes out
immediately when all the doors are locked or the ignition key
is in the ºACCº or ºONº position.
CLOCK
SS14008
The digital clock indicates the time with the ignition key at
the ºACCº or ºONº position. To reset the hour, press the
ºHº button. To reset the minutes, press the ºMº button.
To adjust the time to the nearest hour, press the º:00º
button.
For example, if the º:00º button is pressed when the time is
between 9:30 ± 9:59 or between 10:01 ± 10:29, the time will
change to 10:00.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o'clock).
When the headlight switch is in the first or second click stop,
you can also adjust the brightness of the display using the
instrument panel light control dial.

INTERIOR EQUIPMENT
51
OUTSIDE TEMPERATURE DISPLAY
SV14006

Vehicles sold in U.S.A.
SS14009

Vehicles sold in Canada
This display shows the outside temperature when the
ignition switch is on.The displayed temperature ranges from ±30
C (±22F) up to
50 C (122 F). The display flashes for 10 seconds when the
outside temperature goes down below 3 C (37F) or less and
informs you that the outside temperature is low. The warning
is repeated whenever the temperature rises to at least +5 C
(+41 F) and then sinks again to +3 C ( 3 7 F). If the
temperature does not appear on the display or it shows º± ±º,
take your vehicle to your Lexus dealer.
CAUTION
The outside air temperature indicator is designed to
inform you when the air temperature is near freezing.
This indicator does not detect the presence of ice on the
road. Drivers must exercise great caution in driving on
roads which are wet, slippery or icy.

INTERIOR EQUIPMENT
52
CIGARETTE LIGHTER ANDASHTRAY

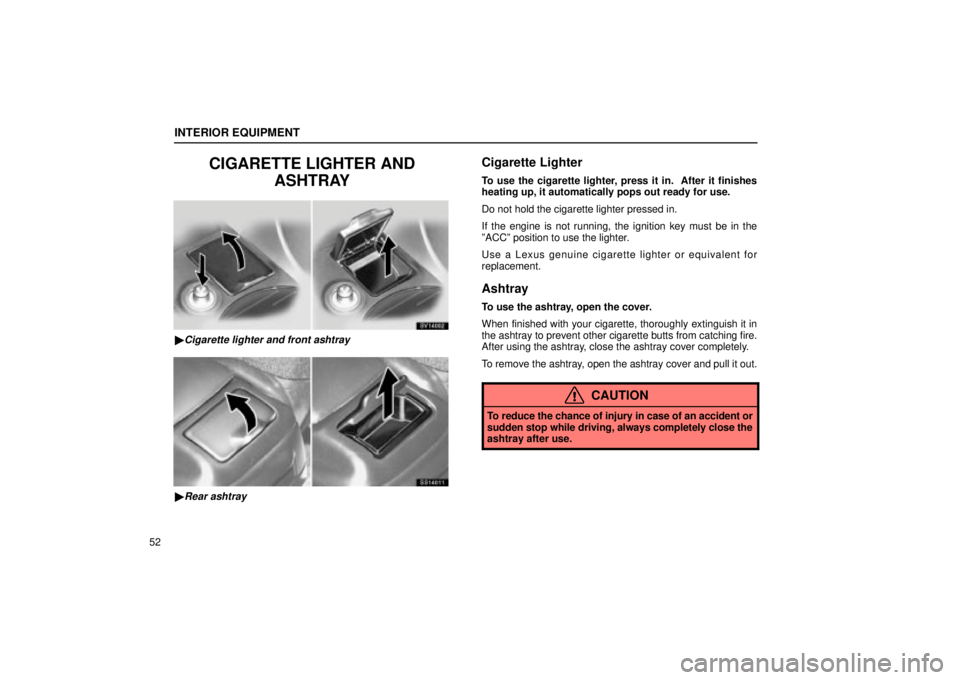

SV14002

Cigarette lighter and front ashtray
SS14011

Rear ashtray
Cigarette Lighter
To use the cigarette lighter, press it in. After it finishes
heating up, it automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
ºACCº position to use the lighter.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
Ashtray
To use the ashtray, open the cover.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the ashtray cover completely.
To remove the ashtray, open the ashtray cover and pull it out.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.

INTERIOR EQUIPMENT
53
POWER OUTLET

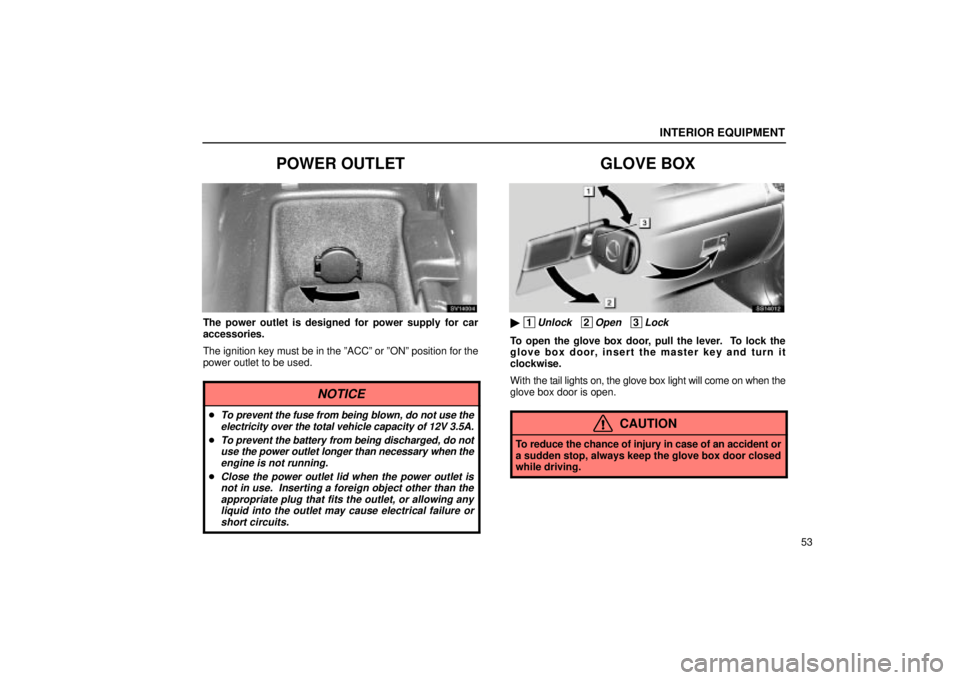

SV14004
The power outlet is designed for power supply for car
accessories.
The ignition key must be in the ºACCº or ºONº position for t\
he
power outlet to be used.
NOTICE
To prevent the fuse from being blown, do not use theelectricity over the total vehicle capacity of 12V 3.5A.
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting a foreign object other than theappropriate plug that fits the outlet, or allowing anyliquid into the outlet may cause electrical failure or
short circuits.
GLOVE BOX
SS14012

1Unlock 2Open 3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.

INTERIOR EQUIPMENT
54
GARAGE DOOR OPENER
The garage door opener (HomeLink Universal
Transceiver) is manufactured under license from
HomeLink
 and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
(a) Programming the HomeLink

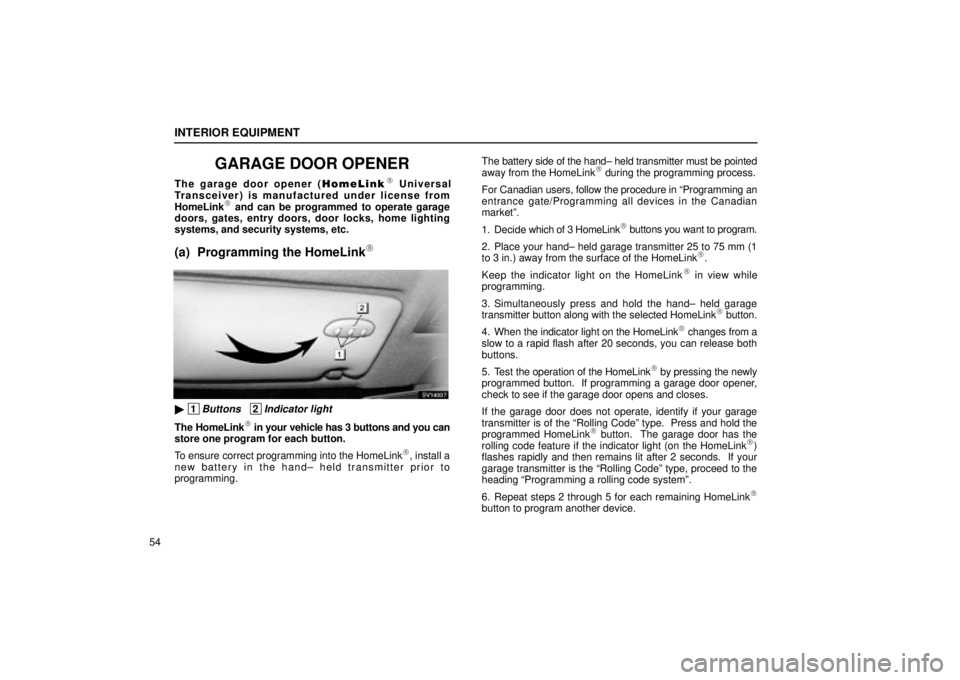

SV14007

1Buttons 2Indicator light
The HomeLink in your vehicle has 3 buttons and you can
store one program for each button.
To ensure correct programming into the HomeLink
, install a
new battery in the hand± held transmitter prior to
programming. The battery side of the hand± held transmitter must be pointed
away from the HomeLink
 during the programming process.
For Canadian users, follow the procedure in ªProgramming an
entrance gate/Programming all devices in the Canadian
marketº.
1. Decide which of 3 HomeLink
 buttons you want to program.
2. Place your hand± held garage transmitter 25 to 75 mm (1
to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Simultaneously press and hold the hand± held garage
transmitter button along with the selected HomeLink
 button.
4. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
 by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
If the garage door does not operate, identify if your garage
transmitter is of the ªRolling Codeº type. Press and hold the
programmed HomeLink
 button. The garage door has the
rolling code feature if the indicator light (on the HomeLink)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the ªRolling Codeº type, proceed to the
heading ªProgramming a rolling code systemº.
6. Repeat steps 2 through 5 for each remaining HomeLink

button to program another device.

INTERIOR EQUIPMENT
55
Programming a rolling code system
If your device is ªRolling Codeº equipped, it is necessary
to follow steps 1 through 4 under the heading
ªProgramming the HomeLink
º before proceeding with
the steps listed below.
1. Locate the ªtrainingº button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner's
guide supplied by the garage door opener manufacturer for the
location of this ªtrainingº button.
2. Press the ªtrainingº button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
3. Press and release the vehicle's programmed HomeLink

button twice. The garage door may open. If the door does
open, the programming process in complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize the HomeLink
 unit and be able activate the garage
door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink

button to program another rolling code system.
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand± held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
 in view while
programming.
3. Press and hold the selected HomeLink
 button.
4. Continuously press and release (cycle) the hand± held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
6. Test the operation of the HomeLink
 by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink

button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.

INTERIOR EQUIPMENT
56
Reprogramming a button
Individual HomeLink buttons cannot be erased, however, to
reprogram a single button, follow the procedure ªProgramming
the HomeLink
º.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink memory
(all three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
 memory.
CAUTION
 When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
 Do not use this HomeLink
 Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door
opener without these features increases risk of
serious injury or death.

INTERIOR EQUIPMENT
57
FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Rules Part 15.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
that may be received, including interference that
may cause undesired operation. WARNING: This
transmitter has been tested and complies with
FCC and DOC/MDC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate the device.
CUP HOLDERS
SS14015

Front
To use the cup holder, open the cup holder lid.
You can use it as an accessory box by removing the holder
inside.
