CHASSIS
328
Uniform tire quality grading
This information has been prepared in accordance with
regulations issued by the National Highway T raffic Safety
Administration of the U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers
of Lexus vehicles with information on uniform tire quality
grading.
Your Lexus dealer will help answer any questions you may
have as you read this information.
DOT quality grades ± All passenger vehicle tires must
conform to Federal Safety Requirements in addition to
these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and
maximum section width. For example: Treadwear 200
Traction AA Temperature A
Treadwear ± The treadwear grade is a comparative rating
based on the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and a half (1 ± 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly
from the norm due to variations in driving habits, service
practices and differences in road characteristics and climate.
Traction AA, A, B, C ± The traction grades, from highest to
lowest, are AA, A, B and C, and they represent the tire's ability
to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of asphalt
and concrete. A tire marked C may have poor traction
performance. Warning: The traction grade assigned to this tire is based on
braking (straight ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C ± The temperature grades are A (the
highest), B, and C, representing the tire's resistance to the
generation of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A represent
higher
levels of performance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this tire are established
for a tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and
possible tire failure.
Tire selection
When replacing a tire, use only the same size and
construction as originally installed and with the same or
greater load capacity.
Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration, ground
clearance, and clearance between the body and tires or snow
chains.

CHASSIS
329
Do not mix radial, belted, or conventional tires on your
vehicle.
Do not use tires or wheels other than the manufacturer's
recommended size.
It can cause dangerous handling characteristics, resulting in
loss of control. If you need to change from conventional tires
to radial tires or vice versa, replace them as a set.
INSTALLING SNOW TIRES AND
CHAINS
When to use snow tires or chains
Snow tires or chains are recommended when driving on
snow or ice.
On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.
Snow tire selection
If you need snow tires, select the same size, construction
and load capacity as the original tires on your Lexus.
Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.
Snow tire installation
Snow tires should be installed on all wheels.
Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.

CHASSIS
330
CAUTION
Do not drive with the snow tires incorrectly inflated.
 Never drive over 120 km/h (75 mph) with any type of
snow tires.
Tire chain selection
63L009a

1Side chain 2Cross chain
Use the tire chains of correct size.
For 225/45ZR17 tires, use the following type chains.
mm (in.)
A: Diameter of side chain 3.0 (0.12)
B: Diameter of cross chain 4.0 (0.16) For 205/55R16, 215/45ZR17 tires, use SAE Class ºSº type
radial tire chains, with the exception of radial cable chains or
V±bar type chains.
Regulations regarding the use of tire chains vary
according to location or type of road. Always check the
local regulations before installing chains.
NOTICE
If the wrong combination of tire and chain is used, the
chains could damage the vehicle body.

CHASSIS
331
Chain installation
Install the chains on the rear tires as tightly as possible.
Do not use tire chains on the front tires. Retighten chains
after driving 0.5 ± 1.0 km (1/4 ± 1/2 mile).
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
CAUTION
Do not exceed 50 km/h (30 mph) or the chain
manufacturer's recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or locked±wheel braking, as use of
chains may adversely affect vehicle handling.
 When driving with chains installed, be sure to drive
carefully. slow down before entering the curves to
avoid losing control of the vehicle, it may cause an
accident.
NOTICE
Do not attempt to use a tire chain on the compact spare
tire, as it may result in damage to the vehicle as well asthe tire.
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bends, cracks or heavy
corrosion, the wheel should be replaced.
If you fail to replace damaged wheels, the tire may slip off the
wheel or cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.

CHASSIS
332
ALUMINUM WHEEL PRECAUTIONS
When installing aluminum wheels, check that the wheel
nuts are tight after driving your vehicle the first 1600 km
(1000 miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only the Lexus wheel nuts and wrench designed for
your aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
SUSPENSION AND CHASSIS
CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

SECTION 6 ± 4
333
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 341
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 343
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 344
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 346
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
334
SPECIFICATIONS
± FUSE LOCATION
SV64029

1Engine compartment
2Passenger's side kick panel
3Driver's side kick panel
± FUSES
SV64022

Driver's side kick panel
SV64023

Passenger's side kick panel

ELECTRICAL COMPONENTS
335

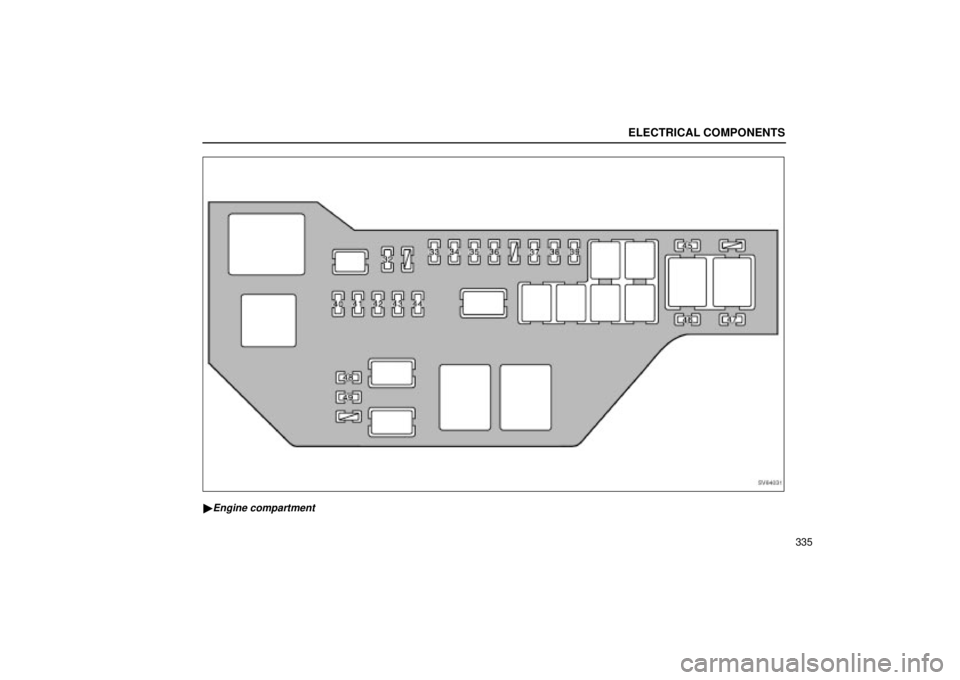

SV64031

Engine compartment

ELECTRICAL COMPONENTS
336
No.FUSEAMPERECIRCUIT
1 D FR P/W20Power window system
2 TAIL10Tail lights, Side marker lights,
License plate lights,
Parking lights
3 GAUGE10
Back±up lights, Power window,
Gauges and meters,
Service reminder indicators and
buzzers,
Emergency flashers,
Windshield defogger,
Outside rear view mirror
defogger
4 DOOR20Door lock system
5 PANEL7.5
Instrument panel lights,
Seat heater, Cigarette lighter,
Automatic transmission system,
Traction control system,
Rear fog light, Ashtray light
6 WASHER15Windshield washer,
Headlight cleaner
7 STARTER7.5Starting system
8 FR DEF20Windshield wiper deicer
9 A/C10Air conditioning system
10 SEAT HTR15Seat heater
11 CIG15Cigarette lighter, Power outlet
12 S/ROOF30Moon roof
No.FUSEAMPERECIRCUIT
13 ECU±IG10
Radiator fan,
Anti±lock brake system,
Moon roof, Shift lock system,
Air conditioning system,
Door lock system,
Headlight beam level control,
Theft deterrent system
14 SRS±ACC10SRS system
15 STOP15Stop lights, Shift lock system,
Anti±lock brake system
16 WIPER25Windshield wipers
17 RADIONO.210Audio, Air conditioning,
Outside rear view mirror,
Shift lock system
18 DOOR DL15Power seat system
19 DOME7.5
Interior lights, Trunk light,
Vanity lights,
Ignition switch light, Map light,
Door courtesy lights
20 FR FOG15Fog lights
21 P FR P/W20Power window system
22 PWR
OUTLET15Power outlets
23 ECU±B27.5Theft deterrent system,
Door lock system
24 D RR P/W20Power window system
25 MIR HTR15Outside rear view mirror

ELECTRICAL COMPONENTS
337
No.FUSEAMPERECIRCUIT
26 MPX±B10
Power window system,
Air conditioning,
Gauges and meters,
Theft deterrent system
27 P RR P/W20Power window system
28 SRS±B7.5SRS system, Door lock system
29 TV7.5Television
30 OBD7.5On±board diagnosis system
31 IGN7.5
SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system,
Cruise control system
32 ECU±B120
Theft deterrent system,
Door lock system,
Interior light, Trunk light,
Vanity light, Ignition switch light,
Map light, Door courtesy lights,
Power window system,
Air conditioning,
Gauges and meters
33 ALT±S7.5Charging system
34 ETCS15Electronic throttle control
system
35 AM220
Starting system, SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system, Cruise control
system
36 HORN10Horn
No.FUSEAMPERECIRCUIT
37 RADIONO.120Audio
38 TURN±HAZ15Turn signal lights
39 EFI25
Multiport fuel injection
system/sequential multiport fuel
injection system,
Emission control system,
Engine immobiliser system
40 DRL NO.230Daytime running light system
41 DRL NO.17.5Daytime running light system
42 H±LP L LW R15Left±hand headlight
(low beam), Fog lights
43 H±LP R LW R15Right±hand headlight
(low beam)
44 ABS27.5Anti±lock brake system
45 SPARESpare fuse
46 SPARESpare fuse
47 SPARESpare fuse
48 H±LP LUPR10Left±hand headlight
(high beam)
49 H±LP R UPR10
Right±hand headlight
(high beam),
Service reminder indicators and
buzzers
